TELEMECANIQUE SENSORS 9007C52B2 Limit Switch, Standard Pretravel, Spring Return, 1 NO And 1 NC
Item: AF9FWRModel: 9007C52B2Cross Ref: 2EF74
7 In Stock
Ships within 2 days via
5.00% off
€357.84 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Limit Switch |
| Ac Contact Rating | 10A @ 600V |
| Actuator | No Lever, Rotary |
| Actuator Location | Side |
| Actuator Style | No Lever, Rotary Head |
| Body Configuration | Plug In |
| Body Depth | 1.14" |
| Body Material | Zinc |
| Body Style | X |
| Body Width | 0.83" |
| Boot Sealed Actuator | No |
| Contact Form | 1NO/1NC |
| Dc Contact Rating | 10A @ 600V |
| Depth | 1.79" |
| Directional Movement | CCW/CW |
| Electrical Connection | Screw Clamp Terminals |
| Flange Height | 5 5/8" |
| Height | 3.14" |
| Hole Pattern | 2 Hole Diagonal |
| Hole Spacing | 2.35" x 1.17" |
| Included Actuator | Actuator Not Included |
| Inlet Size | 1/2" |
| Ip Rating | IP67 |
| Max. Operating Temp. | 185°F |
| Max. Operating Torque | 4 lbs.-in. |
| Min. Operating Temp. | -20°F |
| Mounting Hole Dia. | 1/5" |
| Mounting Hole Horizontal Center To Center Distance | 30 mm |
| Mounting Hole Vertical Center To Center Distance | 60 mm |
| Mounting Mode | Surface |
| Mounting Style | Surface |
| Movement | CCW/CW |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 4, NEMA 6, NEMA 6P, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4, NEMA 6, NEMA 6P |
| No. Of Mounting Holes | 2 |
| Operating Force | 4 lbs.-in. |
| Operating Temp. | -20°F to +185°F |
| Overall Depth | 2.5" |
| Overall Height | 3.14" |
| Overall Width | 1.55" |
| Pre-travel | 10° |
| Product Datasheet | square-d-9007cr61b2.pdf |
| Resistance Properties | Shock Resistant, Vibration Resistant |
| Series | 9007C Series |
| Total Travel | 90° |
| Width | 1.55" |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 4.32 |
| Ship length (cm) | 10.67 |
| Ship width (cm) | 7.11 |
| HS code | 8536509055 |
| Country of Origin | MX |
Product Details:
Square D 9007C52B2 heavy duty limit switch is used in industrial machinery and automation systems. It provides precise control by detecting mechanical motion, enabling safe and accurate operation in manufacturing processes. This limit switch has a total travel of 90 degrees for versatile movement. It operates within a temperature range of -20 to 185 degrees F. The mounting holes for this limit switch are 0.20 inches in diameter each. This device features a zinc body for durability and corrosion resistance.
Frequently Asked Questions:
Q. What factors should I consider while choosing a limit switch?
A.
- Understand machinery requirements.
- Evaluate environmental conditions.
- Check operational range compatibility.
- Select momentary or maintained contact.
- Prioritise durability for mechanical stress.
- Match mounting style to machinery structure.
Q. How do I install Square D 9007C52B2 heavy duty limit switch?
A.
- Choose location on machinery.
- Attach using compatible holes.
- Connect wires to terminals.
- Align with moving part.
- Test by activating machinery.
- Fine-tune position if needed.
Q. Does Raptor Supplies offer similar Square D limit switches with aluminium body?

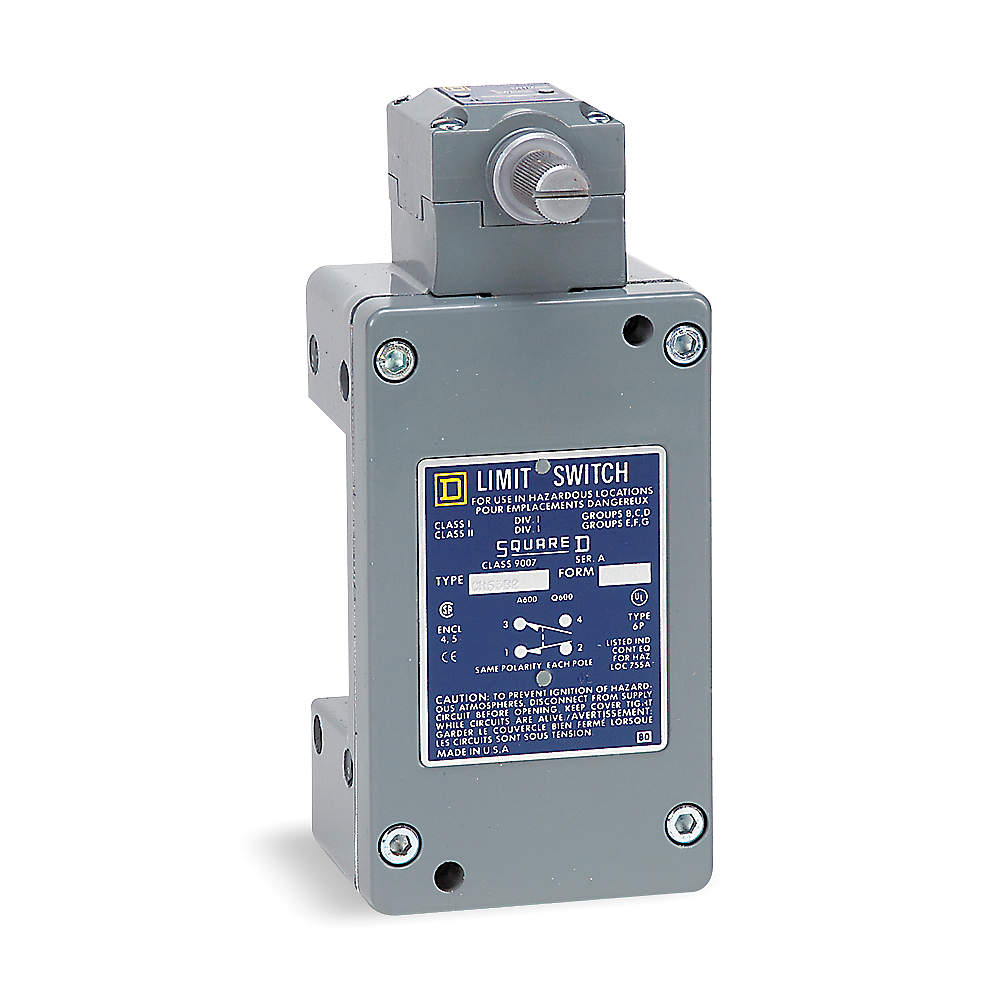

A. Yes, customers looking for limit switches with aluminium body can opt for Square D 9007CR53B2 and 9007CR53E units.
Documentation:
Product Variants
| Product | Model | Actuator Style | Electrical Connection | Contact Form | Height | Travel Length | Body Width | Boot Sealed Actuator | Body Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|

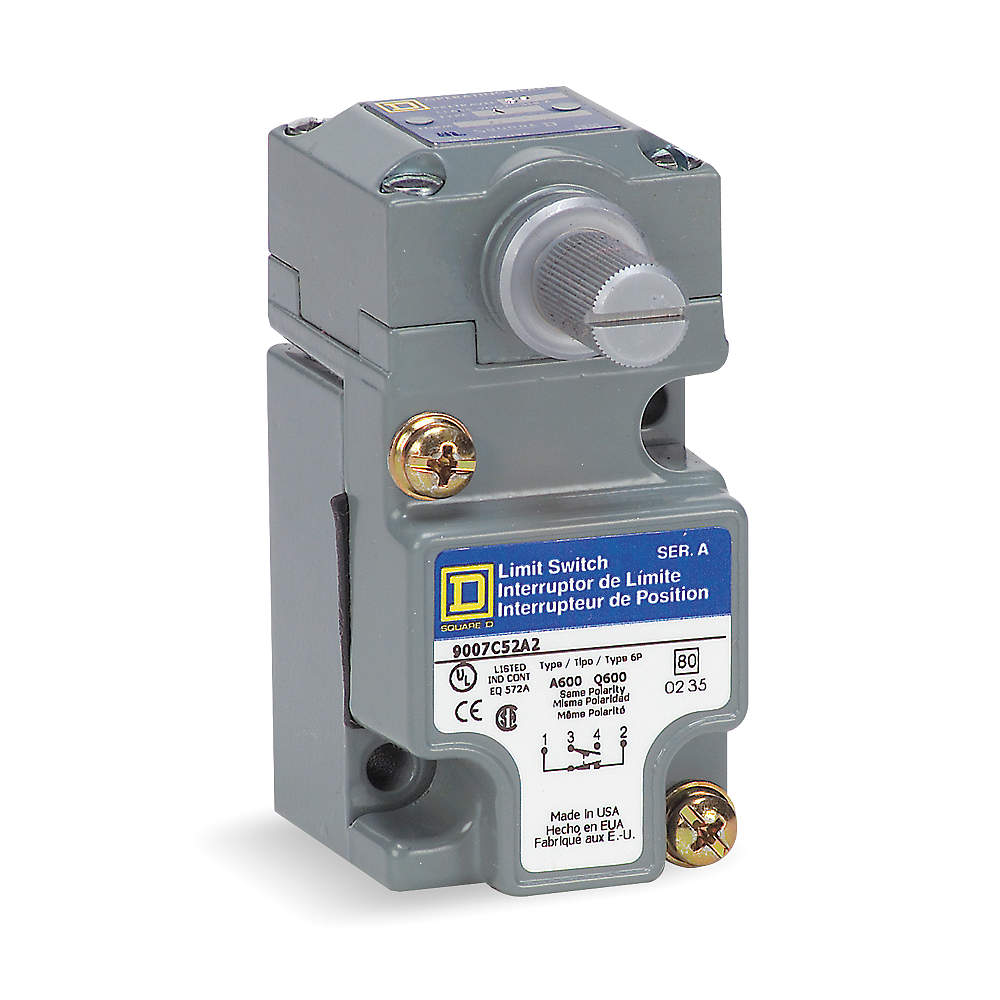

9007C52A2 | Rotary Lever Arm | Screw Clamp Terminals | 1NO/1NC | 3.14" | 90° | 0.83" | No Boot Included | 1.14" | €342.61 | |
 |
9007C52D | Roller Plunger | Screw Clamp Terminals | 1NO/1NC | 3.14" | 1/4" | 0.83" | No Boot Included | 1.14" | €426.92 | |
 |
9007C52E | Plunger | Screw Clamp Terminals | 1NO/1NC | 3.14" | 1/4" | 0.83" | No Boot Included | 1.14" | €387.55 | |
 |
9007C52F | Roller Plunger | Screw Clamp Terminals | 1NO/1NC | 3.14" | 1/4" | 0.83" | No Boot Included | 1.14" | €428.18 | |
 |
9007C52J | Wobble Stick | Screw Terminal | - | 3.14" | 90° | - | - | - | €401.73 | |
 |

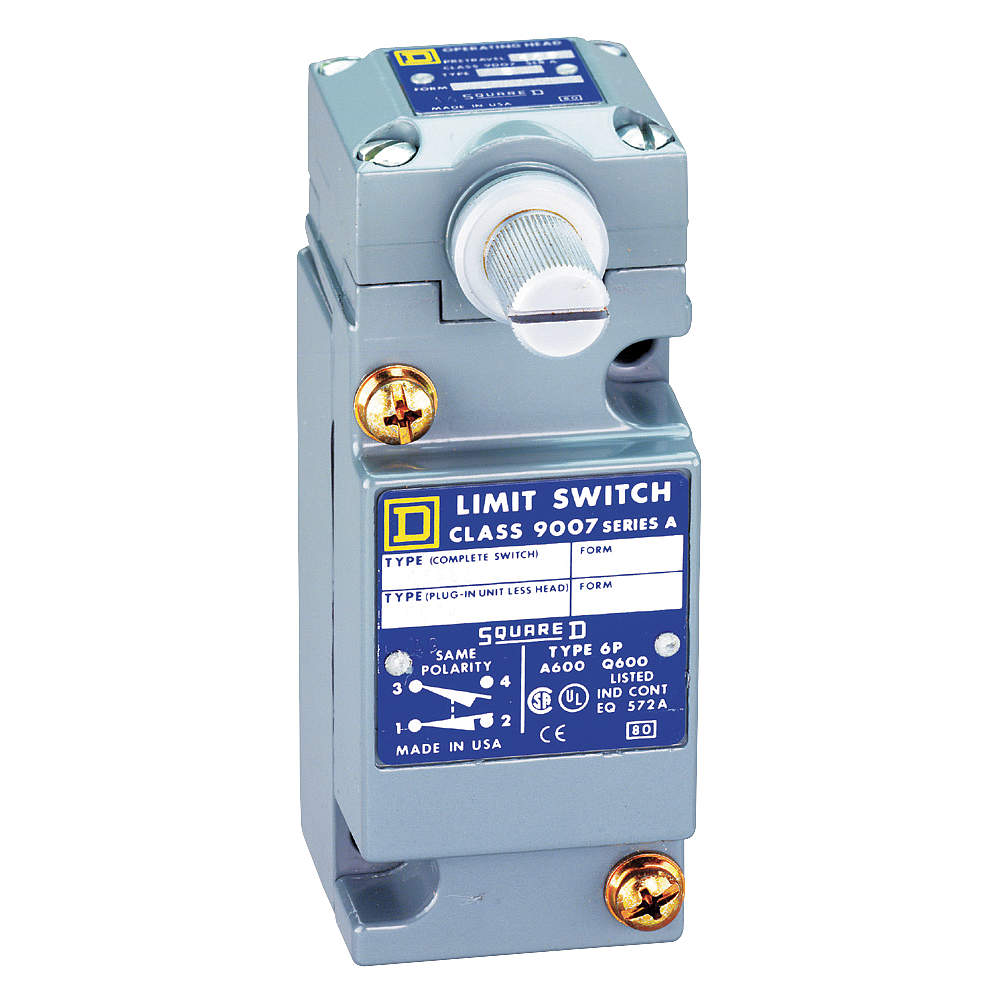

9007C52N2 | No Lever, Rotary Head | Screw Clamp Terminals | 1NO/1NC | 3.14" | 90° | 0.83" | No Boot Included | 1.14" | €381.81 | |
 |
9007C54ED | Plunger | Screw Clamp Terminals | 1NO/1NC | 4.02" | 1/4" | 1.55" | No Boot Included | 1.79" | €389.13 |
