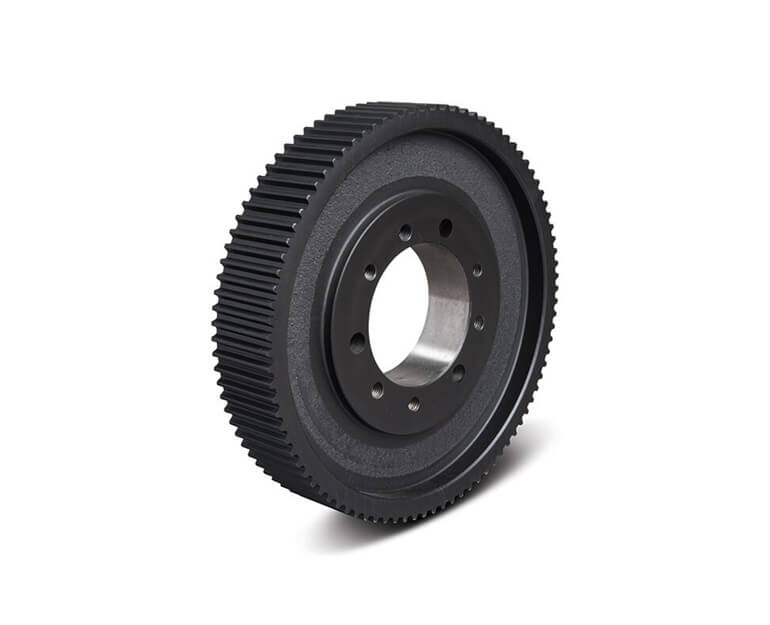

TB WOODS W908M35 QT Power Chain Belt Sprocket, Cast Iron, 5.25 inch Hub Dia., 35mm Belt Width
90
Get it by Monday, Jul 13
€638.26 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Transmission Chain Sprocket |
| Belt Width | 35 mm |
| Bore Type | Quick Disconnect Bushing |
| Bushing | SF |
| Construction | Webbed |
| Dimension L | 2" |
| Dimensions E | 11/25" |
| Dimensions L | 2" |
| Dimensions M | 0.17" |
| Face Width | 1.73" |
| Hub Dia. | 5 1/4" |
| Hub Length | 1 1/4" |
| Hub Location | 1/4" |
| Material | Cast Iron |
| Max. Speed | 2790 RPM |
| No. Of Teeth | 90 |
| Outside Dia. | 8.97" |
| Pitch Dia. | 9.023" |
| Rpm High | 2790 RPM |
| Rpm High | 2,790 rpm |
Shipping Info:
| Ship weight (kg) | 6.35 |
| Ship height (cm) | 22.78 |
| Ship length (cm) | 22.78 |
| Ship width (cm) | 3.51 |
Product Variants
| Product | Model | Pitch Dia. | Outside Dia. | Belt Width | Max. Speed | Rpm High | Bushing | Pitch Length | Face Width | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
W228M12 | 2.206" | 2.15" | 12 mm | 11620 RPM | 11620 RPM | MPB | - | 0.83" | €201.70 | |
 |
W228M22 | 2.206" | 2.15" | 22 mm | 11620 RPM | 11620 RPM | MPB | - | 1.22" | €240.03 | |
 |
W228M60 | 2.206" | 2.15" | 60 mm | 11620 RPM | 11620 RPM | MPB | - | 2 19/25" | €302.23 | |
 |
W248M12 | - | - | 12 mm | 16230 RPM | 16230 RPM | JA R | - | - | €181.79 | |
 |
W248M22 | - | - | - | 16230 RPM | 16230 RPM | - | - | 1.22" | €257.94 | |
|
W248M60 | 2.406" | 2.35" | 60 mm | 10630 RPM | 10630 RPM | MPB | - | 2 19/25" | €334.54 | |
|
W268M12 | - | - | - | 14960 RPM | 14960 RPM | JA R | - | - | €183.82 |
