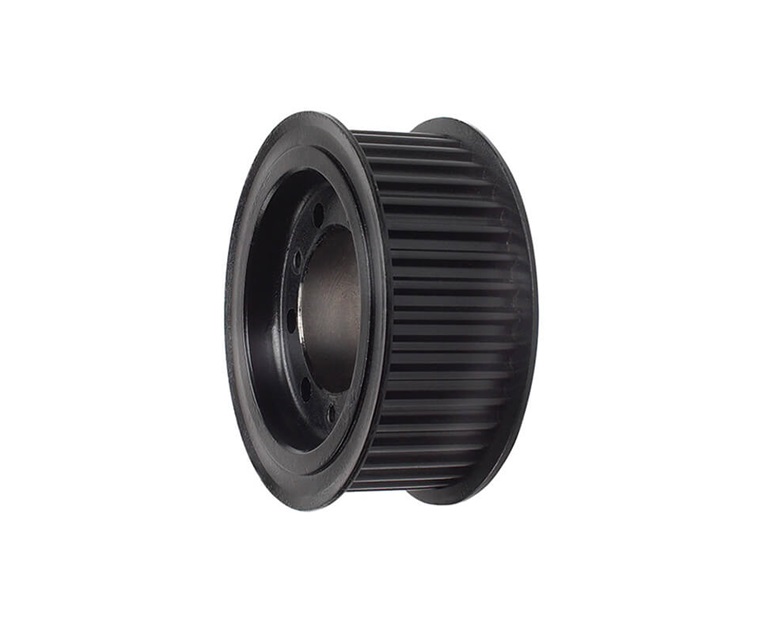

TB WOODS W348M22 QT Power Chain Belt Sprocket, Ductile Iron, 22mm Belt Width, 3.409 inch Pitch Dia.
Item: AK6XBMModel: W348M22
7 In Stock
34
Ships within 2 days via
€256.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Transmission Chain Sprocket |
| Belt Width | 22 mm |
| Bore Type | Quick Disconnect Bushing |
| Bushing | SH |
| Construction | Plain |
| Dimension E | 4/25" |
| Dimension L | 1 1/4" |
| Dimension M | 0.13" |
| Face Width | 1.22" |
| Hub Length | 0.81" |
| Hub Location | 0.41" |
| Material | Ductile Iron |
| Max. Rpm | 11380 RPM |
| Number Of Teeth | 34 |
| Outside Dia. | 3 9/25" |
| Pitch Dia. | 3.409" |
| Product Type | QT Power Chain |
| Rpm High | 11380 RPM |
| Rpm High | 11,380 rpm |
Shipping Info:
| Ship weight (kg) | 0.59 |
| Ship height (cm) | 8.53 |
| Ship length (cm) | 8.53 |
| Ship width (cm) | 2.21 |
Product Variants
| Product | Model | Number Of Teeth | Pitch Dia. | Outside Dia. | Belt Width | Max. Rpm | Rpm High | Bushing | Pitch Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
W228M12 | 22 | 2.206" | 2.15" | 12 mm | 11620 RPM | 11620 RPM | MPB | - | €201.70 | |
 |
W228M22 | 22 | 2.206" | 2.15" | 22 mm | 11620 RPM | 11620 RPM | MPB | - | €240.03 | |
 |
W228M60 | 22 | 2.206" | 2.15" | 60 mm | 11620 RPM | 11620 RPM | MPB | - | €302.23 | |
 |
W248M12 | 24 | - | - | 12 mm | 16230 RPM | 16230 RPM | JA R | - | €181.79 | |
 |
W248M22 | - | - | - | - | 16230 RPM | 16230 RPM | - | - | €257.94 | |
|
W248M60 | 24 | 2.406" | 2.35" | 60 mm | 10630 RPM | 10630 RPM | MPB | - | €334.54 | |
|
W268M12 | - | - | - | - | 14960 RPM | 14960 RPM | JA R | - | €183.82 |
