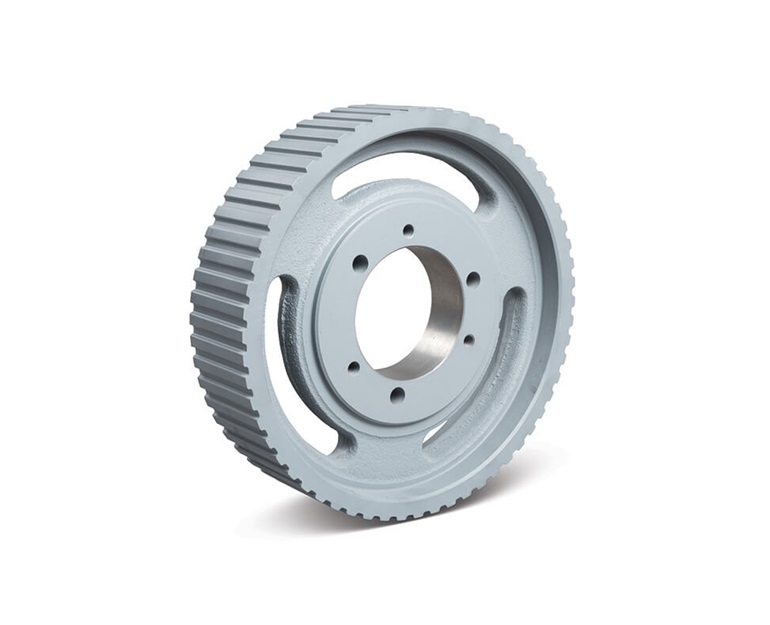

TB WOODS 60H200 Timing Belt Sprocket, Cast Iron, 5.25 inch Hub Dia., 2 inch Belt Width
60
Get it by Tuesday, Aug 25
€396.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Sprocket |
| Belt Width | 2" |
| Bore Type | Quick Disconnect Bushing |
| Bushing | SF |
| Dimension L | 2" |
| Dimensions E | 0.19" |
| Dimensions L | 2" |
| Dimensions M | 0.53" |
| Face Width | 2.34" |
| Hub Dia. | 5 1/4" |
| Hub Length | 1 1/4" |
| Hub Location | 1/2" |
| Inside Dia. | 8 1/2" |
| Material | Cast Iron |
| Max. Speed | 2640 RPM |
| No. Of Teeth | 60 |
| Pitch | 1/2" |
| Pitch Dia. | 9.549" |
| Product Type | Timing |
| Rpm High | 2640 RPM |
| Rpm High | 2,640RPM |
Shipping Info:
| Ship weight (kg) | 7.16 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 24.13 |
| Ship width (cm) | 24.13 |
Product Variants
| Model | Material | No. Of Teeth | Pitch Dia. | Belt Width | Pitch | Pitch Length | Rpm High | Dimensions L | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 80XL037 | Neoprene | 40 | - | 0.38" | 1/5" | 8" | - | - | €7.16 | |
| 90XL037 | Neoprene | 45 | - | 0.38" | 1/5" | 9" | - | - | €7.31 | |
| 120XL037 | Neoprene | 60 | - | 0.38" | 1/5" | 12" | - | - | €7.92 | |
| 150XL037 | - | 75 | - | 0.38" | 1/5" | 15" | - | - | €8.53 | |
| 200XL037 | Neoprene | 100 | - | 0.38" | 1/5" | 20" | - | - | €9.75 | |
| 220XL037 | Neoprene | 110 | - | 0.38" | 1/5" | 22" | - | - | €10.21 | |
| 210L050 | Neoprene | 56 | - | 1/2" | 3/8" | 21" | - | - | €16.75 |
