Spherical Bearings

Filter

QA1 -

Self-Lubricating Spherical Bearings

Style	Model	Bore Dia.	Ball Dia.	Outer Ring Width	Static Radial Load Capacity	Ball Material	Static Load Capacity	Inner Ring Width	Flat Dia.	Price

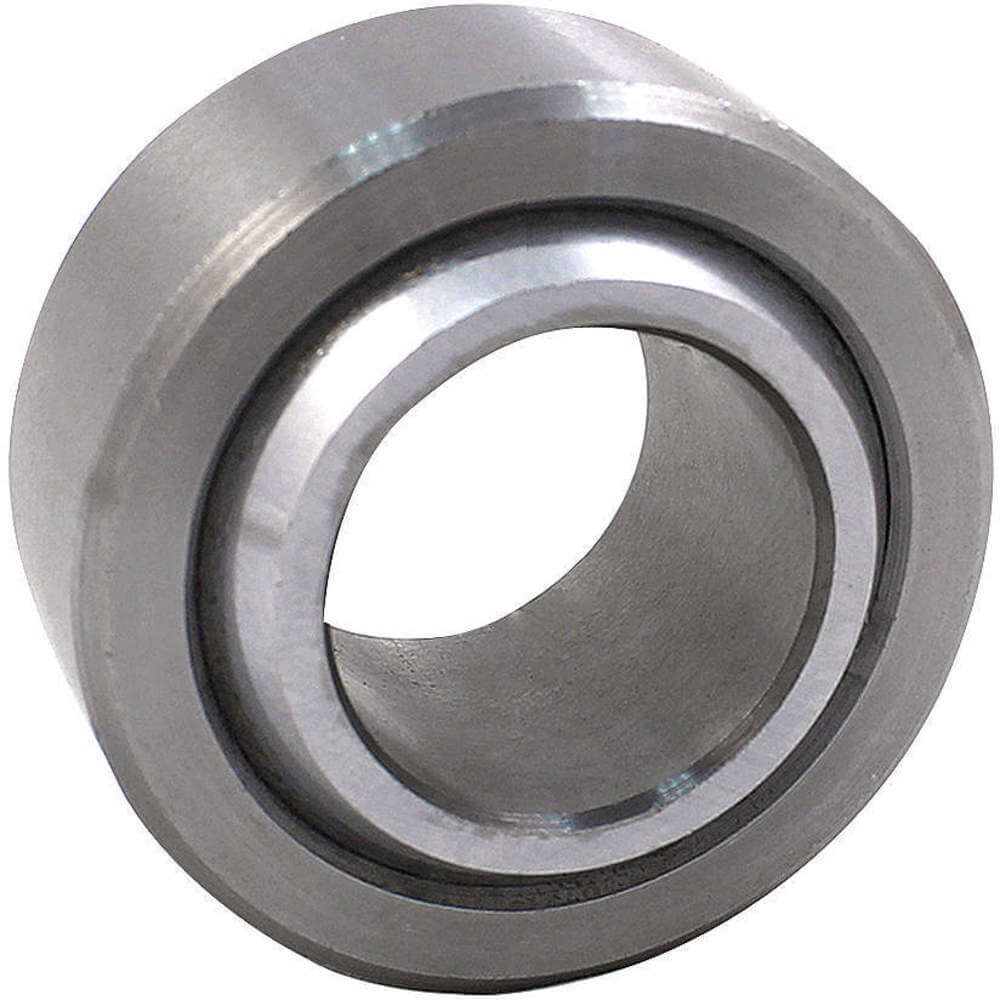

A	COM3T	0.19"	0.406"	0.218"	4875 lbf.	Alloy, Steel	4875 lbs.	0.281"	0.293"	€20.06
A	COM5T	0.312"	0.562"	0.281"	9713 lbf.	Alloy, Steel	9713 lbs.	3/8"	0.419"	-	RFQ
A	HCOM24T	1 1/2"	2.312"	1.094"	203925 lbf.	Alloy, Steel	203925 lbs.	1.86"	1.86"	€140.81
A	HCOM20T	1 1/4"	2"	0.937"	151095 lbf.	Alloy, Steel	151095 lbs.	1.187"	1.61"	€114.48
A	HCOM16T	1"	1.687"	0.781"	106230 lbf.	Alloy, Steel	106230 lbs.	1"	1 9/25"	€70.10
A	COM8T	1/2"	0.781"	0.39"	19875 lbf.	Alloy, Steel	19875 lbs.	1/2"	0.64"	€18.00
A	COM4T	1/4"	1/2"	1/4"	7425 lbf.	Alloy, Steel	7425 lbs.	0.343"	0.364"	€19.99
A	HCOM32T	2"	2.937"	1.375"	325590 lbf.	Alloy, Steel	325590 lbs.	1 3/4"	2.36"	-	RFQ
A	COM12T	3/4"	1.187"	0.593"	47880 lbf.	Alloy, Steel	47880 lbs.	3/4"	0.92"	€30.12
A	COM10T	5/8"	0.968"	-	-	Steel	31920 lbs.	-	-	€23.77
A	COM14T	7/8"	1.312"	0.703"	62940 lbf.	Alloy, Steel	62940 lbs.	7/8"	0.98"	€38.97
A	COM9T	9/16"	7/8"	0.437"	24945 lbf.	Alloy, Steel	24945 lbs.	0.562"	0.71"	€23.54

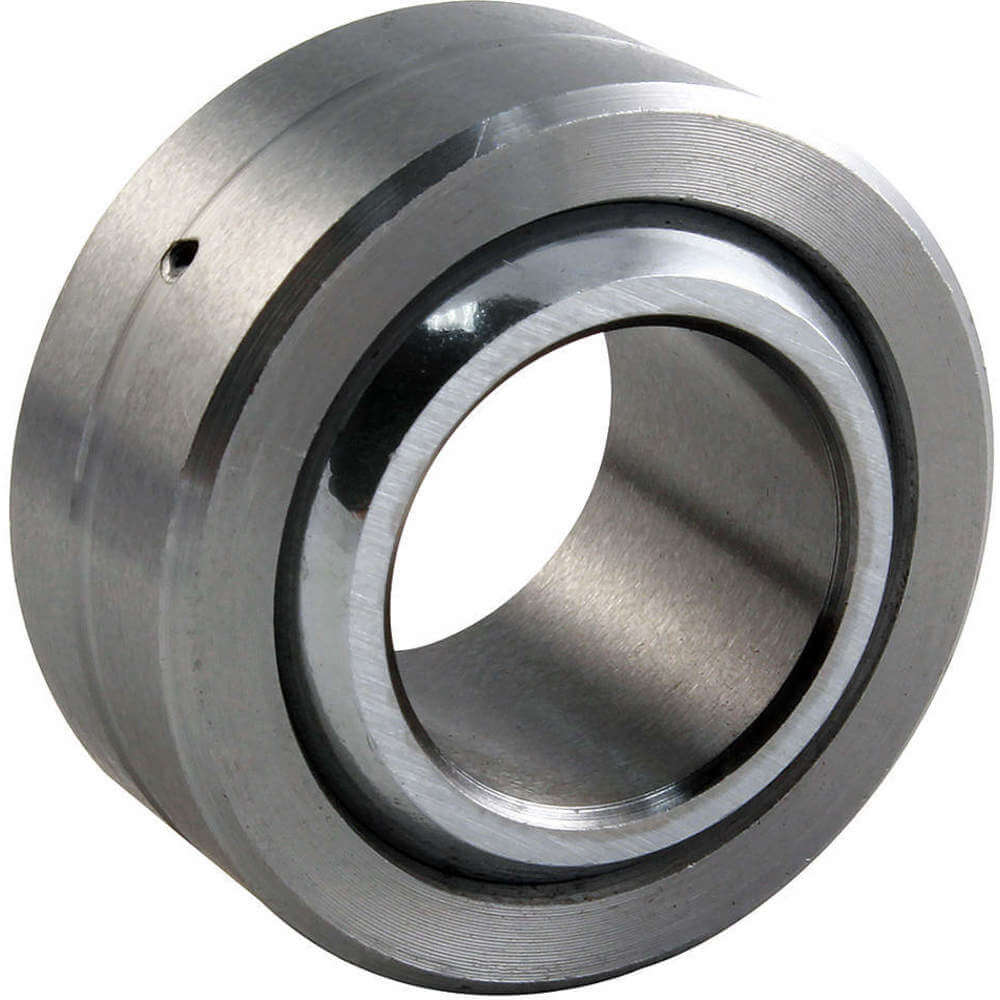

QA1 -

Economical Spherical Bearings

Style	Model	Bore Dia.	Ball Dia.	Outer Ring Width	Static Radial Load Capacity	Inner Ring Width	Flat Dia.	Overall Width	Static Load Capacity	Price
A	COM3	0.19"	0.406"	0.218"	4875 lbf.	0.281"	0.293"	0.281"	4875 lbs.	€12.11
A	COM5	0.312"	0.562"	0.281"	9713 lbf.	3/8"	0.419"	3/8"	9713 lbs.	€11.82
A	HCOM16	1"	1.687"	0.781"	106230 lbf.	1"	1.36"	1"	106230 lbs.	€77.64
A	HCOM19	1.187"	2"	0.937"	151095 lbf.	1.187"	1.61"	1.187"	151095 lbs.	€102.58
A	COM4	1/4"	1/2"	1/4"	7425 lbf.	0.343"	0.364"	0.343"	7425 lbs.	€12.11
A	COM6	3/8"	0.656"	0.312"	12600 lbf.	0.406"	0.516"	0.406"	12600 lbs.	€11.87
A	COM2	3/16"	0.343"	0.187"	3200 lbf.	1/4"	0.235"	1/4"	3200 lbs.	€12.36
A	COM14	7/8"	1.312"	0.703"	62940 lbf.	7/8"	0.98"	7/8"	62940 lbs.	€28.74

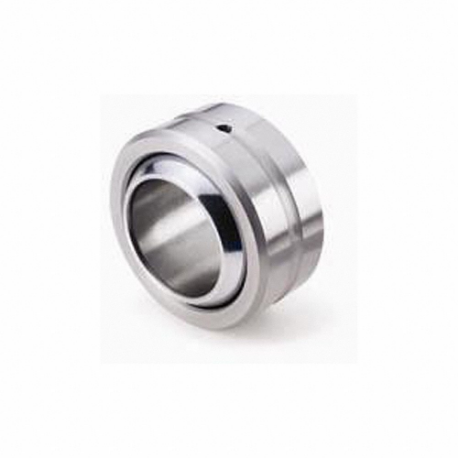

A	COM7	7/16"	0.687"	0.343"	14180 lbf.	0.437"	0.53"	0.437"	14180 lbs.	€11.49

TRITAN -

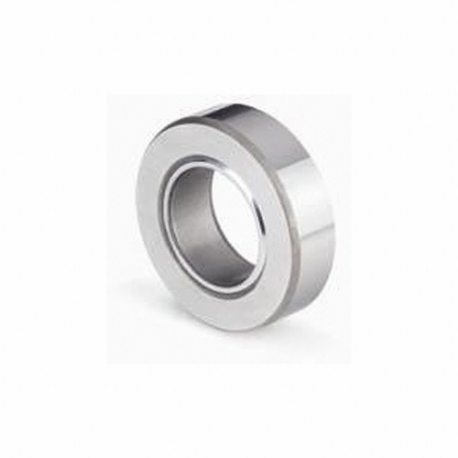

GAC F Series Spherical Plain Bearings, Angular Contact

Style	Model	Bore Dia.	Ball Dia.	Outer Ring Material	Outer Ring Width	Static Radial Load Capacity	Flat Dia.	Inner Ring Width	Liner Material	Price
A	GAC 25F	25 mm	42 mm	Alloy, Steel	14 mm	149 kN	-	-	PTFE	€107.35
A	GAC 30F	30 mm	50 mm	Steel	15 mm	188 kN	30 mm	17 mm	PTFE	€163.38
A	GAC 35F	35 mm	56 mm	Alloy, Steel	16 mm	234 kN	-	-	PTFE	€224.29
A	GAC 40F	40 mm	62 mm	Alloy, Steel	17 mm	277 kN	-	-	PTFE	€186.03
A	GAC 45F	45 mm	68.5 mm	Alloy, Steel	18 mm	324 kN	-	-	PTFE	€215.66
A	GAC 50F	50 mm	74 mm	Alloy, Steel	19 mm	370 kN	50 mm	-	PTFE	€248.73
A	GAC 60F	60 mm	88.5 mm	Alloy, Steel	21 mm	489 kN	60 mm	23 mm	PTFE	€377.85
A	GAC 70F	70 mm	102 mm	Alloy, Steel	23 mm	618 kN	70 mm	25 mm	PTFE	€494.87
A	GAC 80F	80 mm	115 mm	Alloy, Steel	25.5 mm	772 kN	80 mm	29 mm	PTFE	€364.00
A	GAC 90F	90 mm	129 mm	Alloy, Steel	28 mm	948 kN	90 mm	32 mm	PTFE	€899.58
A	GAC 100F	100 mm	141 mm	Alloy, Steel	31 mm	1151 kN	100 mm	32 mm	PTFE	€1,068.03
A	GAC 110F	110 mm	155 mm	Alloy, Steel	34 mm	1380 kN	110 mm	38 mm	PTFE	€1,096.32
A	GAC 120F	120 mm	168 mm	Alloy, Steel	37 mm	1630 kN	120 mm	38 mm	PTFE	€1,425.78

TRITAN -

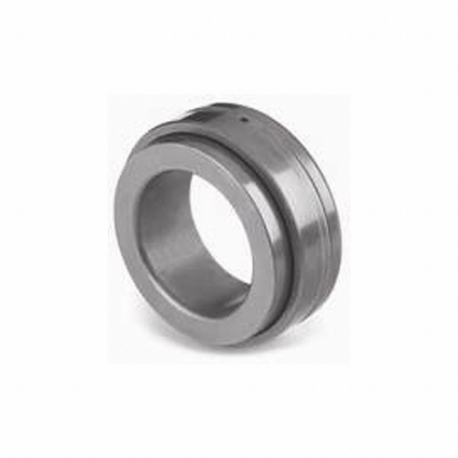

GAZ SA Series Spherical Plain Bearings, Angular Contact

Style	Model	Bore Dia.	Ball Dia.	Outer Ring Width	Static Radial Load Capacity	Overall Width	Inner Ring Width	Flat Dia.	Outer Ring Material	Price
A	GAZ 112SA	1 3/4"	2.515"	0.98"	273 kN	1.07"	0.98"	1 3/4"	Alloy, Steel	€148.74
A	GAZ 208SA	2 1/2"	3.59"	1.42"	589 kN	1.54"	1.42"	-	Alloy, Steel	€258.20
A	GAZ 204SA	2 1/4"	3.235"	1.27"	466 kN	1.39"	-	-	Alloy, Steel	€242.83
A	GAZ 200SA	2"	2 7/8"	1.13"	365 kN	1.23"	1.13"	2"	Alloy, Steel	€199.05
A	GAZ 308SA	3 1/2"	5 1/25"	2"	1167 kN	2.18"	-	-	Alloy, Steel	€865.38
A	GAZ 304SA	3 1/4"	4.675"	1.86"	995 kN	2.03"	-	-	Alloy, Steel	€496.29
A	GAZ 300SA	3"	4.31"	1.71"	838 kN	1.86"	-	-	Alloy, Steel	€413.68
A	GAZ 400SA	4"	5 3/4"	2.3"	1545 kN	2 1/2"	-	-	Alloy, Steel	€742.32
A	GAZ 500SA	5"	7.19"	2 22/25"	2455 kN	3.13"	-	-	Alloy, Steel	€1,926.34

TRITAN -

GE Series Spherical Plain Bearings, Metric

Style	Model	Bore Dia.	Ball Dia.	Outer Ring Material	Outer Ring Width	Static Radial Load Capacity	Self Lubricating Bearing	Closure	Liner Material	Price

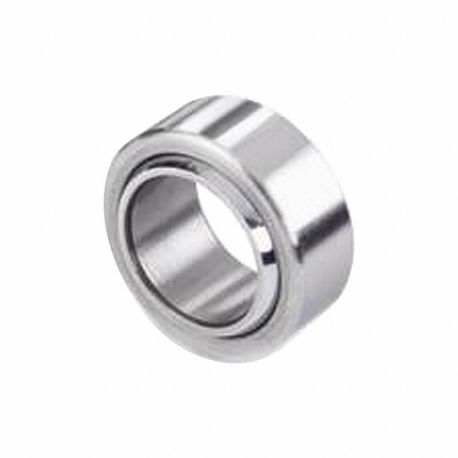

A	GE 6C	6 mm	10 mm	Alloy, Steel	4 mm	9.1 kN	Yes	Open	PTFE	€20.28
B	GE 8E	8 mm	13 mm	Alloy, Steel	5 mm	27 kN	No	Open	No Liner	€9.70
A	GE 8C	8 mm	13 mm	Alloy, Steel	5 mm	14 kN	Yes	Open	PTFE	€19.51
B	GE 10E	10 mm	16 mm	Alloy, Steel	6 mm	40 kN	No	Open	No Liner	€10.99
A	GE 10C	10 mm	16 mm	Steel	6 mm	21 kN	Yes	Open	PTFE	€21.57
A	GE 12C	12 mm	18 mm	Alloy, Steel	7 mm	28 kN	Yes	Open	PTFE	€25.17
B	GE 12E	12 mm	18 mm	Alloy, Steel	7 mm	53 kN	No	Open	No Liner	€8.84
A	GE 15C	15 mm	22 mm	Alloy, Steel	9 mm	45 kN	Yes	Open	PTFE	€24.28
B	GE 15ES 2RS	15 mm	22 mm	Alloy, Steel	9 mm	84 kN	No	Double Sealed	No Liner	€10.99
B	GE 15ES	15 mm	22 mm	Alloy, Steel	9 mm	84 kN	No	Open	No Liner	€9.62
B	GE 17ES	17 mm	25 mm	Alloy, Steel	10 mm	106 kN	No	Open	No Liner	€12.36
A	GE 17C	17 mm	25 mm	Alloy, Steel	10 mm	56 kN	Yes	Open	PTFE	€26.23
B	GE 17ES 2RS	17 mm	25 mm	Alloy, Steel	10 mm	106 kN	No	Double Sealed	No Liner	€12.36
B	GE 20ES 2RS	20 mm	29 mm	Alloy, Steel	12 mm	146 kN	No	Double Sealed	-	€12.77
A	GE 20C	20 mm	29 mm	Alloy, Steel	12 mm	78 kN	Yes	Open	PTFE	€44.48
B	GE 20ES	20 mm	29 mm	Alloy, Steel	12 mm	146 kN	No	Open	No Liner	€12.36
B	GE 25ES 2RS	25 mm	35.5 mm	Alloy, Steel	16 mm	240 kN	No	Double Sealed	No Liner	€17.86
B	GE 25ES	25 mm	35.5 mm	Alloy, Steel	16 mm	240 kN	No	Open	No Liner	€14.85
A	GE 25C	25 mm	35.5 mm	Alloy, Steel	16 mm	127 kN	Yes	Open	PTFE	€38.43
A	GE 30C	30 mm	40.7 mm	Alloy, Steel	18 mm	166 kN	Yes	Open	PTFE	€54.38
B	GE 30ES	30 mm	40.7 mm	Alloy, Steel	18 mm	310 kN	No	Open	No Liner	€17.89
B	GE 30ES 2RS	30 mm	40.7 mm	Alloy, Steel	18 mm	310 kN	No	Double Sealed	No Liner	€21.56
B	GE 30TE 2RS	30 mm	40.7 mm	Alloy, Steel	18 mm	310 kN	No	Double Sealed	No Liner	€80.91
B	GE 35TE 2RS	35 mm	47 mm	Alloy, Steel	20 mm	399 kN	No	Double Sealed	No Liner	€106.53
B	GE 35ES	35 mm	47 mm	Alloy, Steel	20 mm	399 kN	No	Open	No Liner	€23.88

TRITAN -

GEG Series Spherical Plain Bearings With Extended Inner Rings

Style	Model	Bore Dia.	Ball Dia.	Outer Ring Width	Static Radial Load Capacity	Flat Dia.	Inner Ring Width	Outer Ring Material	Self Lubricating Bearing	Price

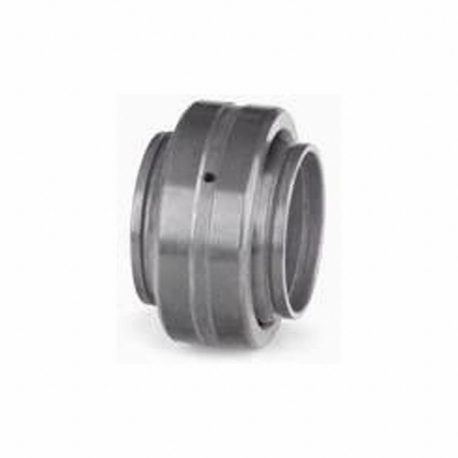

A	GEG 20ES	20 mm	29 mm	12 mm	146 kN	20 mm	20 mm	Alloy, Steel	No	€35.77
A	GEG 25ES	25 mm	35.5 mm	16 mm	240 kN	25 mm	25 mm	Alloy, Steel	No	€27.81
A	GEG 30ES	30 mm	40.7 mm	18 mm	310 kN	30 mm	30 mm	Alloy, Steel	No	€45.71
A	GEG 32ES	32 mm	44 mm	18 mm	328 kN	32 mm	32 mm	Alloy, Steel	No	€44.41
A	GEG 35ES	35 mm	47 mm	20 mm	399 kN	35 mm	35 mm	Alloy, Steel	No	€68.19
A	GEG 40ES	40 mm	53 mm	22 mm	495 kN	40 mm	40 mm	Alloy, Steel	No	€78.11
A	GEG 45ES	45 mm	60 mm	25 mm	637 kN	45 mm	-	Alloy, Steel	No	€109.99
A	GEG 50ES	50 mm	66 mm	28 mm	780 kN	50 mm	50 mm	Alloy, Steel	No	€108.79
A	GEG 63ES	63 mm	83 mm	36 mm	1260 kN	-	-	Alloy, Steel	No	€202.26
A	GEG 70ES	70 mm	92 mm	40 mm	1560 kN	-	-	Alloy, Steel	No	€259.35
A	GEG 80ES	80 mm	105 mm	45 mm	2000 kN	-	-	Alloy, Steel	No	€377.99
A	GEG 90ES	90 mm	115 mm	50 mm	2440 kN	-	-	Alloy, Steel	No	€433.58
A	GEG 100ES	100 mm	130 mm	55 mm	3030 kN	100 mm	100 mm	Alloy, Steel	No	€694.75
A	GEG 125ES	125 mm	160 mm	70 mm	4750 kN	125 mm	125 mm	Alloy, Steel	No	€1,276.23
A	GEG 160ES	160 mm	200 mm	80 mm	6800 kN	160 mm	160 mm	Alloy, Steel	No	€3,254.02

TRITAN -

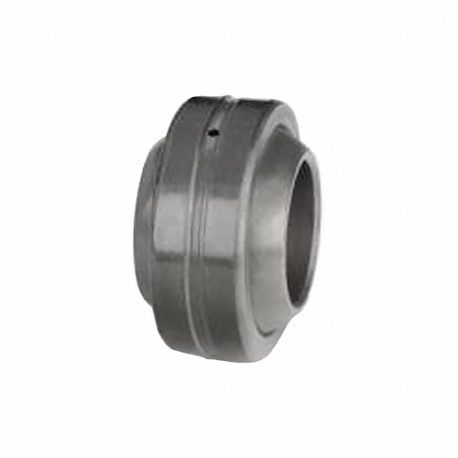

GEH Series Spherical Plain Bearings, Metric

Style	Model	Bore Dia.	Ball Dia.	Outer Ring Width	Static Radial Load Capacity	Self Lubricating Bearing	Closure	Liner Material	Inner Ring Width	Price
A	GEH 6C	6 mm	13 mm	5 mm	14 kN	Yes	Open	PTFE	-	€117.11
B	GEH 8E	8 mm	16 mm	6 mm	40 kN	No	Open	No Liner	11 mm	€129.47
A	GEH 8C	8 mm	16 mm	6 mm	21 kN	Yes	Open	PTFE	-	€109.99
A	GEH 10C	10 mm	18 mm	7 mm	28 kN	Yes	Open	PTFE	-	€60.60
B	GEH 10E	10 mm	18 mm	7 mm	53 kN	No	Open	No Liner	12 mm	€56.23
A	GEH 12C	12 mm	22 mm	9 mm	45 kN	Yes	Open	PTFE	15 mm	€57.39
B	GEH 12E	12 mm	22 mm	9 mm	84 kN	No	Open	No Liner	15 mm	€27.70
B	GEH 15ES 2RS	15 mm	25 mm	10 mm	106 kN	No	Double Sealed	No Liner	16 mm	€74.17
A	GEH 15C	15 mm	25 mm	10 mm	56 kN	Yes	Open	PTFE	-	€101.81
B	GEH 15ES	15 mm	25 mm	10 mm	106 kN	No	Open	No Liner	16 mm	€35.85
A	GEH 17C	17 mm	29 mm	12 mm	78 kN	Yes	Open	PTFE	-	€103.94
B	GEH 17ES 2RS	17 mm	29 mm	12 mm	146 kN	No	Double Sealed	No Liner	20 mm	€81.57
B	GEH 17ES	17 mm	29 mm	12 mm	146 kN	No	Open	No Liner	-	€43.90
B	GEH 20ES	20 mm	35.5 mm	16 mm	240 kN	No	Open	No Liner	25 mm	€41.09
A	GEH 20C	20 mm	35.5 mm	16 mm	127 kN	Yes	Open	PTFE	25 mm	€151.41
B	GEH 20ES 2RS	20 mm	35.5 mm	16 mm	240 kN	No	Double Sealed	No Liner	-	€58.17
B	GEH 25ES 2RS	25 mm	40.7 mm	18 mm	310 kN	No	Double Sealed	No Liner	-	€109.99
A	GEH 25C	25 mm	40.7 mm	18 mm	166 kN	Yes	Open	PTFE	28 mm	€145.72
B	GEH 30ES	30 mm	47 mm	20 mm	399 kN	No	Open	No Liner	32 mm	€87.45
B	GEH 30ES 2RS	30 mm	47 mm	20 mm	399 kN	No	Double Sealed	-	-	€155.93
B	GEH 35ES	35 mm	53 mm	22 mm	495 kN	No	Open	No Liner	-	€77.80
B	GEH 35ES 2RS	35 mm	53 mm	22 mm	495 kN	No	Double Sealed	No Liner	-	€164.57
B	GEH 40ES 2RS	40 mm	60 mm	25 mm	637 kN	No	Double Sealed	No Liner	-	€208.30
B	GEH 40ES	40 mm	60 mm	25 mm	637 kN	No	Open	No Liner	35 mm	€84.07
B	GEH 45ES	45 mm	66 mm	28 mm	780 kN	No	Open	No Liner	-	€100.70

TRITAN -

GEM Series Spherical Plain Bearings With Extended Inner Rings

Style	Model	Bore Dia.	Ball Dia.	Outer Ring Material	Outer Ring Width	Static Radial Load Capacity	Self Lubricating Bearing	Closure	Inner Ring Width	Price
A	GEM 20ES 2RS	20 mm	29 mm	Alloy, Steel	12 mm	146 kN	No	Double Sealed	-	€98.02
A	GEM 25ES 2RS	25 mm	35.5 mm	Alloy, Steel	16 mm	240 kN	No	Double Sealed	29 mm	€109.99
A	GEM 30ES 2RS	30 mm	40.7 mm	Alloy, Steel	18 mm	310 kN	No	Double Sealed	-	€134.98
A	GEM 35ES 2RS	35 mm	47 mm	Alloy, Steel	20 mm	399 kN	No	Double Sealed	-	€163.38
A	GEM 40ES 2RS	40 mm	53 mm	Alloy, Steel	22 mm	495 kN	No	Double Sealed	38 mm	€149.52
A	GEM 45ES 2RS	45 mm	60 mm	Alloy, Steel	25 mm	637 kN	No	Double Sealed	-	€294.92
A	GEM 50ES 2RS	50 mm	66 mm	Alloy, Steel	28 mm	780 kN	No	Double Sealed	-	€270.59
A	GEM 60ES 2RS	60 mm	80 mm	Steel	36 mm	1220 kN	Yes	Sealed	54 mm	€372.02
A	GEM 70ES 2RS	70 mm	92 mm	Alloy, Steel	40 mm	1560 kN	No	Double Sealed	65 mm	€491.25
A	GEM 80ES 2RS	80 mm	105 mm	Alloy, Steel	45 mm	2000 kN	No	Double Sealed	74 mm	€509.10

TRITAN -

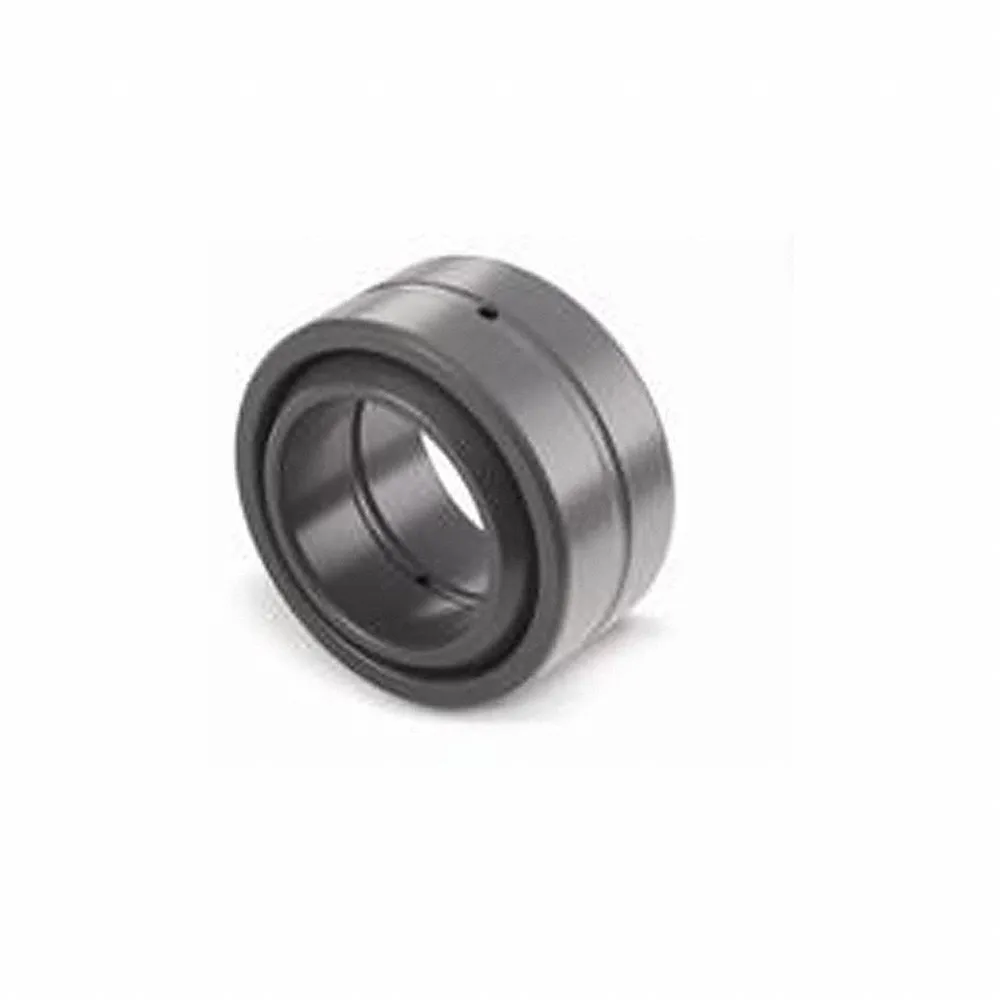

GEZ Series Spherical Plain Bearings, Metric

Style	Model	Bore Dia.	Ball Dia.	Outer Ring Width	Static Radial Load Capacity	Closure	Inner Ring Width	Flat Dia.	Outer Ring Material	Price
A	GEZ 108ES	1 1/2"	2.154"	1 1/8"	375 kN	Open	1.312"	1 1/2"	Alloy, Steel	€32.44
A	GEZ 108ES 2RS	1 1/2"	2.154"	1 1/8"	375 kN	Double Sealed	1.312"	1 1/2"	Alloy, Steel	€40.67
A	GEZ 104ES 2RS	1 1/4"	1.788"	0.937"	260 kN	Double Sealed	1.093"	1 1/4"	Alloy, Steel	€34.84
A	GEZ 104ES	1 1/4"	1.788"	0.937"	260 kN	Open	-	-	Alloy, Steel	€24.71
A	GEZ 112ES	1 3/4"	2.511"	1.312"	510 kN	Open	1.531"	1 3/4"	Alloy, Steel	€62.83
A	GEZ 200ES	1 3/4"	2.869"	1 1/2"	670 kN	Open	1 3/4"	1 3/4"	Alloy, Steel	€66.14
A	GEZ 106ES 2RS	1 3/8"	1.926"	1.031"	310 kN	Double Sealed	1.187"	1 3/8"	Alloy, Steel	€44.44
A	GEZ 106ES	1 3/8"	1.926"	1.031"	310 kN	Open	1.187"	1 3/8"	Alloy, Steel	€37.88
A	GEZ 100ES 2RS	1"	1.437"	3/4"	166 kN	Double Sealed	7/8"	1"	Alloy, Steel	€22.73
A	GEZ 100ES	1"	1.437"	3/4"	166 kN	Open	7/8"	1"	Alloy, Steel	€18.32
A	GEZ 008ES	1/2"	0.707"	3/8"	41 kN	Open	-	-	Alloy, Steel	€14.85
A	GEZ 208ES	2 1/2"	3.616"	1 7/8"	1060 kN	Open	2.187"	2 1/2"	Alloy, Steel	€104.32
A	GEZ 208ES 2RS	2 1/2"	3.616"	1 7/8"	1060 kN	Double Sealed	2.187"	2 1/2"	Alloy, Steel	€113.95
A	GEZ 204ES	2 1/4"	3.223"	1.687"	850 kN	Open	-	-	Alloy, Steel	€104.65
A	GEZ 204ES 2RS	2 1/4"	3.223"	1.687"	850 kN	Double Sealed	-	-	Alloy, Steel	€125.86
A	GEZ 212ES	2 3/4"	3.937"	2.062"	1250 kN	Open	-	-	Alloy, Steel	€177.05
A	GEZ 212ES 2RS	2 3/4"	3.937"	2.062"	1250 kN	Double Sealed	-	-	Alloy, Steel	€197.76
A	GEZ 112ES 2RS	2"	2.511"	1.312"	510 kN	Double Sealed	-	-	Alloy, Steel	€69.43
A	GEZ 200ES 2RS	2"	2.869"	1 1/2"	670 kN	Double Sealed	-	-	Alloy, Steel	€83.37
A	GEZ 308ES 2RS	3 1/2"	5 1/25"	2 5/8"	-	Double Sealed	-	-	Alloy, Steel	€502.93
A	GEZ 308ES	3 1/2"	5 1/25"	2 5/8"	-	Open	-	-	Alloy, Steel	€488.20
A	GEZ 304ES 2RS	3 1/4"	4.685"	2.437"	-	Double Sealed	-	-	Alloy, Steel	€314.25
A	GEZ 304ES	3 1/4"	4.685"	2.437"	1760 kN	Open	-	-	Alloy, Steel	€306.94
A	GEZ 312ES	3 3/4"	5.393"	2.812"	2360 kN	Open	3.281"	3 3/4"	Alloy, Steel	€500.70
A	GEZ 312ES 2RS	3 3/4"	5.393"	2.812"	-	Double Sealed	3.281"	-	Alloy, Steel	€532.14

TRITAN -

GEZM Series Spherical Plain Bearings, Inch

Style	Model	Bore Dia.	Ball Dia.	Outer Ring Width	Static Radial Load Capacity	Closure	Flat Dia.	Inner Ring Width	Outer Ring Material	Price
A	GEZM 108ES 2RS	1 1/2"	2.155"	1 1/8"	375 kN	Double Sealed	1 1/2"	2 1/4"	Alloy, Steel	€170.26
A	GEZM 104ES	1 1/4"	1.795"	0.937"	260 kN	Open	1 1/4"	1 7/8"	Alloy, Steel	€212.53
A	GEZM 106ES 2RS	1 3/8"	1.937"	1.031"	310 kN	Double Sealed	1 3/8"	2.062"	Alloy, Steel	€267.56
A	GEZM 100ES	1"	1.437"	3/4"	166 kN	Open	1"	1 1/2"	Alloy, Steel	€96.10
A	GEZM 200ES 2RS	2"	2 7/8"	1 1/2"	670 kN	Double Sealed	2"	3"	Alloy, Steel	€423.72
A	GEZM 200ES	2"	2 7/8"	1 1/2"	670 kN	Open	2"	-	Alloy, Steel	€452.22
A	GEZM 300ES 2RS	3"	4.312"	2 1/4"	1500 kN	Double Sealed	-	-	Alloy, Steel	€904.01
A	GEZM 300ES	3"	4.312"	2 1/4"	1500 kN	Open	3"	4 1/2"	Alloy, Steel	€697.24
A	GEZM 012ES	3/4"	1 2/25"	0.562"	95 kN	Open	3/4"	1 1/8"	Alloy, Steel	€179.71

TRITAN -

GX Series Spherical Plain Thrust Bearings

Style	Model	Bore Dia.	Ball Dia.	Outer Ring Width	Static Radial Load Capacity	Overall Width	Flat Dia.	Inner Ring Width	Outer Ring Material	Price

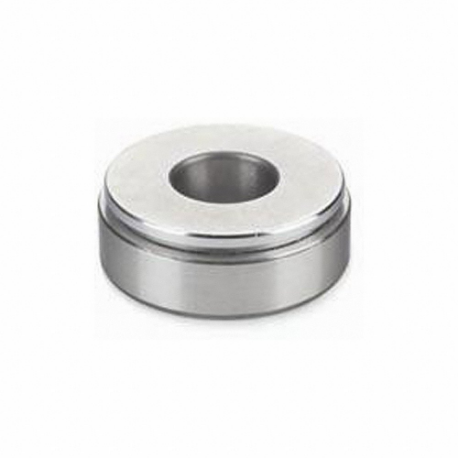

A	GX 10F	10 mm	32 mm	7 mm	90 kN	9.5 mm	10 mm	7.5 mm	Alloy, Steel	€158.77
A	GX 12F	12 mm	38 mm	9.3 mm	130 kN	13 mm	12 mm	9.5 mm	Alloy, Steel	€113.64
A	GX 15F	15 mm	46 mm	10.8 mm	190 kN	15 mm	-	-	Alloy, Steel	€117.11
A	GX 17F	17 mm	52 mm	11.2 mm	220 kN	16 mm	-	-	Alloy, Steel	€149.99
A	GX 20F	20 mm	60 mm	13.8 mm	300 kN	20 mm	20 mm	14.5 mm	Alloy, Steel	€168.38
A	GX 25F	25 mm	68 mm	16.7 mm	490 kN	22.5 mm	25 mm	16.5 mm	Alloy, Steel	€190.96
A	GX 30F	30 mm	82 mm	19 mm	670 kN	26 mm	30 mm	-	Alloy, Steel	€203.45
A	GX 35F	35 mm	98 mm	20.7 mm	980 kN	28 mm	35 mm	22 mm	Alloy, Steel	€221.67
A	GX 40F	40 mm	114 mm	21.5 mm	1350 kN	32 mm	40 mm	27 mm	Alloy, Steel	€430.45
A	GX 45F	45 mm	128 mm	25.5 mm	1830 kN	36.5 mm	45 mm	-	Alloy, Steel	€403.50
A	GX 50F	50 mm	139 mm	30.5 mm	2080 kN	42.5 mm	-	-	Alloy, Steel	€446.33
A	GX 60F	60 mm	160 mm	34 mm	2800 kN	45 mm	60 mm	37 mm	Alloy, Steel	€645.35
A	GX 70F	70 mm	176 mm	36.5 mm	3180 kN	50 mm	70 mm	42 mm	Alloy, Steel	€764.41
A	GX 80F	80 mm	197 mm	38 mm	3920 kN	50 mm	80 mm	43.5 mm	Alloy, Steel	€999.29
A	GX 100F	100 mm	222 mm	46 mm	4540 kN	59 mm	100 mm	51 mm	Alloy, Steel	€1,567.55

IGUS -

Igubal E Series Mounted Spherical Bearings

Style	Model	MPN	Price	Pkg. Qty.

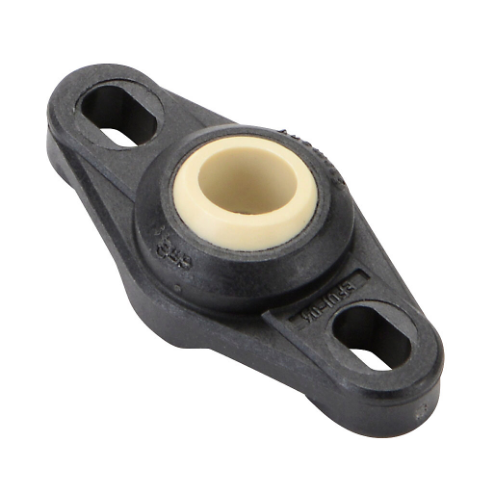

A	A-EFOI-04	A-EFOI-04	€27.90	4

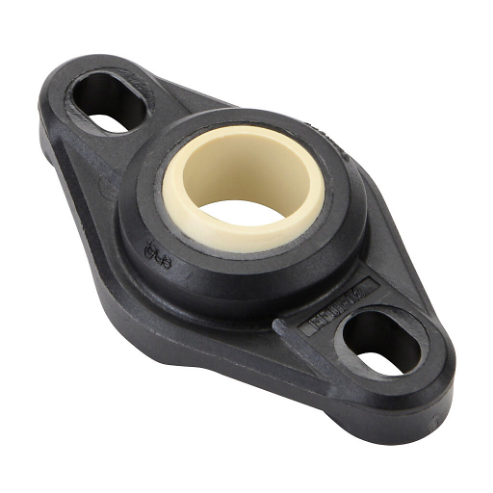

B	A-EFOI-08	A-EFOI-08	€28.80	2

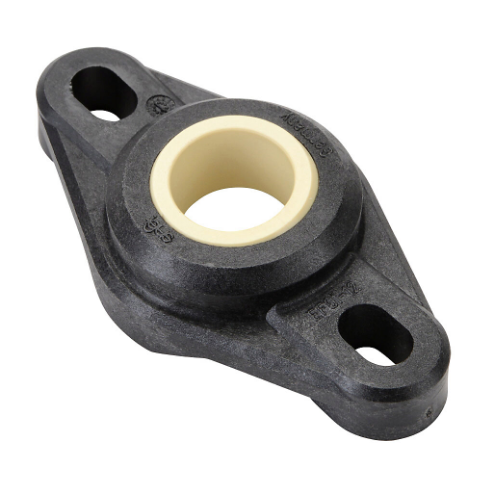

C	A-EFOI-12	A-EFOI-12	€26.10	1

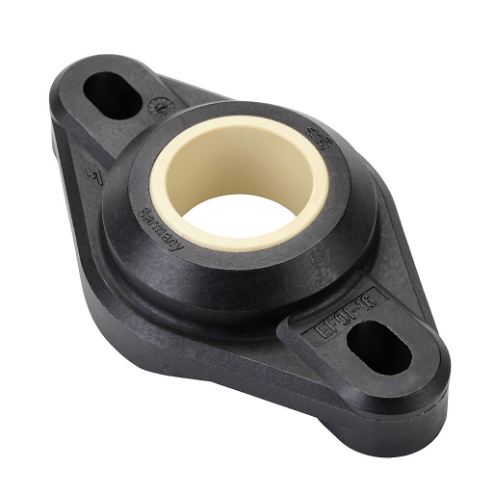

D	A-EFOI-16	A-EFOI-16	-	1	RFQ

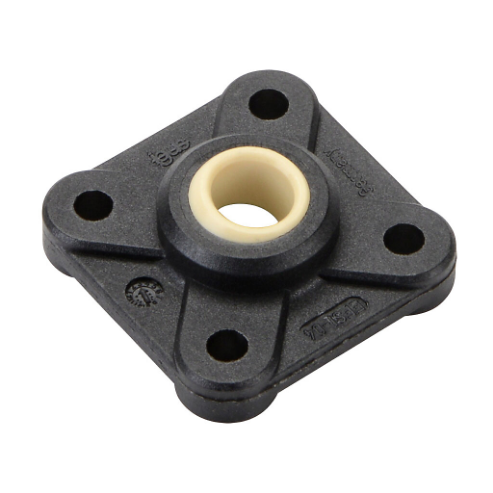

E	A-EFSI-04	A-EFSI-04	€40.50	4

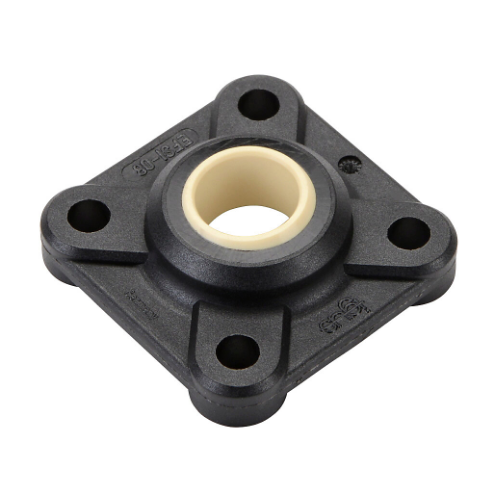

F	A-EFSI-08	A-EFSI-08	€30.60	2
G	A-EFSI-12	A-EFSI-12	€24.30	1

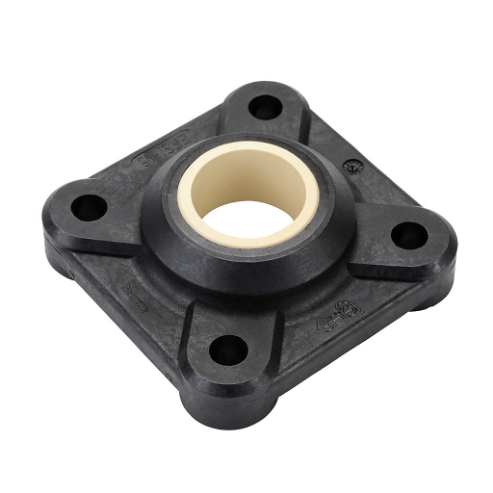

H	A-EFSI-16	A-EFSI-16	€28.80	1

IGUS -

Iglide Series Plain Bearings

Style	Model	MPN	Price	Pkg. Qty.

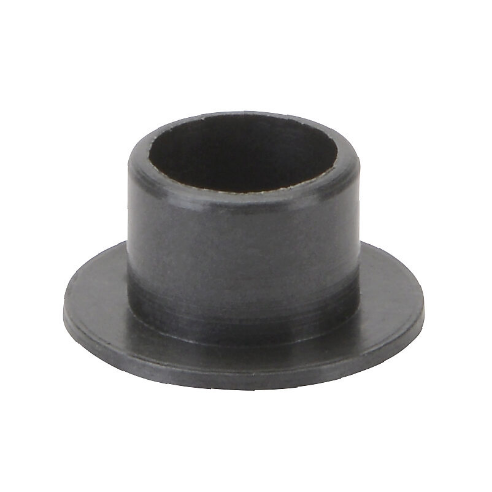

A	A-GFI-0405-04	A-GFI-0405-04	€14.40	10

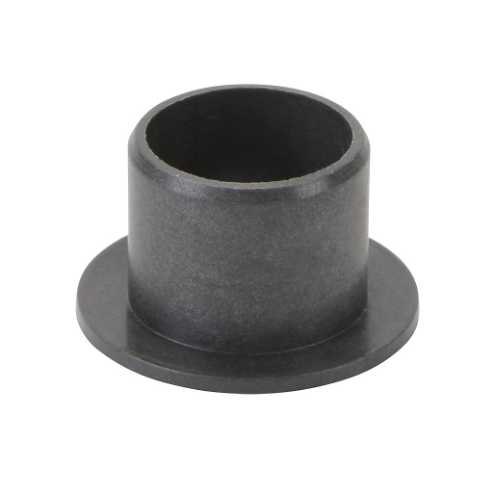

B	A-GFI-0809-08	A-GFI-0809-08	€17.10	10

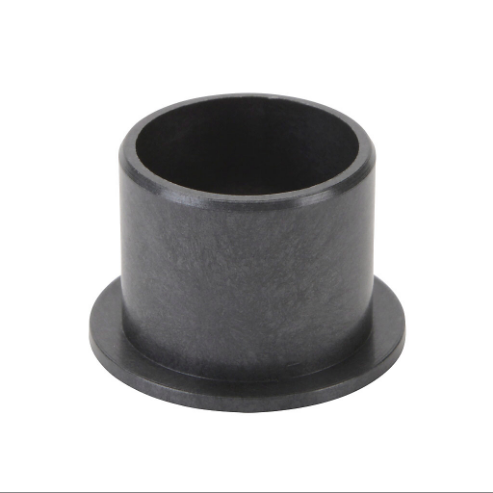

C	A-GFI-1214-12	A-GFI-1214-12	€21.60	5

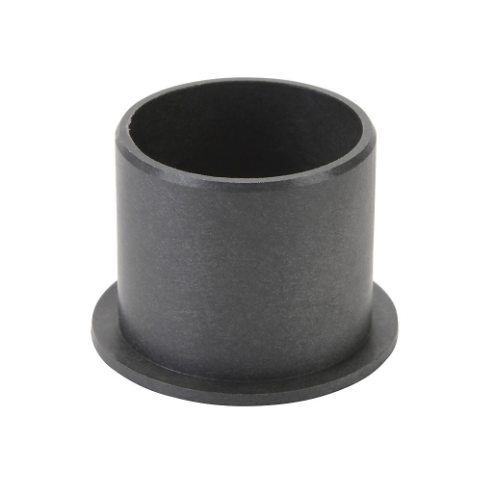

D	A-GFI-1618-16	A-GFI-1618-16	€13.05	2

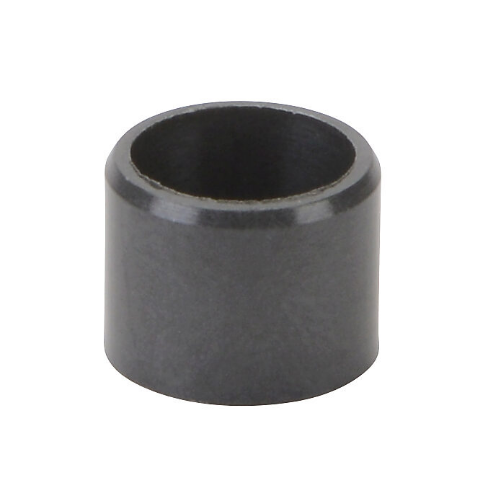

E	A-GSI-0405-04	A-GSI-0405-04	-	1	RFQ

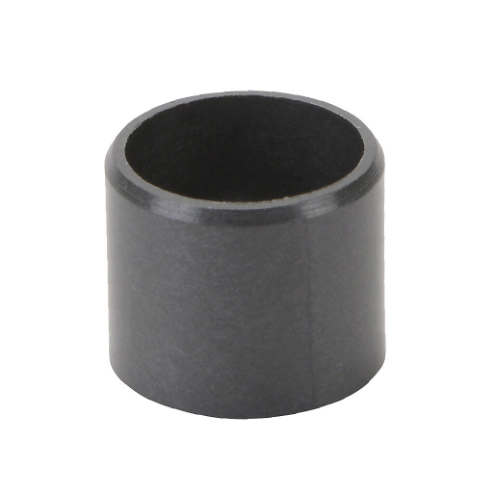

F	A-GSI-0809-08	A-GSI-0809-08	€15.75	10

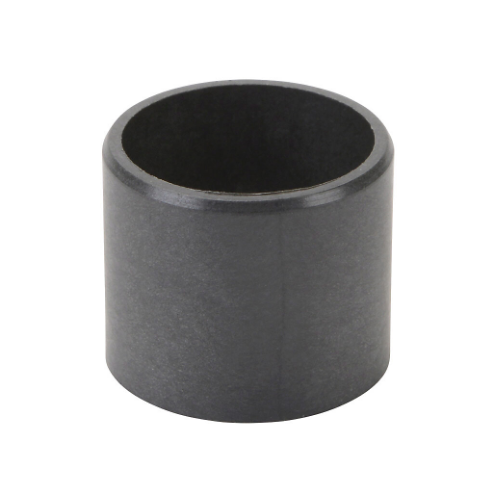

G	A-GSI-1214-12	A-GSI-1214-12	€18.90	5

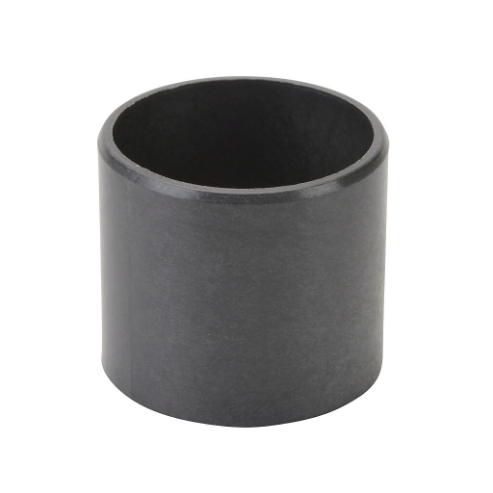

H	A-GSI-1618-16	A-GSI-1618-16	€13.05	2

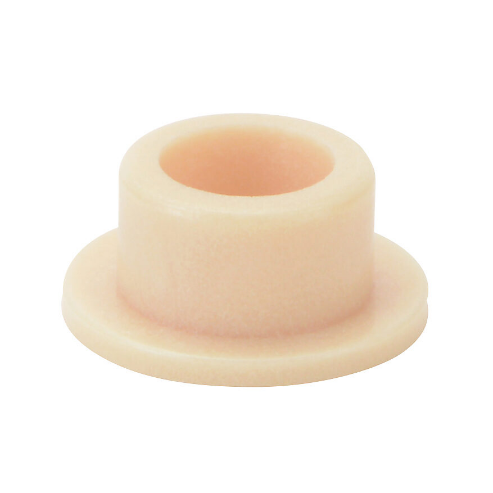

I	A-JFI-0406-04	A-JFI-0406-04	-	1	RFQ

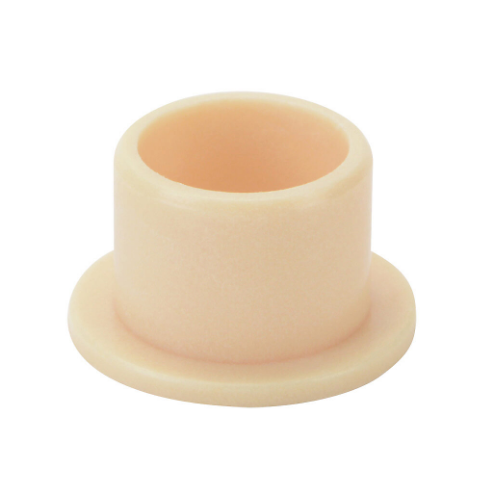

J	A-JFI-0810-08	A-JFI-0810-08	€24.30	10

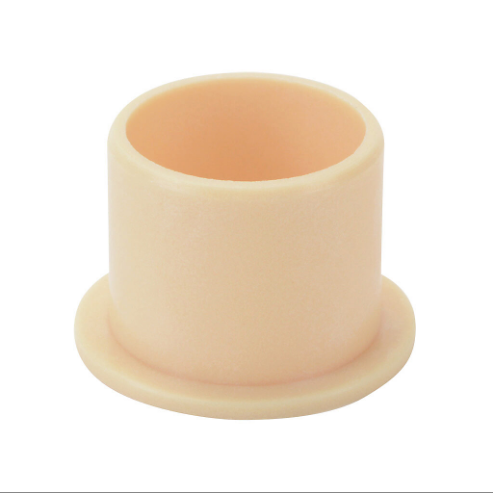

K	A-JFI-1214-12	A-JFI-1214-12	€18.90	5

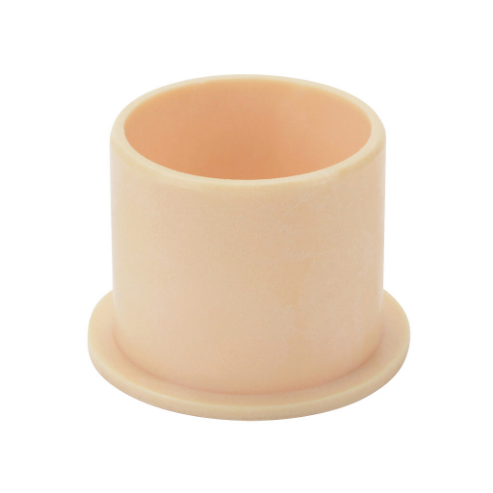

L	A-JFI-1618-16	A-JFI-1618-16	€11.70	2
M	A-JSI-0406-04	A-JSI-0406-04	€15.30	10

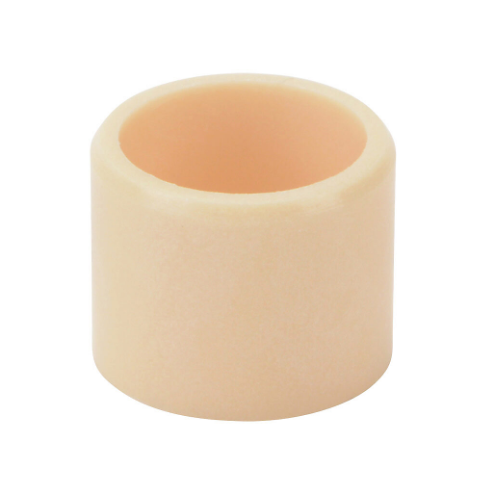

N	A-JSI-0810-08	A-JSI-0810-08	€19.80	10

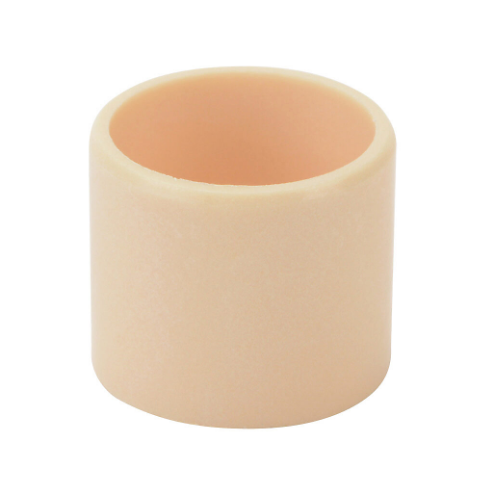

O	A-JSI-1214-12	A-JSI-1214-12	€18.00	5

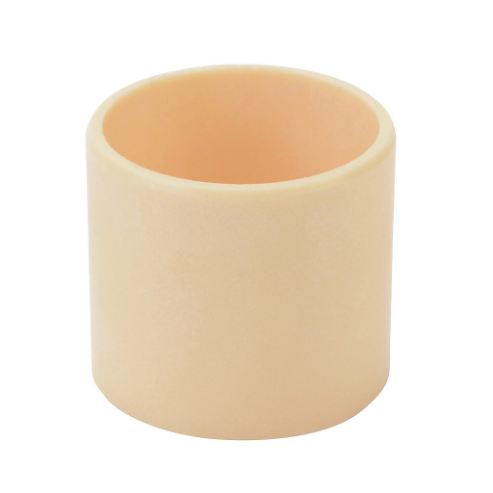

P	A-JSI-1618-16	A-JSI-1618-16	€11.70	2

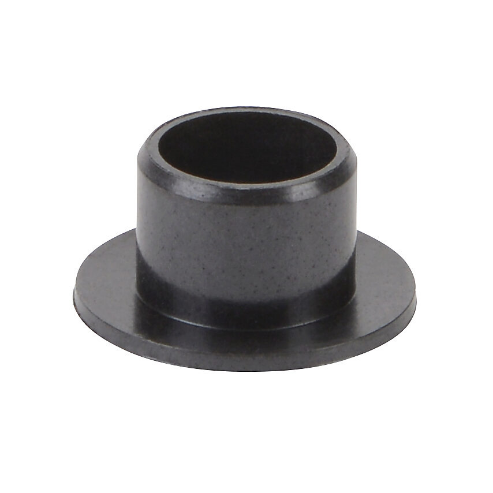

Q	A-TFI-0405-04	A-TFI-0405-04	€28.80	5

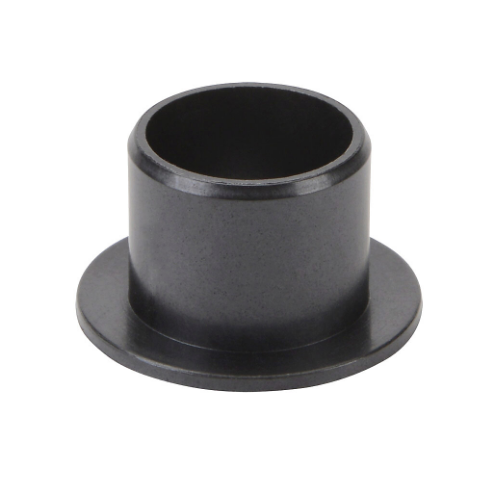

R	A-TFI-0809-08	A-TFI-0809-08	€45.90	5

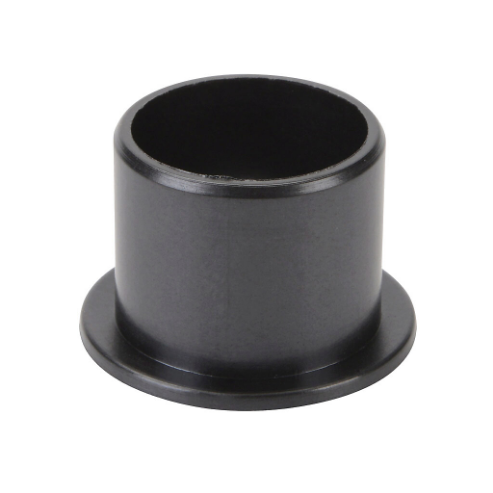

S	A-TFI-1214-12	A-TFI-1214-12	€37.80	2
T	A-TFI-1618-16	A-TFI-1618-16	€47.70	2
U	A-TSI-0405-04	A-TSI-0405-04	€27.00	5

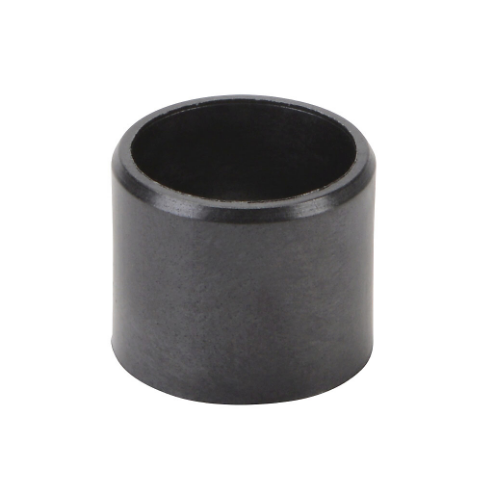

V	A-TSI-0809-08	A-TSI-0809-08	€29.70	5

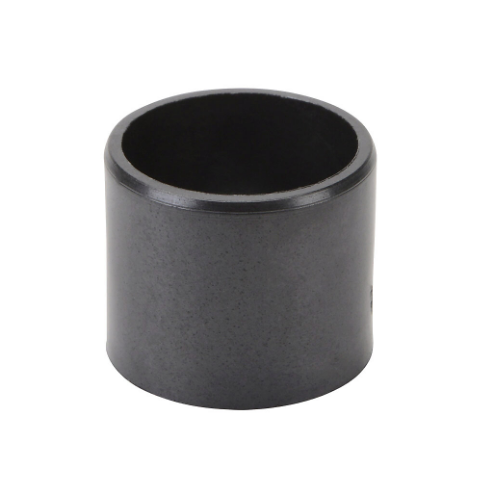

W	A-TSI-1214-12	A-TSI-1214-12	€34.20	2

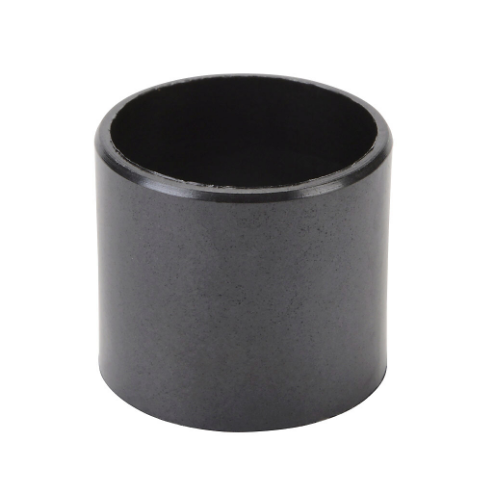

X	A-TSI-1618-16	A-TSI-1618-16	€45.00	2

IGUS -

Igubal K Series Mounted Spherical Bearings

Style	Model	Bearing Inside Dia.	Price	Pkg. Qty.

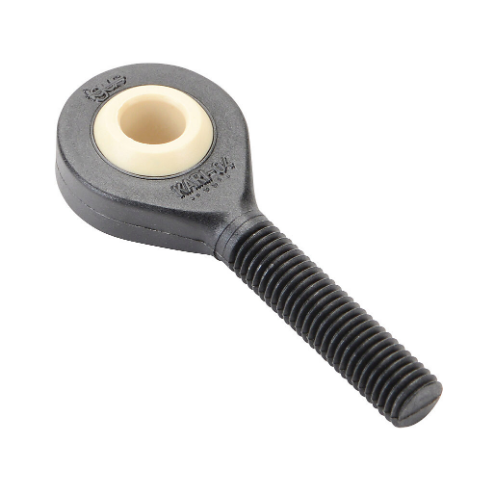

A	A-KARI-04	-	€27.90	4

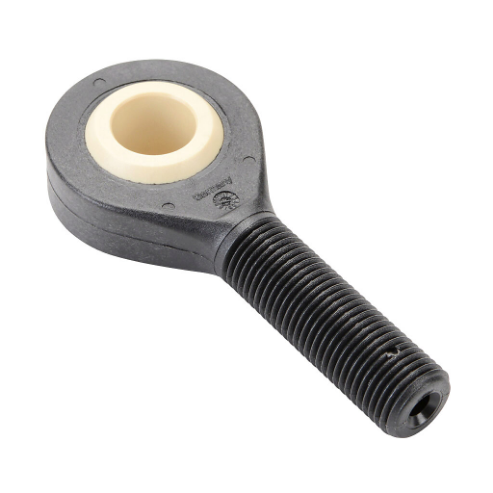

B	A-KARI-08	-	-	1	RFQ
C	A-KARI-12	-	€22.50	1

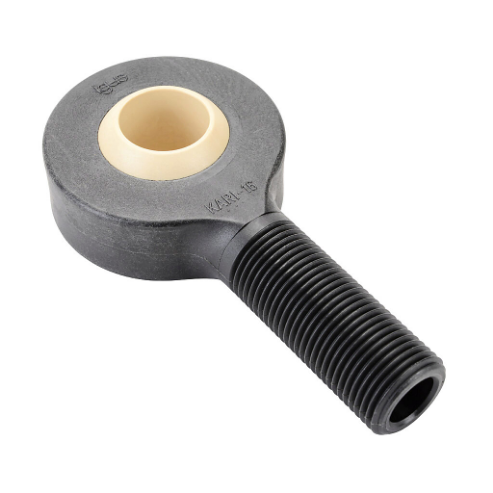

D	A-KARI-16	-	€36.00	1

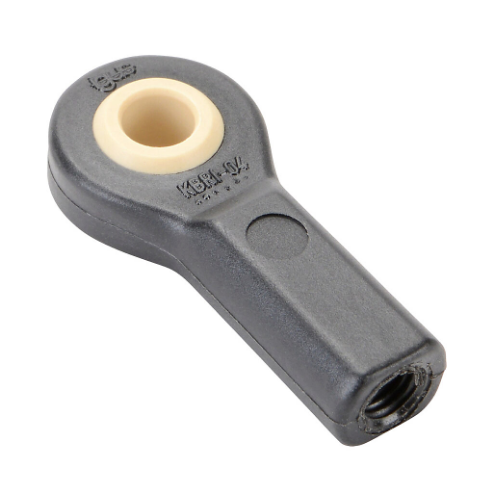

E	A-KBRI-04	-	€28.80	4

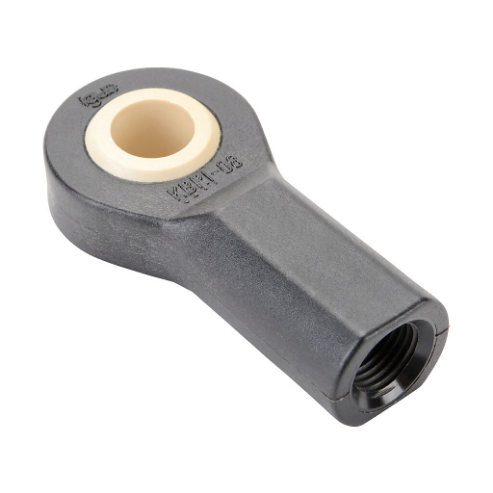

F	A-KBRI-08	-	€43.20	2

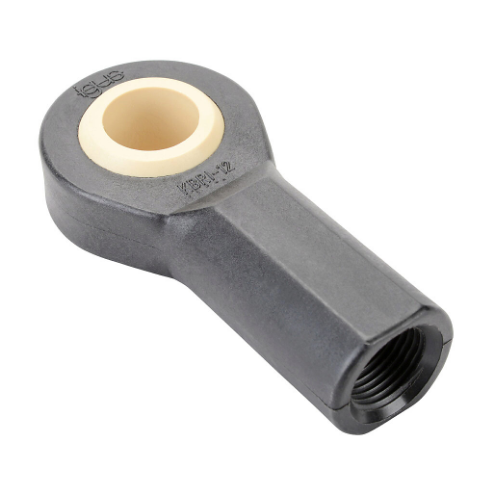

G	A-KBRI-12	-	€33.30	1

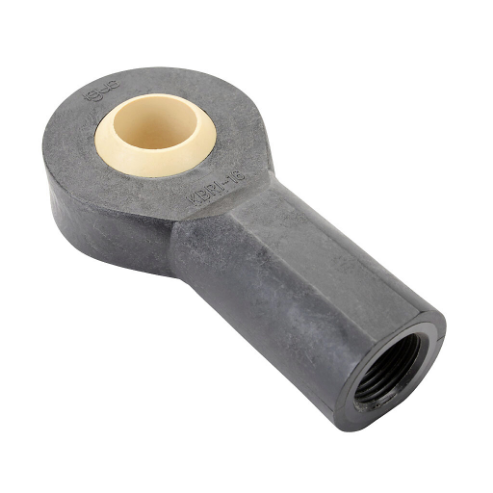

H	A-KBRI-16	-	€40.50	1

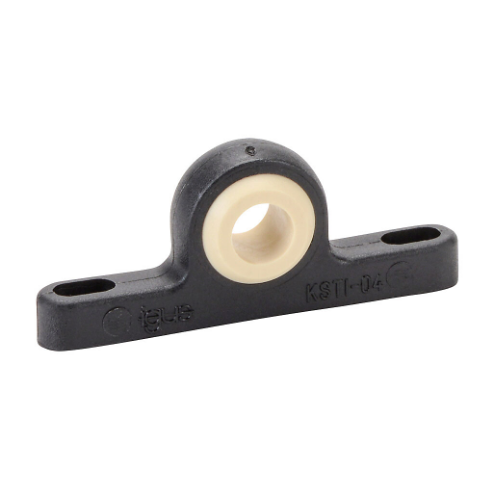

I	A-KSTI-04	-	€21.60	4
J	A-KSTI-08	-	€28.80	2

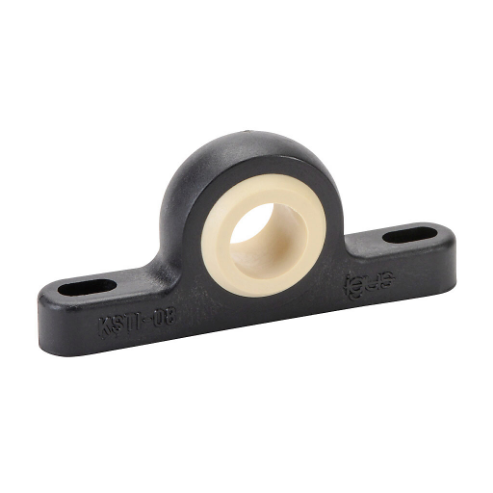

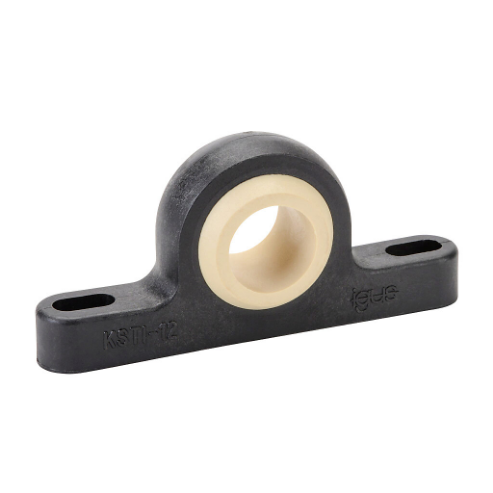

K	A-KSTI-12	-	€18.00	1

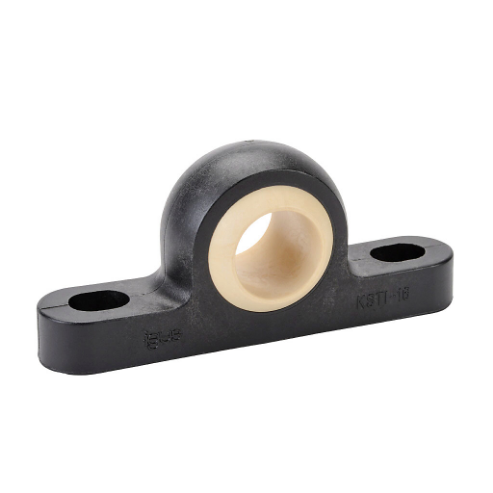

L	A-KSTI-16	-	€29.70	1

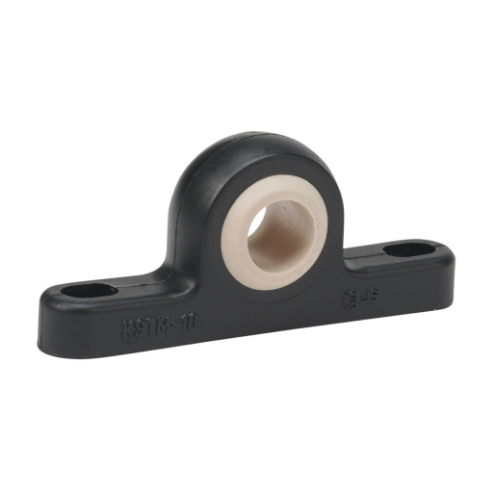

M	A-KSTM-10	10 mm	-	1	RFQ

TRITAN -

Spherical Bearings

Style	Model	Bore Dia.	Ball Dia.	Outer Ring Material	Outer Ring Width	Static Radial Load Capacity	Self Lubricating Bearing	Liner Material	Flat Dia.	Price
A	COM 7	0.438"	0.027"	Steel	0.343"	42 kN	Yes	No Liner	0.438"	€27.64
A	COM 16	1"	0.059"	Alloy, Steel	0.797"	245 kN	No	No Liner	1"	€38.10
A	COM 16T	1"	1.687"	Alloy, Steel	0.797"	245 kN	Yes	PTFE	1"	€47.65
A	COM 8	1/2"	0.781"	Alloy, Steel	0.39"	58 kN	No	No Liner	1/2"	€20.98
A	COM 4	1/4"	1/2"	Alloy, Steel	1/4"	22 kN	No	No Liner	1/4"	€18.68
A	COM 12	3/4"	1.187"	Alloy, Steel	0.593"	141 kN	No	No Liner	3/4"	€32.06
A	COM 6	3/8"	0.656"	Alloy, Steel	0.312"	37 kN	No	No Liner	3/8"	€22.27
A	COM 10	5/8"	0.968"	Alloy, Steel	1/2"	94 kN	No	No Liner	5/8"	€23.58
A	COM 14	7/8"	1.312"	Alloy, Steel	0.703"	186 kN	No	No Liner	7/8"	€46.43
B	GAC 70SA	70 mm	105 mm	Alloy, Steel	23 mm	-	No	No Liner	70 mm	€454.59
B	GAC 80SA	80 mm	115 mm	Alloy, Steel	25.5 mm	-	No	No Liner	-	€383.63

QA1 -

Spherical Plain Bearing, 3 Inch Bore Dia, 4 3/4 Inch OD, 2.25 Inch Outer Ring

Model	Item	Price (ex. VAT)
45GY36	CT8HUB	€113.94

QA1 -

Spherical Plain Bearing, 1 1/2 Inch Bore Dia, 2 7/16 Inch OD, 1.125 Inch Outer Ring

Model	Item	Price (ex. VAT)
45GY25	CT8HTJ	€28.72

QA1 -

Spherical Plain Bearing, 1 Inch Bore Dia, 1 5/8 Inch OD, 0.75 Inch Outer Ring

Model	Item	Price (ex. VAT)
45GY18	CT8HTQ	€11.71

QA1 -

Spherical Plain Bearing, 2 3/4 Inch Bore Dia, 4 3/8 Inch OD, 2.062 Inch Outer Ring

Model	Item	Price (ex. VAT)
45GY34	CT8HTX	€79.56

QA1 -

Spherical Plain Bearing, 5/8 Inch Bore Dia, 1 3/64 Inch OD, 0.469 Inch Outer Ring

Model	Item	Price (ex. VAT)
45GY15	CT8HUD	€10.99

QA1 -

Spherical Plain Bearing, 1 1/2 Inch Bore Dia, 2 7/16 Inch OD, 1.125 Inch Outer Ring

Model	Item	Price (ex. VAT)
45GY24	CT8HTH	€24.09

12 3

Popular Search Queries

Keyed Shaft

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Spherical Bearings

Self-Lubricating Spherical Bearings

Economical Spherical Bearings

GAC F Series Spherical Plain Bearings, Angular Contact

GAZ SA Series Spherical Plain Bearings, Angular Contact

GE Series Spherical Plain Bearings, Metric

GEG Series Spherical Plain Bearings With Extended Inner Rings

GEH Series Spherical Plain Bearings, Metric

GEM Series Spherical Plain Bearings With Extended Inner Rings

GEZ Series Spherical Plain Bearings, Metric

GEZM Series Spherical Plain Bearings, Inch

GX Series Spherical Plain Thrust Bearings

Igubal E Series Mounted Spherical Bearings

Iglide Series Plain Bearings

Igubal K Series Mounted Spherical Bearings

Spherical Bearings

Spherical Plain Bearing, 3 Inch Bore Dia, 4 3/4 Inch OD, 2.25 Inch Outer Ring

Spherical Plain Bearing, 1 1/2 Inch Bore Dia, 2 7/16 Inch OD, 1.125 Inch Outer Ring

Spherical Plain Bearing, 1 Inch Bore Dia, 1 5/8 Inch OD, 0.75 Inch Outer Ring

Spherical Plain Bearing, 2 3/4 Inch Bore Dia, 4 3/8 Inch OD, 2.062 Inch Outer Ring

Spherical Plain Bearing, 5/8 Inch Bore Dia, 1 3/64 Inch OD, 0.469 Inch Outer Ring

Spherical Plain Bearing, 1 1/2 Inch Bore Dia, 2 7/16 Inch OD, 1.125 Inch Outer Ring

Popular Search Queries

Explore More

Select your cookie preferences

Strictly Necessary Cookies

Advertising

Recommendations

Functionality

Analytics

Categories

Brands

Spherical Bearings

Spherical Plain Bearing, 3 Inch Bore Dia, 4 3/4 Inch OD, 2.25 Inch Outer Ring

Spherical Plain Bearing, 1 1/2 Inch Bore Dia, 2 7/16 Inch OD, 1.125 Inch Outer Ring

Spherical Plain Bearing, 1 Inch Bore Dia, 1 5/8 Inch OD, 0.75 Inch Outer Ring

Spherical Plain Bearing, 2 3/4 Inch Bore Dia, 4 3/8 Inch OD, 2.062 Inch Outer Ring

Spherical Plain Bearing, 5/8 Inch Bore Dia, 1 3/64 Inch OD, 0.469 Inch Outer Ring

Spherical Plain Bearing, 1 1/2 Inch Bore Dia, 2 7/16 Inch OD, 1.125 Inch Outer Ring

Popular Search Queries

Explore More
