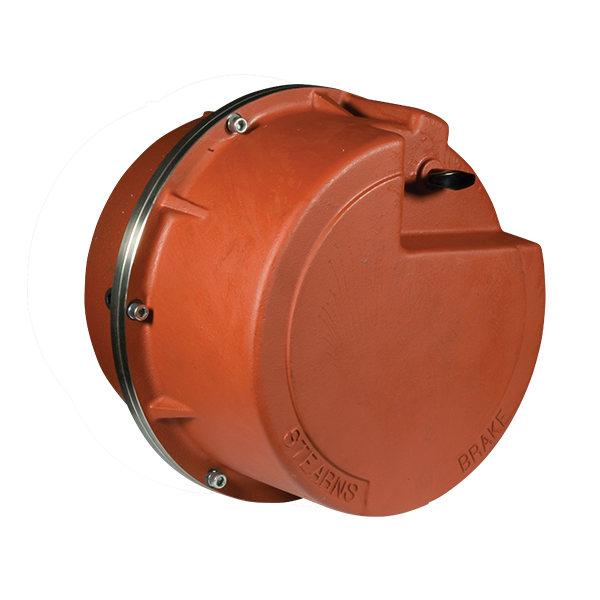

STEARNS BRAKES 108101102HLF Brake, NEMA2 460VAC
125 ft.-lbs.
460/380V
1 3/4"
Get it by Tuesday, Sep 1
€7,900.31 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Brake |
| Ac Coil Voltage | 380/460V AC |
| Application | General Purpose |
| Coil Frequency | 50/60 Hz |
| Coil Size | #9 |
| Coil Voltage Ac | 460/380V AC |
| Enclosure Iec | IP23 |
| Enclosure Ip Rating | IP23 |
| Enclosure Nema | NEMA 2 , NEMA2 |
| End Plate Material | Cast Iron |
| Hub Bore Dia. | 1 3/4" |
| Lbs.-ft. | 125 lbs.-ft. |
| Mount Orientation | Horizontal |
| Release | Pull Release |
| Release Type | Pull Release |
| Series | 81000 Series |
| Static Torque | 125 lbs.-ft. |
| Stearns Series | 81000 Series |
Shipping Info:
| Ship weight (kg) | 71.1 |
| Ship height (cm) | 28.91 |
| Ship length (cm) | 40.01 |
| Ship width (cm) | 40.01 |
Product Variants
| Model | Static Torque | Hub Bore Dia. | Ac Coil Voltage | Enclosure Nema | Coil Voltage Ac | Torque | Voltage | Bore Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 108101102FLF | 125 lbs.-ft. | 1 5/8" | 380/460V AC | NEMA 2 | - | 125 lbs.-in. | 460/380V | 1 5/8" | €7,825.20 | |
| 108101102FQF | 125 lbs.-ft. | 1 5/8" | 190/230/380/460V AC | NEMA 2 | - | 125 lbs.-in. | 190/460/230/380V | 1 5/8" | €7,825.20 | |
| 108101102NLF | 125 lbs.-ft. | 2 1/8" | 380/460V AC | NEMA 2 | 460/380V AC | - | - | - | €7,900.31 | |
| 108102102FLF | 175 lbs.-ft. | 1 5/8" | 380/460V AC | NEMA 2 | 460/380V AC | - | - | - | €8,394.73 | |
| 108102102FQF | 175 lbs.-ft. | 1 5/8" | 190/230/380/460V AC | NEMA 2 | 230/460/190/380V AC | - | - | - | €8,394.73 | |
| 108102102JQF | 175 lbs.-ft. | 1 7/8" | 190/230/380/460V AC | NEMA 2 | 230/460/190/380V AC | - | - | - | €8,476.11 | |
| 108102102NLF | 175 lbs.-ft. | 2 1/8" | 380/460V AC | NEMA 2 | 460/380V AC | - | - | - | €8,476.11 |
