STANDARD PUMP SPSN20NPS Pump 2 Inch 179 Gpm Santoprene Diaphragm
Get it by Friday, Dec 19
10.00% off
€16,477.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Double Diaphragm Pump |
| Air Consumption | 160 SCFM |
| Air Consumption (maximum) | 160 SCFM |
| Air Inlet | 1/2" FNPT |
| Air Inlet Size | 1/2" |
| Air Intake Connection Size | 1/2" |
| Ball Material | Santoprene |
| Center Section Material | Aluminum |
| Check Seat Material | Stainless Steel |
| Connection Size | 2" |
| Connection Type | Tri Clamp, NPT |
| Diaphragm Material | Santoprene |
| Discharge Port Configuration | Center |
| Discharge Port Size | 2" |
| Discharge Port Type | Tri Clamp |
| Display Qty | 1 |
| Flow Rate (maximum) | 179 GPM |
| Flow Rate @ 10 Psi | Not Applicable |
| Flow Rate @ 100 Psi | 175 GPM |
| Flow Rate @ 120 Psi | 180 GPM |
| Flow Rate @ 15 Psi | Not Applicable |
| Flow Rate @ 20 Psi | 92 GPM |
| Flow Rate @ 30 Psi | Not Applicable |
| Flow Rate @ 40 Psi | 123 GPM |
| Flow Rate @ 50 Psi | Not Applicable |
| Flow Rate @ 60 Psi | 145 GPM |
| Flow Rate @ 70 Psi | Not Applicable |
| Flow Rate @ 80 Psi | 161 GPM |
| Flow Rate @ 90 Psi | Not Applicable |
| Fluid Connection Size | 2" |
| Fluid Connection Type | Tri-Clamp |
| For Use With Potable Systems | Yes |
| Grade | Grade 316 |
| Housing Material | Stainless Steel |
| Includes | Muffler |
| Inlet Size | 1/2" |
| Inlet Type | FNPT |
| Inlet/outlet Size | 2" |
| Manifold Connection | Single Port |
| Manifold Connection Type | Tri Clamp |
| Manufacturers Warranty Length | 3 yrs. |
| Max. Dia. Solids | 5/8" |
| Max. Discharge Pressure | 120 psi |
| Max. Flow Gpm | 179 |
| Max. Flow Rate | 179 GPM |
| Max. Media Temp. | 275°F |
| Max. Operating Pressure | 120 psi |
| Max. Solid Dia. | 0.63" |
| Max. Viscosity | 30000 cPS |
| Media Discharge Connection Size | 2" |
| Media Discharge Connection Type | Tri Clamp |
| Media Discharge Location | Center |
| Media Intake Connection Size | 2" |
| Media Intake Connection Type | Tri Clamp |
| Media Intake Location | Center |
| Nameplate Voltage | Not Applicable |
| Non-wetted Housing Material | Aluminum |
| Operating Pressure (maximum) | 120 psi |
| Operation Type | Air Operated |
| Overall Height | 34 4/5" |
| Overall Length | 18 1/2" |
| Overall Width | 17" |
| Power Source | Air |
| Priming | Self Priming |
| Pump Assembly Type | Clamp |
| Pump Operation Type | Air |
| Self Priming | Yes |
| Self Priming Dry | 15 ft. |
| Self Priming Wet | 27 ft. |
| Self-priming Dry | 15 ft. |
| Self-priming Wet | 27 ft. |
| Solid Diameter (maximum) | 0.63" |
| Standards | Ce Certified |
| Suction Port | 2" TRI Clamp |
| Suction Port Configuration | Center |
| Valve Material | Santoprene |
| Valve Type | Oil Less Air Valve |
| Warranty | 3 yrs. |
Shipping Info:
| Ship weight (kg) | 56.25 |
| Ship height (cm) | 88.27 |
| Ship length (cm) | 46.99 |
| Ship width (cm) | 43.18 |
| HS code | 8413500050 |
| Country of Origin | US |
Product Variants
| Product | Model | Max. Flow Rate | Diaphragm Material | Check Seat Material | Max. Solid Dia. | Max. Media Temp. | Valve Type | Housing Material | Valve Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
N5100020G | 2.5 GPM | Viton | Viton | 0.13" | 120°F | Ball | Acetal | Polypropylene | €438.67 | |
 |
22A592 | 32 GPM | Buna N | Aluminum | 1/16" | 180°F | Ball | Aluminum | Buna N | €1,769.62 | |
 |
22A594 | 50 GPM | Buna N | Aluminum | 0.19" | 180°F | Ball | Aluminum | - | €1,821.35 | |
 |

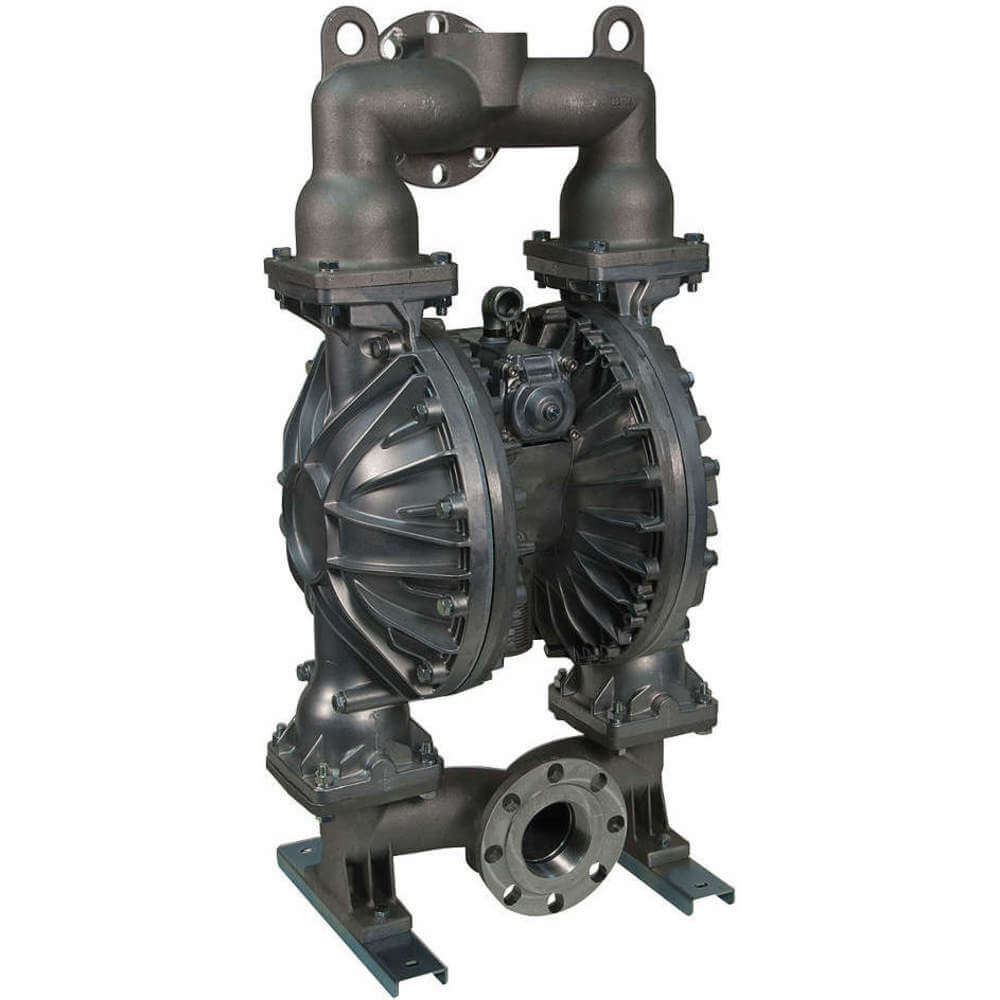

22A595 | 215 GPM | Buna N | Buna N | 0.41" | 180°F | Ball | Aluminum | Buna N | €5,278.39 | |
 |
22A596 | 215 GPM | Santoprene | Santoprene | 0.41" | 212°F | Ball | Aluminum | Santoprene | €4,425.12 | |
 |
22A597 | 14 GPM | Santoprene | Stainless Steel | 1/32" | 212°F | Ball | Stainless Steel | Santoprene | €2,185.14 | |
 |
22A598 | 107 GPM | Santoprene | Santoprene | 0.28" | 212°F | Ball | Cast Iron | Santoprene | €3,233.21 |
