Double Diaphragm Pumps
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1| Style | Model | Max. Flow Rate | Diaphragm Material | Check Seat Material | Max. Solid Dia. | Max. Media Temp. | Valve Type | Housing Material | Valve Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | N5100020G | 2.5 GPM | Viton | Viton | 0.13" | 120°F | Ball | Acetal | Polypropylene | €438.67 | |
| B | 6PY38 | 3.3 GPM | PTFE | Acetal | 0" | 180°F | Flat | Acetal | PTFE | €1,066.95 | |
| C | 3HJV7 | 3.3 GPM | PTFE | PVDF | 0" | 212°F | Flat | PVDF | PTFE | €870.17 | |
| D | 6PY37 | 3.3 GPM | PTFE | Polypropylene | 0" | 180°F | Flat | Polypropylene | PTFE | €645.62 | |
| E | 6PY42 | 12 GPM | Buna N | Aluminum | 0.03" | 180°F | Ball | Aluminum | Buna N | €1,193.28 | |
| E | 6PY51 | 12 GPM | PTFE | Stainless Steel | 0.03" | 180°F | Ball | Stainless Steel | PTFE | €1,911.38 | |
| E | 6PY49 | 12 GPM | PTFE | Aluminum | 0.03" | 212°F | Ball | Aluminum | PTFE | €1,421.15 | |
| E | 3HJW7 | 12 GPM | Santoprene | Aluminum | 0.03" | 212°F | Ball | Aluminum | EPDM | €1,138.47 | |
| F | 22A597 | 14 GPM | Santoprene | Stainless Steel | 1/32" | 212°F | Ball | Stainless Steel | Santoprene | €2,185.14 | |
| G | 22A602 | 14 GPM | Hytrel | Stainless Steel | 0.03" | 212°F | Ball | Stainless Steel | PTFE | €2,853.93 | |
| G | 22A603 | 14 GPM | PTFE | Stainless Steel | 0.03" | 212°F | Ball | Stainless Steel | PTFE | €2,881.31 | |
| H | 3HJW1 | 15 GPM | Santoprene | PVDF | 0.03" | 212°F | Flat | PVDF | PTFE | €1,445.90 | |
| H | 3HJV8 | 15 GPM | PTFE | PVDF | 0.03" | 212°F | Flat | PVDF | PTFE | €1,622.94 | |
| I | 6PY34 | 15 GPM | Santoprene | Polypropylene | 0.03" | 180°F | Flat | Polypropylene | PTFE | €1,011.82 | |
| I | 6PY39 | 15 GPM | PTFE | Polypropylene | 0.03" | 180°F | Flat | Polypropylene | PTFE | €926.45 | |
| J | 6PY52 | 21 GPM | PTFE | Stainless Steel | 0.06" | 212°F | Ball | Aluminum | PTFE | €1,459.11 | |
| K | 6PY40 | 21 GPM | PTFE | Polypropylene | 0.06" | 180°F | Ball | Polypropylene | PTFE | €1,482.32 | |
| J | 6PY53 | 21 GPM | PTFE | Stainless Steel | 0.06" | 212°F | Ball | Stainless Steel | PTFE | €2,606.85 | |
| L | 34TJ41 | 27 GPM | PTFE | Stainless Steel | 0.06" | 212°F | Ball | Aluminum | PTFE | €1,501.06 | |
| K | 6PY35 | 28 GPM | Santoprene | Polypropylene | 0.06" | 180°F | Ball | Polypropylene | EPDM | €1,506.52 | |
| J | 6PY47 | 28 GPM | Santoprene | Stainless Steel | 0.06" | 212°F | Ball | Stainless Steel | EPDM | €2,263.14 | |
| J | 3HJW8 | 28 GPM | Santoprene | Stainless Steel | 0.06" | 212°F | Ball | Aluminum | EPDM | €1,290.76 | |
| J | 6PY43 | 28 GPM | Buna N | Stainless Steel | 0.06" | 180°F | Ball | Aluminum | Buna N | €1,064.19 | |
| M | 22A605 | 32 GPM | PTFE | Stainless Steel | 0.06" | 212°F | Ball | Stainless Steel | PTFE | €4,502.40 | |
| N | 22A592 | 32 GPM | Buna N | Aluminum | 1/16" | 180°F | Ball | Aluminum | Buna N | €1,769.62 | |
| M | 22A604 | 32 GPM | Hytrel | Stainless Steel | 0.06" | 212°F | Ball | Stainless Steel | PTFE | €4,287.87 | |
| O | 6PY55 | 35 GPM | PTFE | Stainless Steel | 0.19" | 212°F | Ball | Stainless Steel | PTFE | €4,033.16 | |
| O | 6PY54 | 35 GPM | PTFE | Stainless Steel | 0.19" | 212°F | Ball | Aluminum | PTFE | €1,723.87 | |

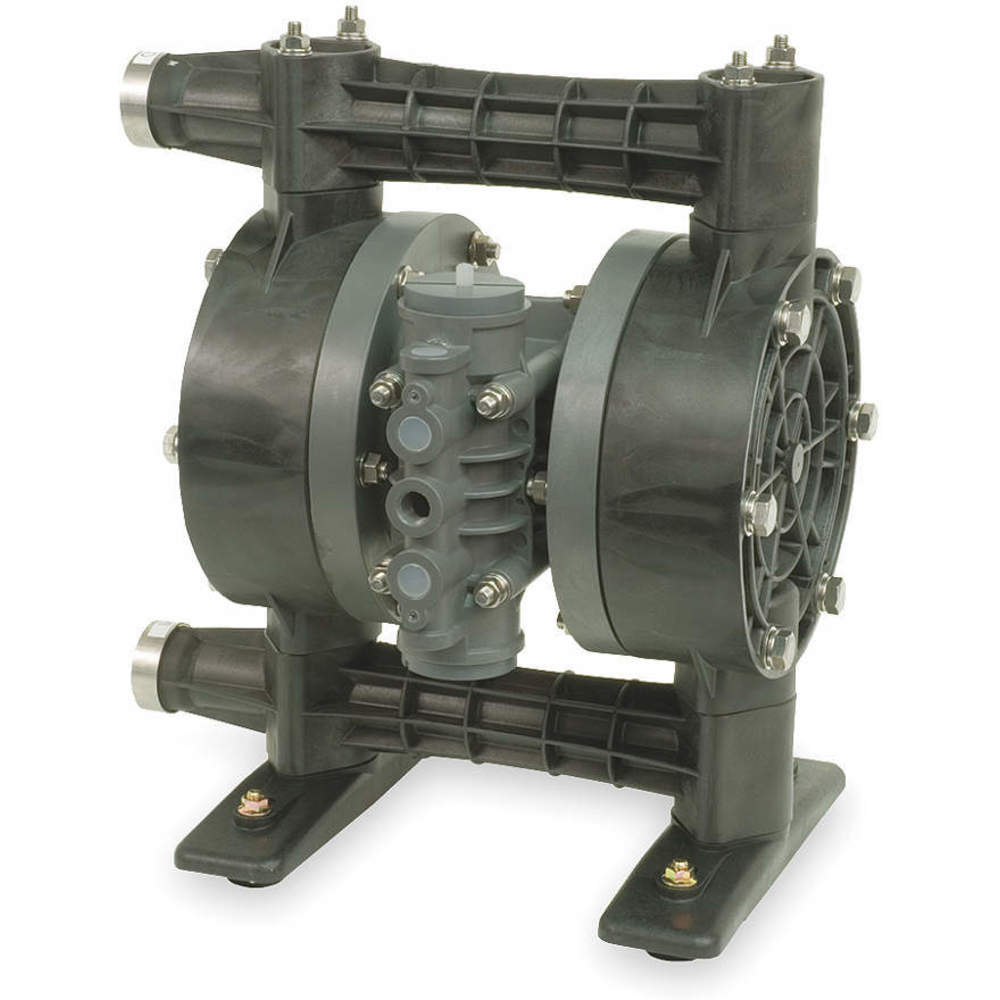

| P | 3HJV9 | 35 GPM | PTFE | PVDF | 0.19" | 212°F | Ball | PVDF | PTFE | €4,154.33 | |
| Q | 6PY41 | 35 GPM | PTFE | Polypropylene | 0.19" | 180°F | Ball | Polypropylene | PTFE | €1,755.61 | |

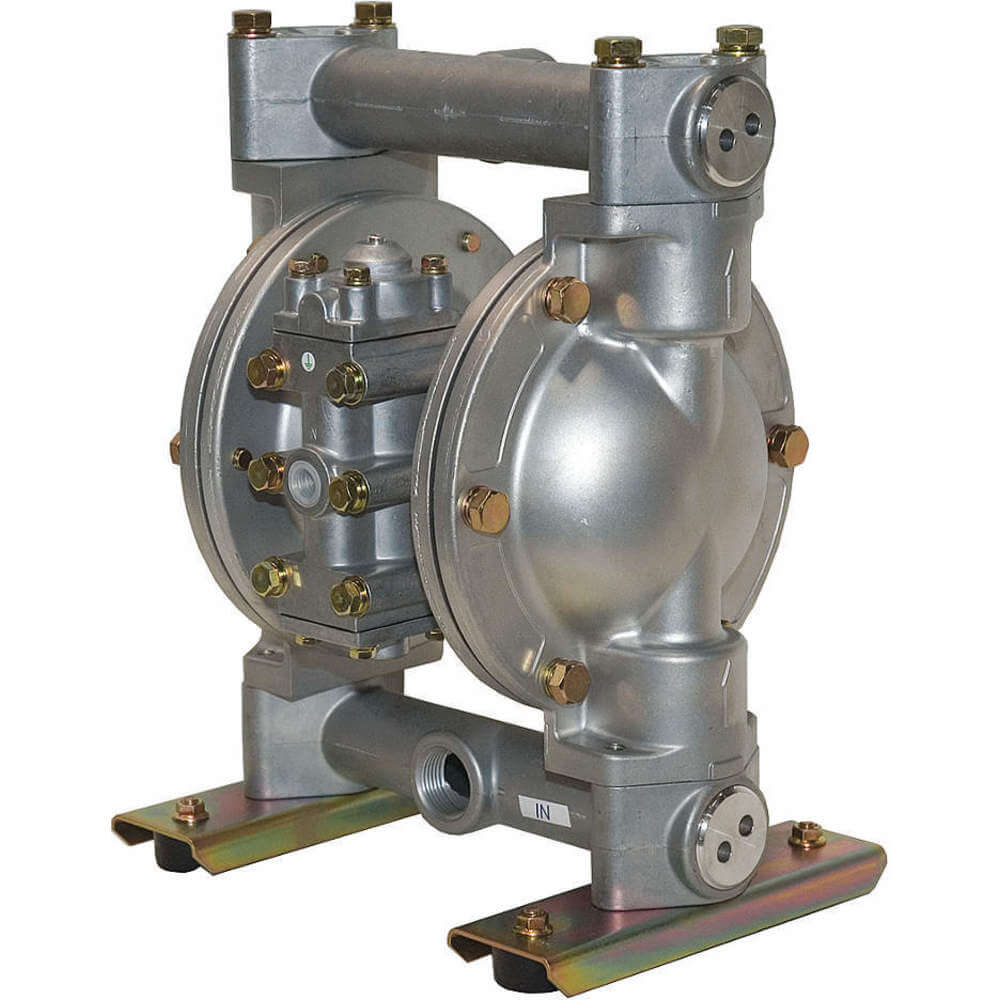

| R | 34TJ42 | 41 GPM | PTFE | Stainless Steel | 0.19" | 212°F | Ball | Aluminum | PTFE | €2,222.56 | |
| S | 22A606 | 46 GPM | Hytrel | Stainless Steel | 0.19" | 212°F | Ball | Stainless Steel | PTFE | €5,152.98 | |

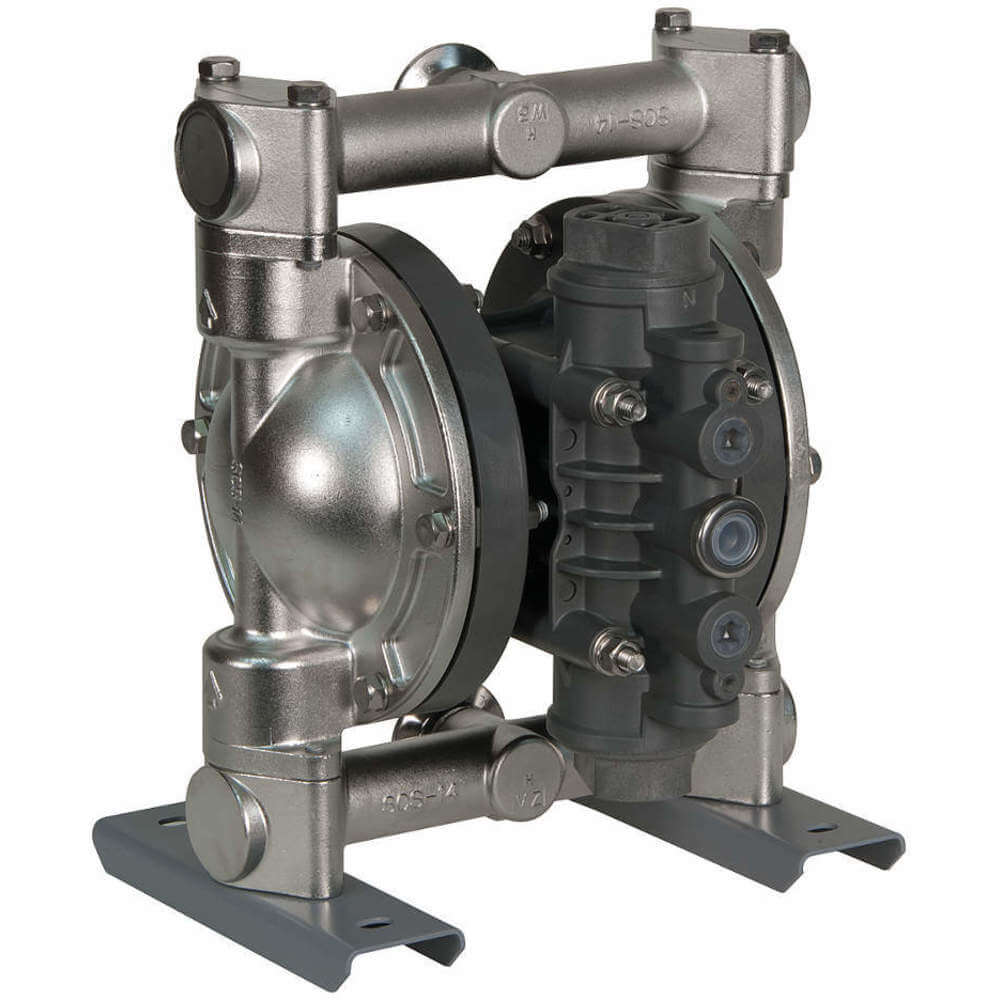

| T | 22A607 | 46 GPM | PTFE | Stainless Steel | 0.19" | 212°F | Ball | Stainless Steel | PTFE | €5,717.39 | |
| O | 6PY48 | 49 GPM | Santoprene | Stainless Steel | 0.19" | 212°F | Ball | Stainless Steel | EPDM | €3,154.14 | |
| P | 3HJW2 | 49 GPM | Santoprene | PVDF | 0.19" | 212°F | Ball | PVDF | EPDM | €3,597.08 | |
| O | 3HJW9 | 49 GPM | Santoprene | Stainless Steel | 0.19" | 212°F | Ball | Aluminum | EPDM | €1,449.50 | |
| Q | 6PY36 | 49 GPM | Santoprene | Polypropylene | 0.19" | 180°F | Ball | Polypropylene | EPDM | €1,554.95 | |
| U | 6PY44 | 49 GPM | Buna N | Stainless Steel | 0.19" | 180°F | Ball | Aluminum | Buna N | €1,181.61 | |
| V | 22A594 | 50 GPM | Buna N | Aluminum | 0.19" | 180°F | Ball | Aluminum | - | €1,821.35 | |
| W | E4AA2R220-ATEX | 71 GPM | Buna N | Buna N | 0.19" | 180°F | Ball | Aluminum | Buna N | €2,840.88 | |
| X | SPSN15NPS | 86 GPM | Santoprene | Stainless Steel | 0.38" | 275°F | Oil Less Air Valve | Stainless Steel | Santoprene | €13,130.46 | |
| Y | 34TJ43 | 90 GPM | PTFE | PTFE | 7/25" | 212°F | Ball | Stainless Steel | PTFE | €8,646.05 | |
| Z | 6PY56 | 100 GPM | PTFE | Aluminum | 7/25" | 212°F | Ball | Aluminum | PTFE | €3,280.13 | |
| A1 | 34TJ44 | 102 GPM | Santoprene | Santoprene | 7/25" | 180°F | Ball | Stainless Steel | Santoprene | €7,955.29 | |
| B1 | 22A598 | 107 GPM | Santoprene | Santoprene | 0.28" | 212°F | Ball | Cast Iron | Santoprene | €3,233.21 | |
| Z | 6PY45 | 115 GPM | Buna N | Buna N | 7/25" | 180°F | Ball | Aluminum | Buna N | €2,454.74 | |
| C1 | 3HJW5 | 115 GPM | Santoprene | Polypropylene | 7/25" | 180°F | Ball | Polypropylene | EPDM | €4,423.49 | |
| Z | 3HJX1 | 115 GPM | Santoprene | Santoprene | 7/25" | 212°F | Ball | Aluminum | EPDM | €2,115.92 | |
| C1 | 3HJW3 | 120 GPM | PTFE | Polypropylene | 7/25" | 180°F | Ball | - | PTFE | €4,571.13 | |
| D1 | 3HJW4 | 120 GPM | PTFE | Polypropylene | 0.31" | 180°F | Ball | Polypropylene | PTFE | €6,384.72 | |
| E1 | 6PY57 | 120 GPM | PTFE | Aluminum | 0.31" | 212°F | Ball | Aluminum | PTFE | €3,976.18 | |
| X | SPSN20NPT | 147 GPM | PTFE | Stainless Steel | 0.63" | 220°F | Oil Less Air Valve | Stainless Steel | PTFE | €22,007.39 | |
| F1 | SP3A20NPT | 147 GPM | PTFE | Stainless Steel | 0.63" | 220°F | Oil Less Air Valve | Stainless Steel | PTFE | €23,086.19 | |
| Y | 34TJ45 | 150 GPM | PTFE | PTFE | 0.31" | 212°F | Ball | Stainless Steel | PTFE | €9,975.98 | |
| G1 | 34TJ47 | 150 GPM | Buna N | Buna N | 2" | 180°F | Flap | Aluminum | Buna N | €6,478.46 | |
| E1 | 6PY46 | 160 GPM | Buna N | Buna N | 0.31" | 180°F | Ball | Aluminum | Buna N | €2,463.97 | |
| Y | 34TJ46 | 160 GPM | Santoprene | Santoprene | 0.31" | 180°F | Ball | Stainless Steel | Santoprene | €9,659.27 | |
| D1 | 3HJW6 | 160 GPM | Santoprene | Polypropylene | 0.31" | 180°F | Ball | Polypropylene | EPDM | €6,190.47 | |
| E1 | 3HJX2 | 160 GPM | Santoprene | Santoprene | 0.31" | 212°F | Ball | Aluminum | EPDM | €3,177.90 | |
| H1 | E2AA2R220C-ATEX | 163 GPM | Buna N | Buna N | 11/25" | 180°F | Ball | Aluminum | Buna N | €4,240.57 | |
| I1 | 22A599 | 164 GPM | Santoprene | Santoprene | 0.31" | 212°F | Ball | Cast Iron | Santoprene | €3,984.47 |
