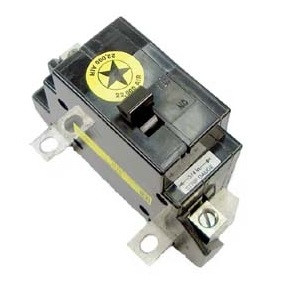

SQUARE D QOM80VH Bolt-On Circuit Breaker, 2 Pole, 120/ 240VAC, 22kAIC
Item: CE6HUHModel: QOM80VHCross Ref: 48M358
7 In Stock
Ships within 2 days via
5.00% off
€172.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Accessory Type | Miniature Circuit Breaker 240V 80A |
| Ambient Rating | 104°F |
| Amps | 80A |
| Amps Rating | 80A |
| Circuit Breaker Type | Standard |
| Depth | 5" |
| Electrical Connection | Lugs |
| For Use With | QO Load Center, Homeline Load Center |
| Frame Size | QOM1 |
| Frame Type | QO |
| Height | 5.08" |
| Interrupt Rating | 22 kA @ 120/240V AC |
| Load Center Type | Main Breaker |
| Mounting Type | Bolt On |
| No. Of Poles | 2 |
| Number Of Phases | 1 |
| Number Of Poles | 2 |
| Returnability | Yes |
| Tightening Torque | 53.1 lbf.in. @ 0.006 sq. in. to 0.1 sq. in. @ 12 AWG to 2/0 AWG |
| Voltage | 240V |
| Voltage Rating | 120/240V AC |
| Voltage Type | AC |
| Width | 3.5" |
| Wire Size | 4 AWG to 2/0 AWG |
Shipping Info:
| Ship weight (kg) | 0.57 |
| Ship height (cm) | 10.92 |
| Ship length (cm) | 13.46 |
| Ship width (cm) | 10.67 |
| Country of Origin | MX |
Product Details:
- Square D QOM80VH circuit breaker used to protect sensitive components from excessive overloads and short circuits
- Thermal-magnetic trip unit providing both long-time and instantaneous current limiting functions
- Bolt-on mounting facility allows quick installation on Square D NF panelboards
- Lug terminals to accomodate wire sizes ranging from 4 to 2/0 AWG
- UL-listed & CSA-certified
Product Variants
| Product | Model | Amps | Depth | Frame Size | Aic Rating | Min. Wire Size | Max. Wire Size | Number Of Poles | Frame Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
QOM100VH | 100A | 3.47" | 100A/QO | - | 12 AWG | 2 AWG | 2 | - | €150.83 | |
 |
QOM2150VH | 150A | 5.07" | 100A/QO | - | 4 AWG | 300 MCM | 2 | - | €316.51 | |
 |
QOM2200VH | 200A | 5.07" | 100A/QO | - | 4 AWG | 300 MCM | 2 | - | €316.51 | |
 |
QOM125VH | 125A | 5" | 100A/QO | - | 4 AWG | 300 mcm | 2 | - | €309.76 | |
 |
QOM2100VH | 100A | 5.07" | 100A/QO | - | 4 AWG | 300 MCM | 2 | - | €316.51 | |
 |
QOM2125VH | 125A | 5.07" | 100A/QO | - | 4 AWG | 300 MCM | 2 | - | €316.51 | |
 |
QOM70VH | 70A | 5" | 100A/QO | - | 12 AWG | - | 2 | - | €150.83 |
