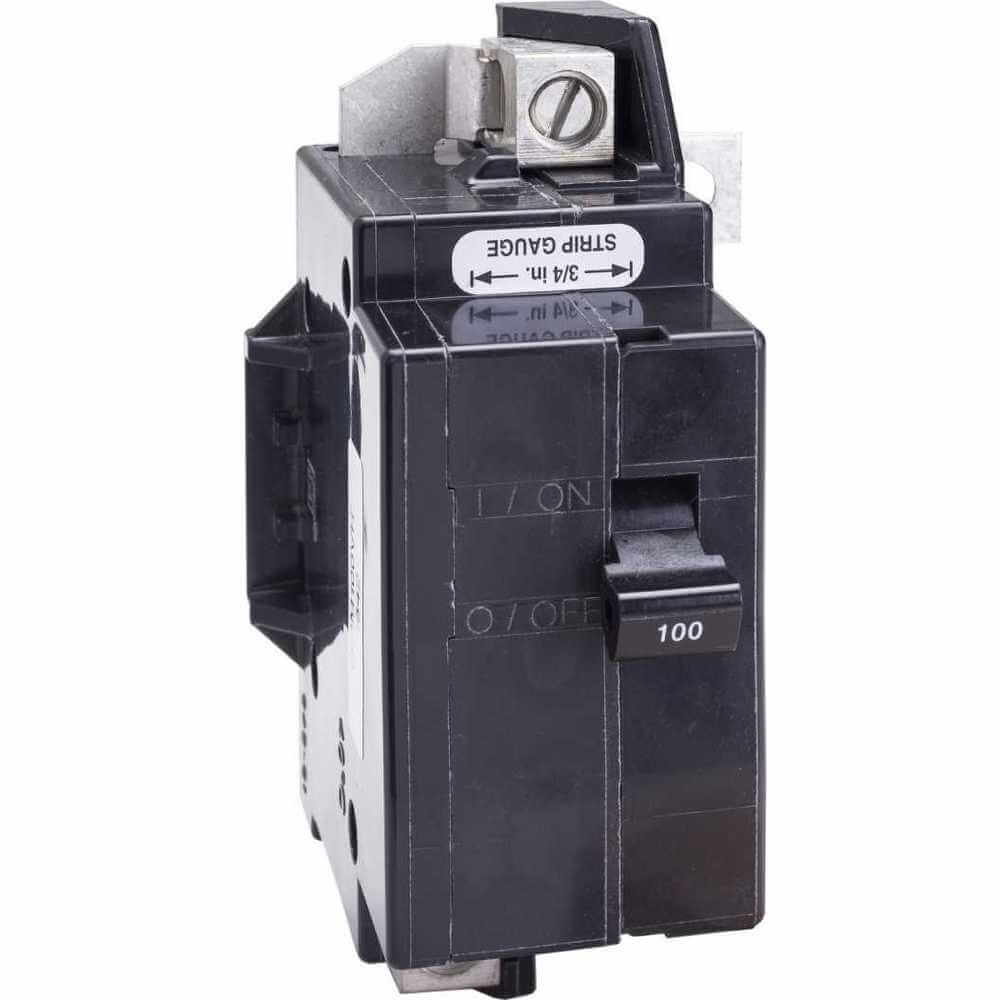

SQUARE D QOM100VH Circuit Breaker 100 A
Item: AA9GHMModel: QOM100VHCross Ref: 1D332
7 In Stock
Ships within 2 days via
5.00% off
€143.28 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bolt On Circuit Breaker |
| Ac Voltage Rating | 240V AC |
| Accessory Type | Miniature Circuit Breaker |
| Air @ 120v Ac | 22 kA |
| Air @ 240v | 22 kA |
| Ambient Rating | 104°F |
| Amps | 100A |
| Circuit Breaker Actuator | Paddle |
| Circuit Breaker Mounting Style | Bolt On |
| Circuit Breaker Type | Main Breaker |
| Compatible Panelboard/load Center Series | Series QO |
| Dc Voltage | Not Rated |
| Depth | 3.47" |
| For Use With | Square D 125 Amp Single Phase Convertible Load Centers (Qom1 Frame Size) |
| Frame Size | 100A/QO |
| Interrupt Rating | 22 kA @ 120/240V AC, 22 kA @ 120V AC |
| Length | 5.09" |
| Max. Air Rating | 22kA |
| Max. Air Rating | 22 kA |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 2 AWG |
| Min. Operating Temp. | 77°F |
| Min. Wire Size | 12 AWG |
| Mounting Type | Bolt On |
| No. Of Poles | 2 |
| Returnability | Yes |
| Terminal Connection | Lug |
| Terminal Connection Type | Lug |
| Tightening Torque | 53.1 lbf.in. @ 0.006 sq. in. to 0.1 sq. in. @ 12 AWG to 2/0 AWG |
| Voltage | 120/240V AC |
| Width | 5" |
Shipping Info:
| Ship weight (kg) | 0.63 |
| Ship height (cm) | 10.67 |
| Ship length (cm) | 13.21 |
| Ship width (cm) | 10.67 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Variants
| Product | Model | Voltage | Amps | Depth | Frame Size | Aic Rating | Min. Wire Size | Max. Wire Size | Frame Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

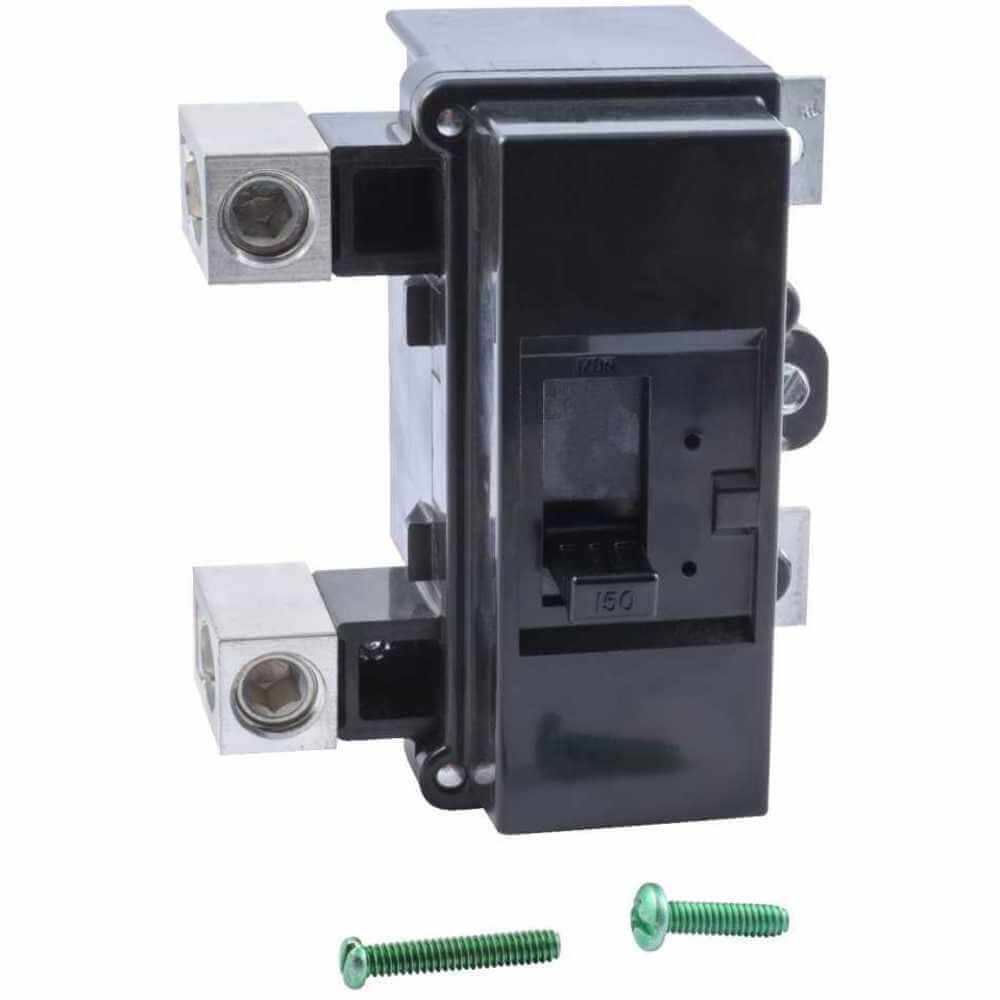

QOM2150VH | 120/240V AC | 150A | 5.07" | 100A/QO | - | 4 AWG | 300 MCM | - | €316.51 | |
 |

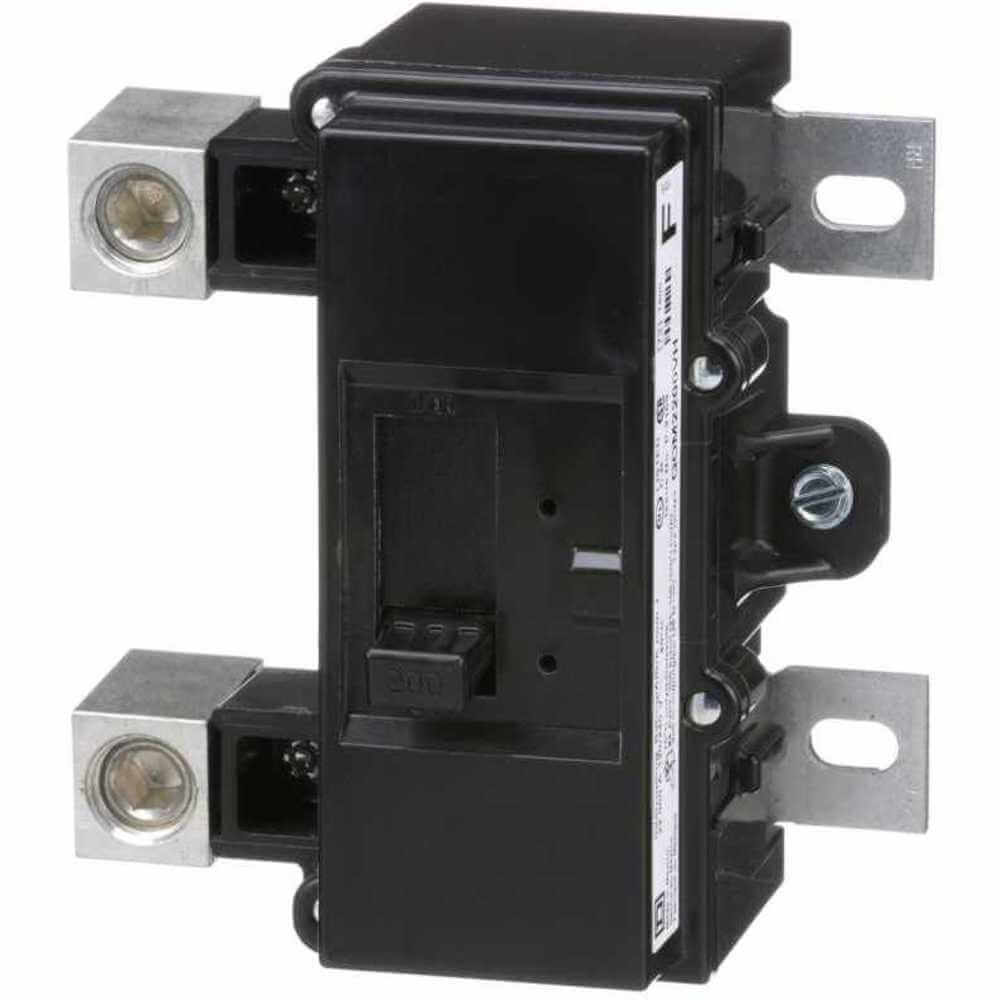

QOM2200VH | 120/240V AC | 200A | 5.07" | 100A/QO | - | 4 AWG | 300 MCM | - | €316.51 | |
 |

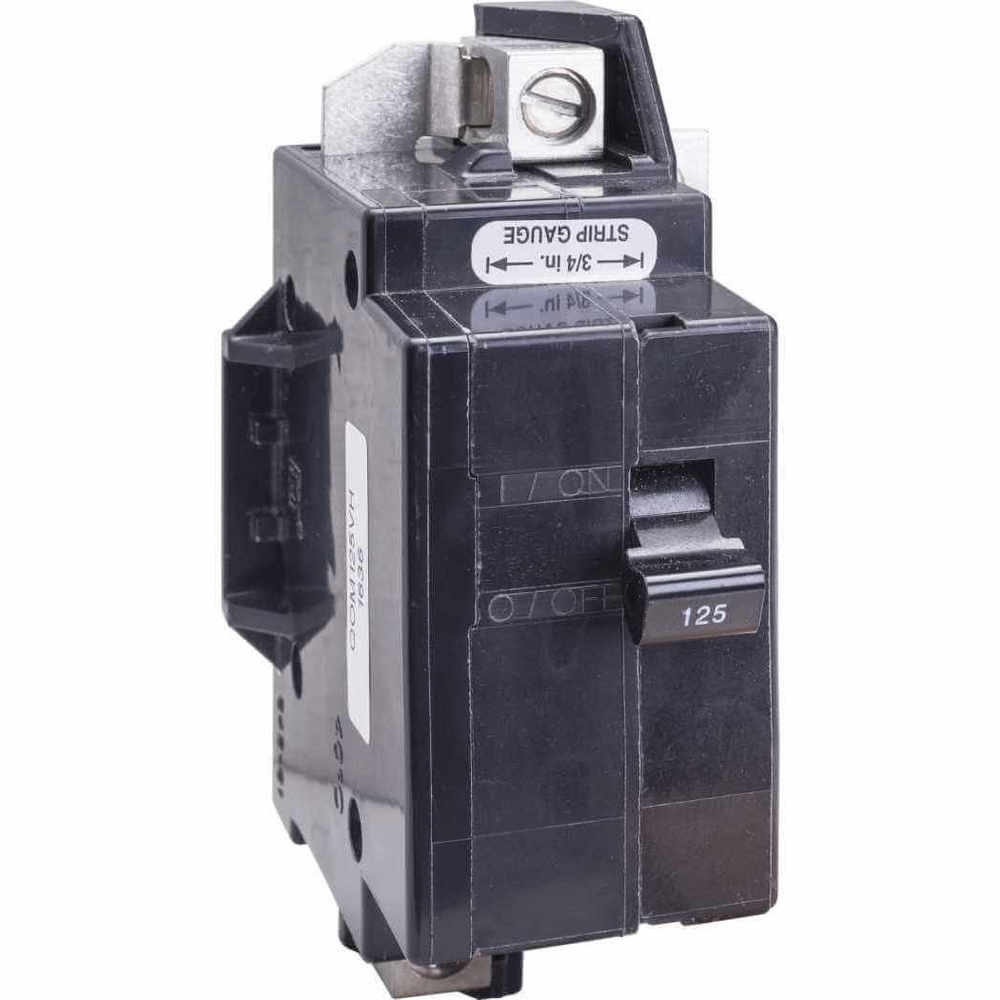

QOM125VH | 120/240V AC | 125A | 5" | 100A/QO | - | 4 AWG | 300 mcm | - | €309.76 | |
 |

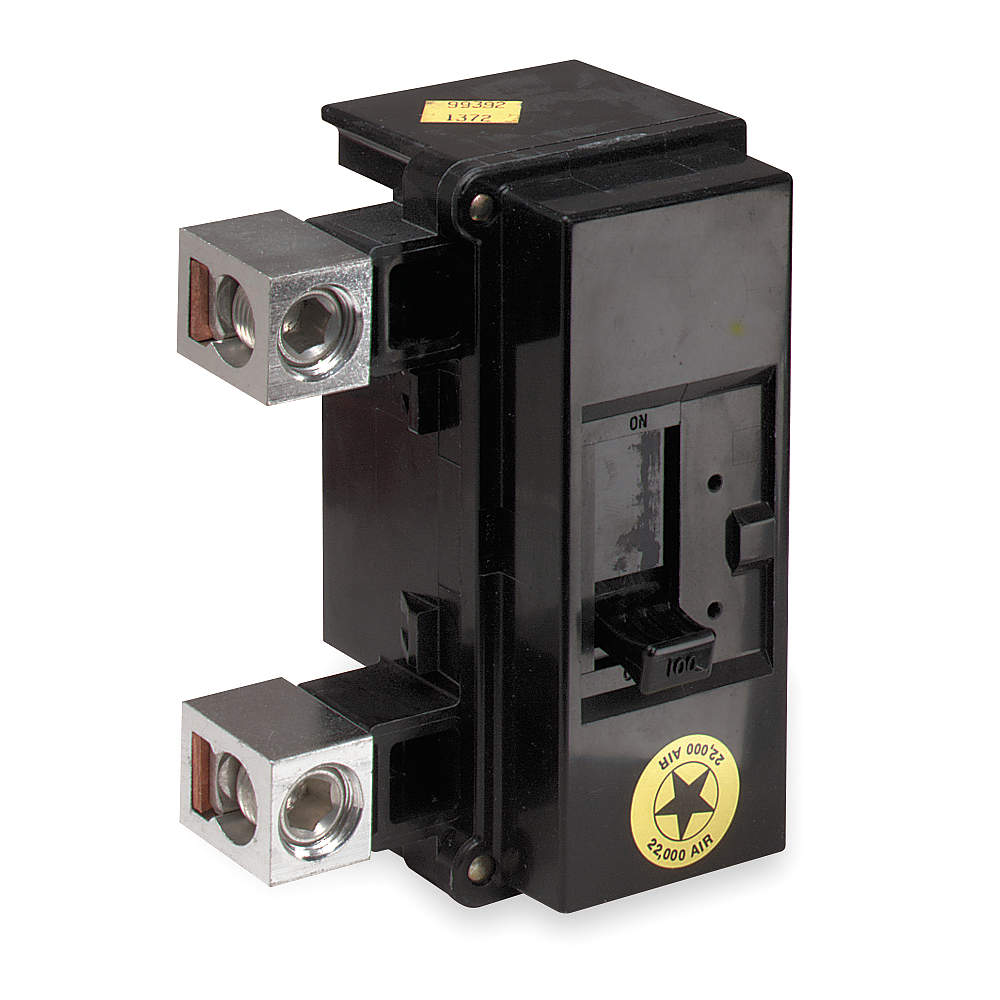

QOM2100VH | 120/240V AC | 100A | 5.07" | 100A/QO | - | 4 AWG | 300 MCM | - | €316.51 | |
 |

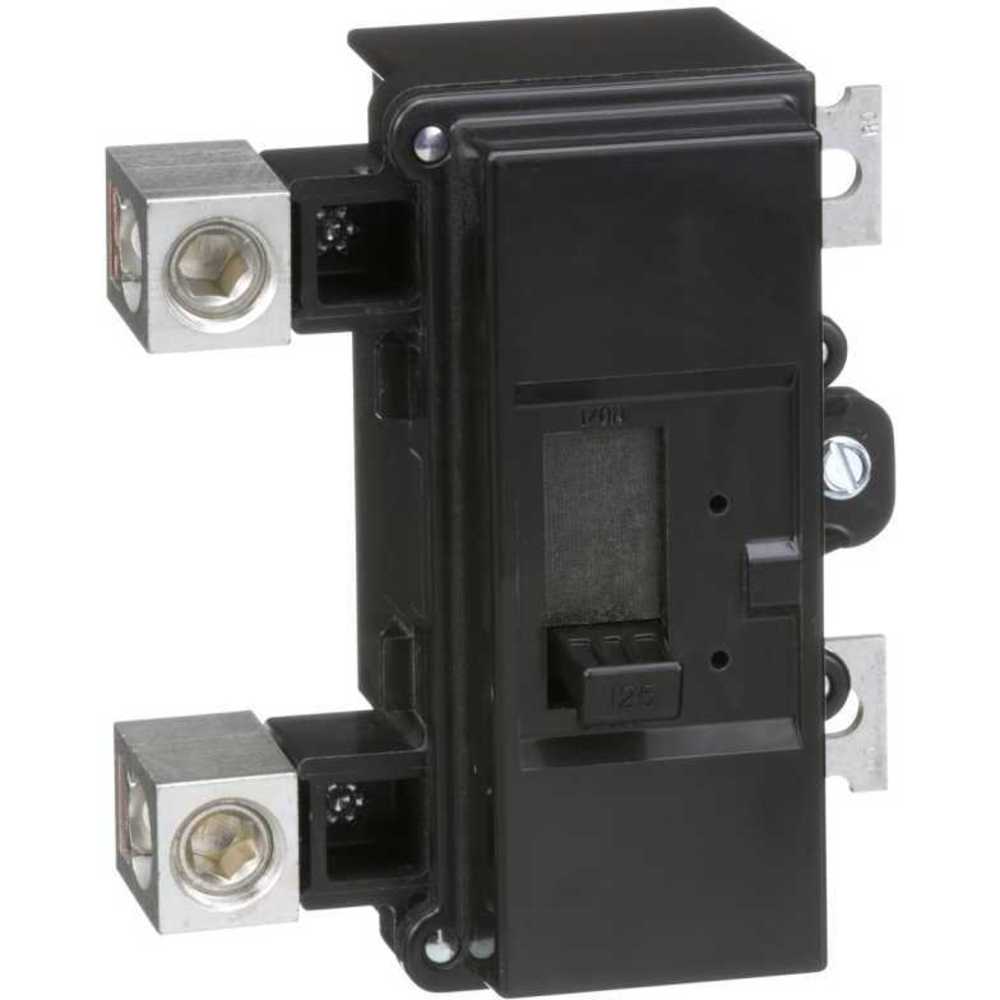

QOM2125VH | 120/240V AC | 125A | 5.07" | 100A/QO | - | 4 AWG | 300 MCM | - | €316.51 | |
 |
QOM70VH | 120/240V AC | 70A | 5" | 100A/QO | - | 12 AWG | - | - | €150.83 | |
 |

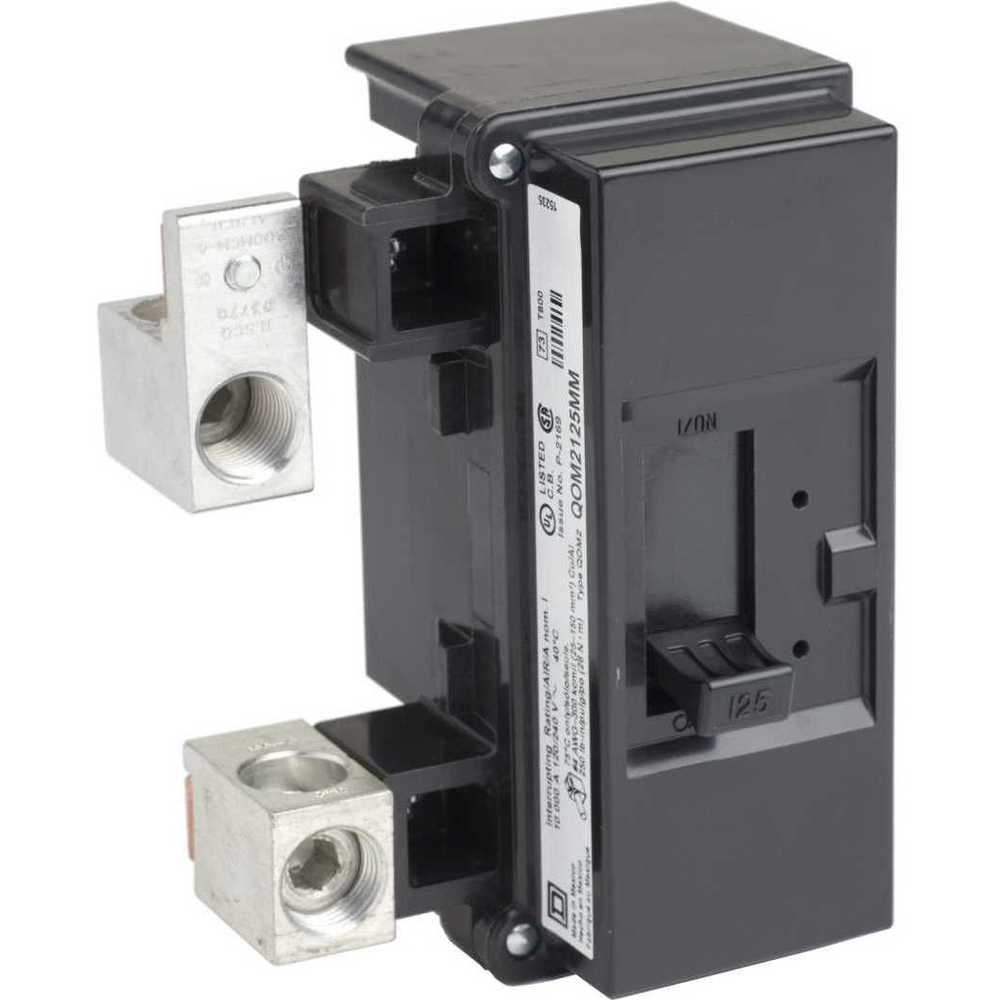

QOM2125MM | 240V | 125A | 3.6" | QOM2 | 10 kAIC @ 240V | - | - | QO | €484.81 |
