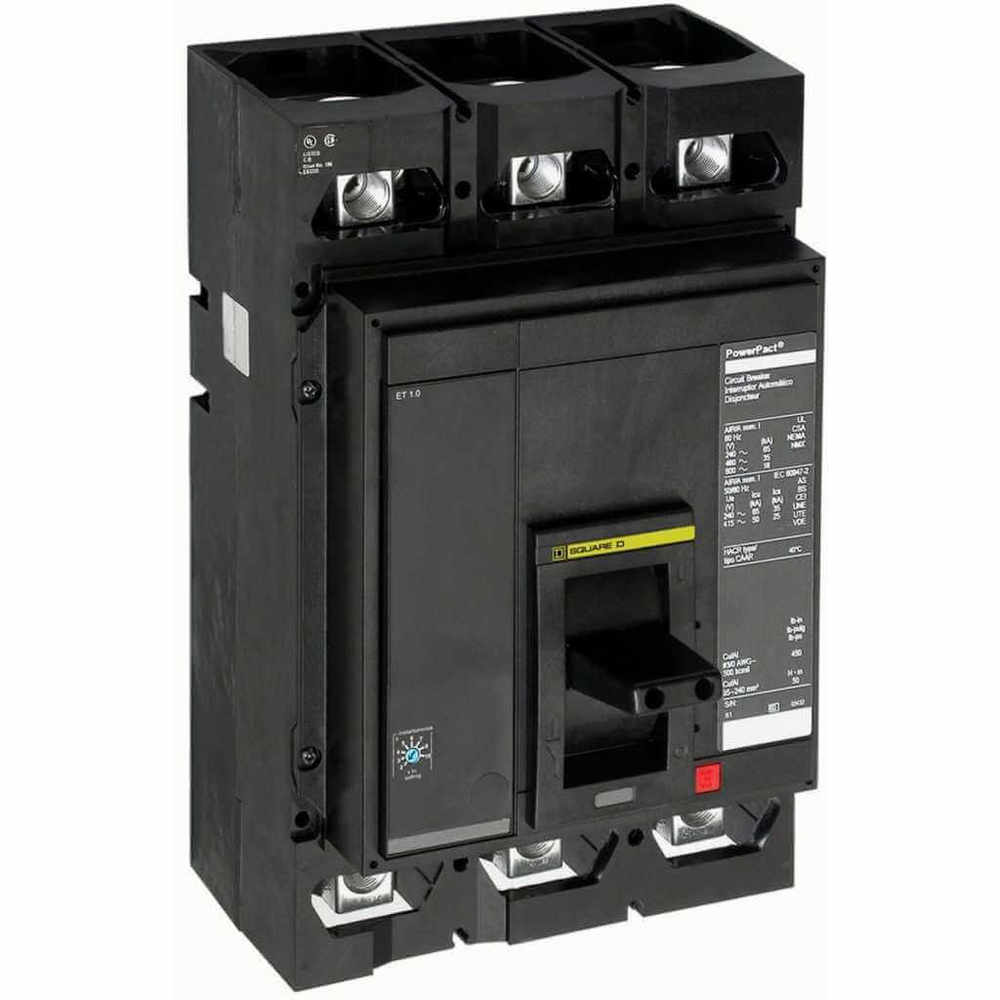

SQUARE D MGL26800 Circuit Breaker 800a 2p 600vac Box Lug
Item: AG7FTFModel: MGL26800Cross Ref: 6NGY4
In Stock : 2 Units Get it by Friday, Mar 27
5.00% off
€11,491.98 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 600V AC |
| Ambient Air Temp. For Operation | -13°F to +158°F |
| Ambient Air Temp. For Storage | -58°F to +185°F |
| Amps | 800A |
| Awg Gauge | 3/0 AWG to 500 kcmil |
| Breaking Capacity | AIR 65 kA 240V AC 50/60 Hz UL 489, AIR 35 kA 480V AC 50/60 Hz UL 489, AIR 18 kA 600V AC 50/60 Hz UL 489, Icu 50 kA 240V AC 50/60 Hz IEC 60947-2, Icu 35 kA 380/415V AC 50/60 Hz IEC 60947-2 |
| Breaking Capacity Code | G |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Application | HACR Rated |
| Circuit Breaker Mounting Style | Lug In/Lug Out |
| Circuit Breaker Type | Standard |
| Color | Black |
| Component Type | Circuit Breaker |
| Continuous Amps Rating | 80% |
| Control Type | Operating Handle |
| Dc Voltage | Not Rated |
| Dc Voltage Rating | Not Rated |
| Depth | 8.05" , 8.1" |
| Device Application | Distribution |
| Electrical Connection | Lugs, Load, Line |
| For Use With | Equipment Gear |
| Frame | 800A/M |
| Height | 12.86" , 12.9" |
| High Amp Trip Setting | 8000A |
| Instantaneous Trip | Adjustable |
| Ip Degree Of Protection | IP40 |
| Line Rated Amps | 800A |
| Local Signalling | 1 Trip Indicator Green |
| Long Time Pick-up Adjustment Range | 300-800A |
| Low Amp Trip Setting | 1600A |
| Magnetic Tripping Amps | 1600-8000A |
| Max. Air Rating | 18 kA At 600V AC |
| Max. Air Rating | 18kA |
| Max. Wire Size | 500 MCM |
| Min. Wire Size | 3/0 AWG |
| Mounting | Lug In, Lug Out |
| Mounting Mode | Unit Mount Lug |
| Mounting Support | Lug |
| Network Frequency | 50/60 Hz |
| No. Of Poles | 2 |
| Number Of Poles | 2 |
| Number Of Slots | 4 |
| Operating Altitude | 0 ft.. to 6561.68 ft. Without Derating, 13123.36 ft. With Derating |
| Phase | 1 |
| Phase Connection | CA |
| Pollution Degree | 3 IEC 60947-1 |
| Power Wire Stripping Length | 1" |
| Quality Labels | ce.png |
| Quantity Per Set | 1 |
| Rated Impulse Withstand Voltage | 8 kV |
| Rated Insulation Voltage | 750V |
| Rated Operational Voltage | 600V |
| Rated Service Breaking Capacity | 25 kA @ 240V AC @ 50/60 Hz, 20 kA @ 380/415V AC @ 50/60 Hz |
| Returnability | Yes |
| Suitability For Isolation | Yes, IEC 60947-2 |
| Terminal Connection | Box Lug |
| Terminal Connection Type | Box Lug |
| Tightening Torque | 442.5 lbf.in. @ 0.1 sq. in. to 0.4 sq. in. @ 3 x 3/0 AWG to 3 x 500 Kcmil |
| Trip Type | Electronic |
| Trip Unit Name | ET 1.0 |
| Trip Unit Technology | Electronic, Basic, ET 1 |
| Utilisation Category | Category A |
| Width | 8.27" , 8.3" |
Shipping Info:
| Ship weight (kg) | 11.97 |
| Ship height (cm) | 32.77 |
| Ship length (cm) | 20.57 |
| Ship width (cm) | 21.08 |
| HS code | 8536200020 |
| Country of Origin | US |
Product Details:
- Instantaneous Trip (Adjustable)
Product Variants
| Model | Number Of Poles | Amps | Phase | Phase Connection | High Amp Trip Setting | Low Amp Trip Setting | Circuit Breaker Type | Ac Voltage Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MGL26400 | 2 | 400A | 1 | AC | 4000A | 800A | Standard | 600V AC | €8,547.78 | |
| MGL26450 | 2 | 450A | 1 | CA | 4500A | 900A | Standard | 600V AC | €10,237.44 | |
| MGL26600 | 2 | 600A | 1 | CA | 6000A | 1200A | Standard | 600V AC | €7,760.33 | |
| MGL26700 | 2 | 700A | 1 | AC | 7000A | 1400A | Standard | 600V AC | €13,589.16 | |
| MGL36300 | 3 | 300A | 3 | CBA | 3000A | 600A | Standard | 600V AC | €6,586.74 | |
| MGL36350 | 3 | 350A | 3 | CBA | 3500A | - | Standard | 600V AC | €6,586.74 | |
| MGL36400 | 3 | 400A | 3 | ABC | 4000A | 800A | Standard | 600V AC | €6,586.74 |
