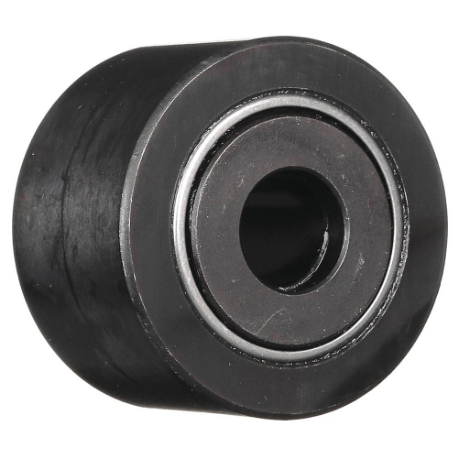

SMITH BEARING MUTD-15-D Yoke Roller, 35 mm Roller Dia, Heavy, 2 Row, Dbl Sealed, Crowned, Alloy Steel
Item: CU3BPGModel: MUTD-15-DCross Ref: 40PL52
7 In Stock
35 mm
Crowned
15 mm
Ships within 2 days via
€91.58 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Roller |
| Bearing Material | Alloy Steel |
| Bearing Type | Needle Roller |
| Bore Dia. | 15 mm |
| Closure | Double Shielded |
| Duty Type | Heavy Duty |
| Dynamic Radial Load Capacity | 23000N |
| Features | Heavy Duty Bearings Are AssembLED With Metallic Side Shield |
| Max. Speed | 6500 RPM |
| Max. Temp. | 250°F |
| Overall Length | 19 mm |
| Roller Dia. | 35 mm |
| Roller Head Type | Crowned |
| Roller Material | Alloy, Steel |
| Roller Material Grade | Grade SAE 52100 |
| Roller Width | 18 mm |
| Rolling Element Rows | 2 |
| Self Lubricating Bearing | Yes |
| Static Radial Load Capacity | 27000N |
| System Of Measurement | Metric |
Shipping Info:
| Ship weight (kg) | 0.11 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Roller Width | Roller Dia. | Dynamic Radial Load Capacity | Bore Dia. | Roller Head Type | Static Radial Load Capacity | Bearing Type | Roller Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MUTD-45100-D | 30 mm | 100 mm | 95000N | 45 mm | Crowned | 147000N | Needle Roller | Alloy, Steel | €282.75 | |
|
MUTD-45100-SD | 30 mm | 100 mm | 95000N | 45 mm | Flat | 147000N | Needle Roller | Alloy, Steel | €282.75 | |
 |
MUTD-50110-D | 30 mm | 110 mm | 100000N | 50 mm | Crowned | 161000N | Needle Roller | Alloy, Steel | €331.13 | |
|
MUTD-15-SD | 18 mm | 35 mm | 23000N | 15 mm | Flat | 27000N | Needle Roller | Alloy, Steel | €91.58 | |
 |
MUTD-17-D | 20 mm | 40 mm | 24800N | 17 mm | Crowned | 31000N | Needle Roller | Alloy, Steel | €99.61 | |
|
MUTD-17-SD | 20 mm | 40 mm | 24800N | 17 mm | Flat | 31000N | Needle Roller | Alloy, Steel | €99.61 | |
 |
MUTD-1542-D | 18 mm | 42 mm | 23000N | 15 mm | Crowned | 27000N | Needle Roller | Alloy, Steel | €108.13 |
