SQUARE D HDL36040 Circuit Breaker 40a 3p 600vac Lug | AF6PRG 1MAU7

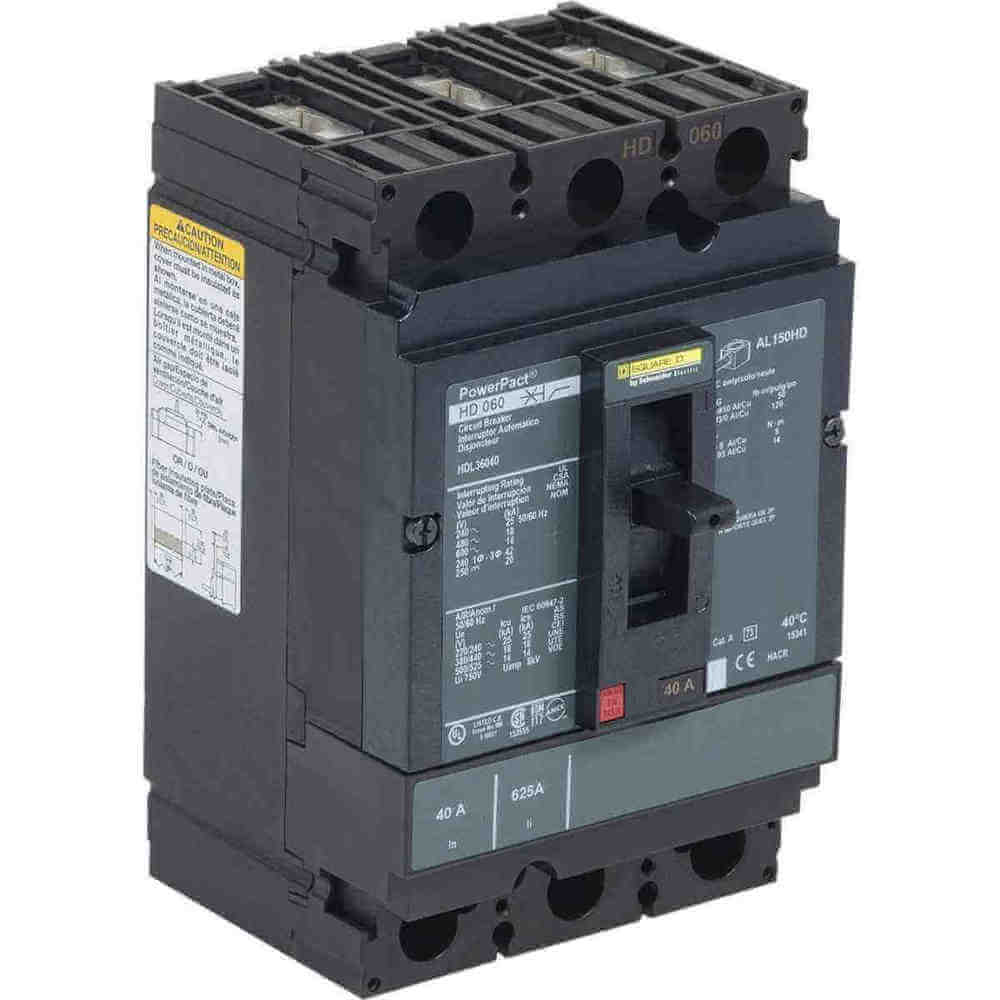

SQUARE D HDL36040 Circuit Breaker 40a 3p 600vac Lug

Item: AF6PRGModel: HDL36040Cross Ref: 1MAU7
7 In Stock
40A
3

Ships within 2 days via

€864.17
5.00% off
€820.97 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Circuit Breaker
Ac Voltage Rating 600V AC
Ambient Air Temp. For Operation -13°F to +158°F
Ambient Air Temp. For Storage -58°F to +185°F
Amps 40A
Awg Gauge 14 AWG to 3/0 AWG
Breaking Capacity 25 kA 240V AC 50/60 Hz UL 489, 18 kA 480V AC 50/60 Hz, 14 kA 600V AC 50/60 Hz, 20 kA 250V DC
Breaking Capacity Code D
Circuit Breaker Actuator Toggle
Circuit Breaker Application HACR Rated
Circuit Breaker Mounting Style Free Standing
Circuit Breaker Type Standard
Color Black
Communication Interface Modbus, Ethernet
Component Type Circuit Breaker
Continuous Amps 80%
Control Type Toggle
Dc Voltage 250V AC , 250V DC
Depth 3.4" , 4.36"
Device Application Distribution
Electrical Connection Lugs, Line, Load
Frame Size 150A/HD
Height 6 2/5"
High Amp Trip Setting 850A
Instantaneous Trip Fixed
Ip Degree Of Protection IP40
Line Rated Amps 40A
Local Signalling Switched Off 1 Trip Indicator Green
Low Amp Trip Setting 400A
Magnetic Hold Amps 400A
Magnetic Tripping Amps 850A
Max. Air Rating Not Rated
Max. Air Rating 25 kA At 240V AC
Max. Operating Temp. 104°F
Max. Wire Size 3 AWG
Min. Wire Size 14 AWG
Mounting Free Standing
Mounting Mode Unit Mount Lug
Mounting Support Lug
Network Frequency 50/60 Hz
No. Of Poles 3
No. Of Slots 5
Operating Altitude 0 ft. to 6561.68 ft. Without Derating, 5000m With Derating
Phase 3
Phase Connection ABC
Pollution Degree 3 IEC 60947-1
Power Wire Stripping Length 0.6"
Quality Labels ce.png
Quantity Per Set 1
Rated Impulse Withstand Voltage 8 kV
Rated Insulation Voltage 750V
Rated Operational Voltage 690V
Rated Service Breaking Capacity 25 kA @ 220/240V AC @ 50/60 Hz, 18 kA @ 380/440/415V AC @ 50/60 Hz, 14 kA @ 500/525V AC @ 50/60 Hz, 20 kA @ 250V DC, 20 kA @ 500V DC
Returnability Yes
Suitability For Isolation Yes, IEC 60947-2
Terminal Connection Line/Load Lug
Terminal Connection Type Line, Load Lug
Tightening Torque 44.3 lbf.in. @ 0.004 sq. in. to 0.009 sq. in. @ 14 AWG to 10 AWG, 123.9 lbf.in. @ 0.02 sq. in. to 0.1 sq. in. @ 8 AWG to 3/0 AWG
Trip Type Thermal Magnetic
Trip Unit Technology Thermal-Magnetic
Utilisation Category Category A
Width 4.09" , 4.12"

Shipping Info:

Ship weight (kg) 1.87
Ship height (cm)18.8
Ship length (cm)23.11
Ship width (cm)16.51
HS code8536200020
Country of OriginMX

Product Details:

    • Instantaneous Trip (Fixed)

Product Variants

ProductModelNo. Of PolesAmpsLine Rated AmpsContinuous AmpsReturnabilityIp Degree Of ProtectionSuitability For IsolationQuality LabelsPrice
SQUARE D HDL36060 Circuit Breaker 60a 3p 600vac Lug | AF6PPZ 1MAJ4 HDL36060360A60A80%YesIP40Yes, IEC 60947-2ce.png€864.17
SQUARE D HDL26015 Circuit Breaker, 15A, 2 Poles, 600VAC, 14KA, Thermal Magnetic | AF6PQA 1MAJ5 HDL26015215A15A80%YesIP40Yes, IEC 60947-2ce.png€824.83
SQUARE D HDL26020 Circuit Breaker 20a 2p 600vac Lug | AF6PQB 1MAJ6 HDL26020220A20A80%YesIP40Yes, IEC 60947-2ce.png€824.83
SQUARE D HDL26025 Circuit Breaker 25a 2p 600vac Lug | AF6PQC 1MAJ7 HDL26025225A25A80%YesIP40Yes, IEC 60947-2ce.png€892.15
SQUARE D HDL26030 Circuit Breaker 30a 2p 600vac Lug | AF6PQD 1MAJ8 HDL26030230A30A80%YesIP40Yes, IEC 60947-2ce.png€824.83
SQUARE D HDL26040 Circuit Breaker, 40Amp, 2 Poles, 600VAC, Lug | AF6PQE 1MAJ9 HDL26040240A40A80%YesIP40Yes, IEC 60947-2ce.png€824.83
SQUARE D HDL26050 Circuit Breaker 50a 2p 600vac Lug | AF6PQF 1MAK1 HDL26050250A50A80%YesIP40Yes, IEC 60947-2ce.png€824.83
