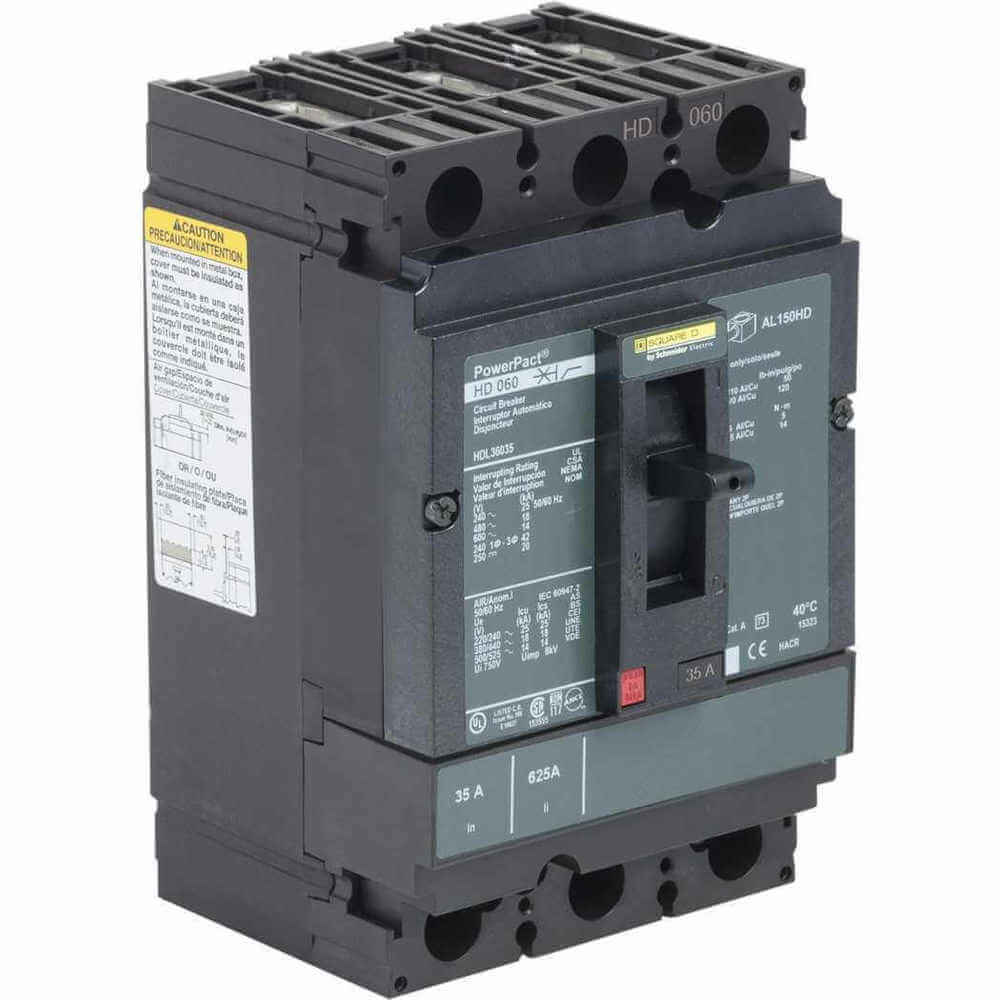

SQUARE D HDL36035 Circuit Breaker 35a 3p 600vac Lug
Item: AF6PRFModel: HDL36035Cross Ref: 1MAU6
7 In Stock
35A
3
Ships within 2 days via
10.00% off
€1,471.69 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Circuit Breaker |
| Ac Voltage Rating | 600V AC |
| Amps | 35A |
| Circuit Breaker Actuator | Toggle |
| Circuit Breaker Mounting Style | Free Standing |
| Circuit Breaker Type | Standard |
| Dc Voltage | 250V DC |
| Dc Voltage Rating | 250V AC |
| Depth | 4.36" |
| Frame Size | 150A/HD |
| High Amp Trip Setting | 850A |
| Instantaneous Trip | Fixed |
| Low Amp Trip Setting | 400A |
| Max. Air Rating | Not Rated |
| Max. Air Rating | 25 kA At 240V AC |
| Max. Operating Temp. | 104°F |
| Max. Wire Size | 3 AWG |
| Min. Wire Size | 14 AWG |
| Mounting | Free Standing |
| Number Of Poles | 3 |
| Phase | 3 |
| Phase Connection | ABC |
| Series | HD Series |
| Terminal Connection | Line/Load Lug |
| Terminal Connection Type | Line, Load Lug |
| Trip Type | Thermal Magnetic |
| Width | 4.12" |
Shipping Info:
| Ship weight (kg) | 1.87 |
| Ship height (cm) | 13.97 |
| Ship length (cm) | 22.35 |
| Ship width (cm) | 18.8 |
| HS code | 8536200020 |
| Country of Origin | MX |
Product Details:
- Instantaneous Trip (Fixed)
Product Variants
| Product | Model | Number Of Poles | Amps | Phase | High Amp Trip Setting | Low Amp Trip Setting | Magnetic Hold Current | Magnetic Tripping Current | Circuit Breaker Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
HDL36060 | 3 | 60A | 3 | 1450A | 800A | - | - | Standard | €1,651.09 | |
 |
HDL26015 | 2 | 15A | 1 | 750A | 350A | 350A | 750A | Standard | €1,333.01 | |
|
HDL26020 | 2 | 20A | 1 | 750A | 350A | - | - | Standard | €1,320.29 | |
|
HDL26025 | 2 | 25A | 1 | 750A | 350A | - | - | Standard | €1,307.59 | |
|
HDL26030 | 2 | 30A | 1 | 750A | 350A | - | - | Standard | €1,319.60 | |
 |
HDL26040 | 2 | 40A | 1 | 850A | 400A | - | - | Standard | €1,320.29 | |
|
HDL26050 | 2 | 50A | 1 | 850A | 400A | - | - | Standard | €1,329.13 |
