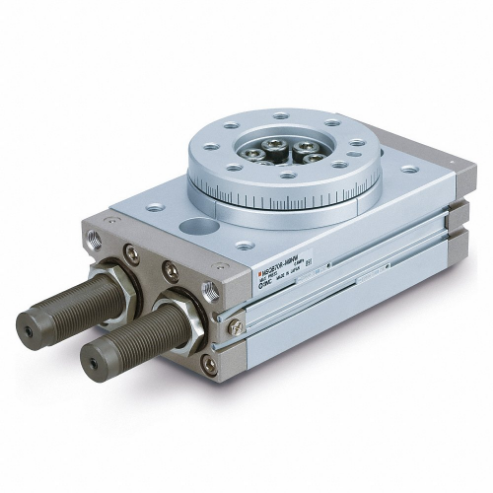

SPEEDAIRE MSQB10R High Precision Rotary Table, Rack and Pinion, 10 mm Model Size, Both Directions/Shock Pads
Item: CU4EFKModel: MSQB10RCross Ref: 5YEP4
7 In Stock
Ships within 2 days via
10.00% off
€595.76 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rotary Table |
| Air Inlet Type | Metric Standard |
| Bearing Retainer Material | Aluminum Alloy |
| Bearing Retainer Material Finish | Anodized |
| Body Length | 92 mm |
| Body Material | Aluminum Alloy |
| Body Material Finish | Anodized |
| Bore | 10 mm |
| Bore Dia. | 10 mm |
| Cover Material | Aluminum Alloy |
| Cover Material Finish | Plated |
| Cushion Option | Internal Shock Absorber |
| Cushion Type | Shock Absorber |
| End Cap Material | Aluminum Alloy |
| Height | 34 mm |
| Housing Material | Aluminum Alloy |
| Length | 109.7 mm |
| Max. Pressure | 87 psi |
| Maximum Operating Pressure | 0.6 MPa |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Pressure | 0.1 MPa |
| Minimum Operating Temperature | 32°F |
| Minimum Rotation Angle | 52° |
| Operating Temp. Range | +32°F to +140°F |
| Output Torque | 1.78 N-m |
| Overall Height | 52.5 mm |
| Overall Length | 109.7 mm |
| Overall Width | 55.4 mm |
| Pinion Material | Steel Alloy |
| Piston Material | Stainless Steel |
| Plate Material | Aluminum Alloy |
| Plate Material Finish | Chromate Coated |
| Port Location | End |
| Powertrain Material | Carbon Steel |
| Rotation Angle | 190° |
| Seal Material | NBR |
| Shaft Type | Aluminum |
| System Of Measurement | Metric |
| Table Material | Aluminum Alloy |
| Table Material Finish | Anodized |
| Table Size | 10 |
| Type | Rack And Pinion |
| Width | 55.4 mm |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 5.25 |
| Ship length (cm) | 10.97 |
| Ship width (cm) | 5.54 |
| Country of Origin | JP |
Product Variants
| Model | Cushion Type | Bore Dia. | Rotation Angle | Max. Pressure | Output Torque | Shaft Length | Shaft Dia. | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MSQB100R-XN | Shock Absorber | 100 mm | 190° | 87 psi | 20.3 N-m | - | - | Aluminum Alloy | €1,104.26 | |
| MSQB100A-XN | Rubber Cushion | - | 190° | 145 psi | 20.3 N-m | - | - | Aluminum Alloy | €922.41 | |
| MSQB200R-XN | Shock Absorber | 200 mm | 190° | 87 psi | 39.6 N-m | - | - | Aluminum Alloy | €1,406.08 | |
| MSQB200A-XN | Rubber Cushion | 200 mm | 190° | 145 psi | 39.6 N-m | - | - | Aluminum Alloy | €1,150.18 | |
| MSQB30R-XN | Shock Absorber | 30 mm | 190° | 87 psi | 5.45 N-m | - | - | Aluminum Alloy | €736.37 | |
| MSQB30A-XN | Rubber Cushion | 30 mm | 190° | 145 psi | 5.45 N-m | - | - | Aluminum Alloy | €671.42 | |
| MSQB50R-XN | Shock Absorber | 50 mm | - | 87 psi | - | - | - | Aluminum Alloy | €846.46 |
