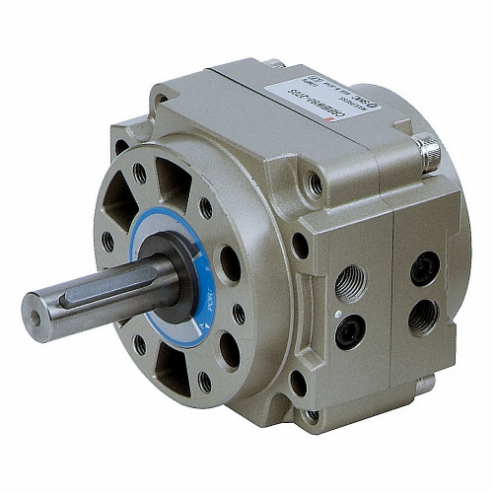

SPEEDAIRE CDRB1BW100-90S Rotary Actuator, Vane Style, 90 Deg. Rotation Angle, 100 mm Model Size
Item: CU4EFBModel: CDRB1BW100-90SCross Ref: 5PFA5
7 In Stock
Ships within 2 days via
5.00% off
€620.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Rotary Actuator |
| Actuator Style | Vane |
| Bore | 100 mm |
| Bore Dia. | 100 mm |
| Cushion Type | Rubber Bumper |
| For Fluid Type | Air |
| Height | 125 mm |
| Housing Material | Aluminum Alloy |
| Housing Material Finish | Anodized |
| Key Height With Shaft | 28 mm |
| Keyway Type | Square |
| Length | 140 mm |
| Magnetic Piston | Magnetic Piston |
| Max. Pressure | 145 psi |
| Mount Style | Basic |
| Operating Temp. | +40°F to +140°F |
| Output Shaft Type | Keyed Shaft |
| Piston Material | Carbon Steel |
| Port Type | RC |
| Powertrain Material | Carbon Steel |
| Rotation Angle | 90° |
| Shaft Dia. | 25 mm |
| Shaft Length | 65 mm |
| Shaft Type | Carbon Steel |
| System Of Measurement | Metric |
| Type | Vane Style |
| Width | 103 mm |
Shipping Info:
| Ship weight (kg) | 4.34 |
| Ship height (cm) | 14 |
| Ship length (cm) | 20.7 |
| Ship width (cm) | 12.5 |
| Country of Origin | JP |
Product Variants
| Model | Bore Dia. | Housing Material | Piston Material | Cushion Type | Shaft Type | Height | Max. Pressure | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MSQB100R-XN | 3 7/8" | Aluminum Alloy | Stainless Steel | Shock Absorber | Aluminum | 59 mm | 87 psi | Rack And Pinion | €1,104.26 | |
| MSQB100A-XN | 3 7/8" | Aluminum Alloy | Stainless Steel | Rubber Cushion | Aluminum | 59 mm | 145 psi | Rack And Pinion | €921.30 | |
| MSQB200R-XN | 200 mm | Aluminum Alloy | Stainless Steel | Shock Absorber | Aluminum | 74 mm | 87 psi | Rack And Pinion | €1,323.36 | |
| MSQB200A-XN | 200 mm | Aluminum Alloy | Stainless Steel | Rubber Cushion | Aluminum | 74 mm | 145 psi | Rack And Pinion | €1,081.22 | |
| MSQB30R-XN | 30 mm | Aluminum Alloy | Stainless Steel | Shock Absorber | Aluminum | 40 mm | 87 psi | Rack And Pinion | €736.37 | |
| MSQB30A-XN | 30 mm | Aluminum Alloy | Stainless Steel | Rubber Cushion | Aluminum | 40 mm | 145 psi | Rack And Pinion | €669.99 | |
| MSQB50R-XN | 50 mm | Aluminum Alloy | Stainless Steel | Shock Absorber | Aluminum | 46 mm | 87 psi | Rack And Pinion | €846.46 |
