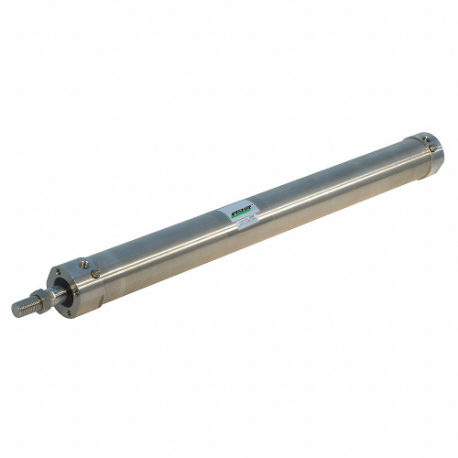

SPEEDAIRE CDG5BA20SR-75 Air Cylinder, 20 mm Bore Dia, 75 mm Stroke, M5 X 0.8 Inch Port Size
Get it by Tuesday, Aug 25
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Cylinder |
| Action Type | Double Acting |
| Air Inlet | M4 x 0.7 |
| Body Dia. | 31 mm |
| Body Material | Stainless Steel |
| Body Material Grade | Grade 316 |
| Bore Dia. | 20 mm |
| Cushion Type | Air Cushion |
| Cylinder Action | Double Acting |
| Cylinder Type | Round |
| End Cap Material | Stainless Steel |
| Features | Air Cushion |
| For Fluid Type | Air |
| Magnetic Piston | Magnetic Piston |
| Max. Operating Pressure | 1 MPa |
| Max. Operating Temp. | 140°F |
| Max. Pressure | 145 psi |
| Min. Operating Pressure | 0.05 MPa |
| Min. Operating Temp. | 14°F |
| Mounting | Basic |
| Mounting Style | Basic |
| No. Of Rods | 1 |
| Overall Length | 193 mm |
| Piston Material | Magnetic |
| Piston Rod Material | Stainless Steel |
| Piston Rod Material Grade | 304 |
| Repairable Cylinder | Repairable |
| Rod Dia. | 8 mm |
| Rod Rotation | Rotating Rod |
| Rod Thread Length | 18 mm |
| Rod Thread Size | M8 x 1.25 |
| Series | Cg5-S-X165Us |
| Single Acting/double Acting | Double Acting |
| Stroke | 75 mm |
| Stroke Length | 75 mm |
| System Of Measurement | Metric |
| Temp. | +14°F to +140°F |
| Tie Rod Material | N |
| Tube Material | Stainless Steel |
| Type | Round Body |
Shipping Info:
| Ship weight (kg) | 0.43 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Product Variants
| Product | Model | Overall Height | Color | Body Material | Bore Dia. | Rod Dia. | Piston Material | Cushion Type | Piston Rod Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3ATF9 | 2 9/16" | Silver | Stainless Steel | 3/4" | 0.31" | Aluminum | None | Stainless Steel | - | RFQ
|
 |
NCDMB150-0200 | - | - | Stainless Steel | 1 1/2" | 7/16" | Aluminum | None | Carbon Steel | €117.57 | |
|
NCDMB200-0300 | - | - | Stainless Steel | 2" | 5/8" | Aluminum | None | Carbon Steel | €170.39 | |
|
NCDMB200-0500 | - | - | Stainless Steel | 2" | 5/8" | Aluminum | None | Carbon Steel | €189.42 | |
|
NCDME150-0300 | - | - | Stainless Steel | 1 1/2" | 7/16" | Aluminum | None | Carbon Steel | - | RFQ
|
 |
5VKY5 | 13 7/8" | - | Aluminum | 1 1/2" | 5/8" | Composite | Head And Cap | Steel | - | RFQ
|
 |
CD85F16-125-B | - | - | Stainless Steel | 16 mm | 6 mm | Brass | Rubber Cushion | Stainless Steel | €75.30 |
