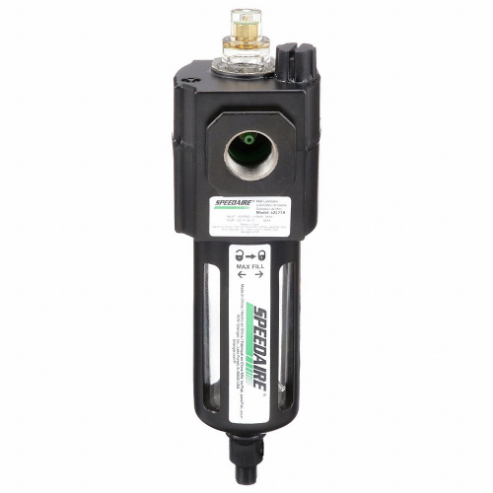

SPEEDAIRE 4ZL77 Lubricator Mist 1/2 In
Item: AE2URBModel: 4ZL77
7 In Stock
Ships within 2 days via
10.00% off
€83.19 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Modular Air Line Lubricator |
| Adjustment Mechanism | Screwdriver |
| Adjustment Mechanism Material | PE |
| Adjustment Type | Screwdriver |
| Air Flow Direction | Left To Right |
| Air Inlet Gender | Female |
| Air Inlet Size | 1/2" |
| Air Inlet Type | NPT |
| Air Outlet Gender | Female |
| Air Outlet Size | 1/2" |
| Air Outlet Type | NPT |
| Body Material | Aluminum |
| Bowl Material | Plastic |
| Bowl Size | 3.5 oz. |
| Connection Style | Air Line |
| Dome | Green 360 Sight/Feed, Where All Visible Oil Drops are Delivered to a Single Pneumatic Component |
| Dome Material | Transparent Nylon |
| Drain Included | Yes |
| Drain Part Compatbility | 1AKG9A |
| Duty Rating | Intermediate Duty |
| For Fluid Type | Compressed Air |
| For Maximum Pipe Run | 20 ft. |
| For Substance Type | Air |
| Height | 8.02" |
| Includes | (1) Oil Drop Controller |
| Inlet Size | 1/2 |
| Inlet Type | NPT |
| Lubricator Bowl Capacity | 3.5 oz. |
| Lubricator Bowl Guard Included | No |
| Lubricator Bowl Guard Material | Iron |
| Lubricator Bowl Material | Polycarbonate With Steel Guard |
| Lubricator Type | Mist |
| Max. Flow Rate | 60 CFM |
| Max. Pressure | 150 psi |
| Max. Temp. | 125°F |
| Maximum Flow Rate | 95 CFM |
| Maximum Operating Pressure | 150 psi |
| Minimum Operating Temperature | 5°C |
| Modular Connection | No Modular Connection |
| Npt | 1/2" |
| Number Of Air Inlets | 1 |
| Number Of Air Outlets | 1 |
| Oil Capacity | 80 CT |
| Oil Feed Type | Mist |
| Overall Height | 8 1/8" |
| Overall Length | 2.45" |
| Overall Width | 2 11/16" |
| Pipe Runs | 15 ft. to 20 ft. |
| Pipe Runs (ft.) | 15 to 20 |
| Pipe Size | 1/2" |
| Recommended Lubricant | ISO VG 32 |
| Seal Material | Rubber |
| Series | Intermediate Duty Series |
| Sight Dome Included | Yes |
| Sight Gauge Included | Yes |
| System Location | Air Line |
| Width | 2 17/25" |
Shipping Info:
| Ship weight (kg) | 0.56 |
| Ship height (cm) | 20.64 |
| Ship length (cm) | 6.22 |
| Ship width (cm) | 6.83 |
| HS code | 8479899899 |
| Country of Origin | CN |
Product Variants
| Product | Model | Lubricator Type | Bowl Material | Max. Flow Rate | Body Material | Overall Width | Air Inlet Size | Lubricator Bowl Capacity | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
4ZL56 | Micro Mist | Plastic | 10 CFM | Zinc | 1 5/8" | 1/8" | 1 oz. | 1.45" | €61.94 | |
 |
4ZL57 | Micro Mist | Plastic | 14 CFM | Zinc | 1 5/8" | 1/4" | 1 oz. | 1.45" | €74.93 | |
 |
4ZL64 | Mist | Metal | 51 CFM | Zinc | 2" | 1/4" | 2.2 oz. | 1.91" | €70.70 | |
 |
4ZL65 | Mist | Plastic | 51 CFM | Zinc | 2" | 1/4" | 2.2 oz. | 1.91" | €63.36 | |
 |
4ZL66 | Mist | Metal | 51 CFM | Zinc | 2" | 3/8" | 2.2 oz. | 1.91" | €65.65 | |
 |
4ZL67 | Mist | Plastic | 51 CFM | Zinc | 2" | 3/8" | 2.2 oz. | 1.91" | €64.84 | |
 |
4ZL68 | Micro Mist | Metal | 51 CFM | Zinc | 2" | 1/4" | 2.2 oz. | 1.91" | €65.04 |
