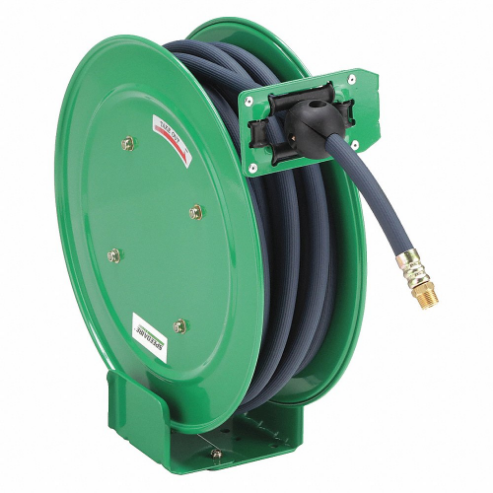

SPEEDAIRE 45UZ33 Spring Return Hose Reel, 50 Ft, 3/8 Inch Size Mnpt, 300 Psi Max Op Pressure
Get it by Thursday, Dec 25
10.00% off
€268.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spring Return Hose Reel |
| Base Motion Type | Stationary |
| Base Mount Width | 3.656" |
| Bearing Construction | Permanently Lubricated |
| Bearings | Permanently Lubricated |
| Corrosion Resistance | Yes |
| Corrosion-resistant | Yes |
| Drive Type | Spring Return |
| Drive Type - Hose Reels | Spring Return |
| Enclosed | No |
| Enclosed Reel | No |
| Fasteners Included | No |
| Features | Heavy Duty |
| Finish - Hose Reels | Powder Coated |
| Fitting Gender | Male x Male |
| Fitting Size | 3/8" x 3/8" |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Height | 15 9/32" |
| Hose Color | Dark Blue |
| Hose Cover Material | PVC |
| Hose End Configuration | 3/8" MNPT |
| Hose End Type | MNPT |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Brass |
| Hose Fitting A Size | 3/8" |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Brass |
| Hose Fitting B Size | 3/8" |
| Hose Included | Yes |
| Hose Inner Dia. | 3/8" , 50 ft. |
| Hose Inside Dia. | 3/8" |
| Hose Length | 50 ft. |
| Hose Outside Dia. | 11/16" |
| Hose Reel Primary Application | Air, Water |
| Hose Reel Type | Bench, Ceiling, Floor, Vehicle, Wall Mount Hose Reel |
| Housing Material | Steel |
| Includes | Hose |
| Includes Hose Stop | Yes |
| Includes Leader Hose | No |
| Latch Type | Locking |
| Length | 13 25/32" |
| Max. Pressure | 300 psi |
| Max. Temp. | 150°F |
| Maximum Operating Pressure | 300 psi |
| Media | Air, Water |
| Min. Operating Temp. | 21°F |
| Mount Base Height | 4 21/64" |
| Mount Base Width | 3 21/32" |
| Mount Hole Center-to-center Width | 2.359" |
| Mounting Hole Center To Center Height | 25/32", 3 5/32" |
| Mounting Hole Center To Center Width | 2 23/64" |
| Mounting Hole Dia. | 3/8" |
| Number Of Guide Arms | Single Arm |
| Number Of Mounting Holes | 6 |
| Overall Height | 15 9/32" |
| Overall Length | 13 25/32" |
| Overall Width | 7 1/32" |
| Pedestal Type | Single Pedestal |
| Reel Color | Green |
| Reel Dia. | 13.812" |
| Reel Diameter | 13 13/16" |
| Reel Material | Steel |
| Reel Width | 6 31/32" |
| Seal Type | Nitrile |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 3/8" |
| Swivel Inlet Thread Size | 3/8"-18 |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 3/8" |
| Swivel Outlet Thread Size | 3/8"-18 |
| Weight | 20 lbs. |
| Width | 7 1/32" |
Shipping Info:
| Ship weight (kg) | 10.31 |
| Ship height (cm) | 38.81 |
| Ship length (cm) | 35 |
| Ship width (cm) | 17.86 |
| Country of Origin | US |
Product Variants
| Product | Model | Hose Included | Fitting Size | Hose Capacity | Overall Height | Overall Width | Max. Temp. | Hose Inside Dia. | Bearings | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
437J22 | Yes | 1/2" x 1/2" | 25 ft. | 15 9/32" | 6 13/16" | 150°F | 1/2" | Greaseless | €319.96 | |
 |
49AE03 | Yes | 1/4" x 1/4" | - | 13 29/32" | 6 1/32" | 150°F | 3/8" | Permanently Lubricated | €210.96 | |
 |
437J21 | Yes | 1/4" x 1/4" | - | 13 29/32" | 6 1/64" | 150°F | 1/4" | Greaseless | €233.99 | |
 |
45UZ40 | Yes | 3/4" x 3/4" | - | 21 3/16" | 9 1/4" | 150°F | 3/4" | Permanently Lubricated | €668.62 | |
 |
45UZ34 | Yes | 1/4" x 1/4" | 35 ft. | 15 9/32" | 6 19/64" | 150°F | 3/8" | Permanently Lubricated | €216.06 | |
 |
45UZ35 | Yes | 3/8" x 3/8" | 35 ft. | 15 9/32" | 7 1/32" | 150°F | 1/2" | Permanently Lubricated | €277.45 | |
 |
437J29 | Yes | 1/2" x 1/2" | 50 ft. | 16 55/64" | 7 23/64" | 150°F | 1/2" | Greaseless | €338.88 |
