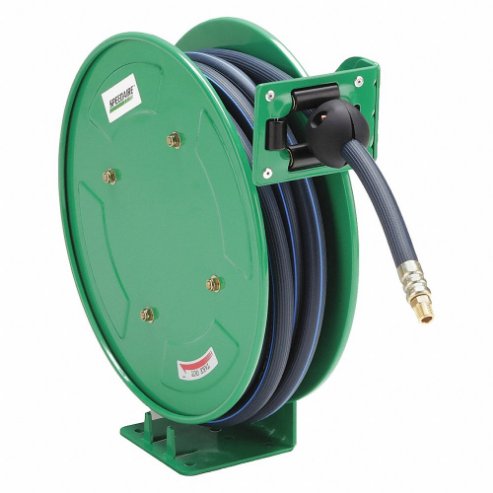

SPEEDAIRE 49AE03 Spring Return Hose Reel, 25 Ft, 1/4 Inch Size Mnpt, 300 Psi Max Op Pressure
Get it by Thursday, Dec 25
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
10.00% off
€189.86 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Spring Return Hose Reel |
| Base Motion Type | Stationary |
| Base Mount Width | 4.328" |
| Bearings | Permanently Lubricated |
| Corrosion Resistance | Yes |
| Corrosion-resistant | Yes |
| Drive Type | Spring Return |
| Drive Type - Hose Reels | Spring Return |
| Enclosed | No |
| Enclosed Reel | No |
| Fasteners Included | No |
| Features | Heavy Duty |
| Finish - Hose Reels | Powder Coated |
| Fitting Gender | Male x Male |
| Fitting Size | 1/4" x 1/4" |
| Fitting Type | NPT x NPT |
| For Dual Hose | No |
| Height | 13 29/32" |
| Hose Color | Dark Blue |
| Hose Cover Material | PVC |
| Hose End Configuration | 1/4" MNPT |
| Hose End Type | BSP |
| Hose Fitting A Gender | Male |
| Hose Fitting A Material | Brass |
| Hose Fitting A Size | 1/4" |
| Hose Fitting B Gender | Male |
| Hose Fitting B Material | Brass |
| Hose Fitting B Size | 1/4" |
| Hose Fitting B Type | NPT |
| Hose Included | Yes |
| Hose Inner Dia. | 25 ft. , 3/8" |
| Hose Inside Dia. | 3/8" |
| Hose Length | 25 ft. |
| Hose Outside Dia. | 11/16" |
| Hose Reel Primary Application | Air, Water |
| Hose Reel Type | Bench, Ceiling, Floor, Vehicle, Wall Mount Hose Reel |
| Hose Tube Material | PVC |
| Housing Material | Steel |
| Includes | Hose |
| Includes Hose Stop | Yes |
| Includes Leader Hose | No |
| Latch Type | Locking |
| Length | 12 19/32" |
| Max. Pressure | 300 psi |
| Max. Temp. | 150°F |
| Maximum Operating Pressure | 300 psi |
| Media | Air, Water |
| Min. Operating Temp. | 21°F |
| Mount Base Height | 4 21/64" |
| Mount Base Width | 4 21/64" |
| Mount Hole Center-to-center Width | 3.031" |
| Mounting Hole Center To Center Height | 3 5/32" |
| Mounting Hole Center To Center Width | 3 1/32" |
| Mounting Hole Dia. | 3/8" |
| Number Of Guide Arms | Single Arm |
| Number Of Mounting Holes | 6 |
| Overall Height | 13 29/32" |
| Overall Length | 12 19/32" |
| Overall Width | 6 1/32" |
| Pedestal Type | Single Pedestal |
| Reel Color | Green |
| Reel Dia. | 12 5/8" |
| Reel Material | Steel |
| Reel Width | 6" |
| Seal Type | Nitrile |
| Spiral Hose Guard | No |
| Swivel Inlet Gender | Female |
| Swivel Inlet Size | 3/8" |
| Swivel Inlet Thread Size | 3/8"-18 |
| Swivel Inlet Type | NPT |
| Swivel Material | Brass |
| Swivel Outlet Gender | Male |
| Swivel Outlet Size | 1/4" |
| Swivel Outlet Thread Size | 1/4"-18 |
| Width | 6 1/32" |
Shipping Info:
| Ship weight (kg) | 7.82 |
| Ship height (cm) | 35.32 |
| Ship length (cm) | 31.99 |
| Ship width (cm) | 15.32 |
| Country of Origin | US |
Product Variants
| Product | Model | Hose Included | Fitting Size | Hose Capacity | Overall Height | Overall Width | Max. Temp. | Hose Inside Dia. | Bearings | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

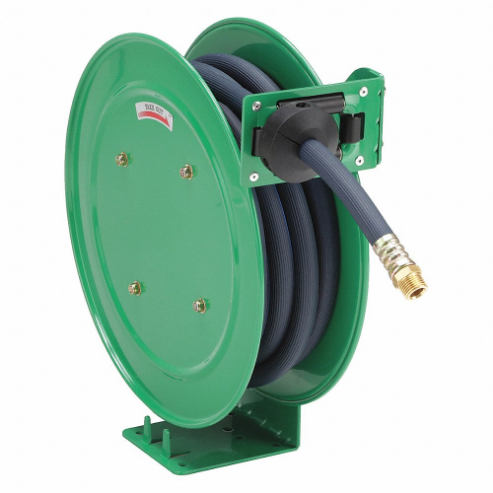

437J22 | Yes | 1/2" x 1/2" | 25 ft. | 15 9/32" | 6 13/16" | 150°F | 1/2" | Greaseless | €319.96 | |
 |
437J21 | Yes | 1/4" x 1/4" | - | 13 29/32" | 6 1/64" | 150°F | 1/4" | Greaseless | €233.99 | |
 |
45UZ40 | Yes | 3/4" x 3/4" | - | 21 3/16" | 9 1/4" | 150°F | 3/4" | Permanently Lubricated | €668.62 | |
 |

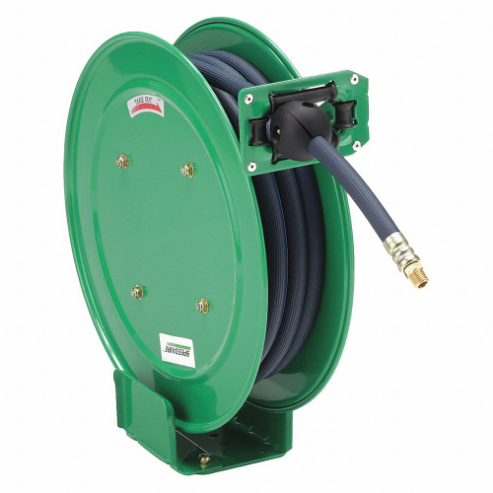

45UZ34 | Yes | 1/4" x 1/4" | 35 ft. | 15 9/32" | 6 19/64" | 150°F | 3/8" | Permanently Lubricated | €216.06 | |
 |

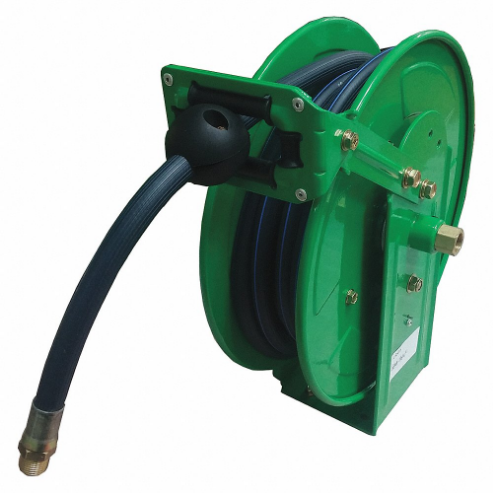

45UZ35 | Yes | 3/8" x 3/8" | 35 ft. | 15 9/32" | 7 1/32" | 150°F | 1/2" | Permanently Lubricated | €277.45 | |
 |

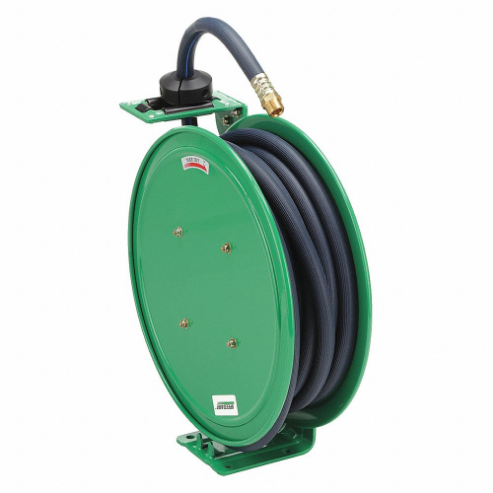

437J29 | Yes | 1/2" x 1/2" | 50 ft. | 16 55/64" | 7 23/64" | 150°F | 1/2" | Greaseless | €338.88 | |
 |

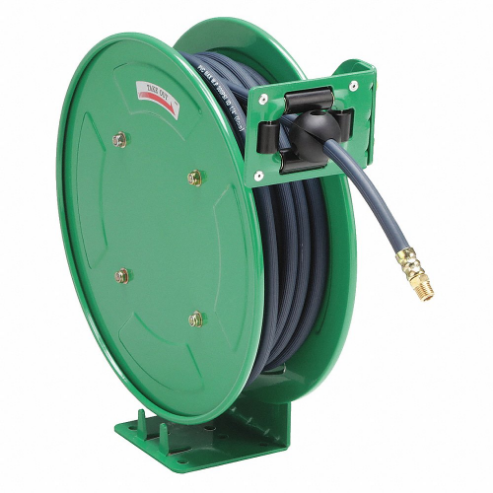

437J20 | Yes | 1/4" x 1/4" | 50 ft. | 13 29/32" | 6 1/64" | 150°F | 1/4" | Greaseless | €214.62 |
