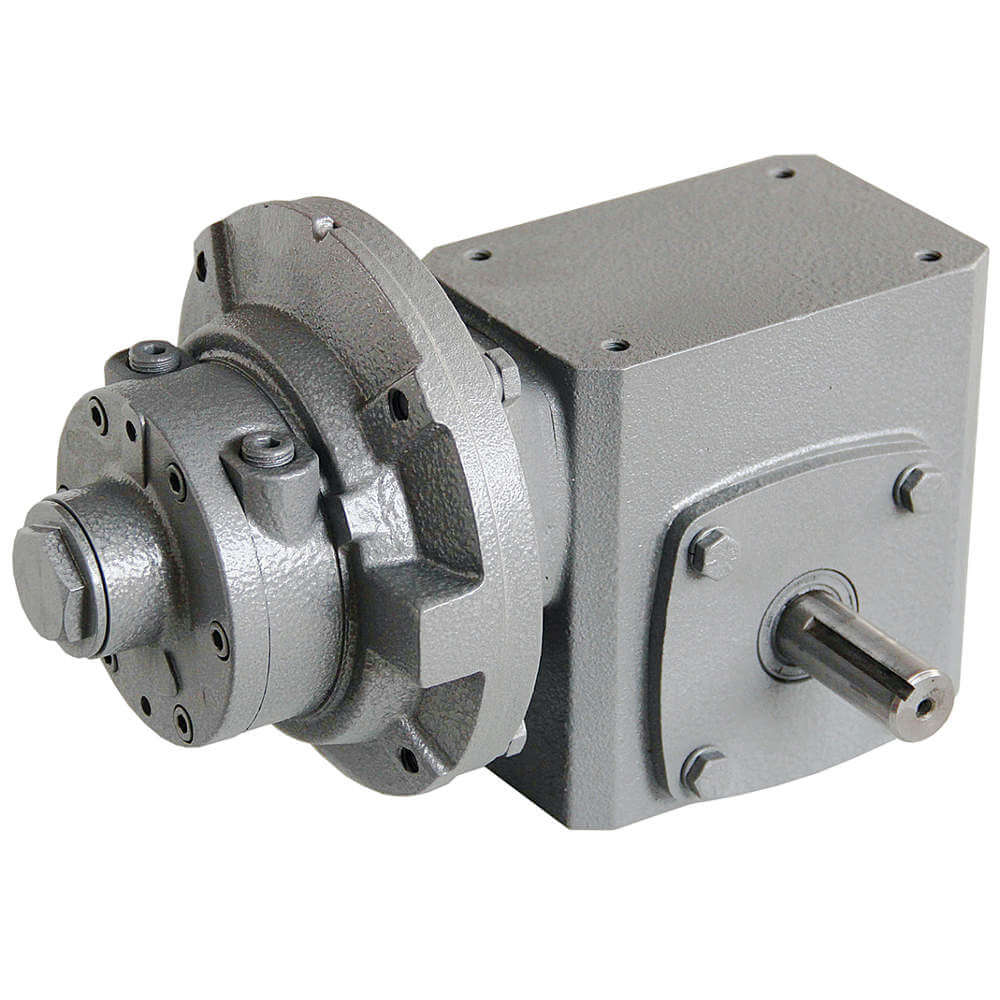

SPEEDAIRE 22UX57 Air Gearmotor 0.9 Hp 27 Cfm Base Mount
Get it by Tuesday, Apr 7
5.00% off
€1,046.08 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Air Gearmotor |
| Agma Gear Class | Not Applicable |
| Air Consumption | 27 CFM |
| Air Inlet Port | 1/4" |
| Air Inlet Port Type | NPT |
| Bearing Protection | Not Applicable |
| Brake Type | Not Applicable |
| Cfm | 27 CFM |
| Color | Gray |
| External Hardware Material | Not Applicable |
| Finish | Gray |
| Gear Material | Copper |
| Gear Ratio | 201 |
| Gear Type | Not Applicable |
| Height | 6.3" |
| Housing Material | Cast Iron |
| Housing Material Finish | Painted |
| Hp | 9/10 hp |
| Includes | Muffler |
| Inlet Gender | Female |
| Ip Rating | Not Applicable |
| Keyway Depth | 1/16" |
| Keyway Length | 1.00" |
| Keyway Length | 1" |
| Keyway Type | Flat Key |
| Keyway Width | 1/8" |
| Length | 11.38" |
| Length Less Shaft | Not Applicable |
| Material | Cast Iron |
| Max. Air Flow | 27 CFM |
| Max. Air Pressure | 100 psi |
| Max. Ambient Temp. | 250°F |
| Max. Flow Rate | 27 CFM |
| Max. Operating Pressure | 100 psi |
| Max. Speed | 150 RPM |
| Min. Ambient Temp. | 0°F |
| Motor Design | Not Applicable |
| Motor Frame Material | Cast Iron |
| Mount | Base |
| Mount Hole Center To Center Length | Not Applicable |
| Mount Hole Center To Center Width | Not Applicable |
| Mounting Orientation | Any Angle |
| No Load Speed | 150 RPM |
| No. Of Output Shafts | 1 |
| No. Of Vane | 4 |
| Output Location | Not Applicable |
| Output Power | 9/10 hp |
| Output Power @ 25% Max. Speed | Not Applicable |
| Output Power @ 50% Max. Speed | Not Applicable |
| Output Shaft Type | Keyed |
| Outside Dia. | Not Applicable |
| Overall Height | 6 5/16" |
| Overall Length | 9 7/8" |
| Rotation | Counter Clockwise |
| Rpm @ Max. Torque | 60 |
| Rpm @ Max. Torque | 60 RPM |
| Seal Material | Nitrile Rubber |
| Shaft Dia. | 5/8" |
| Shaft Material | Steel |
| Shaft Orientation | Right Angle |
| Starting Torque | 21.4 lbs.-ft. |
| System Of Measurement | Inch |
| Temp. | 250°F |
| Torque @ Max. Pressure | 256 lbs.-in. |
| Type | Rotary Vane |
| Weight | 24.25 lbs. |
| Width | 7.27" |
Shipping Info:
| Ship weight (kg) | 11.69 |
| Ship height (cm) | 16 |
| Ship length (cm) | 25.15 |
| Ship width (cm) | 18.47 |
| HS code | 8412390040 |
| Country of Origin | CN |
Product Variants
| Product | Model | Rotation | Max. Flow Rate | HP | Max. Speed | Shaft Length | Mount | Output Shaft Type | Housing Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

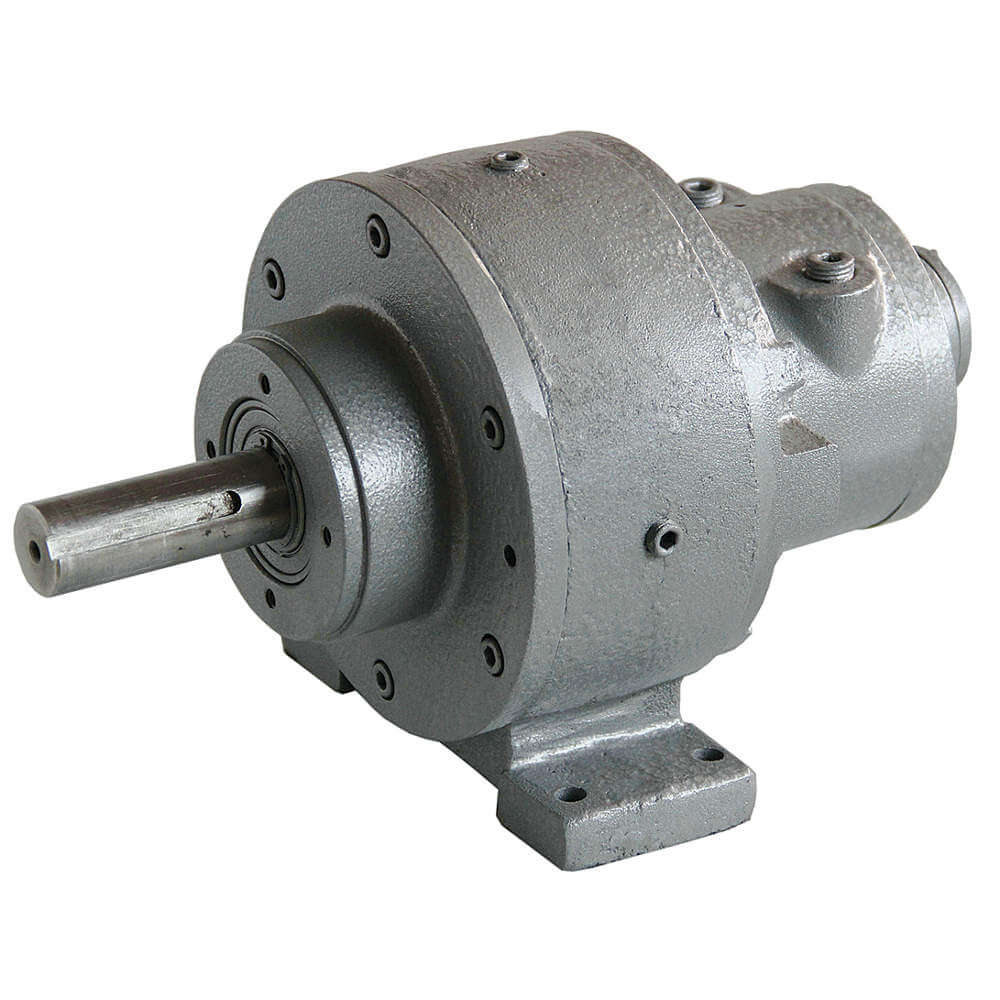

22UX54 | Clockwise/Counter Clockwise | 57.5 CFM | 1 13/50 hp | 300 RPM | 2 3/4" | - | Keyed | Cast Iron | €1,121.99 | |
 |

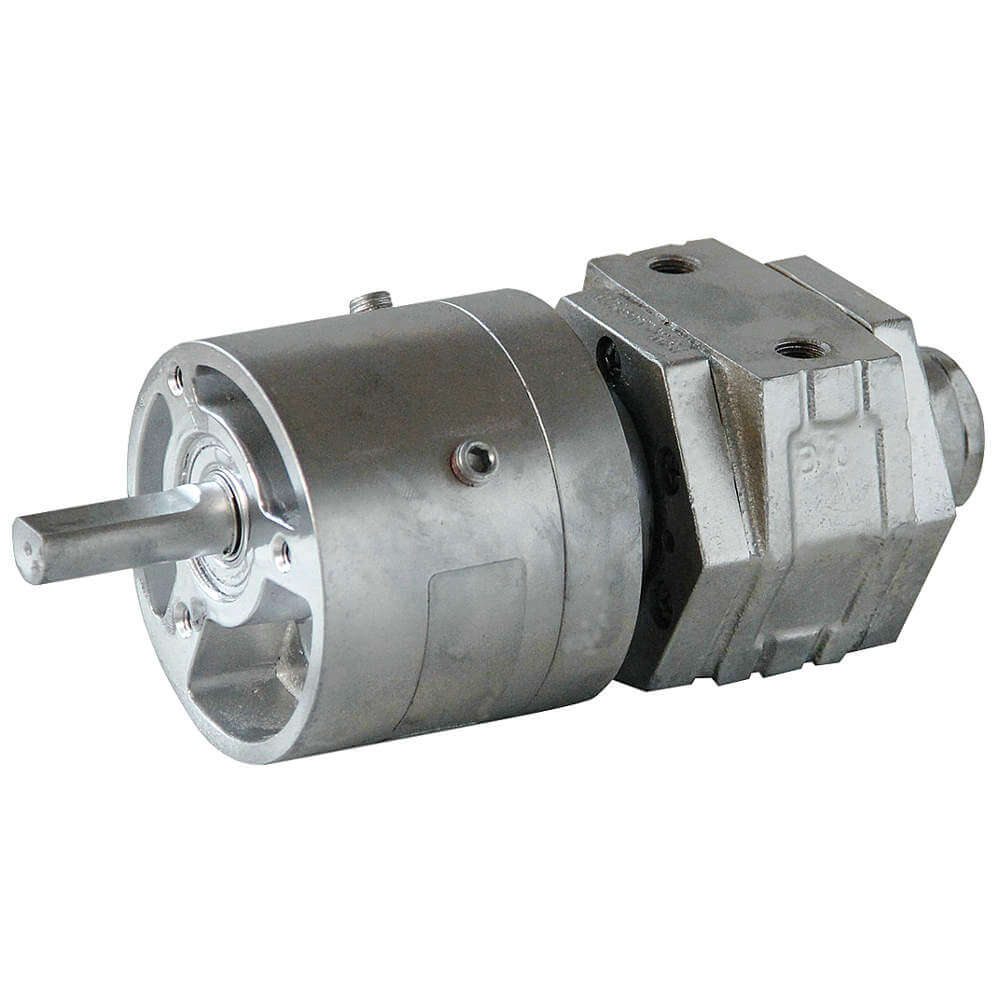

22UX55 | Clockwise/Counter Clockwise | 21 CFM | 8/25 hp | 400 RPM | 1 3/8" | Face | D Shaft | Aluminum | €711.32 | |
 |

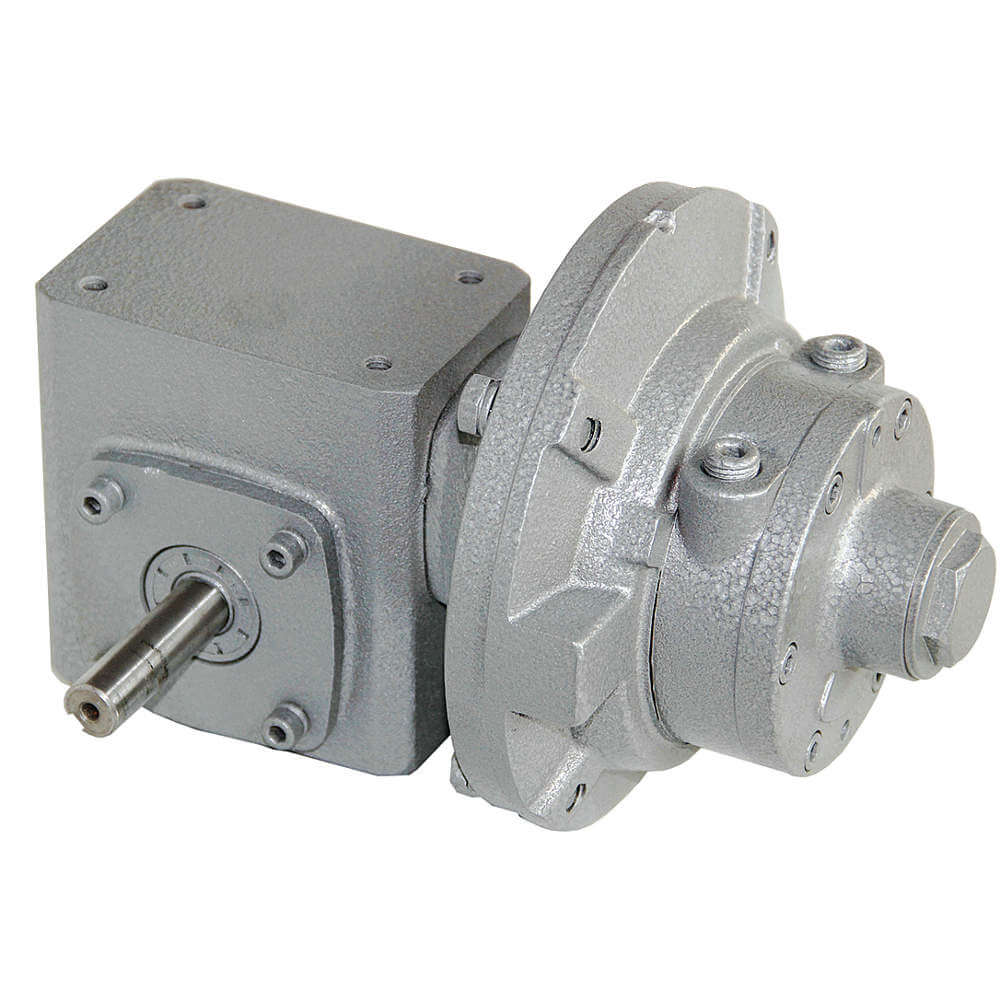

22UX56 | Counter Clockwise | 20 CFM | 16/25 hp | 110 RPM | 2 1/16" | Base | Keyed | Cast Iron | €1,037.29 | |
 |

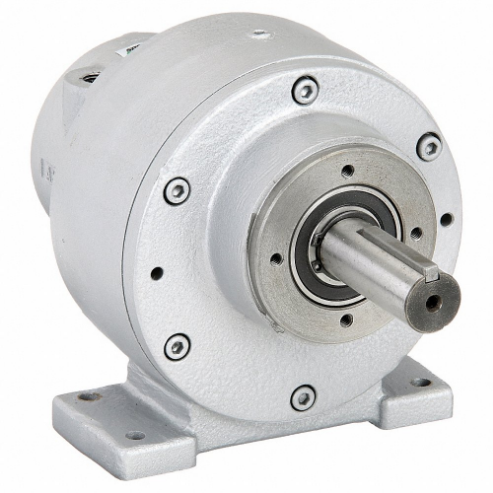

22UX81 | Clockwise/Counter Clockwise | 60 CFM | 1 1/4 hp | 200 RPM | 2 3/4" | - | Keyed | Cast Iron | €755.82 | |
 |

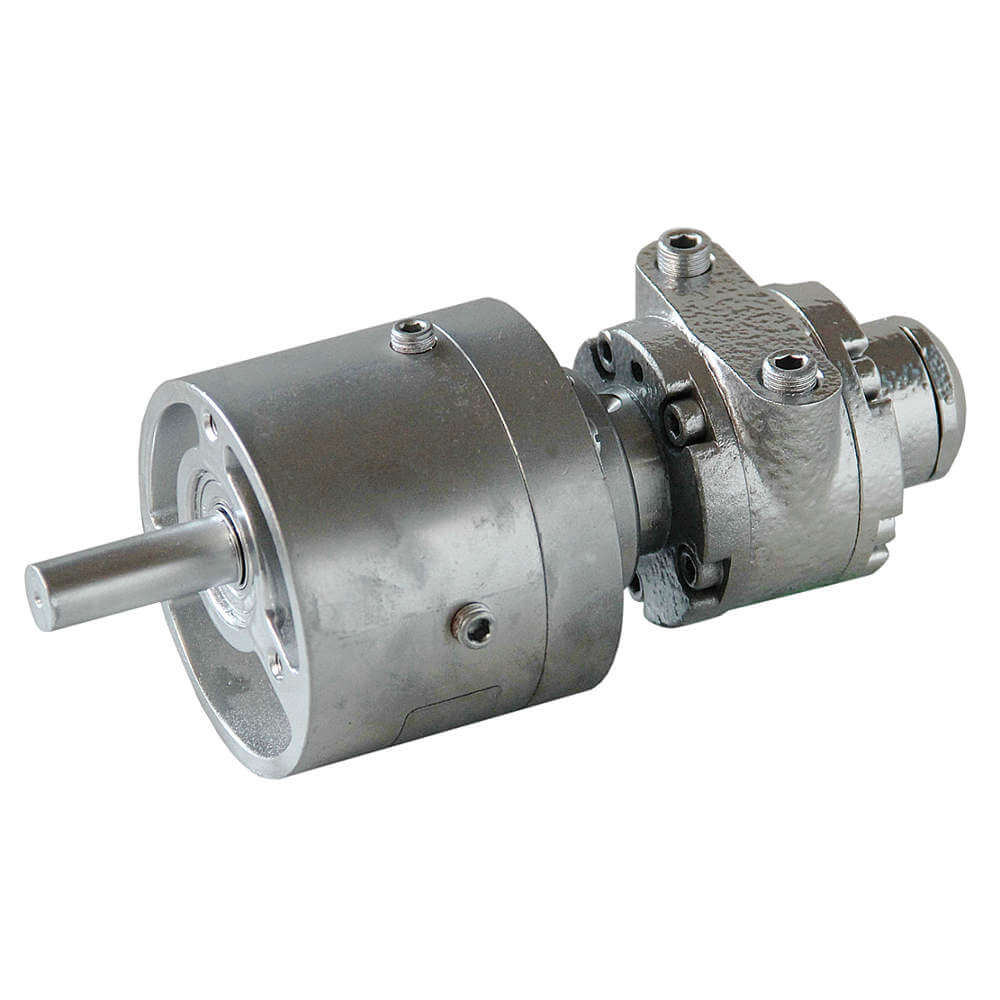

22UX82 | Clockwise/Counter Clockwise | 21 CFM | 1/3 hp | 350 RPM | 1 3/8" | Face | D Shaft | Aluminum | €522.03 |
