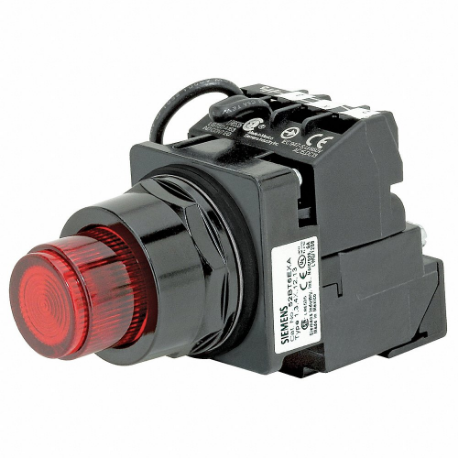

SIEMENS US2:52BT6G2A Illuminated Push Button, Maintained/Momentary, Red, 6V Ac, Epoxy | CU2TWM 41H197

SIEMENS US2:52BT6G2A Illuminated Push Button, Maintained/Momentary, Red, 6V Ac, Epoxy

Item: CU2TWMModel: US2:52BT6G2ACross Ref: 41H197
7 In Stock

Ships within 2 days via

€261.56
5.00% off
€248.48 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Illuminated Push Button
Ac Contact Rating 10A @ 600V
Action Momentary
Action Type Maintained / Momentary
Basic Material Epoxy
Bezel Finish Epoxy Coated , Metal
Contact Form 1NO/1NC
Contact Rating 10A @ 600V AC
Dc Contact Rating Not Rated
Display Qty 1
Features Bifurcated Movable Contacts, Boots Not Required, Nema A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Finish Epoxy Coating
Head Material Plastic
Head/lens Color Red
Ip Rating IP20, IP66
Lamp Bulb Type Incandescent
Lamp Module Type Transformer
Lamp Module Voltage 120V AC
Lamp Type Incandescent
Lamp Voltage 6V AC
Max. Lamp Voltage 120V AC
Max. Operating Temp. 158°F
Max. Operator Voltage Rating 600V AC
Mechanical Operating Durability 3 x 10^5
Min. Operating Temp. 31°F
Nema Contact Rating Designation A600/P600
Nema Enclosure Rating NEMA 1, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Nema Rating NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
No. Of Indicator Lights 0
No. Of Operators 1
Operator Illumination Illuminated
Operator Material Epoxy Coated Metal
Overall Height 4.24"
Overall Width 2.15"
Panel Mounting Hole Dia. 30 mm
Product Type Push Button Operators
Push Button Style Extended
Replacement Lamps MFR. NO. 52AABN
Resistance Properties Corrosion Resistant
Series CLASS 52 Series
Terminal Connection Screw
Type Of Operator Round Button

Shipping Info:

Ship weight (kg) 0.29
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginMX

Product Variants

ProductModelLamp Module TypeBasic MaterialHead MaterialTerminal ConnectionPanel Mounting Hole Dia.Operator MaterialLamp Bulb TypeContact RatingPrice
SIEMENS 52BT6D9JV Illuminated Push Button, Maintained/Momentary, Amber, 24V Ac/Dc | CU2TPZ 22KN37 52BT6D9JVFull VoltageEpoxyPlasticPressure Plate30 mmEpoxyIncandescent10A @ 600V AC€219.28
SIEMENS 52BT6D9J Illuminated Push Button, Maintained/Momentary, Amber, 24V Ac/Dc | CU2TQA 22KN34 52BT6D9JFull VoltageEpoxyPlasticPressure Plate30 mmEpoxyIncandescent10A @ 600V AC€189.03
SIEMENS 52BT6D9JBV Illuminated Push Button, Maintained/Momentary, Amber, 24V Ac/Dc | CU2TQB 22KN36 52BT6D9JBVFull VoltageEpoxyPlasticPressure Plate30 mmEpoxyLED10A @ 600V AC€256.18
SIEMENS 52BT6D9K Illuminated Push Button, Maintained/Momentary, Amber, 24V Ac/Dc | CU2TQC 22KN38 52BT6D9KFull VoltageEpoxyPlasticPressure Plate30 mmEpoxyIncandescent10A @ 600V AC€189.03
SIEMENS 52BT6D9JB Illuminated Push Button, Maintained/Momentary, Amber, 24V Ac/Dc | CU2TQD 22KN35 52BT6D9JBFull VoltageEpoxyPlasticPressure Plate30 mmEpoxyLED10A @ 600V AC€233.71
SIEMENS 52BT6D9KBV Illuminated Push Button, Maintained/Momentary, Amber, 24V Ac/Dc | CU2TQE 22KN40 52BT6D9KBVFull VoltageEpoxyPlasticPressure Plate30 mmEpoxyLED10A @ 600V AC€256.18
SIEMENS 52BT6D9AB Illuminated Push Button, Maintained/Momentary, Amber, 24V Ac/Dc | CU2TQF 41H077 52BT6D9ABFull VoltageEpoxyPlasticScrew30 mmEpoxy Coated MetalLED10A @ 600V AC€265.18
