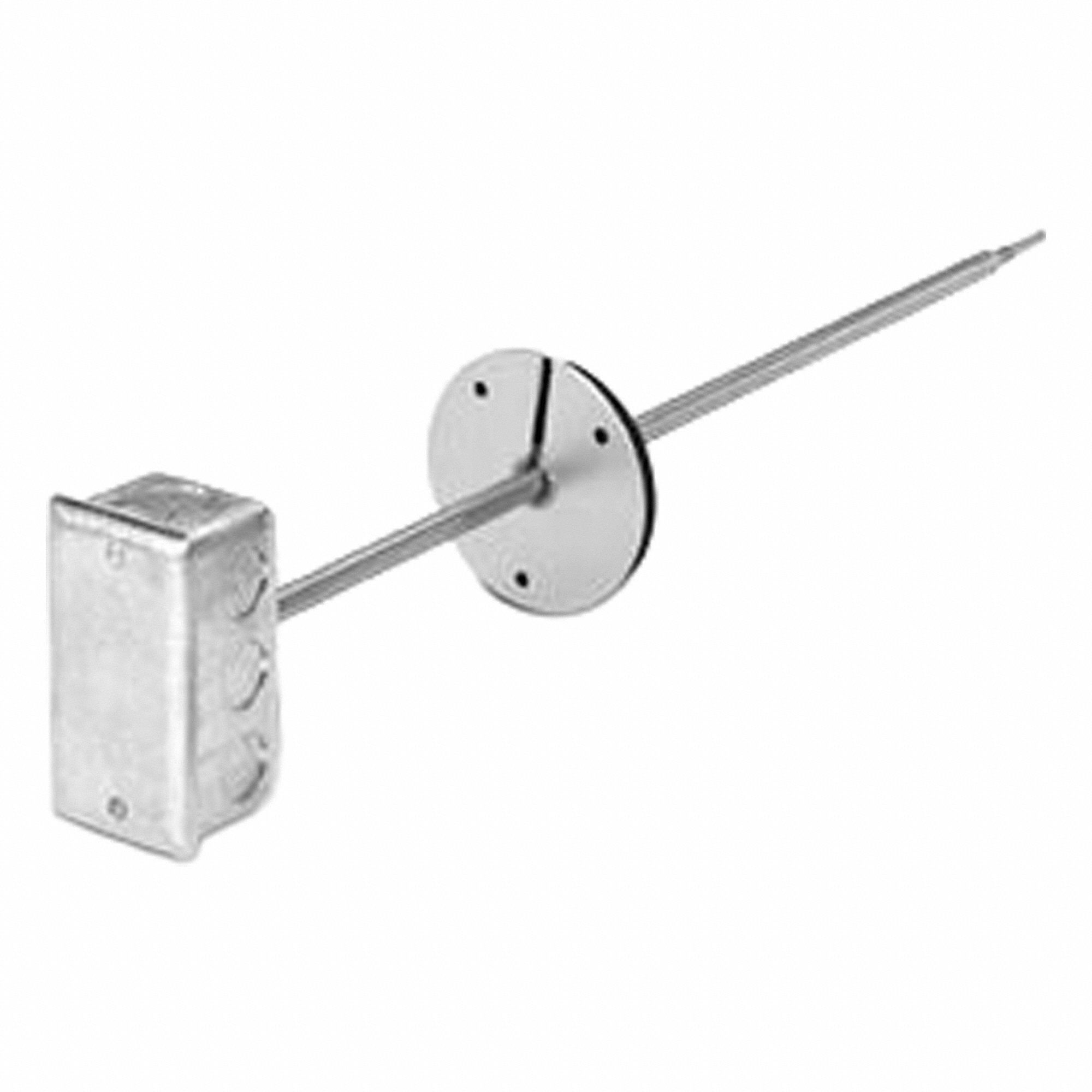

SIEMENS QAM2012.045 Duct Sensor, 18 Inch, Rigid, 385A Rtd
Item: CU2WXAModel: QAM2012.045Cross Ref: 314H14
7 In Stock
Ships within 2 days via
5.00% off
€45.34 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Sensor |
| Application | Air Ducts |
| Compatible Building Automation Protocols | Bacnet Ip, Bacnet Ms/Tp, Lonworks, Lorawan, Modbus, Mp-Bus |
| Display Type | None |
| Electrical Connection Type | Hardwired |
| Features | Installation Process Does Not Require Special Tools |
| For Use With | Pt1000 |
| For Use With Building Automation Systems | Building Automation System Compatible |
| Housing Color | Silver |
| Housing Material | Steel |
| Loop Resistance | 1000 ohms |
| Max. Operating Temp. | 180°F |
| Max. Sensing Temp. | 180°F |
| Measurement Type | Single |
| Min. Operating Temp. | -40°F |
| Min. Sensing Temp. | -40°F |
| Mounting Location | Duct Mount |
| Overall Height | 2" |
| Probe Length | 18" |
| Product Type | Duct Temperature Sensor |
| Sensing Element Type | Platinum |
| Temp. Accuracy | -0.54°F to +0.54°F |
Shipping Info:
| Ship weight (kg) | 0.7 |
| Ship height (cm) | 5.08 |
| Ship length (cm) | 10.16 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Model | Electrical Connection Type | Housing Material | Housing Color | Overall Height | Overall Width | Overall Depth | Mounting Location | Max. Sensing Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| QFA3160 | Screw Terminal | Polycarbonate | White | 5 5/8" | 3 1/8" | 1 1/2" | Wall Mount | 158°F | €479.79 | |
| 590-502 | Screw Terminal | - | - | 2 3/4" | 1 7/8" | 1 5/8" | - | - | - | RFQ
|
| 544-343-24 | Hardwired | Steel | Silver | 2" | 2 1/8" | - | Duct Mount | 180°F | €141.41 | |
| 544-342-24 | Hardwired | Steel | Silver | 2" | 2 1/8" | - | Duct Mount | 180°F | €191.73 | |
| 544-343-48 | Hardwired | Steel | Silver | 2" | 2 1/8" | - | Duct Mount | 180°F | €141.41 | |
| 540-244-18 | - | Plastic | Beige | - | - | - | Duct Mount | 95°F | €101.93 | |
| 536-777-40 | Hardwired | Stainless Steel | Silver | - | - | - | Remote | 250°F | €131.56 |
