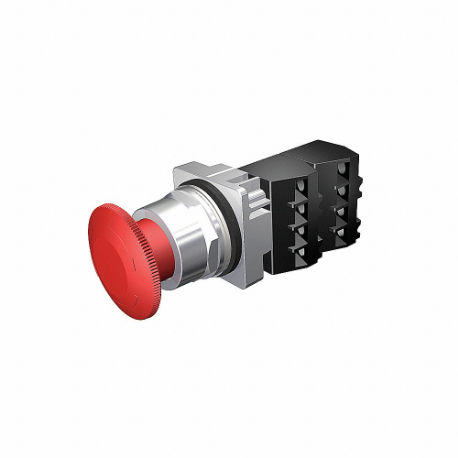

SIEMENS 52PR8W2G Non-Illuminated Push Button, 30 mm Size, Maintained Push/Turn To Release, Red

Item: CU2VMDModel: 52PR8W2GCross Ref: 22KU68

7 In Stock

Ships within 2 days via

~~€266.83~~

10.00% off

€240.15 /unit

Add To Cart

Request a Quote

Payment

Product Specifications:

Item	Non-Illuminated Push Button
Ac Contact Rating	10A @ 600V
Action	Maintained
Basic Material	Metal
Bezel Finish	Chrome Plated , Zinc Die Cast
Color	Red
Contact Form	2NC
Contact Rating	10A @ 600V AC
Dc Contact Rating	Not Rated
Display Qty	1
Features	Bifurcated Movable Contacts, Boots Not Required, Nema A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Head Material	Plastic
Head/lens Color	Red
Ip Rating	IP10, IP11, IP14, IP52, IP54, IP56, IP66
Legend	No Legend
Maintained Action Release	Twist
Manufacturer Warranty Length	1 yr.
Material	Metal
Mechanical Operating Durability	3 x 10^5
Mushroom Head Diameter	44.45 mm
Nema Contact Rating Designation	A600/P600
Nema Enclosure Rating	NEMA 1, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Nema Rating	NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 4, NEMA 4X
Number Of Indicator Lights	0
Number Of Operators	1
Operating Temperature - Maximum	158°F
Operating Temperature - Minimum	31°F
Operator Illumination	Non Illuminated
Operator Material	Metal
Operator Voltage Rating - Maximum	600V AC
Overall Height	4.49"
Overall Width	2 3/25"
Panel Mounting Hole Diameter	30 mm
Product Type	Push Button Operators
Push Button Style	Mushroom Head
Resistance Properties	Corrosion Resistant, Oil And Grease Resistant, Watertight
Series	CLASS 52 Series
Terminal Connection	Pressure Plate
Type Of Operator	45 mm Mushroom Head

Shipping Info:

Ship weight (kg)	0.27
Ship height (cm)	2.54
Ship length (cm)	2.54
Ship width (cm)	2.54
Country of Origin	MX

Product Variants

Model	Type Of Operator	Legend	Ip Rating	Action Type	Contact Form	Terminal Connection	Nema Contact Rating Designation	Basic Material	Price
3SU1150-1HA20-1CG0	40 mm Mushroom Head	Emergency Stop	IP67, IP69K	-	1NC	Screw	A600/R300	Zinc Alloy	€129.88
3SU1100-1HA20-1FG0	40 mm Mushroom Head	Emergency Stop	IP67, IP69K	-	1NO/1NC	Screw	A600/R300	Polyamide	€108.71
3SU1150-1HB20-1CG0	40 mm Mushroom Head	Emergency Stop	IP67, IP69K	Maintained Push / Twist	-	Screw	A600/R300	Zinc Alloy	€130.25
3SU1150-1HB20-1FG0	40 mm Mushroom Head	Emergency Stop	IP67, IP69K	Maintained Push / Twist	1NO/1NC	Screw	A600/R300	-	€112.50
52PP2W2AP	45 mm Push-Pull Knob	No Legend	IP20, IP66	-	1NO/1NC	Screw	A600/P600	Metal	€315.26
3SU1150-1HA20-1FG0	40 mm Mushroom Head	Emergency Stop	IP67, IP69K	-	1NO/1NC	Screw	A600/R300	Zinc Alloy	€116.06
3SU1100-0AB10-1FA0	Flush Button	No Legend	-	Momentary	1NO/1NC	Screw	A600/R300	Polyamide	€87.16
