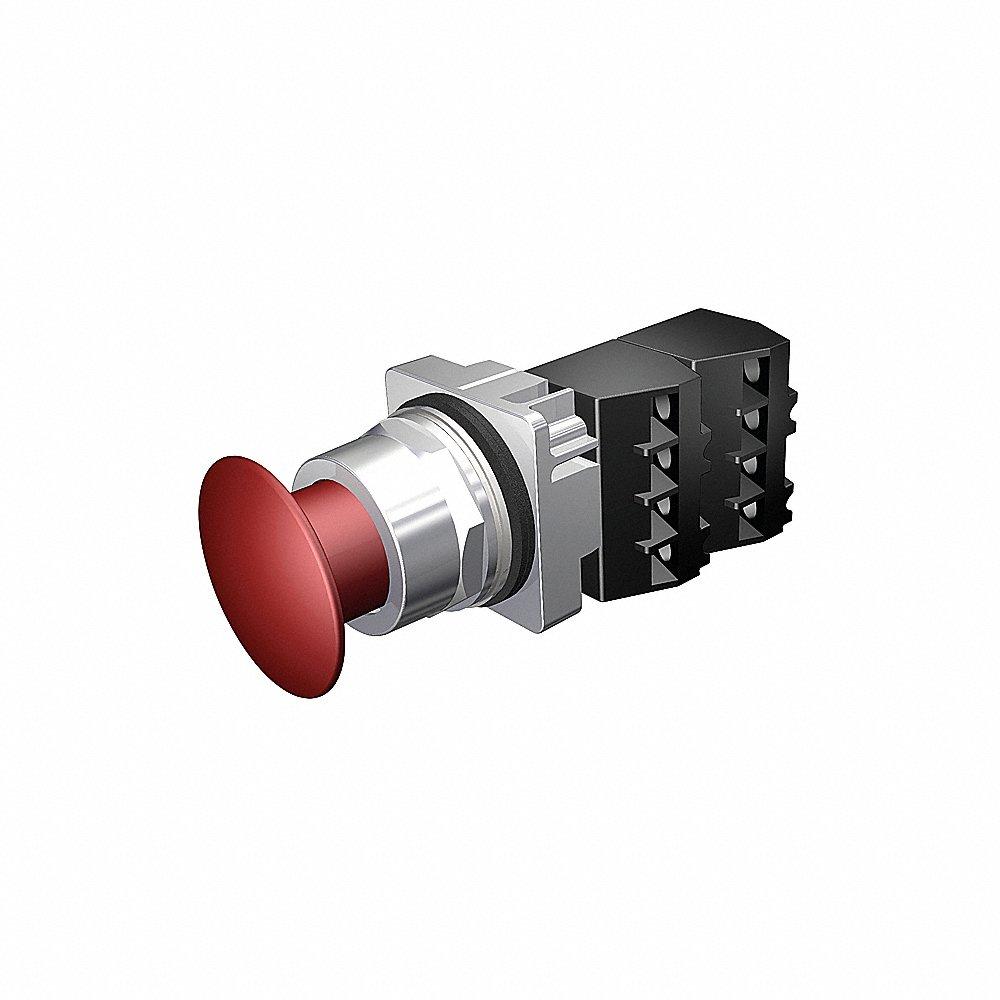

SIEMENS 52PP2A2G Non-Illuminated Push Button, 30 mm Size, Maintained Push/Maintained Pull, Red | CU2VHK 22KT38

SIEMENS 52PP2A2G Non-Illuminated Push Button, 30 mm Size, Maintained Push/Maintained Pull, Red

Item: CU2VHKModel: 52PP2A2GCross Ref: 22KT38
7 In Stock

Ships within 2 days via

€321.46
10.00% off
€289.32 /unit
Add To Cart
Request a Quote

Payment

Product Specifications:

Item Non-Illuminated Push Button
Ac Contact Rating 10A @ 600V
Action Maintained
Basic Material Metal
Bezel Material Chrome
Color Red
Contact Form 2NC
Contact Rating 10A @ 600V AC
Dc Contact Rating Not Rated
Display Qty 1
Features Bifurcated Movable Contacts, Boots Not Required, Nema A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Head Material Metal
Head/lens Color Red
Ip Rating IP10, IP11, IP14, IP52, IP54, IP56, IP66
Legend No Legend
Maintained Action Release Push/Pull
Manufacturer Warranty Length 1 yr.
Material Metal
Mechanical Operating Durability 3 x 10^5
Mushroom Head Diameter 43.94 mm
Nema Contact Rating Designation A600/P600
Nema Enclosure Rating NEMA 1, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Nema Rating NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
Number Of Indicator Lights 0
Number Of Operators 1
Operating Temperature - Maximum 158°F
Operating Temperature - Minimum 31°F
Operator Illumination Non Illuminated
Operator Material Metal
Operator Voltage Rating - Maximum 600V AC
Overall Height 4.56"
Overall Width 2 3/25"
Panel Mounting Hole Diameter 30 mm
Product Type Push Button Operators
Push Button Style Mushroom Head
Resistance Properties Oil And Grease Resistant, Watertight
Series CLASS 52 Series
Terminal Connection Pressure Plate
Type Of Operator 45 mm Mushroom Head

Shipping Info:

Ship weight (kg) 0.14
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginMX

Product Variants

ProductModelType Of OperatorLegendIp RatingAction TypeContact FormTerminal ConnectionNema Contact Rating DesignationBasic MaterialPrice
SIEMENS 3SU1150-1HA20-1CG0 Emergency Stop Push Button, 22 mm Size, Maintained Push/Pull, Red, 1Nc, 1/12/2/3/3R/4/4X | CU2RTF 411J87 3SU1150-1HA20-1CG040 mm Mushroom HeadEmergency StopIP67, IP69K-1NCScrewA600/R300Zinc Alloy€129.88
SIEMENS 3SU1100-1HA20-1FG0 Emergency Stop Push Button, 22 mm Size, Maintained Push/Pull, Red, 1No/1Nc | CU2RTG 411K41 3SU1100-1HA20-1FG040 mm Mushroom HeadEmergency StopIP67, IP69K-1NO/1NCScrewA600/R300Polyamide€108.71
SIEMENS 3SU1150-1HB20-1CG0 Emergency Stop Push Button, 22 mm Size, Maintained Push/Twist, Red, 1Nc | CU2RTH 411J86 3SU1150-1HB20-1CG040 mm Mushroom HeadEmergency StopIP67, IP69KMaintained Push / Twist-ScrewA600/R300Zinc Alloy€130.25
SIEMENS 3SU1150-1HB20-1FG0 Emergency Stop Push Button, 22 mm Size, Maintained Push/Twist, Red, 1No/1Nc | CU2RTJ 411K59 3SU1150-1HB20-1FG040 mm Mushroom HeadEmergency StopIP67, IP69KMaintained Push / Twist1NO/1NCScrewA600/R300-€112.50
SIEMENS 52PP2W2AP Emergency Stop Push Button, 30 mm Size, Maintained Push/Maintained Pull, Red, 1No/1Nc | CU2RTK 54JJ65 52PP2W2AP45 mm Push-Pull KnobNo LegendIP20, IP66-1NO/1NCScrewA600/P600Metal€315.26
SIEMENS 3SU1150-1HA20-1FG0 Emergency Stop Push Button, 22 mm Size, Maintained Push/Pull, Red, 1No/1Nc, Plastic | CU2RTL 411K58 3SU1150-1HA20-1FG040 mm Mushroom HeadEmergency StopIP67, IP69K-1NO/1NCScrewA600/R300Zinc Alloy€116.06
SIEMENS 3SU1100-0AB10-1FA0 Non-Illuminated Push Button, 22 mm Size, Momentary, Black | CU2VGM 411K27 3SU1100-0AB10-1FA0Flush ButtonNo Legend-Momentary1NO/1NCScrewA600/R300Polyamide€87.16
