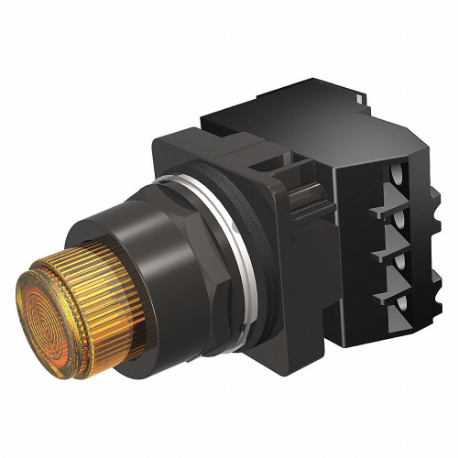

SIEMENS 52BT6G9A Illuminated Push Button, Maintained/Momentary, Amber, 6V Ac
Item: CU2TQVModel: 52BT6G9ACross Ref: 22KN76
7 In Stock
Ships within 2 days via
5.00% off
€242.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Illuminated Push Button |
| Ac Contact Rating | 10A @ 600V |
| Action | Momentary |
| Action Type | Maintained / Momentary |
| Basic Material | Epoxy |
| Bezel Finish | Epoxy Coated , Metal |
| Contact Form | 1NO/1NC |
| Contact Rating | 10A @ 600V AC |
| Dc Contact Rating | Not Rated |
| Display Qty | 1 |
| Features | Bifurcated Movable Contacts, Boots Not Required, Nema A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals |
| Finish | Epoxy Coating |
| Head Material | Plastic |
| Head/lens Color | Amber |
| Ip Rating | IP20, IP66 |
| Lamp Bulb Type | Incandescent |
| Lamp Module Type | Transformer |
| Lamp Module Voltage | 120V AC |
| Lamp Type | Incandescent |
| Lamp Voltage | 6V AC |
| Max. Lamp Voltage | 120V AC |
| Max. Operating Temp. | 158°F |
| Max. Operator Voltage Rating | 600V AC |
| Mechanical Operating Durability | 3 x 10^5 |
| Min. Operating Temp. | 31°F |
| Nema Contact Rating Designation | A600/P600 |
| Nema Enclosure Rating | NEMA 1, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| No. Of Indicator Lights | 0 |
| No. Of Operators | 1 |
| Operator Illumination | Illuminated |
| Operator Material | Epoxy Coated Metal |
| Overall Height | 4.24" |
| Overall Width | 2.15" |
| Panel Mounting Hole Dia. | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Extended |
| Replacement Lamps | MFR. NO. 52AABN |
| Resistance Properties | Corrosion Resistant |
| Series | 52 Series |
| Terminal Connection | Screw |
| Type Of Operator | Round Button |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Lamp Module Type | Basic Material | Head Material | Terminal Connection | Panel Mounting Hole Dia. | Operator Material | Lamp Bulb Type | Contact Rating | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
52BT6D9JV | Full Voltage | Epoxy | Plastic | Pressure Plate | 30 mm | Epoxy | Incandescent | 10A @ 600V AC | €219.28 | |
 |
52BT6D9J | Full Voltage | Epoxy | Plastic | Pressure Plate | 30 mm | Epoxy | Incandescent | 10A @ 600V AC | €189.03 | |
|
52BT6D9JBV | Full Voltage | Epoxy | Plastic | Pressure Plate | 30 mm | Epoxy | LED | 10A @ 600V AC | €256.18 | |
|
52BT6D9K | Full Voltage | Epoxy | Plastic | Pressure Plate | 30 mm | Epoxy | Incandescent | 10A @ 600V AC | €189.03 | |
|
52BT6D9JB | Full Voltage | Epoxy | Plastic | Pressure Plate | 30 mm | Epoxy | LED | 10A @ 600V AC | €233.71 | |
|
52BT6D9KBV | Full Voltage | Epoxy | Plastic | Pressure Plate | 30 mm | Epoxy | LED | 10A @ 600V AC | €256.18 | |
 |
52BT6D9AB | Full Voltage | Epoxy | Plastic | Screw | 30 mm | Epoxy Coated Metal | LED | 10A @ 600V AC | €265.18 |
