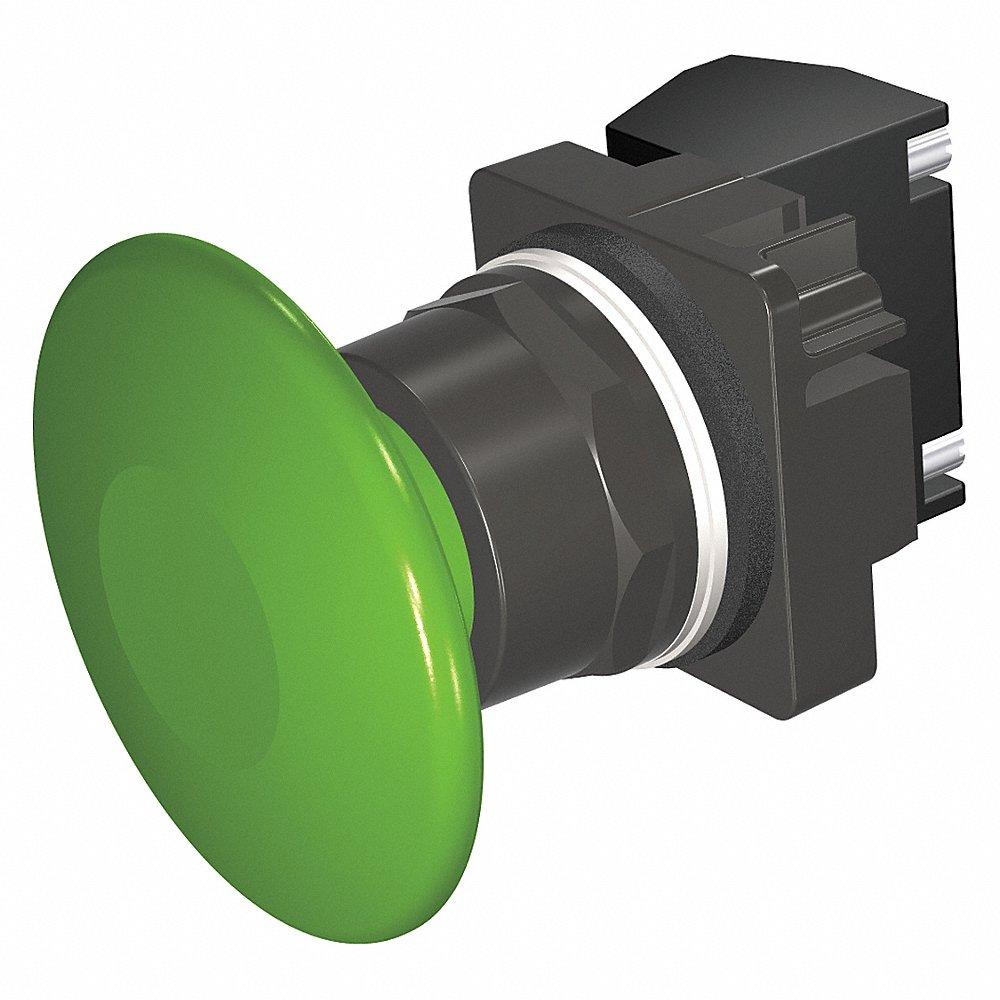

SIEMENS 52BM9V3K Non-Illuminated Push Button, 30 mm Size, Momentary Push, Green/4X
Item: CU2VKCModel: 52BM9V3KCross Ref: 32GG85
7 In Stock
Ships within 2 days via
5.00% off
€179.29 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Non-Illuminated Push Button |
| Ac Contact Rating | 10A @ 600V |
| Action | Momentary |
| Action Type | Momentary Push |
| Basic Material | Metal |
| Bezel Material | Epoxy Coated Zinc Die Cast |
| Color | Green |
| Contact Form | 1NO |
| Contact Rating | 10A @ 600V AC |
| Dc Contact Rating | Not Rated |
| Display Qty | 1 |
| Features | Bifurcated Movable Contacts, Boots Not Required, Nema A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals |
| Head Material | Plastic |
| Head/lens Color | Green |
| Ip Rating | IP10, IP11, IP14, IP52, IP54, IP56, IP66 |
| Legend | No Legend |
| Material | Metal |
| Max. Operating Temp. | 158°F |
| Max. Operator Voltage Rating | 600V AC |
| Mechanical Operating Durability | 5 x 10^6 |
| Min. Operating Temp. | 31°F |
| Mushroom Head Dia. | 63.5 mm |
| Nema Contact Rating Designation | A600/P600 |
| Nema Enclosure Rating | NEMA 1, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| No. Of Indicator Lights | 0 |
| No. Of Operators | 1 |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Overall Height | 4.49" |
| Overall Width | 2 3/25" |
| Panel Mounting Hole Dia. | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Mushroom Head |
| Resistance Properties | Corrosion Resistant, Oil And Grease Resistant, Watertight |
| Series | CLASS 52 Series |
| Terminal Connection | Pressure Plate |
| Type Of Operator | 63 mm Mushroom Head |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Terminal Connection | Color | Head Material | Panel Mounting Hole Dia. | Operator Material | Bezel Material | Type Of Operator | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3SU1150-1HA20-1CG0 | Screw | Red | Plastic | 22 mm | Zinc Alloy | Metal | 40 mm Mushroom Head | Metal | €129.88 | |
 |
3SU1100-1HA20-1FG0 | Screw | Red | Plastic | 22 mm | Polyamide | Plastic | 40 mm Mushroom Head | Plastic | €108.71 | |
 |
3SU1150-1HB20-1CG0 | Screw | Red | Plastic | 22 mm | Zinc Alloy | Metal | 40 mm Mushroom Head | Metal | €130.25 | |
 |
3SU1150-1HB20-1FG0 | Screw | Red | Plastic | 22 mm | Zinc Alloy | Metal | 40 mm Mushroom Head | Metal | €112.50 | |
 |
52PP2W2AP | Screw | - | Plastic | 30 mm | Metal | Chrome | 45 mm Push-Pull Knob | Zinc Die Cast | €315.26 | |
 |
3SU1150-1HA20-1FG0 | Screw | Red | Plastic | 22 mm | Zinc Alloy | Metal | 40 mm Mushroom Head | Metal | €116.06 | |
 |
3SU1100-0AB10-1FA0 | Screw | Black | Plastic | 22 mm | Polyamide | Plastic | Flush Button | Plastic | €87.16 |
