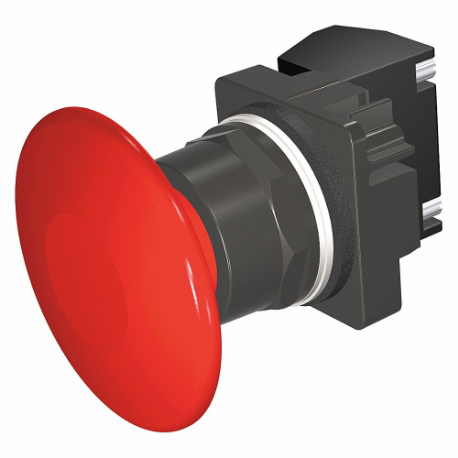

SIEMENS 52BM9V2A Non-Illuminated Push Button, 30 mm Size, Momentary Push, Red
Item: CU2VKMModel: 52BM9V2ACross Ref: 32GG75
7 In Stock
Ships within 2 days via
10.00% off
€203.00 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Non-Illuminated Push Button |
| Ac Contact Rating | 10A @ 600V |
| Action | Momentary |
| Action Type | Momentary Push |
| Basic Material | Metal |
| Bezel Material | Epoxy Coated Zinc Die Cast |
| Color | Red |
| Contact Form | 1NO/1NC |
| Contact Rating | 10A @ 600V AC |
| Dc Contact Rating | Not Rated |
| Display Qty | 1 |
| Features | Bifurcated Movable Contacts, Boots Not Required, Nema A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals |
| Head/lens Color | Red |
| Ip Rating | IP10, IP11, IP14, IP52, IP54, IP56, IP66 |
| Legend | No Legend |
| Manufacturer Warranty Length | 1 yr. |
| Material | Metal |
| Mechanical Operating Durability | 5 x 10^6 |
| Mushroom Head Diameter | 63.5 mm |
| Nema Contact Rating Designation | A600/P600 |
| Nema Enclosure Rating | NEMA 1, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | 31°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Metal |
| Operator Voltage Rating - Maximum | 600V AC |
| Overall Height | 4.49" |
| Overall Width | 2 3/25" |
| Panel Mounting Hole Diameter | 30 mm |
| Product Type | Push Button Operators |
| Push Button Style | Mushroom Head |
| Resistance Properties | Corrosion Resistant, Oil And Grease Resistant, Watertight |
| Series | CLASS 52 Series |
| Terminal Connection | Pressure Plate |
| Type Of Operator | 63 mm Mushroom Head |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | MX |
Product Variants
| Product | Model | Type Of Operator | Legend | Ip Rating | Action Type | Contact Form | Terminal Connection | Nema Contact Rating Designation | Basic Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3SU1150-1HA20-1CG0 | 40 mm Mushroom Head | Emergency Stop | IP67, IP69K | - | 1NC | Screw | A600/R300 | Zinc Alloy | €129.88 | |
 |
3SU1100-1HA20-1FG0 | 40 mm Mushroom Head | Emergency Stop | IP67, IP69K | - | 1NO/1NC | Screw | A600/R300 | Polyamide | €108.71 | |
 |
3SU1150-1HB20-1CG0 | 40 mm Mushroom Head | Emergency Stop | IP67, IP69K | Maintained Push / Twist | - | Screw | A600/R300 | Zinc Alloy | €130.25 | |
 |
3SU1150-1HB20-1FG0 | 40 mm Mushroom Head | Emergency Stop | IP67, IP69K | Maintained Push / Twist | 1NO/1NC | Screw | A600/R300 | - | €112.50 | |
 |
52PP2W2AP | 45 mm Push-Pull Knob | No Legend | IP20, IP66 | - | 1NO/1NC | Screw | A600/P600 | Metal | €315.26 | |
 |
3SU1150-1HA20-1FG0 | 40 mm Mushroom Head | Emergency Stop | IP67, IP69K | - | 1NO/1NC | Screw | A600/R300 | Zinc Alloy | €116.06 | |
 |
3SU1100-0AB10-1FA0 | Flush Button | No Legend | - | Momentary | 1NO/1NC | Screw | A600/R300 | Polyamide | €87.16 |
