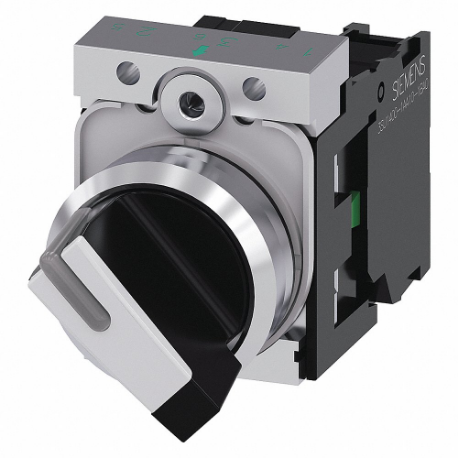

SIEMENS 3SU11502BF601BA0 Switch
Item: CU2XBAModel: 3SU11502BF601BA0Cross Ref: 56JX05
7 In Stock
Ships within 2 days via
10.00% off
€89.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Switch |
| Ac Contact Rating | 10A @ 500V |
| Action | Maintained/Maintained |
| Basic Material | Metal |
| Bezel Color | Silver |
| Cam | No Cam Included |
| Color | Black, Gray, White |
| Colour Button | White |
| Contact Block Material | Metal |
| Contact Form | 1NO |
| Dc Contact Rating | 5A @ 500V |
| Hazardous Location Specification | Not Rated |
| Includes | Holder |
| Ip Rating | IP20, IP66, IP67, IP69, IP69K |
| Lamp Bulb Type | No Lamp Module Included |
| Lamp Module Type | No Lamp Module Included |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| Number Of Contacts | 0 |
| Number Of Contacts As Normally Closed Contact | 0 |
| Number Of Contacts As Normally Open Contact | 1 |
| Number Of Positions | 2 |
| Number Of Switch Positions | 2 |
| Operator Head Color | White |
| Operator Head Material | Plastic |
| Operator Illumination | Illuminated |
| Overall Depth | 4" |
| Overall Height | 1.3" |
| Overall Width | 1" |
| Panel Mounting Hole Diameter | 22 mm |
| Position | 2 |
| Series | 3SU1150 Series |
| Spring-return | No |
| Suitable For Illumination | Yes |
| Switch Function @ 1st Position | Off |
| Switch Function @ 2nd Position | On |
| Switch Function @ 3rd Position | No Third Position |
| Switch Function @ 4th Position | No Fourth Position |
| Switch Head Type | Short Lever |
| Switching Function Latching | Yes |
| Type Of Control Element | Toggle |
| Type Of Electric Connection | Screw Connection |
| Type Of Operator | Selector Switch |
| With Front Ring | Yes |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Cam | Number Of Positions | Ip Rating | Contact Form | Basic Material | Operator Head Material | Bezel Color | Color | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
52SA2CDBA1 | C | 3 | IP20, IP66 | 1NO/1NC | Metal | Plastic | Black | Black | €224.26 | |
 |
3SU1100-2BL60-1NA0 | No Cam | 3 | IP20, IP66, IP67, IP69, IP69K | - | Plastic | Plastic | Black | White | €103.25 | |
 |
52SX2CABA2 | C | 3 | IP20, IP66 | - | Metal | Plastic | Black | Black | €209.33 | |
 |
3SU1100-4BF11-1FA0 | No Cam | 2 | - | 1NO/1NC | Plastic | Metal | Black | Metal | €180.25 | |
 |
52SC6AXA1 | A | 2 | Not Rated | 1NO/1NC | Metal | Metal | Black | Chrome | €354.52 | |
|
52SC6CVA1 | C | - | Not Rated | 1NO/1NC | Metal | Metal | Silver | Chrome | €370.47 | |
 |
52SA2ACBK1 | A | 2 | IP20, IP66 | 1NO | Metal | Plastic | Black | Black | €190.55 |
