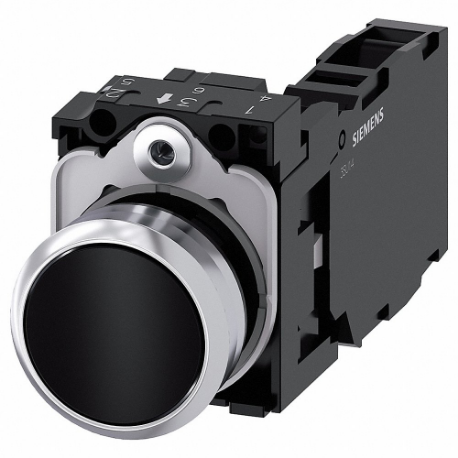

SIEMENS 3SU1150-0AB10-1FA0 Non-Illuminated Push Button, 22 mm Size, Momentary, Black, Metal
Item: CU2VMQModel: 3SU1150-0AB10-1FA0Cross Ref: 411K22
7 In Stock
Ships within 2 days via
10.00% off
€75.64 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Non-Illuminated Push Button |
| Ac Contact Rating | 10A @ 600V |
| Action | Momentary |
| Action Type | Momentary |
| Application | Complete Unit |
| Basic Material | Zinc Alloy |
| Bezel Material | Metal |
| Color | Black |
| Contact Rating | 10A @ 600V AC 1A @ 600V DC |
| Dc Contact Rating | 1A @ 600V |
| Display Qty | 1 |
| Features | Four Id Keys With Different Codes, Possible To Select 1 To 4 Positions With Id Keys |
| Head Material | Plastic |
| Head/lens Color | Black |
| Ip Rating | IP66, IP67, IP69, IP69K |
| Legend | No Legend |
| Manufacturer Warranty Length | 1 yr. |
| Material | Metal |
| Mechanical Operating Durability | 1 x 10^7 |
| Nema Contact Rating Designation | A600/R300 |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12 |
| Number Of Indicator Lights | 0 |
| Number Of Operators | 1" |
| Operating Cycles | 10000000 |
| Operating Temperature - Maximum | 158°F |
| Operating Temperature - Minimum | -13°F |
| Operator Illumination | Non Illuminated |
| Operator Material | Zinc Alloy |
| Operator Voltage Rating - Maximum | 500V |
| Overall Depth | 3.26" |
| Overall Height | 1.57" |
| Overall Width | 1.18" |
| Panel Mounting Hole Diameter | 22 mm |
| Product Type | Push Button Operators |
| Push Button Style | Flush |
| Series | 3SU Series |
| Special Features | Yes |
| Terminal Connection | Screw |
| Type Of Operator | Flush Button |
Shipping Info:
| Ship weight (kg) | 0.1 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | DE |
Product Variants
| Product | Model | Type Of Operator | Legend | Ip Rating | Action Type | Contact Form | Terminal Connection | Nema Contact Rating Designation | Basic Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3SU1150-1HA20-1CG0 | 40 mm Mushroom Head | Emergency Stop | IP67, IP69K | - | 1NC | Screw | A600/R300 | Zinc Alloy | €129.88 | |
 |
3SU1100-1HA20-1FG0 | 40 mm Mushroom Head | Emergency Stop | IP67, IP69K | - | 1NO/1NC | Screw | A600/R300 | Polyamide | €108.71 | |
 |
3SU1150-1HB20-1CG0 | 40 mm Mushroom Head | Emergency Stop | IP67, IP69K | Maintained Push / Twist | - | Screw | A600/R300 | Zinc Alloy | €130.25 | |
 |
3SU1150-1HB20-1FG0 | 40 mm Mushroom Head | Emergency Stop | IP67, IP69K | Maintained Push / Twist | 1NO/1NC | Screw | A600/R300 | - | €112.50 | |
 |
52PP2W2AP | 45 mm Push-Pull Knob | No Legend | IP20, IP66 | - | 1NO/1NC | Screw | A600/P600 | Metal | €315.26 | |
 |
3SU1150-1HA20-1FG0 | 40 mm Mushroom Head | Emergency Stop | IP67, IP69K | - | 1NO/1NC | Screw | A600/R300 | Zinc Alloy | €116.06 | |
 |
3SU1100-0AB10-1FA0 | Flush Button | No Legend | - | Momentary | 1NO/1NC | Screw | A600/R300 | Polyamide | €87.16 |
