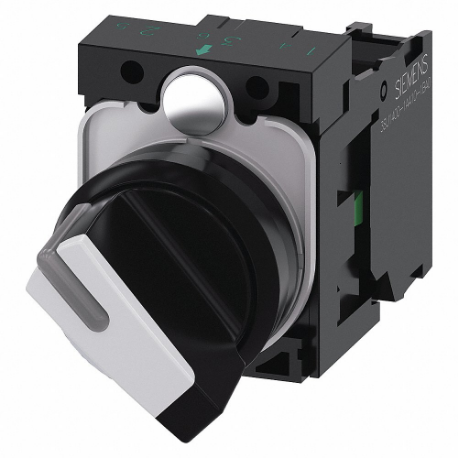

SIEMENS 3SU1100-2BF60-1BA0 Non-Illuminated Selector Switch, 22 mm Size, 2 Position, Maintained/Maintained, Plastic
Item: CU2WVVModel: 3SU1100-2BF60-1BA0Cross Ref: 411J56
7 In Stock
Ships within 2 days via
5.00% off
€72.16 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Selector Switch |
| Ac Contact Rating | 10A @ 600V |
| Action | Maintained/Maintained |
| Basic Material | Plastic |
| Bezel Color | Black |
| Bezel Material | Plastic |
| Cam | No Cam |
| Color | White |
| Colour Button | White |
| Colour Front Ring | Black |
| Contact Block Material | Plastic |
| Contact Form | 1NO |
| Contact Rating | 10A @ 600V AC 1A @ 600V DC |
| Dc Contact Rating | 1A @ 600V |
| Hazardous Location Specification | Not Rated |
| Ip Rating | IP20, IP66, IP67, IP69, IP69K |
| Key Removal | No Key |
| Lamp Bulb Type | No Lamp Module Included |
| Lamp Module Type | No Lamp Module Included |
| Material Front Ring | Plastic |
| Nema Contact Rating Designation | A600/R300 |
| Nema Enclosure Rating | NEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13 |
| Nema Rating | NEMA 1, NEMA 12, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X |
| No. Of Contacts | 0 |
| No. Of Contacts As Normally Closed Contact | 0 |
| No. Of Contacts As Normally Open Contact | 1 |
| No. Of Positions | 2 |
| No. Of Switch Positions | 2 |
| Operator Head Color | White |
| Operator Head Material | Plastic |
| Operator Illumination | Illuminated |
| Overall Depth | 7.25" |
| Overall Height | 1 1/4" |
| Overall Width | 5 4/5" |
| Panel Mounting Hole Dia. | 22 mm |
| Position | 2 |
| Series | 3SU1100 Series |
| Spring Return | No |
| Suitable For Illumination | Yes |
| Switch Function @ 1st Position | Off |
| Switch Function @ 2nd Position | On |
| Switch Function @ 3rd Position | No Third Position |
| Switch Function @ 4th Position | No Fourth Position |
| Switch Head Type | Short Lever |
| Switch Operation @ Position A | O |
| Switch Operation @ Position C | No Third Position |
| Switch Operation @ Position D | No Fourth Position |
| Switching Function Latching | Yes |
| Type Of Control Element | Toggle |
| Type Of Electric Connection | Screw Connection |
| Type Of Operator | Lever |
| With Front Ring | Yes |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | CZ |
Product Variants
| Product | Model | Operator Head Material | Color | Panel Mounting Hole Dia. | Bezel Material | Basic Material | Bezel Color | Type Of Operator | Position | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
52SA2CDBA1 | Plastic | Black | 30 mm | Zinc | Metal | Black | Extended Lever | 3 | €224.26 | |
 |
3SU1100-2BL60-1NA0 | Plastic | White | 22 mm | Plastic | Plastic | Black | Lever | 3 | €103.25 | |
 |
52SX2CABA2 | Plastic | Black | 30 mm | Zinc | Metal | Black | Lever | 3 | €209.33 | |
 |
3SU1100-4BF11-1FA0 | Metal | Metal | 22 mm | Plastic | Plastic | Black | Keyed | 2 | €180.25 | |
 |
52SC6AXA1 | Metal | Chrome | 30 mm | Die Cast Zinc | Metal | Black | Keyed | 2 | €354.52 | |
|
52SC6CVA1 | Metal | Chrome | - | Die Cast Zinc | Metal | Silver | Keyed | 3 | €370.47 | |
 |
52SA2ACBK1 | Plastic | Black | 30 mm | Zinc | Metal | Black | Extended Lever | 2 | €190.55 |
