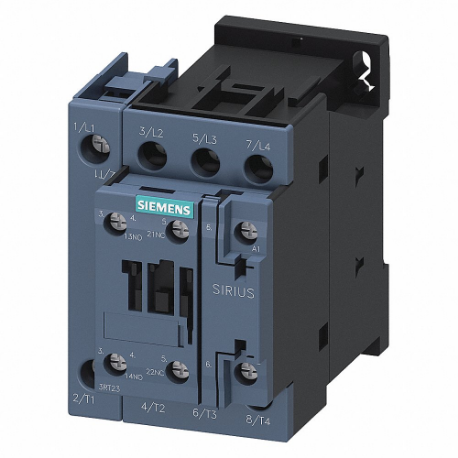

SIEMENS 3RT23251AM20 Power Contactor, 208 V AC Coil Volts, 35 A Full Load Amps-Inductive, 1No/1Nc
Item: CU2TJQModel: 3RT23251AM20Cross Ref: 56JW99
7 In Stock
Ships within 2 days via
5.00% off
€307.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Aux. Contact Configuration | 1NO/1NC |
| Auxiliary Contacts Included | 1NO/1NC |
| Coil Voltage | 208V AC |
| Connection Type | Screw Connection |
| Contactor Style | IEC |
| Depth | 97 mm |
| Embedded Surge Suppressor | No |
| Frame Size | S0 |
| Frequency | 50/60 Hz |
| Full Load Amps-resistive | 35A |
| Full Load Inductive Amps | 16A |
| Height | 85 mm |
| Included Auxiliary Contacts | Yes |
| Integrated Surge Suppression | No |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 4NO |
| Max. Operating Temp. | 140°F |
| Mechanical Operating Durability | 10000000 |
| Min. Operating Temp. | -13°F |
| Mounting Hole Dia. | 0.19" |
| Mounting Hole Distance | 2.95" |
| Mounting Hole Width | 1.38" |
| Mounting Postion | Vertical |
| Nema Enclosure Rating | No Enclosure |
| No. Of Auxiliary Contacts As Opener | 1 |
| No. Of Auxiliary Contacts As Shutter | 1 |
| No. Of Auxillary Contacts | 2 |
| No. Of Making Contacts And Main Contacts | 4 |
| No. Of Normally Open Main Contacts | 4 |
| No. Of Poles | 4 |
| Nominal Coil Voltage @ 60hz | 208V AC |
| Overall Depth | 3.67" |
| Overall Height | 5 3/25" |
| Overall Width | 3 1/25" |
| Reversing Capability | Non Reversing |
| Series | SIRIUS 3RT23 Series |
| Suitable For Series Installation | Yes |
| Terminal Connection Type | Screw Terminal |
| Width | 60 mm |
| Wire Termination Type | Screw |
Shipping Info:
| Ship weight (kg) | 0.47 |
| Ship height (cm) | 13 |
| Ship length (cm) | 9.32 |
| Ship width (cm) | 7.72 |
| Country of Origin | DE |
Product Variants
| Product | Model | Height | No. Of Poles | Coil Voltage | Frame Size | Frequency | Included Auxiliary Contacts | Full Load Amps-resistive | Hp @ 1 Phase-240v | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3RT20182AF02 | 70 mm | 3 | 110V AC | S00 | 50/60 Hz | Yes | 22A | 2 hp | €218.26 | |
 |
3RT20181AF01 | 3 2/25" | 3 | 110V AC | S00 | 50/60 Hz | Yes | 22A | 2 hp | €216.44 | |
 |
3RT20182AF01 | 70 mm | 3 | 110V AC | S00 | 50/60 Hz | Yes | 22A | 2 hp | €218.26 | |
 |
3RT20271AG20 | 85 mm | 3 | 110V AC | - | 50/60 Hz | Yes | 50A | 5 hp | €415.54 | |
|
3RT20271AF00 | 85 mm | 3 | 110V AC | S0 | 50 Hz | Yes | 50A | 5 hp | €429.72 | |
|
3RT20181AK610UA0 | 2 2/5" | 3 | 110/120V AC | S00 | 50/60 Hz | Yes | 22A | 2 hp | €327.93 | |
 |
3RT20272AK60 | 102 mm | 3 | 110/120V AC | S0 | 50/60 Hz | Yes | 50A | 5 hp | €452.06 |
