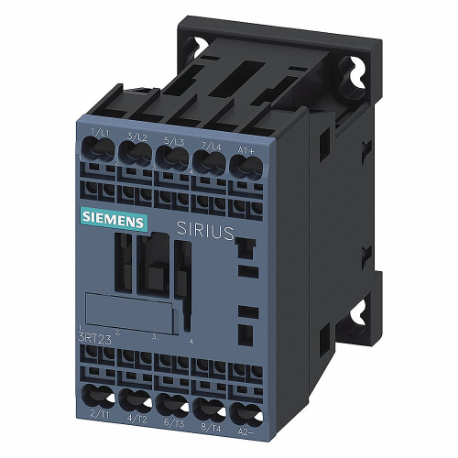

SIEMENS 3RT23162BB40 Power Contactor, 24 V DC Coil Volts, 18 A Full Load Amps-Inductive, 2No/2Nc
Item: CU2TLYModel: 3RT23162BB40Cross Ref: 56JZ82
7 In Stock
Ships within 2 days via
5.00% off
€158.38 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Aux. Contact Configuration | 2NO/2NC |
| Auxiliary Contacts Included | 2NO/2NC |
| Coil Voltage | 24V DC |
| Contactor Style | IEC |
| Depth | 1.7" , 73 mm |
| Embedded Surge Suppressor | No |
| Frame Size | S00 |
| Full Load Amps-inductive | 9A |
| Full Load Amps-resistive | 18A |
| Height | 2.85" , 70 mm |
| Included Auxiliary Contacts | Yes |
| Integrated Surge Suppression | No |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 4NO |
| Max. Operating Temp. | 140°F |
| Mechanical Operating Durability | 30000000 |
| Min. Operating Temp. | -13°F |
| Mounting Position | Vertical |
| Nema Enclosure Rating | No Enclosure |
| No. Of Auxillary Contacts | 4 |
| No. Of Normally Closed Main Contacts | 0 |
| No. Of Normally Open Main Contacts | 4 |
| No. Of Poles | 4 |
| Nominal Coil Voltage @ 60hz | 24V DC |
| Overall Depth | 1.7" |
| Overall Height | 2.85" |
| Overall Width | 3.15" |
| Reversing Capability | Non Reversing |
| Series | SIRIUS 3RT23 Series |
| Terminal Connection Type | Spring Loaded Terminals |
| Width | 3.15" , 45 mm |
| Wire Termination Type | Spring Loaded |
Shipping Info:
| Ship weight (kg) | 0.31 |
| Ship height (cm) | 7.24 |
| Ship length (cm) | 4.32 |
| Ship width (cm) | 8 |
| Country of Origin | DE |
Product Variants
| Product | Model | Reversing Capability | Main Power Pole Contact Form | Auxiliary Contacts Included | Frame Size | Wire Termination Type | Integrated Surge Suppression | Nominal Coil Voltage @ 60hz | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3RT20182AF02 | Non Reversing | 3NO | 1NC | S00 | Spring Loaded | No | 120V AC | 70 mm | €218.26 | |
 |
3RT20181AF01 | Non Reversing | 3NO | 1NO | S00 | Screw | No | 120V AC | 3 2/25" | €216.44 | |
 |
3RT20182AF01 | Non Reversing | 3NO | 1NO | S00 | Spring Loaded | No | 120V AC | 70 mm | €218.26 | |
 |
3RT20271AG20 | - | - | - | - | - | - | - | 85 mm | €415.54 | |
|
3RT20271AF00 | Non Reversing | 3NO | 1NO/1NC | S0 | Screw | No | 120V AC | 85 mm | €429.72 | |
|
3RT20181AK610UA0 | Non Reversing | 3NO | 1NO | S00 | Screw | - | 120V AC | 2 2/5" | €327.93 | |
 |
3RT20272AK60 | Non Reversing | 3NO | 1NO/1NC | S0 | Spring Loaded | No | 120V AC | 102 mm | €452.06 |
