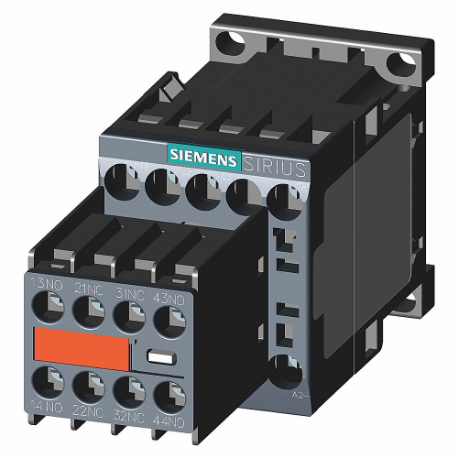

SIEMENS 3RT20171BB443MA0 Iec Magnetic Contactor, 24 V Dc Coil Volts, 12 A, 2No/2Nc
Item: CU2TFHModel: 3RT20171BB443MA0Cross Ref: 13Y554
7 In Stock
Ships within 2 days via
10.00% off
€233.86 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Magnetic Contactor |
| Aux. Contact Configuration | 2NO/2NC |
| Coil Volts | 24V DC |
| Depth | 2.87" , 5 1/5" |
| Embedded Surge Suppressor | No |
| Enclosure Nema Rating | No Enclosure |
| Full Load Amps-inductive | 12A |
| Full Load Amps-resistive | 22A |
| Height | 1.77" , 1.95" |
| Horsepower @ Three Phase (600 Vac) | 10 hp |
| Horsepower @ Three Phase - 480v Ac | 7 1/2 hp |
| Hp @ 1 Phase - 120v | 1/2 hp |
| Hp @ 1 Phase - 240v | 2 hp |
| Hp @ 3 Phase - 208v | 3 hp |
| Hp @ 3 Phase - 240v | 3 hp |
| Hp @ 3 Phase - 480v | 7 1/2 hp |
| Hp @ 3 Phase - 575v | 10 hp |
| Includes | Permanent Mounted Aux Contact |
| Includes Auxiliary Contacts | Yes |
| Mounting Hole Dia. | 1/5" |
| Mounting Hole Distance | 1.97" |
| Mounting Hole Distance - Width | 1.38" |
| Mounting Position | Vertical |
| Number Of Auxillary Contacts | 4 |
| Number Of Normally Open Main Contacts | 3 |
| Number Of Poles | 3 |
| Reversible | No |
| Terminal Connection Type | Screw Terminals |
| Width | 1.77" , 2.45" |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 4.95 |
| Ship length (cm) | 13.21 |
| Ship width (cm) | 6.22 |
| Country of Origin | DE |
Product Variants
| Product | Model | Number Of Poles | Reversing Capability | Main Power Pole Contact Form | Auxiliary Contacts Included | Wire Termination Type | Frame Size | Integrated Surge Suppression | Nominal Coil Voltage @ 60hz | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3RT20182AF02 | 3 | Non-reversing | 3NO | 1NC | Spring Loaded | S00 | No | 120V AC | €218.26 | |
 |
3RT20181AF01 | 3 | Non-reversing | 3NO | 1NO | Screw | S00 | No | 120V AC | €216.44 | |
 |
3RT20182AF01 | 3 | Non-reversing | 3NO | 1NO | Spring Loaded | S00 | No | 120V AC | €218.26 | |
 |
3RT20271AG20 | 3 | - | - | - | - | - | - | - | €415.54 | |
|
3RT20271AF00 | 3 | Non-reversing | 3NO | 1NO/1NC | Screw | S0 | No | 120V AC | €429.72 | |
|
3RT20181AK610UA0 | 3 | Non-reversing | 3NO | 1NO | Screw | S00 | - | 120V AC | €327.93 | |
 |
3RT20272AK60 | 3 | Non-reversing | 3NO | 1NO/1NC | Spring Loaded | S0 | No | 120V AC | €452.06 |
