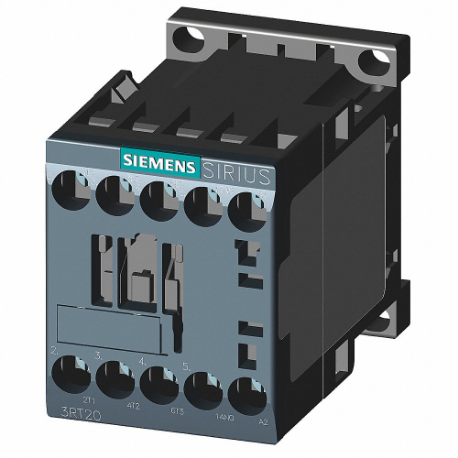

SIEMENS 3RT20161AB01 Iec Magnetic Contactor, 24 VAC Coil Volts, 9 A, 1No
Item: CU2TFAModel: 3RT20161AB01Cross Ref: 13Y531
7 In Stock
Ships within 2 days via
5.00% off
€151.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Magnetic Contactor |
| Aux. Contact Configuration | 1NO |
| Auxiliary Contacts Included | 1NO |
| Coil Voltage | 24V AC |
| Contactor Style | IEC |
| Depth | 2.87" , 3 1/4" |
| Embedded Surge Suppressor | No |
| Enclosure Nema Rating | No Enclosure |
| Frame Size | S00 |
| Frequency | 50/60 Hz |
| Full Load Amps-inductive | 9A |
| Full Load Amps-resistive | 22A |
| Height | 1.77" , 1.95" |
| Hp @ 1 Ph-240v | 1 hp |
| Hp @ 1 Phase-120v | 1/3 hp |
| Hp @ 1 Phase-240v | 1 hp |
| Hp @ 3 Ph-480v | 5 hp |
| Hp @ 3 Phase-208v | 2 hp |
| Hp @ 3 Phase-240v | 3 hp |
| Hp @ 3 Phase-480v | 5 hp |
| Hp @ 3 Phase-575v | 7 1/2 hp |
| Hp @ 3 Phase-600v | 7 1/2 hp |
| Included Auxiliary Contacts | Yes |
| Integrated Surge Suppression | No |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 3NO |
| Max. Operating Temp. | 140°F |
| Max. Voltage | 690V AC |
| Mechanical Operating Durability | 30000000 |
| Min. Operating Temp. | -13°F |
| Mounting Hole Dia. | 1/5" |
| Mounting Hole Distance | 1.97" |
| Mounting Hole Distance Width | 1.38" |
| Mounting Position | Vertical |
| No. Of Auxillary Contacts | 1 |
| No. Of Normally Open Main Contacts | 3 |
| No. Of Poles | 3 |
| Nominal Coil Voltage @ 60hz | 24V AC |
| Overall Depth | 3.25" |
| Overall Height | 1.95" |
| Overall Width | 2 2/5" |
| Phase | 3 |
| Reversible | No |
| Reversing Capability | Non Reversing |
| Series | SIRIUS 3RT20 Series |
| Terminal Connection Type | Screw Terminal |
| Width | 1.77" , 2 2/5" |
| Wire Termination Type | Screw |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 4.95 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 6.1 |
| Country of Origin | DE |
Product Variants
| Product | Model | Reversing Capability | Main Power Pole Contact Form | Auxiliary Contacts Included | Frame Size | Wire Termination Type | Integrated Surge Suppression | Nominal Coil Voltage @ 60hz | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3RT20182AF02 | Non Reversing | 3NO | 1NC | S00 | Spring Loaded | No | 120V AC | 70 mm | €218.26 | |
 |
3RT20181AF01 | Non Reversing | 3NO | 1NO | S00 | Screw | No | 120V AC | 3 2/25" | €216.44 | |
 |
3RT20182AF01 | Non Reversing | 3NO | 1NO | S00 | Spring Loaded | No | 120V AC | 70 mm | €218.26 | |
 |
3RT20271AG20 | - | - | - | - | - | - | - | 85 mm | €415.54 | |
|
3RT20271AF00 | Non Reversing | 3NO | 1NO/1NC | S0 | Screw | No | 120V AC | 85 mm | €429.72 | |
|
3RT20181AK610UA0 | Non Reversing | 3NO | 1NO | S00 | Screw | - | 120V AC | 2 2/5" | €327.93 | |
 |
3RT20272AK60 | Non Reversing | 3NO | 1NO/1NC | S0 | Spring Loaded | No | 120V AC | 102 mm | €452.06 |
