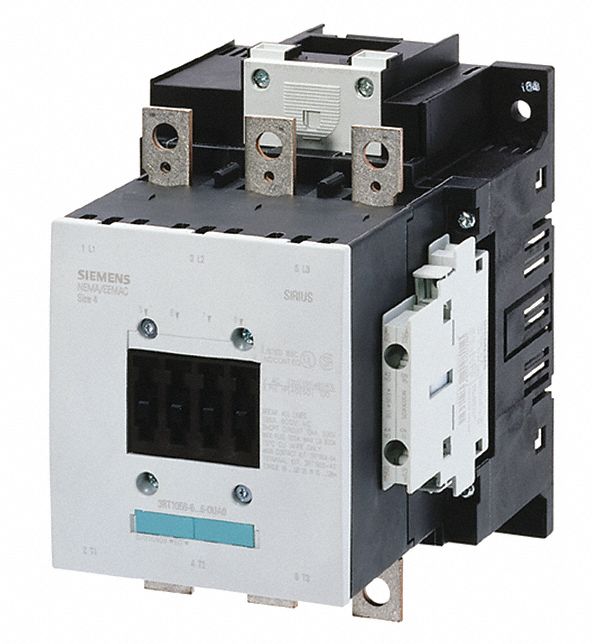

SIEMENS 3RT10566AF363PA0 Iec Magnetic Contactor, 3 Poles, 185A Full Load, 110 To 127VAC/Dc
Item: CH6JQFModel: 3RT10566AF363PA0Cross Ref: 13Y651
7 In Stock
Ships within 2 days via
10.00% off
€1,790.74 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | IEC Magnetic Contactor |
| Auxiliary Contacts Included | 2NO/2NC |
| Coil Voltage | 110-127V AC/DC |
| Configuration | 2NO/2NC |
| Contactor Style | IEC |
| Depth | 6.69" |
| Embedded Surge Suppressor | No |
| Enclosure Nema Rating | No Enclosure |
| Frame Size | S6 |
| Full Load Amps-inductive | 185A |
| Full Load Amps-resistive | 215A |
| Full Load Current - Resistive | 215A |
| Height | 4 18/25" , 6.77" |
| Horsepower @ Single Phase - 240v Ac | 30 hp |
| Horsepower @ Three Phase (600 Vac) | 200 hp |
| Horsepower @ Three Phase - 208v Ac | 60 hp |
| Horsepower @ Three Phase - 480v Ac | 150 hp |
| Hp @ 1 Phase - 240v | 30 hp |
| Hp @ 3 Phase - 208v | 60 hp |
| Hp @ 3 Phase - 240v | 75 hp |
| Hp @ 3 Phase - 480v | 150 hp |
| Hp @ 3 Phase - 575v | 200 hp |
| Includes | Permanent Mounted Aux Contact |
| Includes Auxiliary Contacts | Yes |
| Integrated Surge Suppression | No |
| Main Power Pole Contact Form | 3NO |
| Maximum Voltage Rating | 1000V AC |
| Mechanical Operating Durability | 10000000 |
| Minimum Operating Temperature | -13°F |
| Mounting Hole Dia. | 9/25" |
| Mounting Hole Distance | 5 3/25" |
| Mounting Hole Distance - Width | 3.94" |
| Mounting Position | Vertical |
| Mounting Style | Surface |
| Number Of Auxillary Contacts | 4 |
| Number Of Normally Open Main Contacts | 3 |
| Number Of Poles | 3 |
| Overall Depth | 6.69" |
| Overall Height | 6.77" |
| Overall Width | 0.47" |
| Phase | Three |
| Reversible | No |
| Reversing | No |
| Reversing Capability | Non-reversing |
| Series | SIRIUS 3RT SAFETY CONTACTORS |
| Terminal Connection Type | Screw Terminals |
| Width | 0.47" , 4 18/25" |
| Wire Termination Type | Screw |
Shipping Info:
| Ship weight (kg) | 3.35 |
| Ship height (cm) | 17.2 |
| Ship length (cm) | 16.99 |
| Ship width (cm) | 1.19 |
| Country of Origin | DE |
