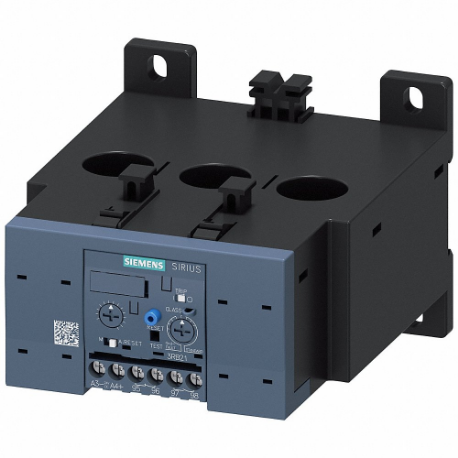

SIEMENS 3RB21534FW2 Overload Relay, 50 To 200A, 10/20/30/5, 3 Poles, Electronic, Iec Style Overload Relay
Item: CU2VQWModel: 3RB21534FW2Cross Ref: 13A252
7 In Stock
Ships within 2 days via
10.00% off
€1,278.45 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Overload Relay |
| Amps Range | 50-200A |
| Auxiliary Contacts Included | 1NO/1NC |
| Body Depth | 3.74" |
| Body Height | 5.89" |
| Body Width | 4 18/25" |
| Compatible Contactor Series | SIRIUS Series |
| Compatible Contactors | Frame Size S6 |
| External Reset Possible | Yes |
| Features | Earth Fault Detection, Manual And Auto Reset |
| Frame Size | S6 |
| Greatest | Adjustable Current Range |
| Includes Mounting Hardware | Not Applicable |
| Includes Thermal Units | Not Applicable |
| Ip Rating | IP20 |
| Lowest | Adjustable Current Range |
| Maximum Overload Relay Current Setting | 200A |
| Maximum Voltage Rating | 1000V AC |
| Min. Overload Relay Amps Setting | 50A |
| Mounting Style | Direct To Contactor |
| Number Of Auxiliary Contacts As Changer | 0 |
| Number Of Auxiliary Contacts As Opener | 1 |
| Number Of Auxiliary Contacts As Shutter | 1 |
| Number Of Poles | 3 |
| Overall Height | 4 17/25" , 6.09" |
| Overload Protection Type | Electronic |
| Phase | 3 |
| Phase Loss Sensitivity | No |
| Relay Mounting Style | Direct To Contactor |
| Relay Style | IEC |
| Reset Type | Auto, Manual |
| Sensing Method | Electronic |
| Separate Mounting | Additional Items Needed, Yes |
| Terminal Connection Type | Screw Terminals |
| Thermal Units Required | Not Applicable To Electronic Type Overload Relays |
| Trip Class | Class 5 |
| Wire Termination Type | Screw |
Shipping Info:
| Ship weight (kg) | 0.68 |
| Ship height (cm) | 14.96 |
| Ship length (cm) | 9.5 |
| Ship width (cm) | 11.99 |
| Country of Origin | DE |
Product Variants
| Product | Model | Number Of Poles | Sensing Method | Trip Class | Separate Mounting | Body Height | Body Width | Overall Height | Amps Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3RB31134RB0 | 3 | Electronic | Class 5E/10E/20E/30E | Additional Items Needed, Yes | 4.76" | 1.77" | 3.11" | 0.1-0.4A | €501.40 | |
 |
3RB31234RB0 | 3 | Electronic | Class 5E/10E/20E/30E | Additional Items Needed, Yes | 6.13" | 1.77" | 6.13" | 0.1-0.4A | €578.56 | |
 |
3RU21160BB0 | 3 | Thermal | Class 10 | Additional Items Needed, Yes | 4.64" | 1.77" | 3" | 0.14-0.2A | €139.42 | |
|
3RU21160DB0 | 3 | Thermal | Class 10 | Additional Items Needed, Yes | 4.64" | 1.77" | 3" | 0.22-0.32A | €150.57 | |
|
3RU21160EB0 | 3 | Thermal | Class 10 | Additional Items Needed, Yes | 4.64" | 1.77" | 3" | 0.28-0.4A | €132.25 | |
|
3RB31234NB0 | 3 | Electronic | Class 5E/10E/20E/30E | Additional Items Needed, Yes | 6.13" | 1.77" | 6.13" | 0.32-1.25A | €568.29 | |
|
3RB31134NB0 | 3 | Electronic | Class 5E/10E/20E/30E | Additional Items Needed, Yes | 4.76" | 1.77" | 3.11" | 0.32-1.25A | €505.40 |
