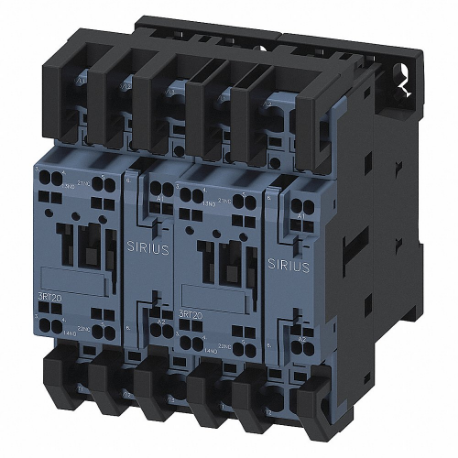

SIEMENS 3RA23268XB302AK6 Power Contactor, 110/120 V AC Coil Volts, 21 A Full Load Amps-Inductive, 2No
Item: CU2TJCModel: 3RA23268XB302AK6Cross Ref: 56JV55
7 In Stock
Ships within 2 days via
10.00% off
€667.10 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Contactor |
| Aux. Contact Configuration | 2NO |
| Auxiliary Contacts Included | 1NC |
| Coil Voltage | 110/120V AC |
| Contactor Style | IEC |
| Depth | 97 mm |
| Embedded Surge Suppressor | No |
| Frame Size | S0 |
| Frequency | 50/60 Hz |
| Full Load Amps-resistive | 40A |
| Full Load Current - Resistive | 40A |
| Full Load Inductive Amps | 25A |
| Height | 114 mm |
| Horsepower @ Single Phase | 3 hp |
| Horsepower @ Single Phase - 120v Ac | 2 hp |
| Horsepower @ Single Phase - 240v Ac | 3 hp |
| Horsepower @ Three Phase - 208v Ac | 7 1/2 hp |
| Horsepower @ Three Phase - 600v Ac | 20 hp |
| Hp @ 1 Phase - 120v | 2 hp |
| Hp @ 1 Phase - 240v | 3 hp |
| Hp @ 3 Phase - 240v | 7 1/2 hp |
| Hp @ 3 Phase - 480v | 15 hp |
| Hp @ 3 Phase - 575v | 20 hp |
| Includes Auxiliary Contacts | Yes |
| Integrated Surge Suppression | No |
| Ip Rating | IP20 |
| Main Power Pole Contact Form | 3NO |
| Maximum Operating Temperature | 140°F |
| Maximum Voltage Rating | 690V AC |
| Mechanical Operating Durability | 10000000 |
| Minimum Operating Temperature | -13°F |
| Mounting Postion | Vertical |
| Nema Enclosure Rating | No Enclosure |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Number Of Auxillary Contacts | 3 |
| Number Of Normally Closed Main Contacts | 0 |
| Number Of Normally Open Main Contacts | 3 |
| Number Of Poles | 3 |
| Overall Depth | 4.93" |
| Overall Height | 6.78" |
| Overall Width | 4.34" |
| Phase | Three |
| Reversible | Yes |
| Reversing Capability | Reversing |
| Series | SIRIUS 3RA23 Series |
| Terminal Connection Type | Spring Loaded Terminals |
| Width | 90 mm |
| Wire Termination Type | Spring Loaded |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 17.22 |
| Ship length (cm) | 12.52 |
| Ship width (cm) | 11.02 |
| Country of Origin | DE |
Product Variants
| Product | Model | Number Of Poles | Reversing Capability | Main Power Pole Contact Form | Auxiliary Contacts Included | Wire Termination Type | Frame Size | Integrated Surge Suppression | Nominal Coil Voltage @ 60hz | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
3RT20182AF02 | 3 | Non-reversing | 3NO | 1NC | Spring Loaded | S00 | No | 120V AC | €218.26 | |
 |
3RT20181AF01 | 3 | Non-reversing | 3NO | 1NO | Screw | S00 | No | 120V AC | €216.44 | |
 |
3RT20182AF01 | 3 | Non-reversing | 3NO | 1NO | Spring Loaded | S00 | No | 120V AC | €218.26 | |
 |
3RT20271AG20 | 3 | - | - | - | - | - | - | - | €415.54 | |
|
3RT20271AF00 | 3 | Non-reversing | 3NO | 1NO/1NC | Screw | S0 | No | 120V AC | €429.72 | |
|
3RT20181AK610UA0 | 3 | Non-reversing | 3NO | 1NO | Screw | S00 | - | 120V AC | €327.93 | |
 |
3RT20272AK60 | 3 | Non-reversing | 3NO | 1NO/1NC | Spring Loaded | S0 | No | 120V AC | €452.06 |
