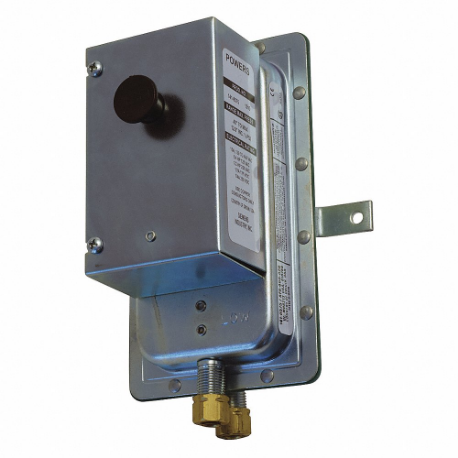

SIEMENS 141-0575 Air Sensing Switch
Item: CU2REJModel: 141-0575Cross Ref: 40PN37
7 In Stock
Ships within 2 days via
10.00% off
€139.54 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Air Sensing Switch |
| Amps | 15A |
| Application | Manual Reset |
| Contact Form | SPST |
| Depth | 3 1/4" |
| Differential Pressure | 0.06 psi to 0.6 psi |
| Electrical Connection Type | Hardwired |
| Electrical Rating | 15A Non-Inductive 120 to 277V AC, 300 VA Pilot Duty @ 120 to 277V AC |
| Features | Proof Of Flow, High Limit Cut Out, Filter Dirty Indication |
| Function | Senses Static Differential Pressure And The Diaphragm Operated Snap Switches Actuate Electrical Circuits |
| Height | 6 1/8" |
| Housing Material | Steel |
| Housing Type | Conduit Box |
| Maximum Operating Temperature | 180°F |
| Maximum Pressure Rating | 12 in. wc |
| Minimum Operating Temperature | -40°F |
| Mounting Hole Center To Center Distance | 3 7/8" |
| Mounting Holes O.c. | 3 7/8" |
| Mounting Location | Vertical |
| Mounting Orientation | Vertical |
| Number Of Switches | 1 |
| Operating Temp. Range | -40°F to +180°F |
| Overall Depth | 3 1/4" |
| Overall Height | 6 1/8" |
| Overall Width | 3 1/4" |
| Pressure Set Point | 1 in. wc to 12 in. wc |
| Pressure Setpoint Type | Adjustable |
| Pressure Setting Range | 1 psi to 12 psi |
| Pressure Type | Differential |
| Product Type | Air Flow Switch |
| Reset Type | Automatic Reset |
| Sample Line Connection | 1/4" |
| Sample Line Connection Size | 1/4" |
| Sample Line Connector Type | Integral Compression |
| Switch Voltage | 120-277V AC |
| Switching Differential | 0.06 in. wc to 0.6 in. wc |
| Type | Manual Reset |
| Type Of Set Point | Adjustable |
| Voltage | 120-277V AC |
| Width | 3 1/4" |
Shipping Info:
| Ship weight (kg) | 0.54 |
| Ship height (cm) | 15.56 |
| Ship length (cm) | 8.26 |
| Ship width (cm) | 8.26 |
| Country of Origin | US |
