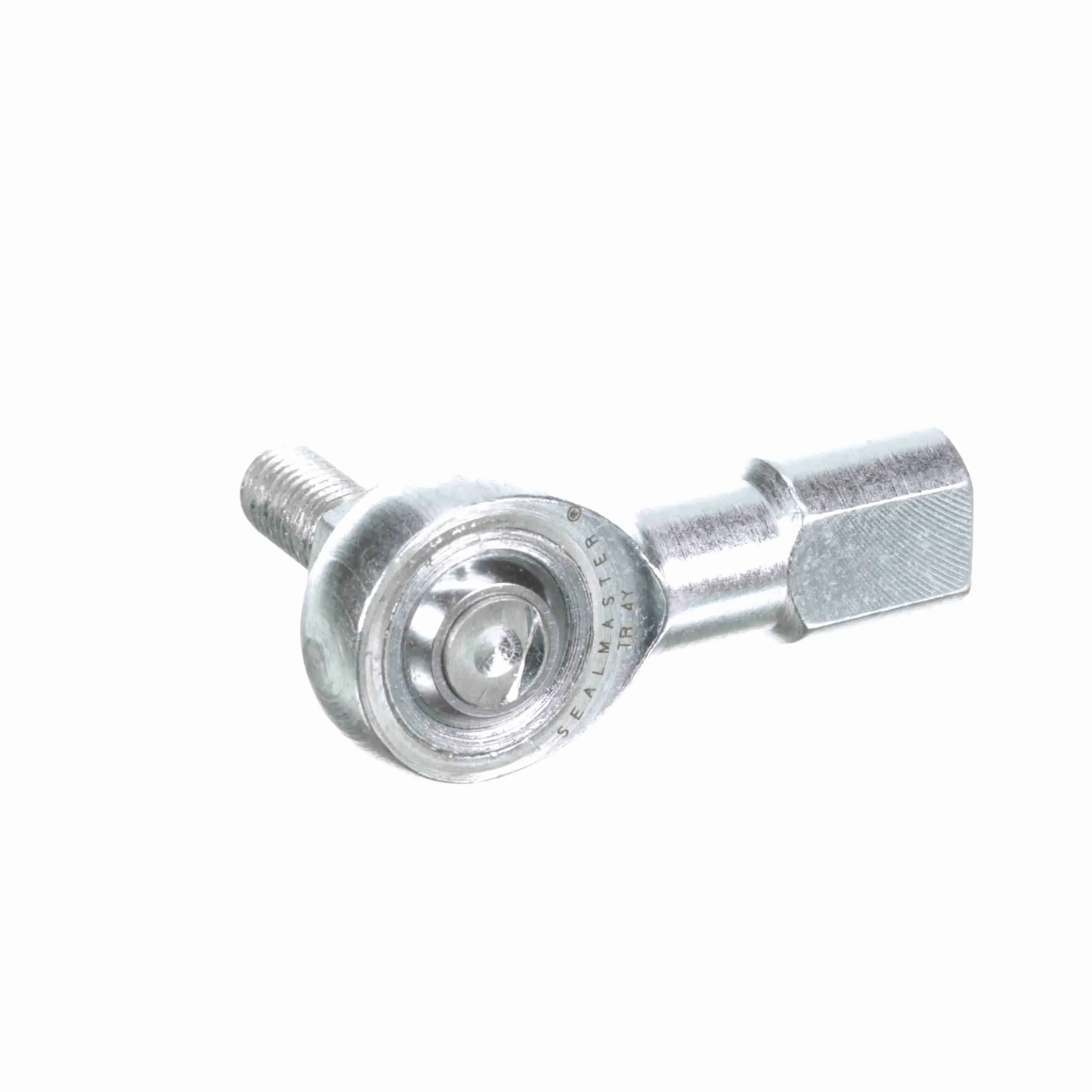

SEALMASTER TR 4Y 1410408000 Female Threaded With Male Stud Right Hand Rod End, Bore Diameter 0.2500 Inch
Get it by Monday, Dec 22
€24.22 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | No |
| Across Wrench Flats | 3/8" |
| Axial Load | 270 |
| Ball Diameter | 1/2" |
| Ball Finish | Chrome Plated |
| Ball Flat Diameter | 0.331" |
| Ball Material | Alloy Steel |
| Ball Width | 3/8" |
| Base Diameter | 0.469" |
| Bearing Insert Type | Rod End |
| Bore Diameter | 1/4" |
| Class | Precision |
| Configuration | Female |
| Construction | Three Piece Rod End With Y Stud And Zerk Fitting |
| Head Dia. | 3/4" |
| Housing Style | Female Rod End |
| Housing Width | 0.281" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 1.31" |
| Lubrication | No Zerk Fitting |
| Lubrication Method | No Fitting |
| Lubrication Type | Grease |
| Max. Ambient Temp. | 350°F |
| Max. Static Radial Load | 2700 |
| Misalignment Angle B3 | 23.7° |
| Outer Material | Carbon Steel |
| Outer Material Property | Corrosion Resistant Plating |
| Product Selection Available Sw | No |
| Product Type | TR |
| Race Material | Carbon Steel |
| Race Material Property | Corrosion Resistant Plating |
| Series | Precision Series |
| Stud Length To Center Of Ball | 1.05" |
| Stud Length To Hex | 14/25" |
| Stud Thread Length | 1/2" |
| Thread Direction | RH |
| Thread Length | 0.719" |
| Thread Size | 1/4"-28 |
| Thread Type | UNF |
| Type | Female Rod End |
| Y Stud Material | Carbon Steel |
| Y Stud Material Property | Corrosion Resistant Plating |
| Zerk Fitting Sw | No |
Shipping Info:
| Ship weight (kg) | 0.22 |
| Ship height (cm) | 4.57 |
| Ship length (cm) | 5.46 |
| Ship width (cm) | 2.03 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Ball Diameter | Bore Diameter | Ball Material | Race Material | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
TRL 16N | 1" | 1 7/8" | - | Alloy Steel | Carbon Steel | Female Rod End | €195.62 | |
 |
TRL 12YN | 3/4" | - | - | Alloy Steel | Carbon Steel | - | €87.46 | |
 |
TRL 6Y | - | - | - | - | - | - | €29.62 | |
 |
TR 5 | 5/16" | 5/8" | - | Alloy Steel | Carbon Steel | Female Rod End | €19.40 | |
 |
TRL 8N | 1/2" | 0.937" | - | Alloy Steel | Carbon Steel | Female Rod End | €42.93 | |
 |
TR 12N | 3/4" | 1.312" | - | Alloy Steel | Carbon Steel | Female Rod End | €62.33 | |
 |
TR 4N | - | 1/2" | 1/4" | Alloy Steel | Carbon Steel | Female Rod End | €22.71 |
