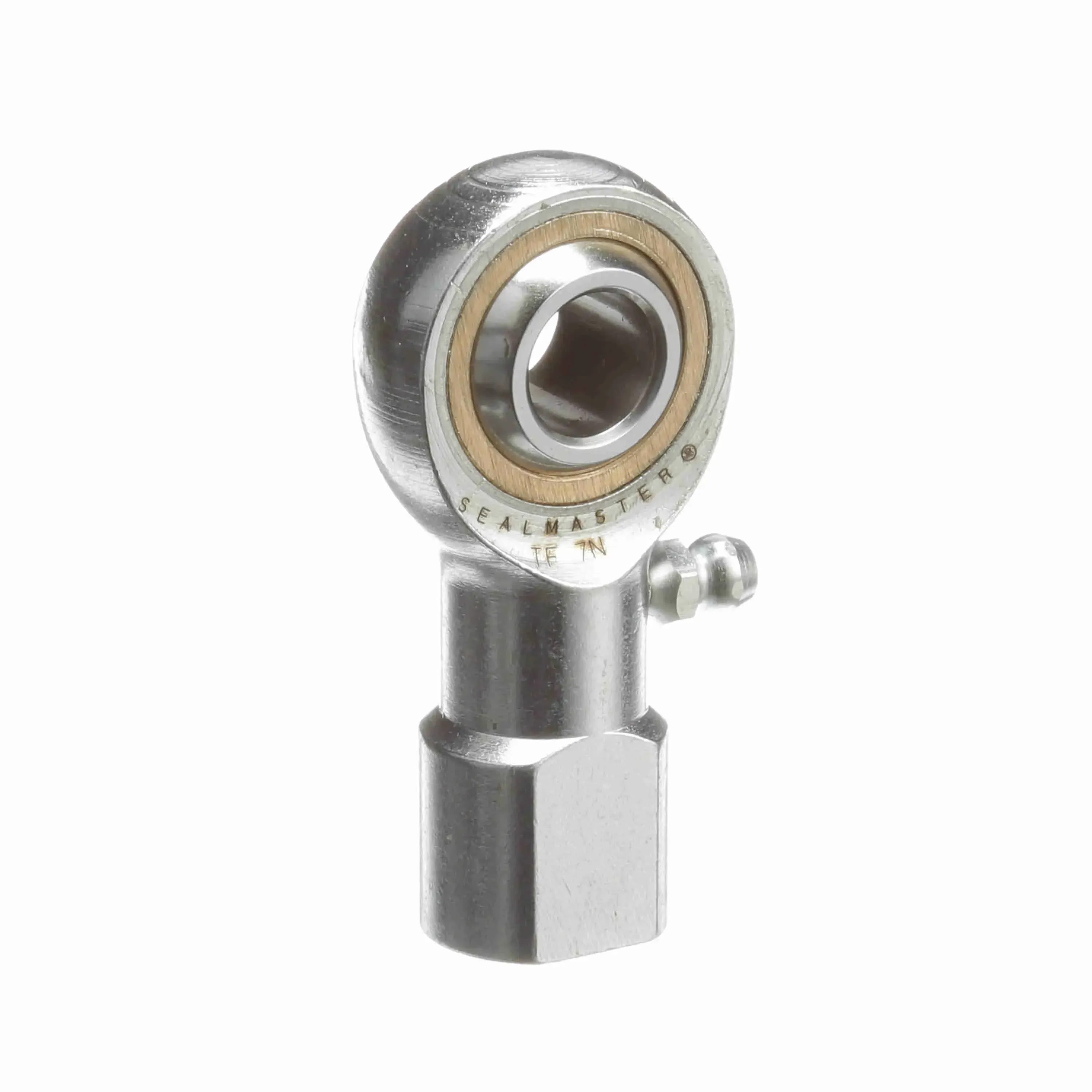

SEALMASTER TF 7N 1430701000 Rod End Bearing, 7/16 Inch Bore, 0.437 Inch Housing Width, Female, 7/16-20 UNF, Right Hand
Get it by Tuesday, Dec 23
€28.31 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rod End Bearing |
| Ability To Relubricate | Yes |
| Across Wrench Flats | 5/8" |
| Axial Load | 535 |
| Ball Diameter | 0.812" |
| Ball Finish | Chrome Plated |
| Ball Flat Diameter | 0.586" |
| Ball Material | Alloy Steel |
| Ball Width | 0.562" |
| Base Diameter | 3/4" |
| Bearing Insert Type | Rod End |
| Bore Dia. | 7/16" |
| Class | Commercial |
| Configuration | Female |
| Construction | Three Piece Rod End With Zerk Fitting |
| Head Diameter | 1 1/8" |
| Housing Style | Female Rod End |
| Housing Width | 0.437" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 1.81" |
| Lubrication | Zerk Fitting |
| Lubrication Method | Fitting |
| Lubrication Type | Grease |
| Max. Ambient Temp. | 350°F |
| Max. Static Radial Load | 5350 |
| Misalignment Angle | -7° to +7° |
| Outer Material | Carbon Steel |
| Outer Material Property | Corrosion Resistant Plating |
| Product Selection Available Sw | Yes |
| Product Type | TF |
| Race Material | Bronze |
| Series | Commercial Series |
| Thread Direction | RH |
| Thread Length | 1.031" |
| Thread Size | 7/16"-20 |
| Thread Type | UNF |
| Type | Female Rod End |
| Zerk Fitting Sw | Yes |
Shipping Info:
| Ship weight (kg) | 0.28 |
| Ship height (cm) | 5.46 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 2.41 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Ball Diameter | Bore Diameter | Ball Material | Race Material | Type | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
TFL 6YN | 3/8" | - | - | Alloy Steel | Bronze | - | €28.80 | |
|
TFL 5Y | 5/16" | - | - | Alloy Steel | Bronze | - | €20.60 | |
 |
TF 10 | 5/8" | 1 1/8" | - | Alloy Steel | Bronze | Female Rod End | €40.06 | |
|
TFL 5YN | 5/16" | - | - | Alloy Steel | Bronze | - | €26.70 | |
 |
TFL 5 | 5/16" | 5/8" | - | Alloy Steel | Bronze | Female Rod End | €18.41 | |
 |
TF 8 | 1/2" | 0.937" | - | Alloy Steel | Bronze | Female Rod End | €28.77 | |
 |
TF 3Y | - | 0.437" | 3/16" | Alloy Steel | Bronze | Female Rod End | €24.73 |
