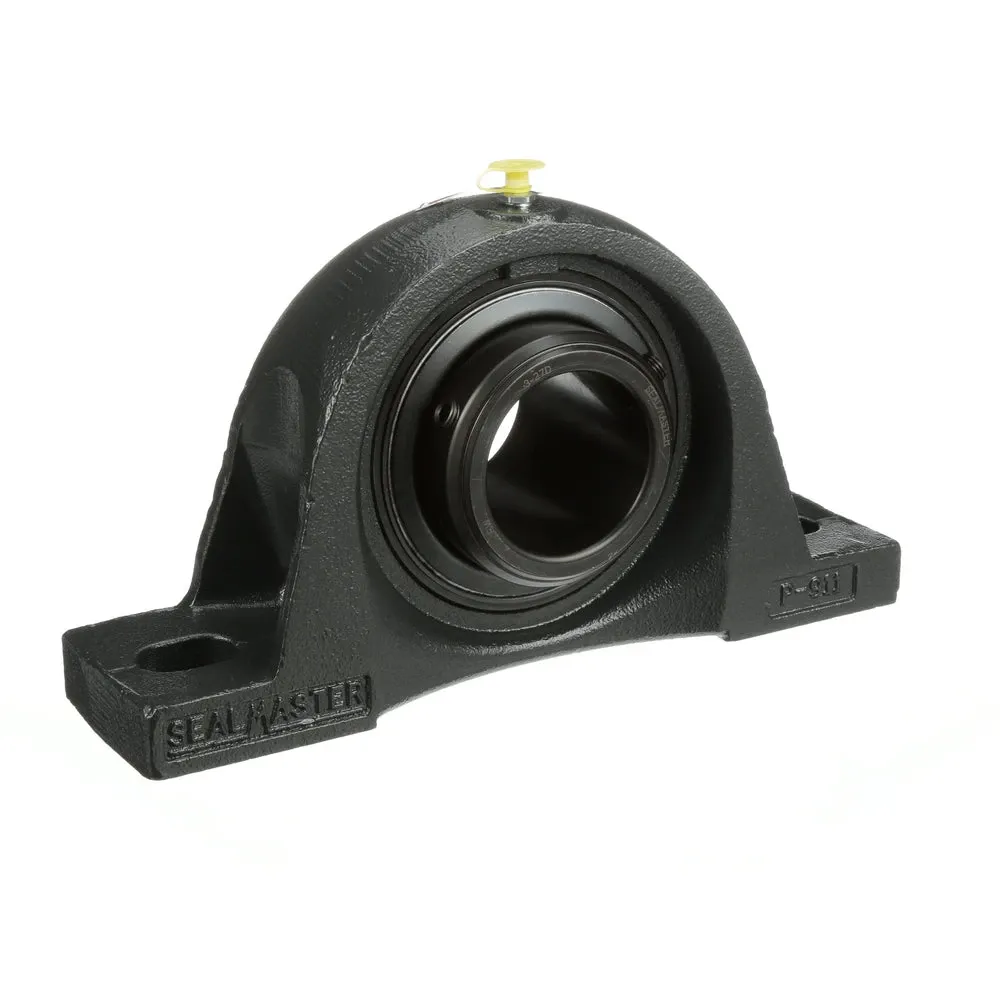

SEALMASTER SPD-52 702154 Pillow Block Bearing, 2 Bolt, 3.25 Inch Bore, Set Screw Mount
3 1/4"
Get it by Friday, Dec 19
€5,871.04 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Length | 15" |
| Base To Center Height | 4" |
| Base Width | 4 1/4" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bearing Type | Standard Duty |
| Bolt Size | 7/8" |
| Bolt Spacing | 10 3/4" |
| Bore Dia. | 3 1/4" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 2.031" |
| Dynamic Load Capacity | 18681 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1 1/4" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4" |
| Grease Fitting Thread Type | NPT |
| Height | 4.88" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 4.156" |
| Inner Ring Outside Diameter | 4.156" |
| Inner-race Heat-treat Method | Zone Hardened |
| Length | 17 1/4" |
| Length Through Bore | 4.063" |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 3000 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 8.06" |
| Overall Length | 15" |
| Overall Width | 4 1/4" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Setscrew Torque | 350 lbs.-in. to 450 lbs.-in. |
| Shaft Locking Type | Double Set Screw |
| Size Code | 2-37 |
| Static Load Rating | 14496 lbs. |
| Width | 9.88" |
Shipping Info:
| Ship weight (kg) | 18.9 |
| Ship height (cm) | 25.1 |
| Ship length (cm) | 43.82 |
| Ship width (cm) | 12.4 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Type | Bore Dia. | Overall Length | Overall Width | Overall Height | Seal Type | Shaft Size | Max. Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SPD-47C | - | - | - | - | - | - | - | - | €2,787.58 | |
 |
SPD-15C | - | - | - | - | - | - | - | - | €298.25 | |
 |
SPD-20 | - | - | - | - | - | - | - | - | €368.10 | |
 |
SPD-32 | Pillow Block, Two Bolt | 2" | 11 1/4" | 2 3/4" | 5.94" | Felt Labyrinth Seal | - | 4500 RPM | €709.28 | |
 |
SPD-27C | - | - | - | - | - | Contact Seal | 1 11/16" | - | €543.43 | |
|
SPD-22C | - | - | - | - | - | Contact Seal | 1 3/8" | - | €1,814.62 | |
|
SPD-31 | Pillow Block, Two Bolt | 1 15/16" | 10 1/2" | 2 1/2" | 5.31" | Felt Labyrinth Seal | - | 5000 RPM | €518.17 |
