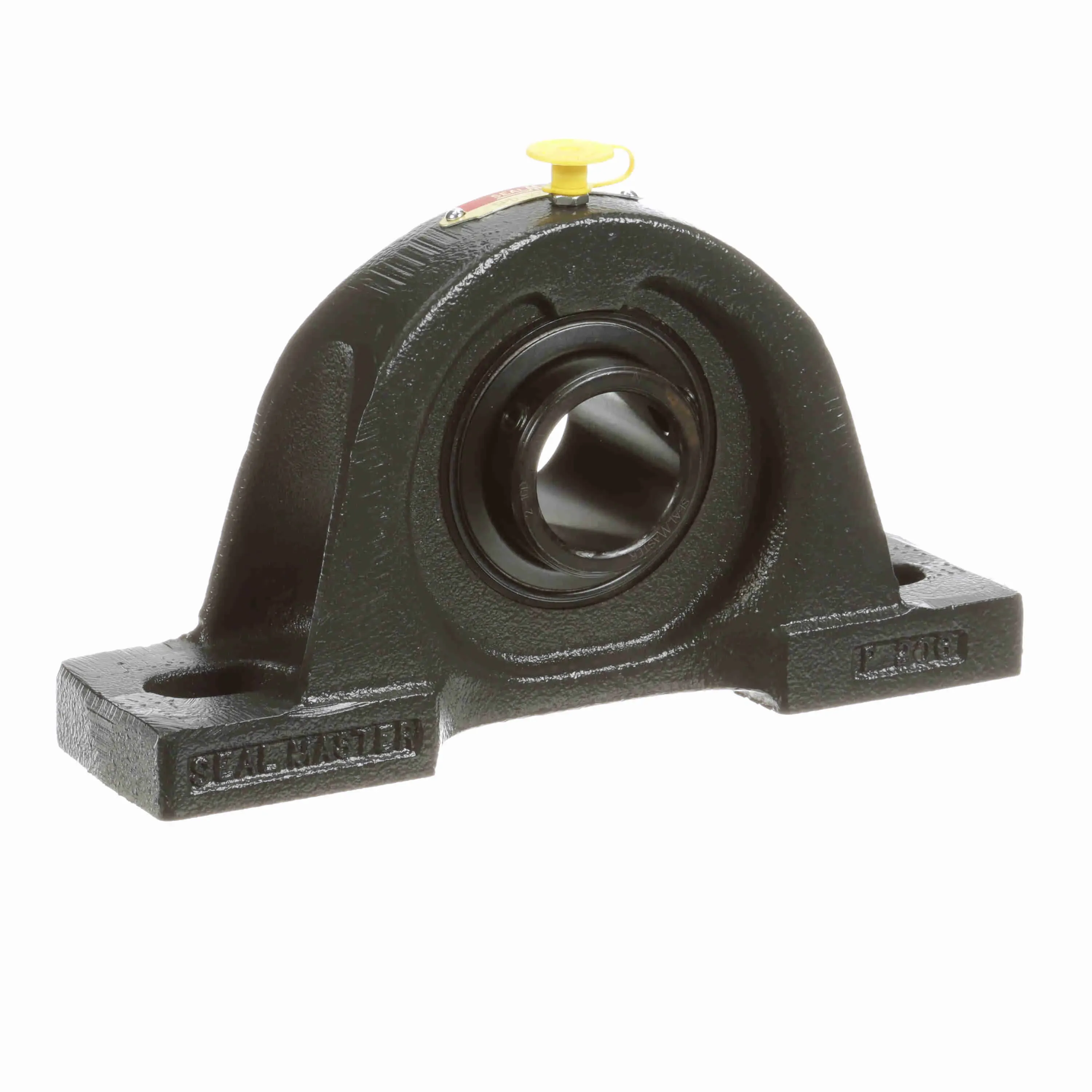

SEALMASTER SPD-22 702131 Pillow Block Bearing, 2 Bolt, 1.375 Inch Dia, Double Setscrew Locking, Standard Felt Seal
1 3/8"
Get it by Friday, Dec 19
€428.53 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Length | 8 1/4" |
| Base To Center Height | 2 3/8" |
| Base Width | 2 1/4" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Standard Duty |
| Bolt Size | 5/8" |
| Bolt Spacing | 6 1/4" |
| Bolt Spacing Max | 6 22/25" |
| Bolt Spacing Min | 5.63" |
| Bore Dia. | 1 3/8" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1" |
| Dynamic Load Capacity | 5782 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 3/4" |
| Grease Fitting Thread Size | 1/4"-28 |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Housing Type | Pillow Block, Two Bolt |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Diameter | 1.851" |
| Insert | 2-16D |
| Length Through Bore | 1.998" |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 6500 RPM |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 4 1/2" |
| Overall Length | 8 1/4" |
| Overall Width | 2 1/4" |
| Radial Clearance | Standard |
| Rolling Element | Ball Bearing |
| Seal Type | Felt Labyrinth Seal |
| Shaft Locking Type | Double Set Screw |
| Size Code | 2-17 |
| Static Load Rating | 3493 lbs. |
| Vibration Frequency Fundamental Train | 0.0066 cPS |
| Vibration Frequency Inner Ring Defect | 0.0905 cPS |
| Vibration Frequency Outer Ring Defect | 0.0595 cPS |
| Vibration Frequency Roller Spin | 0.0386 cPS |
Shipping Info:
| Ship weight (kg) | 3.15 |
| Ship height (cm) | 22.86 |
| Ship length (cm) | 13.18 |
| Ship width (cm) | 6.05 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Type | Bore Dia. | Overall Length | Overall Width | Overall Height | Seal Type | Shaft Size | Max. Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SPD-47C | - | - | - | - | - | - | - | - | €2,787.58 | |
 |
SPD-15C | - | - | - | - | - | - | - | - | €298.25 | |
 |
SPD-20 | - | - | - | - | - | - | - | - | €368.10 | |
 |
SPD-32 | Pillow Block, Two Bolt | 2" | 11 1/4" | 2 3/4" | 5.94" | Felt Labyrinth Seal | - | 4500 RPM | €709.28 | |
 |
SPD-27C | - | - | - | - | - | Contact Seal | 1 11/16" | - | €543.43 | |
|
SPD-22C | - | - | - | - | - | Contact Seal | 1 3/8" | - | €1,814.62 | |
|
SPD-31 | Pillow Block, Two Bolt | 1 15/16" | 10 1/2" | 2 1/2" | 5.31" | Felt Labyrinth Seal | - | 5000 RPM | €518.17 |
