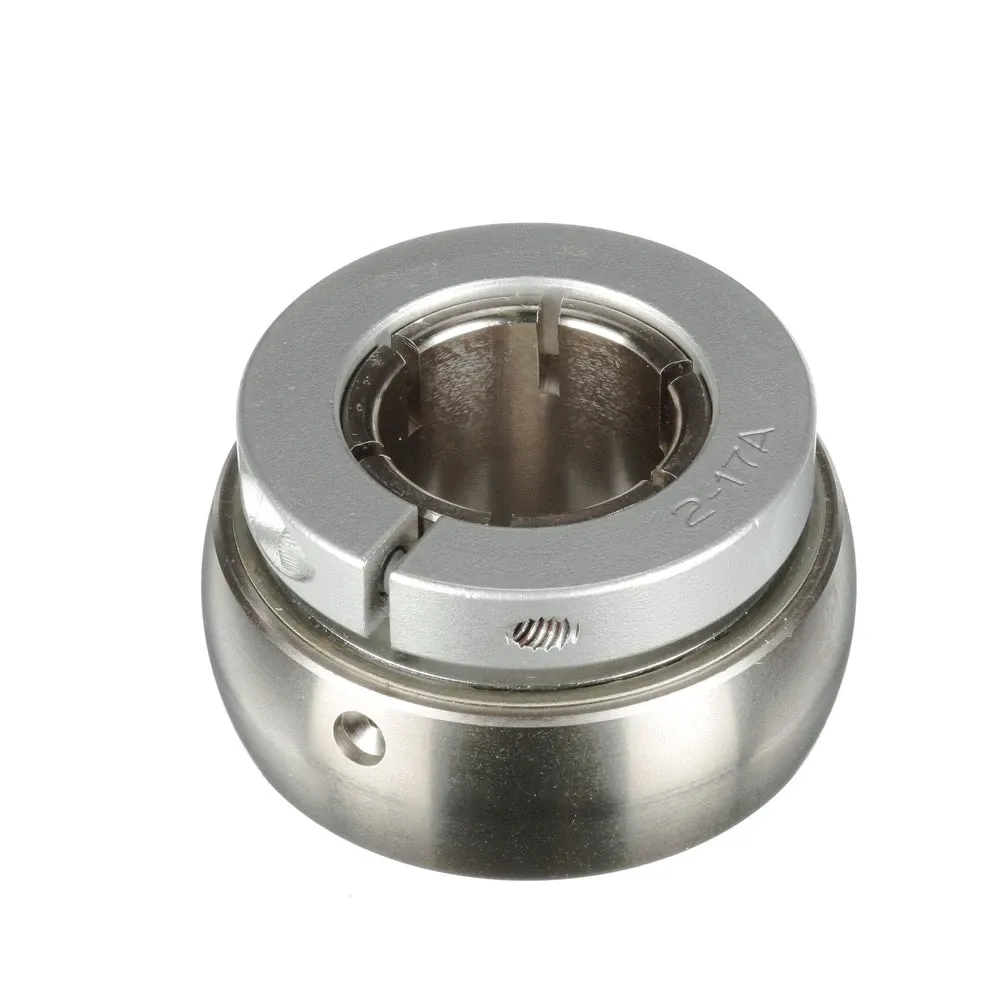

SEALMASTER PN-35T 712686 Ball Bearing, Phosphorus Nickel Coated, Concentric Lock, 2.188 Inch
Get it by Wednesday, Dec 24
€553.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Bearing |
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bore Dia. | 2 3/16" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Centerline To Front Face | 1.313" |
| Collar Outer Diameter | 3 5/8" |
| Duty/series | Standard Series |
| Dynamic Radial Load Capacity | 9752 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | No |
| Housing Type | Insert Only |
| Htc | 8482.10.5052 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 2 1/4" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Outside Diameter | 3 5/8" |
| Insert Material | Steel |
| Insert Material Finish | Phosphorus Nickel Coated |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Ip Rating | IP69K |
| Locking Type | Concentric |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 1350 RPM |
| Measure Units | Inch |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Race Od | 3.937" |
| Outer Race Profile | Spherical |
| Outer Race Width | 1.188" |
| Outer Ring Land Profile | Standard |
| Overall Width | 2 1/4" |
| Platform | PN Gold |
| Radial Static Load Capacity | 6601 lbs. |
| Radius | 2/25" |
| Replaceable Insert | No |
| Retainer Type | Land Riding Retainer |
| Rolling Element | Ball Bearing |
| Torx Cap Screw Length | 1" |
| Torx Cap Screw Size | 1/4"-20 |
| Type Of Seal | Triple Lip Contact Seal |
Shipping Info:
| Ship weight (kg) | 1.26 |
| Ship height (cm) | 5.72 |
| Ship length (cm) | 10.8 |
| Ship width (cm) | 10.8 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Locking Type | Dynamic Radial Load Capacity | Max. Speed | Overall Width | Cage Material | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
PN-205T | - | - | - | - | - | - | €161.77 | |
 |
PN-39 | 2 7/16" | Set Screw | 11789 lbs. | 1250 RPM | 2.563" | Polyphenylene Sulfide | €581.39 | |
 |
PN-35 | 2 3/16" | Set Screw | 9752 lbs. | 1350 RPM | 2.188" | Polyphenylene Sulfide | €480.57 | |
 |
PN-10 | - | - | - | - | - | - | €764.60 | |
|
PN-210 | 50 mm | Set Screw | 7889 lbs. | 1600 RPM | - | Polyphenylene Sulfide | €332.11 | |
 |
PN-207T | 35 mm | Concentric | 5782 lbs. | 2000 RPM | - | Polyphenylene Sulfide | €233.96 | |
 |
PN-23T | 1 7/16" | Concentric | 5782 lbs. | 2000 RPM | 1 3/4" | Polyphenylene Sulfide | €233.96 |
