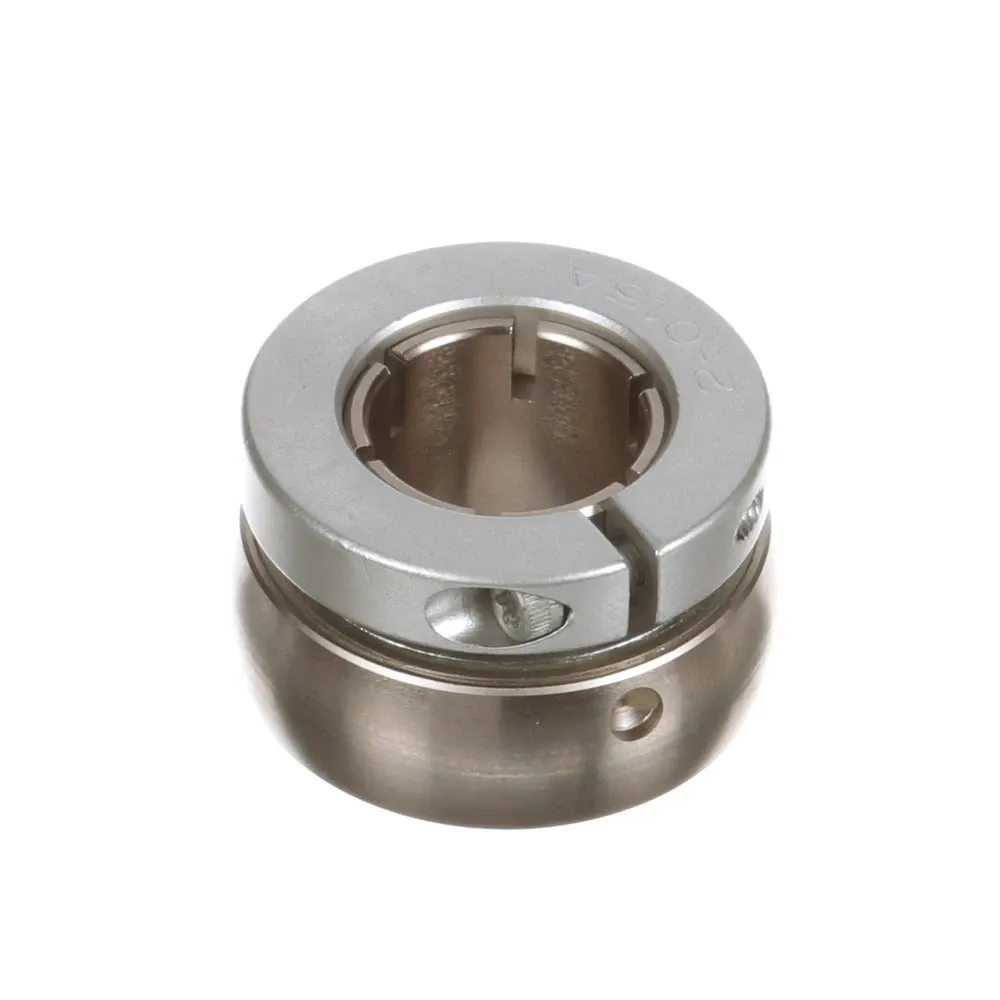

SEALMASTER PN-12T 712674 Ball Insert Bearing, Cylindrical Bore, 3/4 Inch Inside Dia.
Get it by Friday, Feb 27
€149.07 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Bearing Insert Finish | Phosphorus Nickel Coated |
| Bore Dia. | 3/4" |
| Bore Shape | Straight |
| Cage Material | Polyphenylene Sulfide |
| Centerline To Front Face | 0.719" |
| Collar Outer Diameter | 1 3/4" |
| Duty/series | Standard Series |
| Dynamic Radial Load Capacity | 2611 lbs. |
| End Cap | No |
| Fixed Vs. Expansion | No |
| Housing Type | Insert Only |
| Htc | 8482.10.5048 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Race Length | 1.281" |
| Inner Race Profile | Wide Inner Ring |
| Inner Ring Outside Diameter | 1 3/4" |
| Insert Material | Steel |
| Insert Material Finish | Phosphorus Nickel Coated |
| Insert Material Grade | 52100 |
| Internal Clearance | Standard |
| Ip Rating | IP69K |
| Locking Type | Concentric |
| Lubrication Type | Calcium Sulfonate Nlgi 2 Nsf H1 Food Grade Grease |
| Max. Operating Temperature | 220°F |
| Max. Speed | 3100 RPM |
| Measure Units | Inch |
| Misalignment Capability | -2° to +2° |
| Misalignment Type | Static Only |
| Outer Race Od | 1.85" |
| Outer Race Profile | Spherical |
| Outer Race Width | 5/8" |
| Outer Ring Land Profile | Standard |
| Overall Width | 1.281" |
| Platform | PN Gold |
| Precision Rating | Abec 1 |
| Radial Static Load Capacity | 1444 lbs. |
| Radius | 1/25" |
| Replaceable Insert | No |
| Retainer Type | Land Riding Retainer |
| Rolling Element | Ball Bearing |
| Series | PN-T Series |
| Torx Cap Screw Length | 5/8" |
| Torx Cap Screw Size | #8-32 |
| Type Of Seal | Triple Lip Contact Seal |
Shipping Info:
| Ship weight (kg) | 0.23 |
| Ship height (cm) | 3.66 |
| Ship length (cm) | 6.05 |
| Ship width (cm) | 6.05 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Locking Type | Dynamic Radial Load Capacity | Max. Speed | Overall Width | Cage Material | Price | |
|---|---|---|---|---|---|---|---|---|---|
 |
PN-10 | - | - | - | - | - | - | €764.60 | |
 |
PN-12 | 3/4" | Set Screw | 2611 lbs. | 3100 RPM | 1.219" | Polyphenylene Sulfide | €142.76 | |
 |
PN-16 | 1" | Set Screw | 2801 lbs. | 2700 RPM | 1 3/8" | Polyphenylene Sulfide | €147.53 | |
 |
PN-16T | 1" | Concentric | 2801 lbs. | 2700 RPM | 1.438" | Polyphenylene Sulfide | €161.73 | |
 |
PN-19T | 1 3/16" | Concentric | 4381 lbs. | 2300 RPM | 1.563" | Polyphenylene Sulfide | €216.04 | |
 |
PN-20 | 1 1/4" | Set Screw | 5782 lbs. | 2000 RPM | 1.688" | Polyphenylene Sulfide | €207.03 | |
 |
PN-205 | 25 mm | Set Screw | 2801 lbs. | 2700 RPM | - | Polyphenylene Sulfide | €151.93 |
