SEALMASTER PN Series Insert Bearings
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W| Style | Model | Bore Dia. | Seal Type | Htc | Dynamic Radial Load Capacity | Outer Race Width | Inner Race Length | Cage Material | Retainer Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PN-205T | - | Triple Lip Contact | - | 2801 lbs. | 0.688" | 36.5 mm | Brass | Land Riding | €161.77 | |
| B | PN-32T | - | High Performance Seal | 8482.10.5052 | 9752 lbf. | - | - | - | - | €847.15 | |

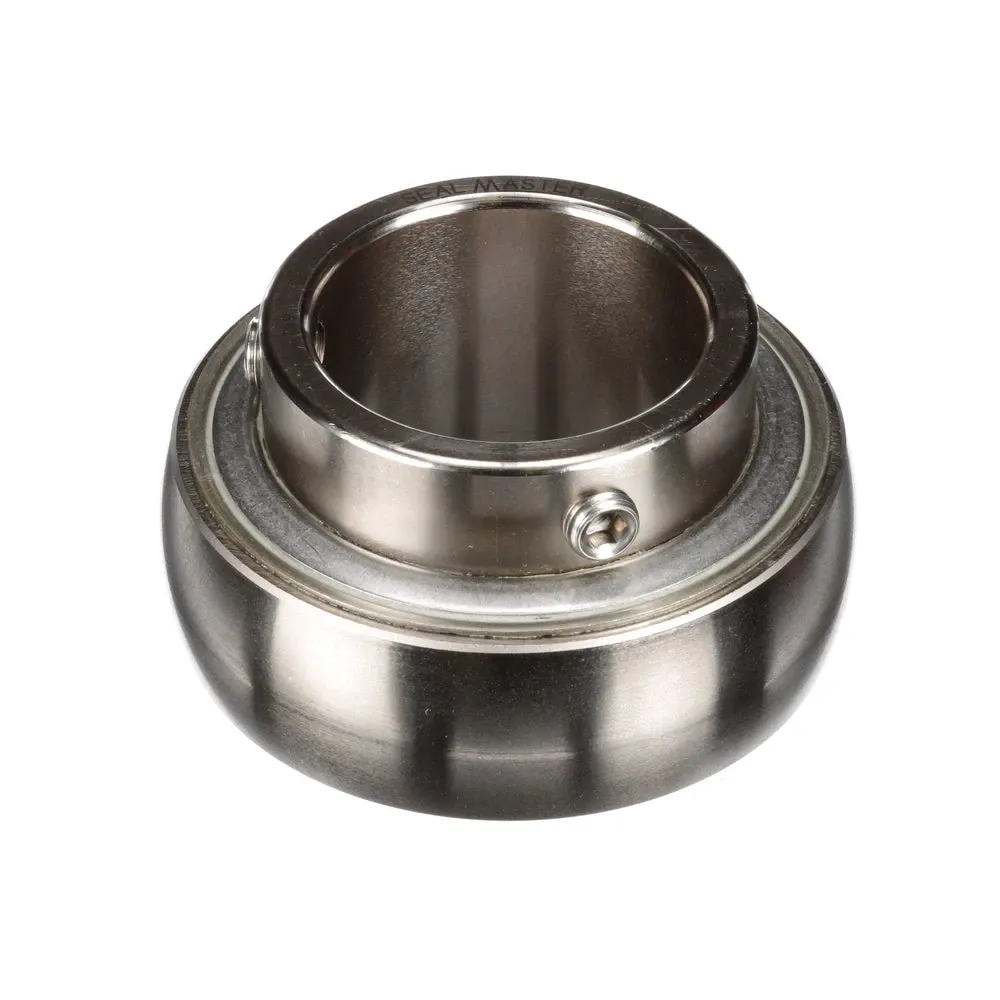

| C | PN-32R | - | High Performance Seal | 8482.10.5052 | - | - | - | - | - | €1,646.57 | |
| D | PN-28 | - | - | 8482.10.5052 | - | - | - | - | - | €807.30 | |
| E | PN-24T | 1 1/2" | - | 8482.10.5052 | 7340 lbs. | 1.094" | 2.06" | Polyphenylene Sulfide | Land Riding Retainer | €251.34 | |

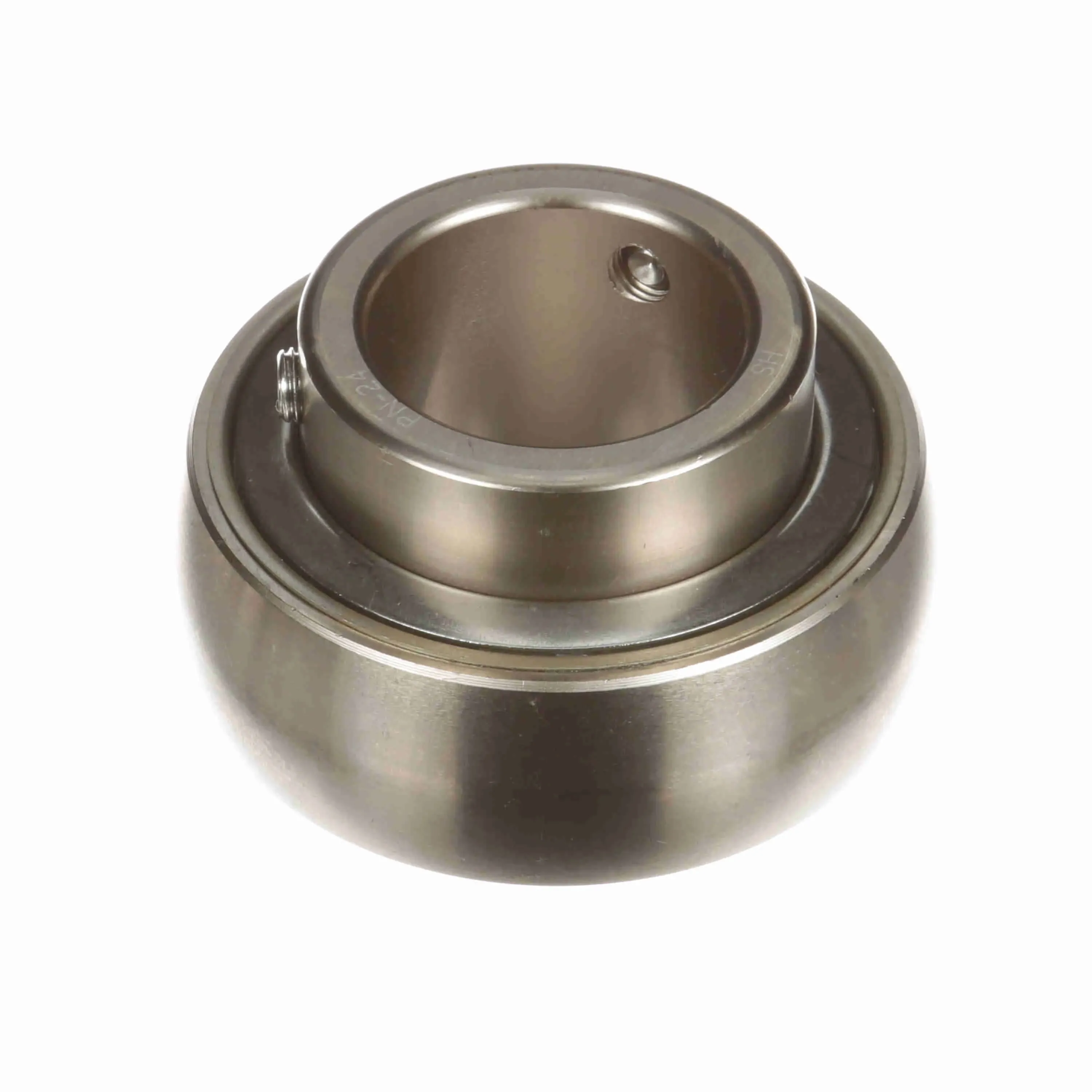

| F | PN-24 | 1 1/2" | - | 8482.10.5052 | 7340 lbs. | 1.094" | 1.938" | Polyphenylene Sulfide | Land Riding Retainer | €222.39 | |

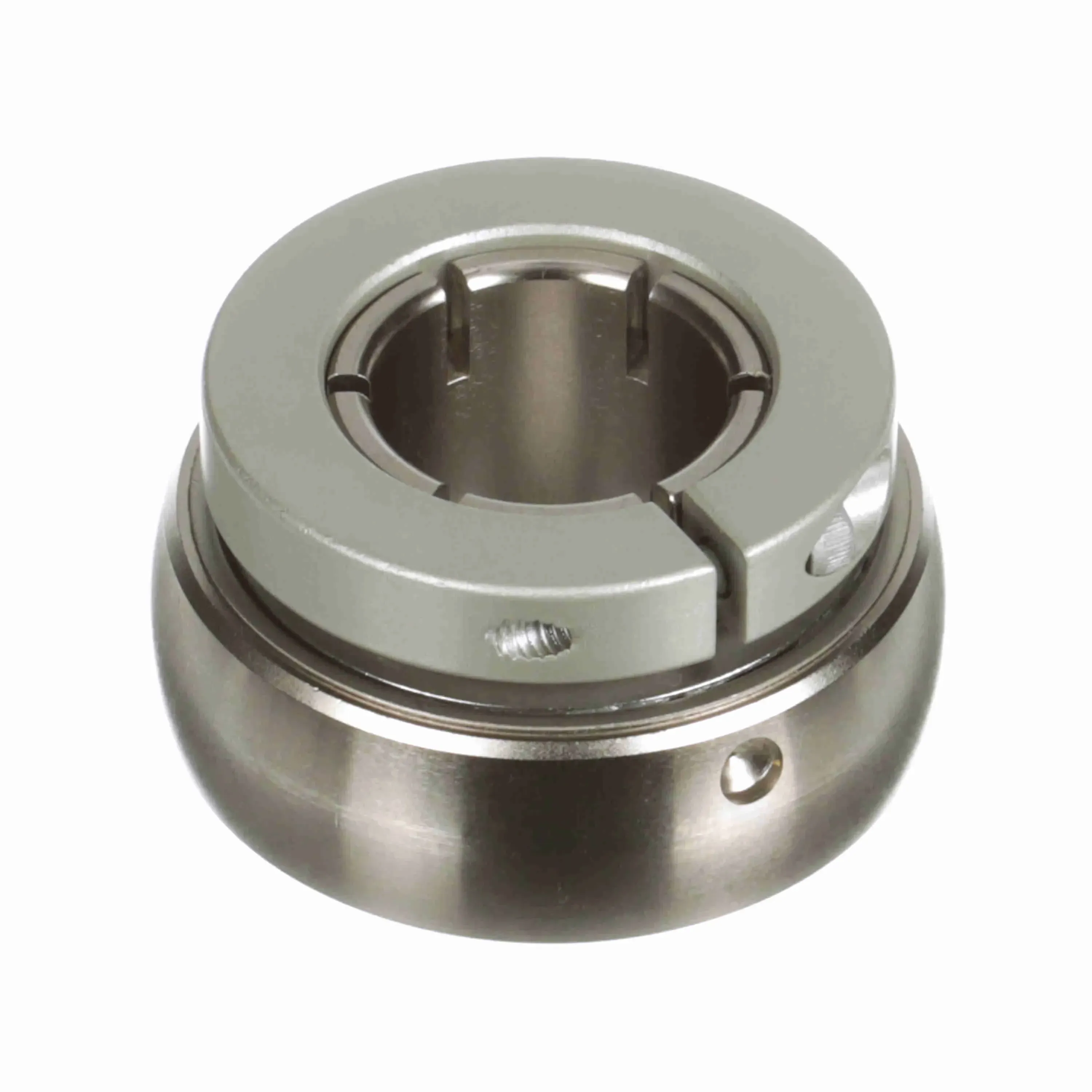

| G | PN-20T | 1 1/4" | - | 8482.10.5052 | 5782 lbs. | 0.938" | 1 3/4" | Polyphenylene Sulfide | Land Riding Retainer | €233.96 | |
| H | PN-20R | 1 1/4" | - | 8482.10.5052 | 4381 lbs. | 7/8" | 1 1/2" | Polyphenylene Sulfide | Land Riding Retainer | €177.63 | |
| I | PN-20RT | 1 1/4" | - | 8482.10.5052 | 4381 lbs. | 7/8" | 1.563" | Polyphenylene Sulfide | Land Riding Retainer | €189.05 | |

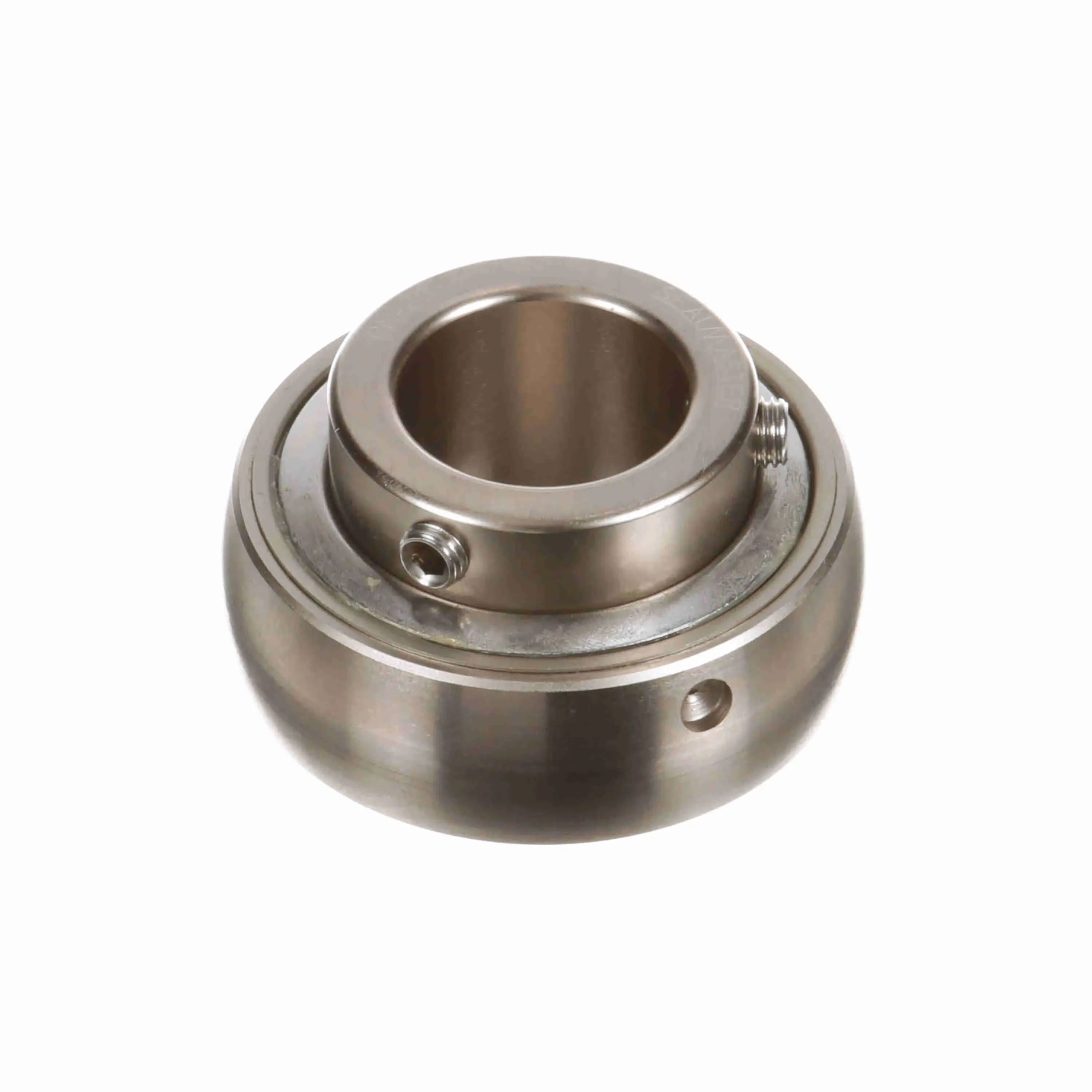

| J | PN-20 | 1 1/4" | - | 8482.10.5052 | 5782 lbs. | 0.938" | 1.688" | Polyphenylene Sulfide | Land Riding Retainer | €207.03 | |

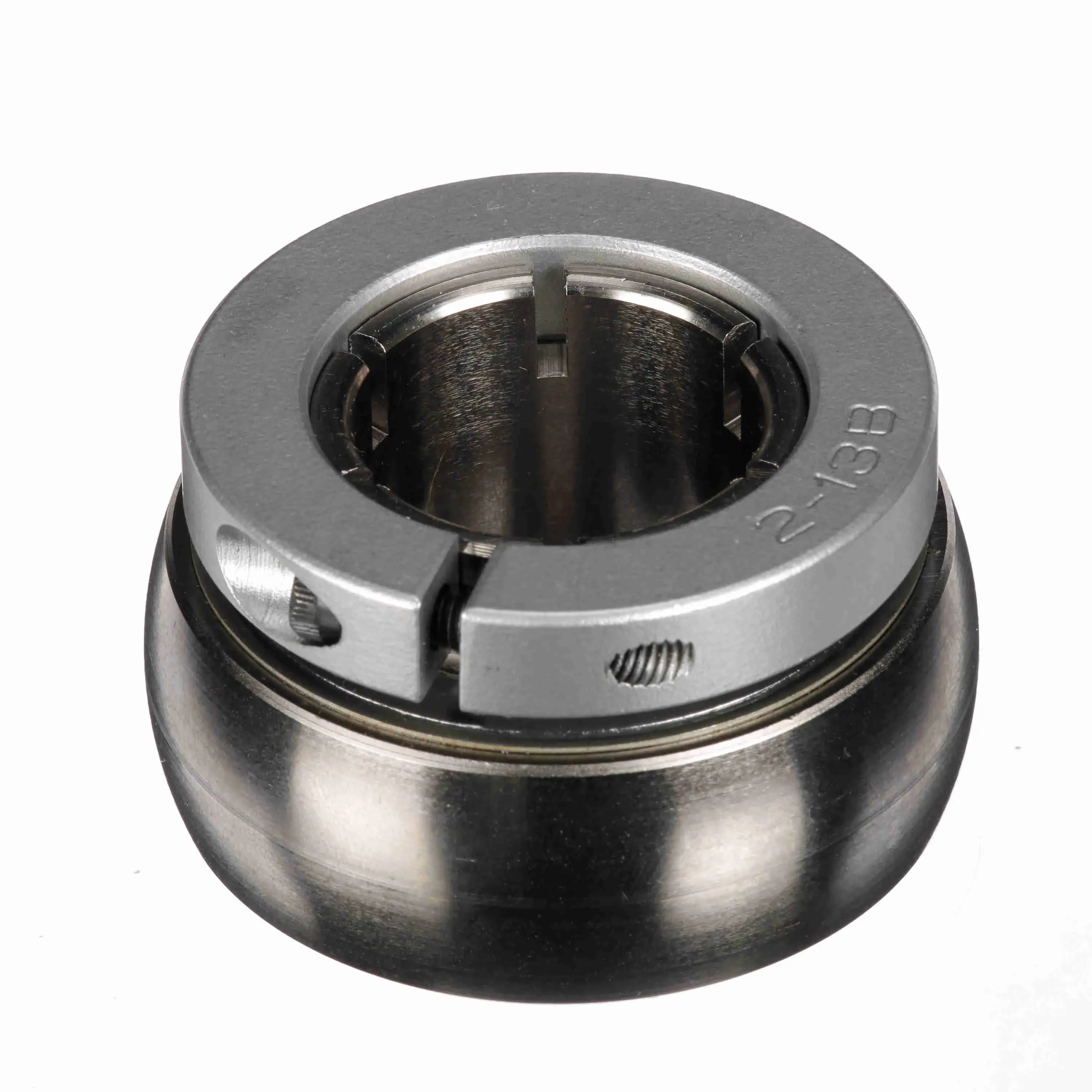

| K | PN-19T | 1 3/16" | - | 8482.10.5052 | 4381 lbs. | 7/8" | 1.563" | Polyphenylene Sulfide | Land Riding Retainer | €216.04 | |
| L | PN-23T | 1 7/16" | - | 8482.10.5052 | 5782 lbs. | 0.938" | 1 3/4" | Polyphenylene Sulfide | Land Riding Retainer | €233.96 | |

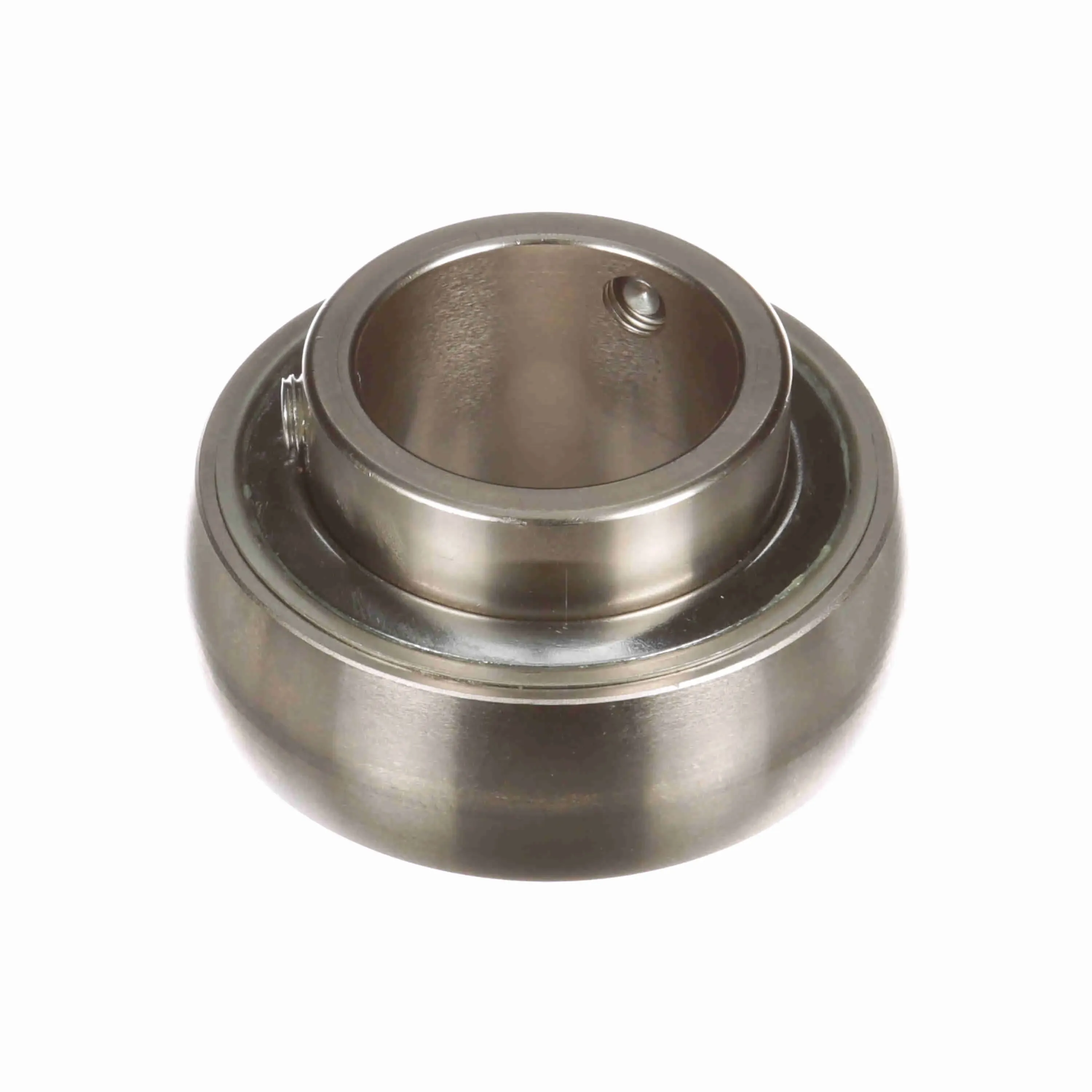

| M | PN-23 | 1 7/16" | - | 8482.10.5052 | 5782 lbs. | 0.938" | 1.688" | Polyphenylene Sulfide | Land Riding Retainer | €207.03 | |
| N | PN-27 | 1 11/16" | - | 8482.10.5052 | 7889 lbs. | 1.094" | 1.938" | Polyphenylene Sulfide | Land Riding Retainer | €292.31 | |
| N | PN-31 | 1 15/16" | - | 8482.10.5052 | 7889 lbs. | 1 1/8" | 2.031" | Polyphenylene Sulfide | Land Riding Retainer | €322.42 | |

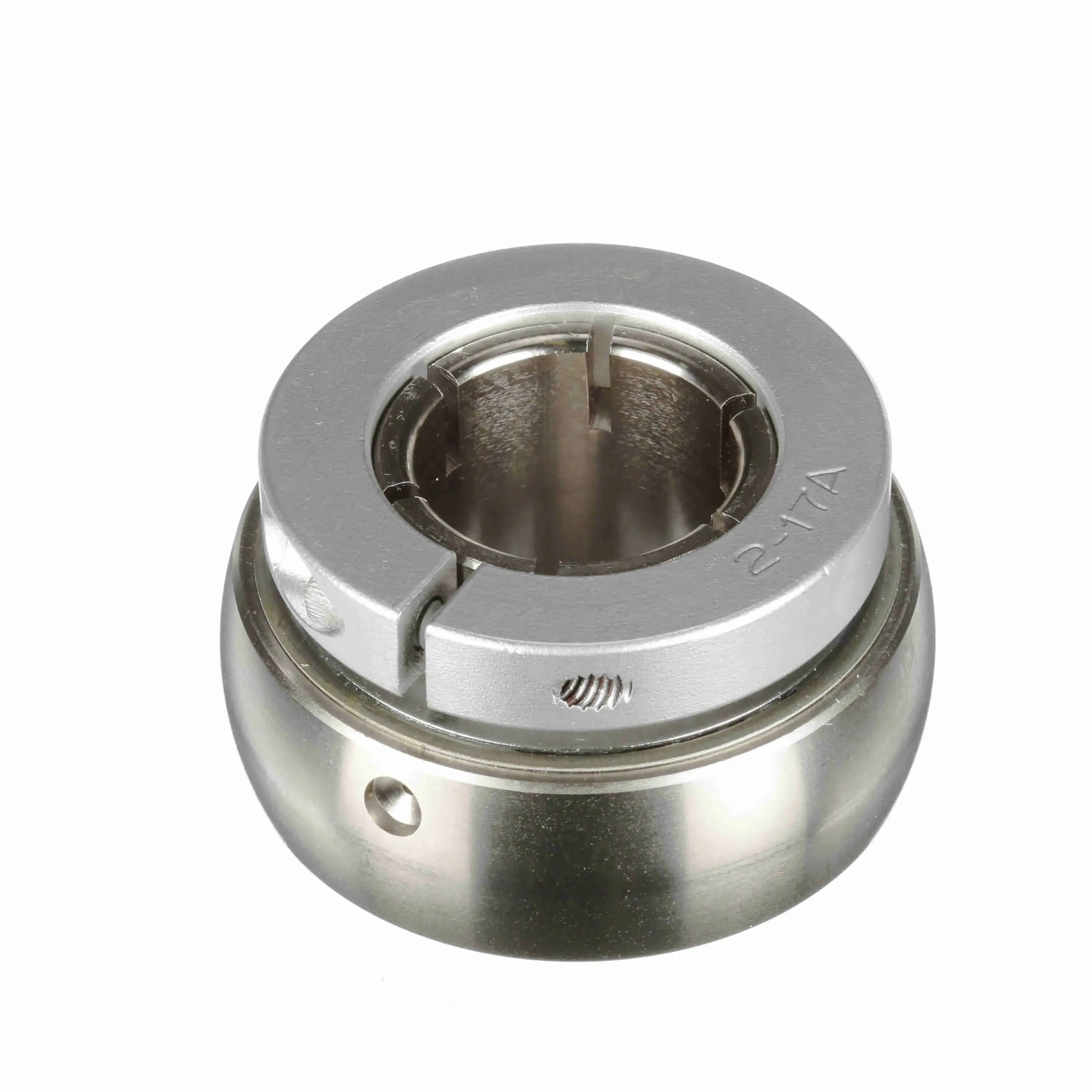

| E | PN-31T | 1 15/16" | - | 8482.10.5052 | 7889 lbs. | 1 1/8" | 2.094" | Polyphenylene Sulfide | Land Riding Retainer | €353.75 | |

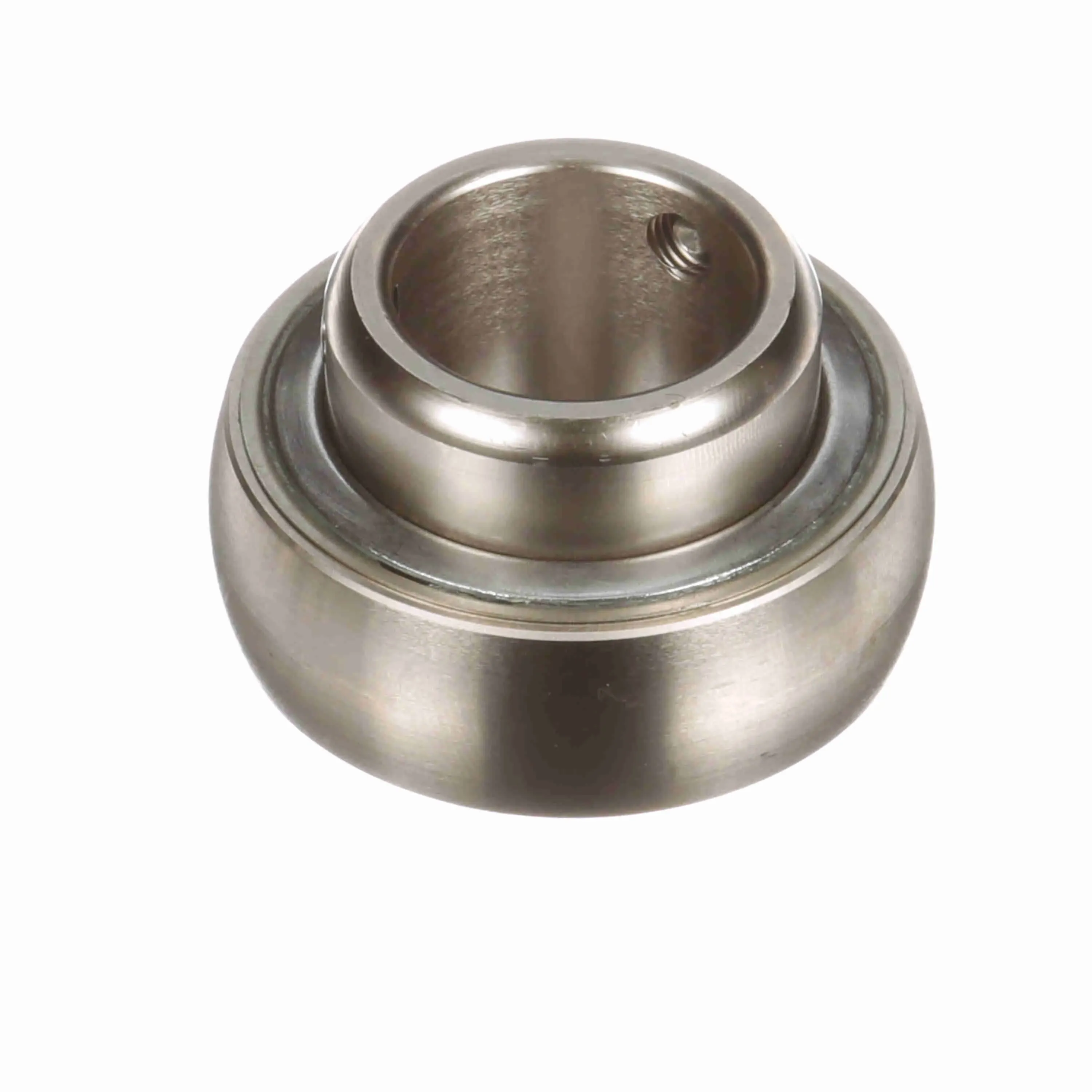

| O | PN-16 | 1" | - | 8482.10.5048 | 2801 lbs. | 0.688" | 1 3/8" | Polyphenylene Sulfide | Land Riding Retainer | €147.53 | |

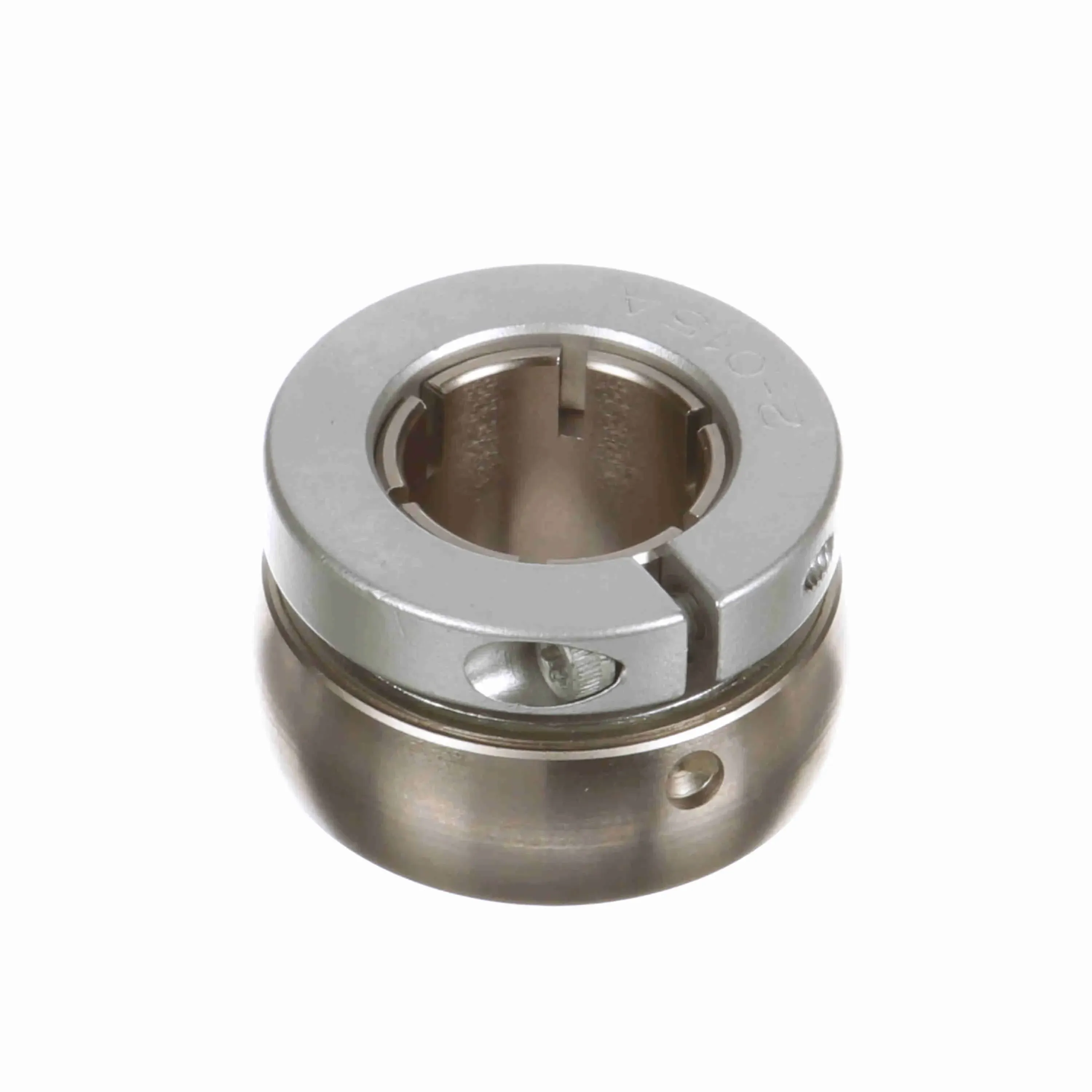

| P | PN-16T | 1" | - | 8482.10.5048 | 2801 lbs. | 0.688" | 1.438" | Polyphenylene Sulfide | Land Riding Retainer | €161.73 | |
| Q | PN-35T | 2 3/16" | - | 8482.10.5052 | 9752 lbs. | 1.188" | 2 1/4" | Polyphenylene Sulfide | Land Riding Retainer | €553.67 | |
| R | PN-35 | 2 3/16" | - | 8482.10.5052 | 9752 lbs. | 1.188" | 2.188" | Polyphenylene Sulfide | Land Riding Retainer | €480.57 | |
| S | PN-39T | 2 7/16" | Triple Lip | - | - | - | - | - | - | €2,874.73 | |
| N | PN-39 | 2 7/16" | - | 8482.10.5056 | 11789 lbs. | 1 1/4" | 2.563" | Polyphenylene Sulfide | Land Riding Retainer | €581.39 | |
| N | PN-32 | 2" | - | 8482.10.5052 | 9752 lbs. | 1.188" | 2.188" | Polyphenylene Sulfide | Land Riding Retainer | €495.00 | |
| T | PN-12T | 3/4" | - | 8482.10.5048 | 2611 lbs. | 5/8" | 1.281" | Polyphenylene Sulfide | Land Riding Retainer | €149.07 | |
| U | PN-12 | 3/4" | - | 8482.10.5048 | 2611 lbs. | 5/8" | 1.219" | Polyphenylene Sulfide | Land Riding Retainer | €142.76 | |
| V | PN-10 | 5/8" | - | 8482.10.5048 | - | - | - | - | - | €764.60 | |
| N | PN-205 | 25 mm | - | 8482.10.5048 | 2801 lbs. | 11/16" | 34.9 mm | Polyphenylene Sulfide | Land Riding Retainer | €151.93 | |
| W | PN-206T | 30 mm | - | 8482.10.5052 | 4381 lbs. | 7/8" | 39.7 mm | Polyphenylene Sulfide | Land Riding Retainer | €216.02 | |
| W | PN-207T | 35 mm | - | 8482.10.5052 | 5782 lbs. | 15/16" | 44.5 mm | Polyphenylene Sulfide | Land Riding Retainer | €233.96 | |
| W | PN-208T | 40 mm | - | 8482.10.5052 | 7340 lbs. | 1.0938" | 50.8 mm | Polyphenylene Sulfide | Land Riding Retainer | €256.23 | |
| N | PN-210 | 50 mm | - | 8482.10.5052 | 7889 lbs. | 1 1/8" | 51.54 mm | Polyphenylene Sulfide | Land Riding Retainer | €332.11 |
