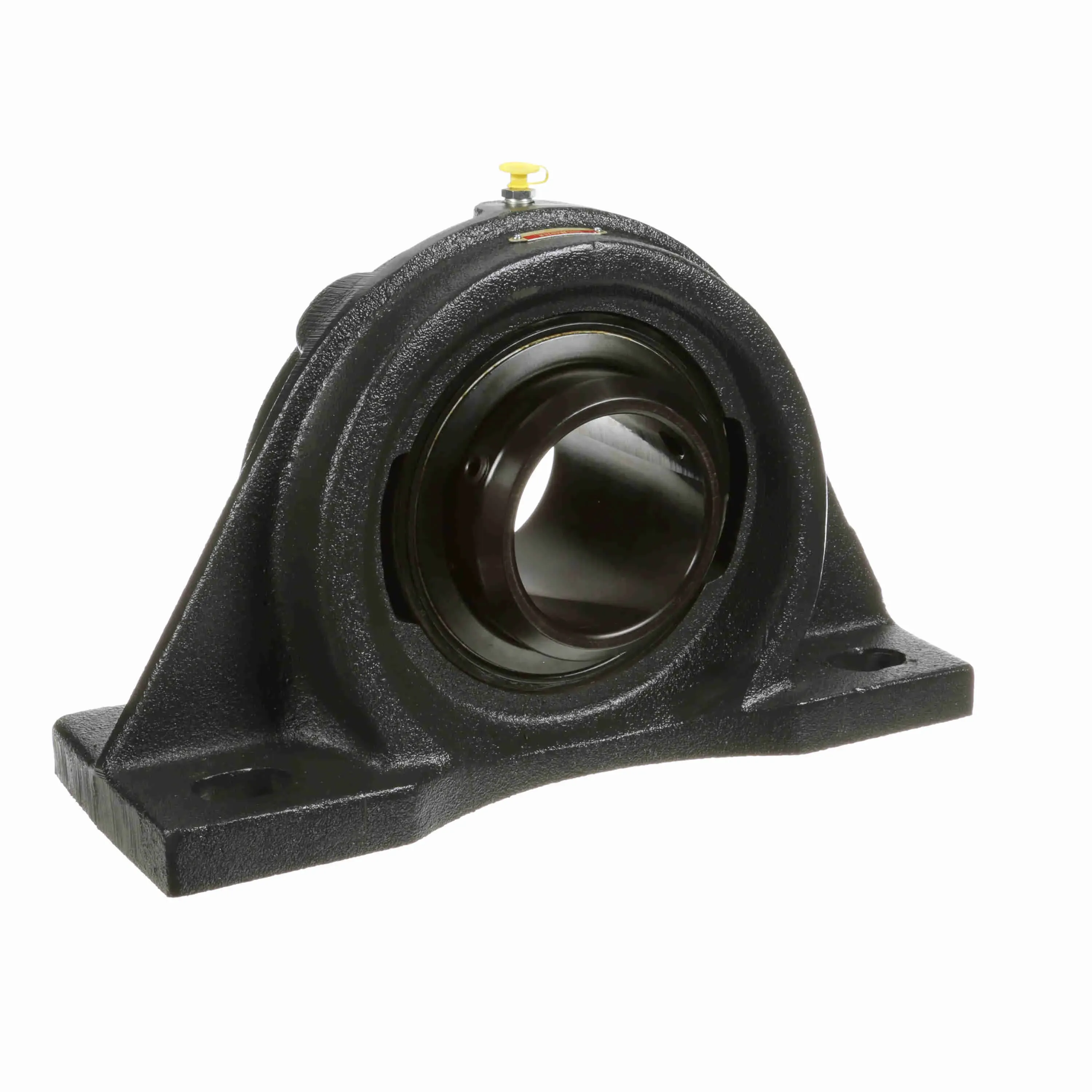

SEALMASTER MSFPD-79 702174 Pillow Block Ball Bearing Unit, 4-Bolt Base, 4-15/16 Inch Bore
Get it by Tuesday, Dec 23
€8,612.81 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Ability To Relubricate | Yes |
| Base Length | 19" |
| Base To Center Height | 6 1/4" |
| Base Width | 5 1/2" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bearing Type | Medium Duty |
| Bolt Size | 1" |
| Bolt Spacing Max | 16" |
| Bolt Spacing Min | 14" |
| Bolt Spacing Width Direction | 3 1/4" |
| Bore Dia. | 4 15/16" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 2 7/8" |
| Duty Series | Medium |
| Dynamic Load Capacity | 37482 lbs. |
| End Cap | No |
| Finish | Black Oxide |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1 22/25" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4" |
| Grease Fitting Thread Type | NPT |
| Height | 6 3/4" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Inner Ring Outside Dia. | 6.344" |
| Inner Ring Outside Diameter | 6.344" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 3-415D |
| Length | 14.13" |
| Length Through Bore | 5.748" |
| Locking Device | Double Set Screw |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Speed | 1950 RPM |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 12.38" |
| Overall Length | 19" |
| Overall Width | 5 3/4" |
| Radial Clearance | Standard |
| Retainer Type | Brass |
| Seal Flinger | Yes |
| Setscrew Torque | 1100 lbs.-in. to 1440 lbs.-in. |
| Shaft Locking Type | Double Set Screw |
| Shaft Size | 4 15/16" |
| Size Code | 3-47 |
| Static Load Rating | 33267 lbs. |
| Width | 20.13" |
Shipping Info:
| Ship weight (kg) | 61.2 |
| Ship height (cm) | 51.13 |
| Ship length (cm) | 35.89 |
| Ship width (cm) | 17.15 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Type | Bore Dia. | Overall Length | Overall Width | Overall Height | Shaft Size | Insert | Max. Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MSFPD-55 CXU | Four Bolt Pillow Block | - | - | - | - | 3 7/16" | - | - | €2,149.23 | |
 |
MSFPD-43C | Four Bolt Pillow Block | - | - | - | - | 2 11/16" | - | - | - | RFQ
|
 |
MSFPD-32 | - | - | - | - | - | - | - | - | €710.42 | |
 |

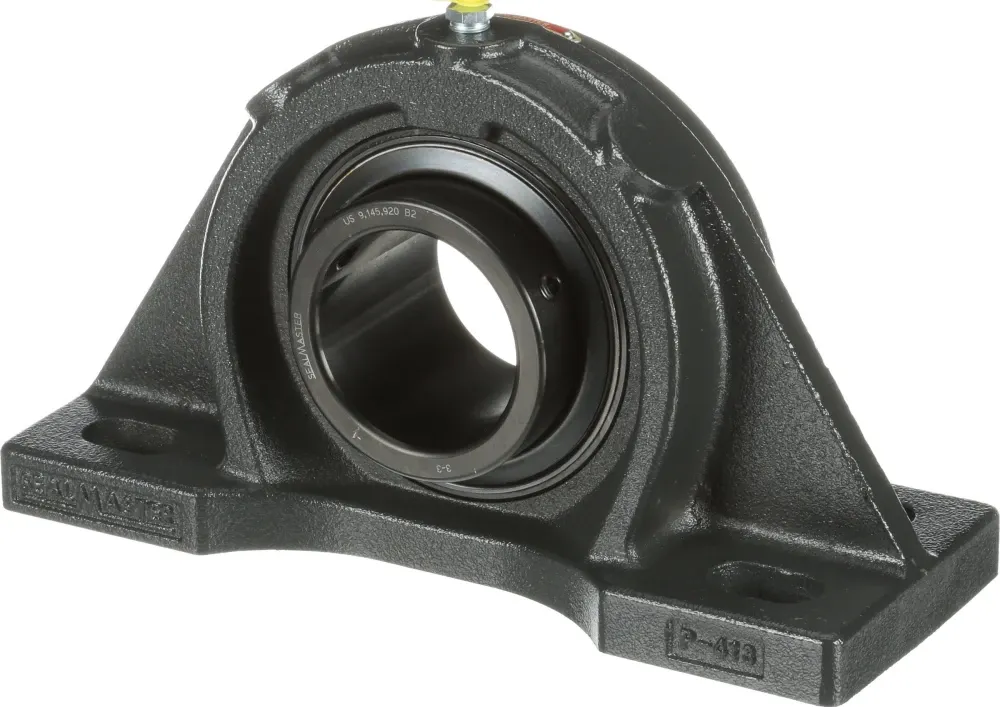

MSFPD-52 | Four Bolt Pillow Block | - | - | - | - | 3 1/4" | - | - | €2,306.64 | |
 |

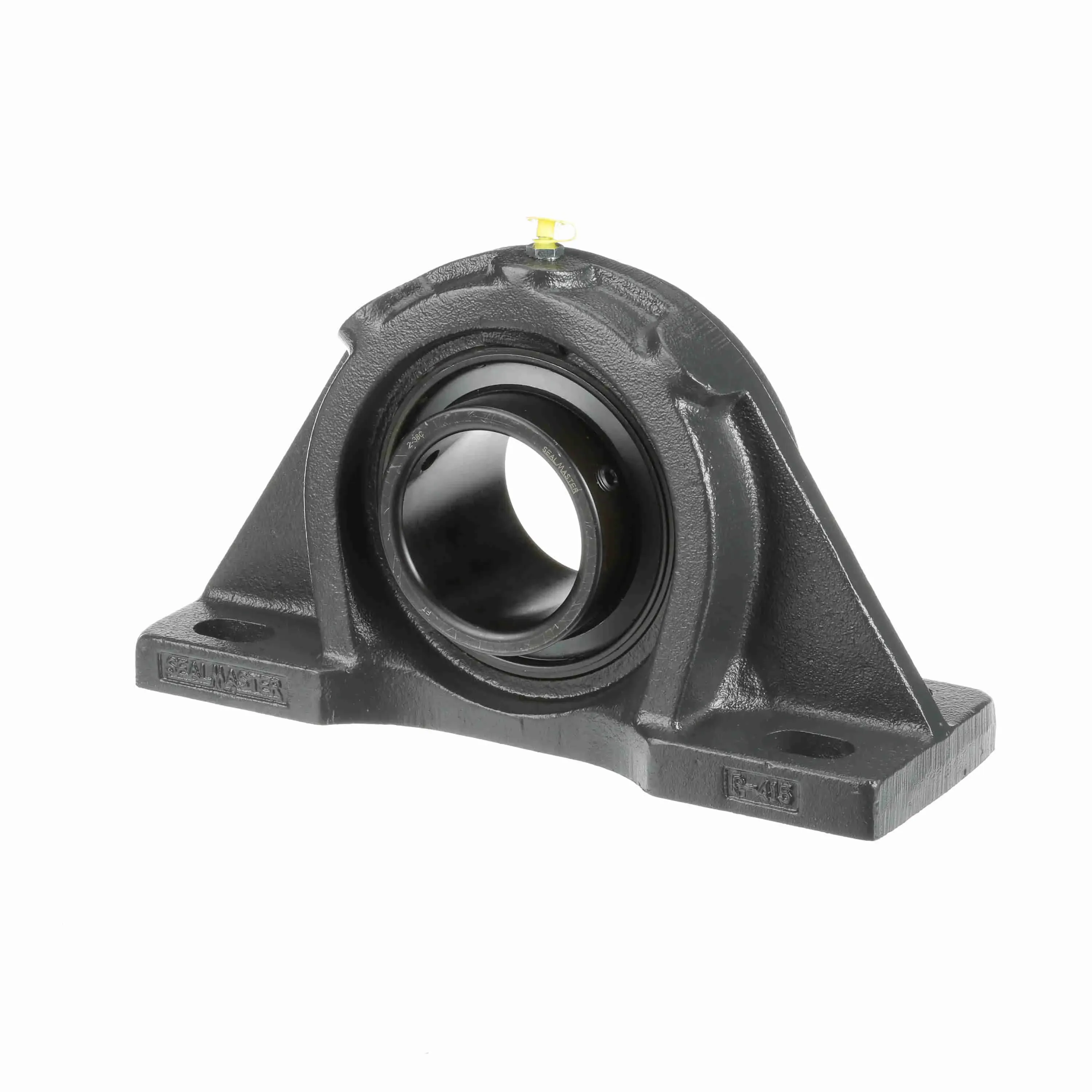

MSFPD-47C | - | 2 15/16" | 13" | 5" | 7.63" | 2 15/16" | 3-215DC | 1950 RPM | €1,806.25 | |
 |
MSFPD-43 | Four Bolt Pillow Block | - | - | - | - | 2 11/16" | - | - | - | RFQ
|
 |
MSFPD-31C | - | - | - | - | - | - | - | - | €579.61 |
