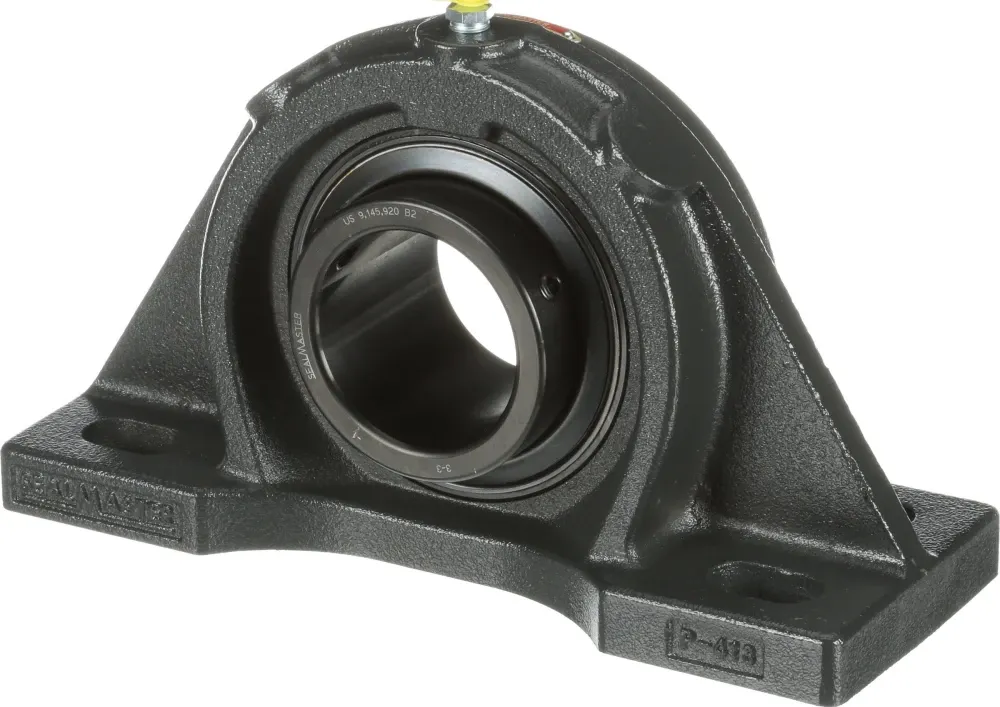

SEALMASTER MSFPD-40 Pillow Block Bearing, 4 Bolt, 2.5 Inch Dia, Double Setscrew Locking, Standard Felt Seal
Get it by Tuesday, Dec 23
€1,337.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Length | 11.31" |
| Base To Center Height | 3 1/8" |
| Base Width | 4 1/2" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Type | Medium Duty |
| Bolt Size | 5/8" |
| Bolt Spacing Max | 9" |
| Bolt Spacing Min | 7 1/2" |
| Bolt Spacing Width Direction | 2.63" |
| Bore Dia. | 2 1/2" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1 3/4" |
| Duty Series | Medium |
| Dynamic Load Capacity | 13971 lbs. |
| End Cap | No |
| Finish | Black Oxide |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1.13" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/8" |
| Grease Fitting Thread Type | NPT |
| Height | 5" |
| Housing Base | Solid |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Material Finish | Powder Coated |
| Housing Type | Pillow Block, Four Bolt |
| Inner Ring Outside Dia. | 3.438" |
| Inner-race Heat-treat Method | Zone Hardened |
| Insert | 3-28D |
| Length | 8.13" |
| Length Through Bore | 3.498" |
| Locking Device | Double Set Screw |
| Locking Type | Double Set Screw |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Max. Operating Temperature | 250°F |
| Max. Speed | 3600 RPM |
| Misalignment Capability | ±2° Misalignment Static Only |
| Misalignment Type | Static Only |
| Outer Ring Land Profile | Standard |
| Overall Height | 6.63" |
| Overall Length | 11.31" |
| Overall Width | 4 1/2" |
| Radial Clearance | Standard |
| Retainer Type | Brass |
| Rolling Element | Ball |
| Seal Flinger | Yes |
| Seal Type | Felt Seal |
| Setscrew Torque | 350 lbs.-in. to 450 lbs.-in. |
| Shaft Size | 2 1/2" |
| Size Code | 2-211 |
| Static Radial Load Capacity | 10063 lbs. |
| Vibration Frequency Fundamental Train | 0.007 Hz |
| Vibration Frequency Inner Ring Defect | 0.098 Hz |
| Vibration Frequency Outer Ring Defect | 0.068 Hz |
| Vibration Frequency Roller Spin | 0.045 Hz |
| Width | 14" |
Shipping Info:
| Ship weight (kg) | 11.43 |
| Ship height (cm) | 12.7 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 20.65 |
Product Variants
| Product | Model | Housing Type | Bore Dia. | Overall Length | Overall Width | Overall Height | Shaft Size | Insert | Max. Speed | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MSFPD-55 CXU | Four Bolt Pillow Block | - | - | - | - | 3 7/16" | - | - | €2,149.23 | |
 |
MSFPD-43C | Four Bolt Pillow Block | - | - | - | - | 2 11/16" | - | - | - | RFQ
|
 |
MSFPD-32 | - | - | - | - | - | - | - | - | €710.42 | |
 |
MSFPD-79 | - | 4 15/16" | 19" | 5 3/4" | 12.38" | 4 15/16" | 3-415D | 1950 RPM | €8,612.81 | |
 |
MSFPD-52 | Four Bolt Pillow Block | - | - | - | - | 3 1/4" | - | - | €2,306.64 | |
 |
MSFPD-47C | - | 2 15/16" | 13" | 5" | 7.63" | 2 15/16" | 3-215DC | 1950 RPM | €1,806.25 | |
 |
MSFPD-43 | Four Bolt Pillow Block | - | - | - | - | 2 11/16" | - | - | - | RFQ
|
