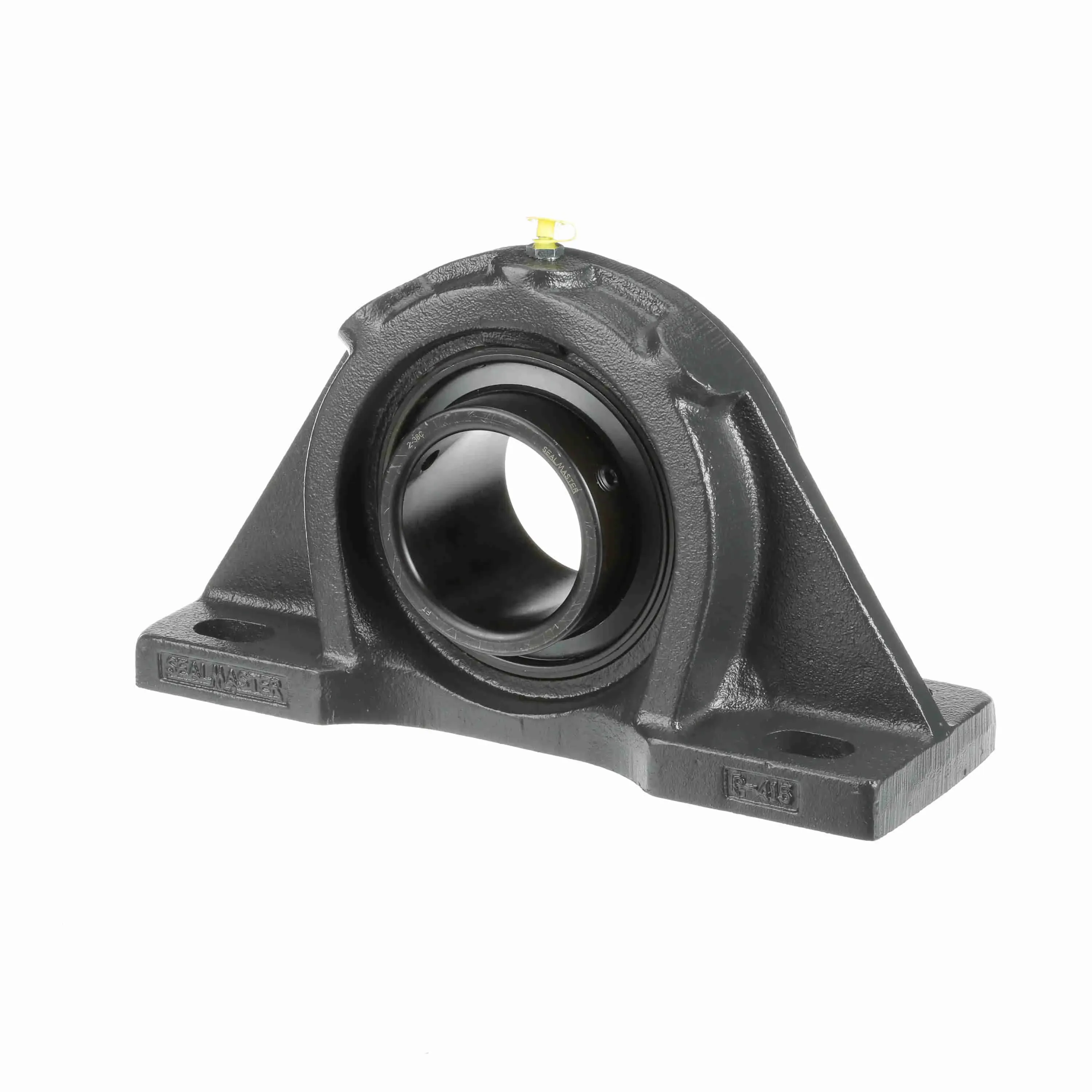

SEALMASTER MSFPD-47C 702550 Pillow Block Bearing, 4 Bolt, 2.9375 Inch Dia, Double Setscrew Locking, Single Lip Contact
Get it by Tuesday, Aug 25
€1,806.25 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Pillow Block Bearing |
| Ability To Relubricate | Yes |
| Base Length | 13" |
| Base To Center Height | 3 3/4" |
| Base Width | 5" |
| Bearing Insert Finish | Black Oxide |
| Bearing Insert Material | Steel |
| Bearing Insert Material Grade | 52100 |
| Bearing Insert Type | Medium Duty |
| Bearing Type | Medium Duty |
| Bolt Size | 3/4" |
| Bolt Spacing Width Direction | 2 3/4" |
| Bore Dia. | 2 15/16" |
| Bore Shape | Straight |
| Cage Material | Brass |
| Cage Type | Land Riding Retainer |
| Centerline To Outermost Bearing Face | 1.938" |
| Duty Series | Medium |
| Dynamic Load Capacity | 17412 lbs. |
| End Cap | No |
| Finish | Black Oxide |
| Fixed Vs. Expansion | Fixed |
| Foot Height | 1 1/4" |
| Grade | Grade 52100 |
| Grease Fitting Thread Size | 1/4" |
| Grease Fitting Thread Type | NPT |
| Height | 5" |
| Housing Base | Solid |
| Housing Coating | Powder Coated |
| Housing Color | Black |
| Housing Construction | One Piece |
| Housing Material | Cast Iron |
| Housing Style | Pillow Block |
| Htc | 8483.20.8040 |
| Inner Race Heat Treat Method | Zone Hardened |
| Insert | 3-215DC |
| Inside Ring Outside Dia. | 3.922" |
| Length | 14" |
| Length Through Bore | 3 7/8" |
| Locking Device | Double Set Screw |
| Lubricant | Lithium Complex NLGI 2 Grease |
| Lubrication Type | Lithium Complex NLGI 2 Grease |
| Max. Bolt Spacing | 10 1/2" |
| Max. Speed | 1950 RPM |
| Min. Bolt Spacing | 9" |
| Misalignment Type | Static Only |
| No. Links/ft. | 0 |
| Outer Ring Land Profile | Standard |
| Overall Height | 7.63" |
| Overall Length | 13" |
| Overall Width | 5" |
| Radial Clearance | Standard |
| Retainer Type | Brass |
| Seal Flinger | No |
| Shaft Locking Type | Double Set Screw |
| Shaft Size | 2 15/16" |
| Size Code | 2-33 |
| Static Load Rating | 13174 lbs. |
| Width | 8.13" |
Shipping Info:
| Ship weight (kg) | 16.36 |
| Ship height (cm) | 20.65 |
| Ship length (cm) | 35.56 |
| Ship width (cm) | 12.7 |
| Country of Origin | US |
Product Variants
| Product | Model | Bore Dia. | Overall Height | Dynamic Load Capacity | Overall Width | Bolt Size | Base Width | Base To Center Height | Seal Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
MSFPD-55 CXU | - | - | - | - | - | - | - | Felt Seal | €2,149.23 | |
 |

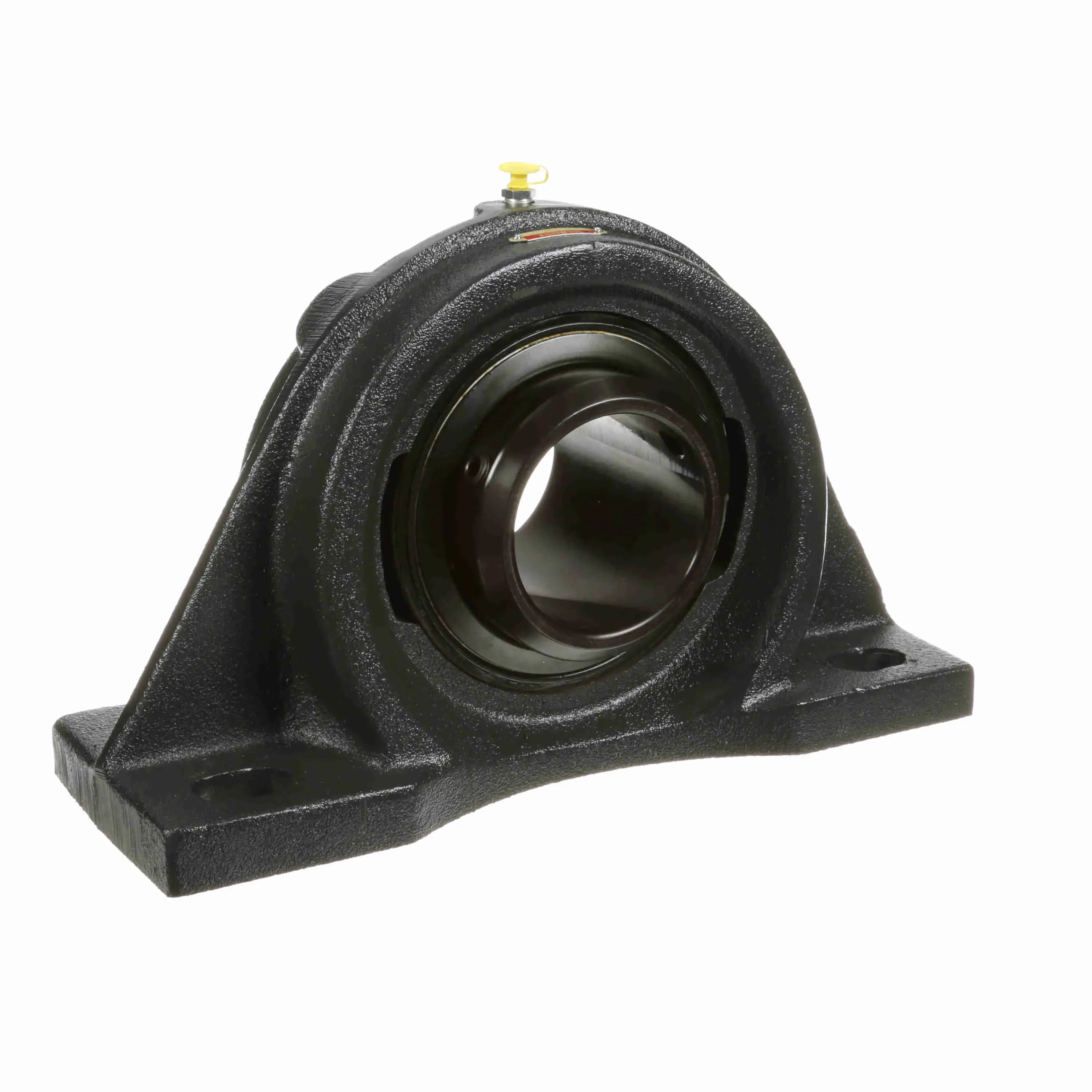

MSFPD-79 | 4 15/16" | 12.38" | 37482 lbs. | 5 3/4" | 1" | 5 1/2" | 6 1/4" | - | €8,612.81 | |
 |

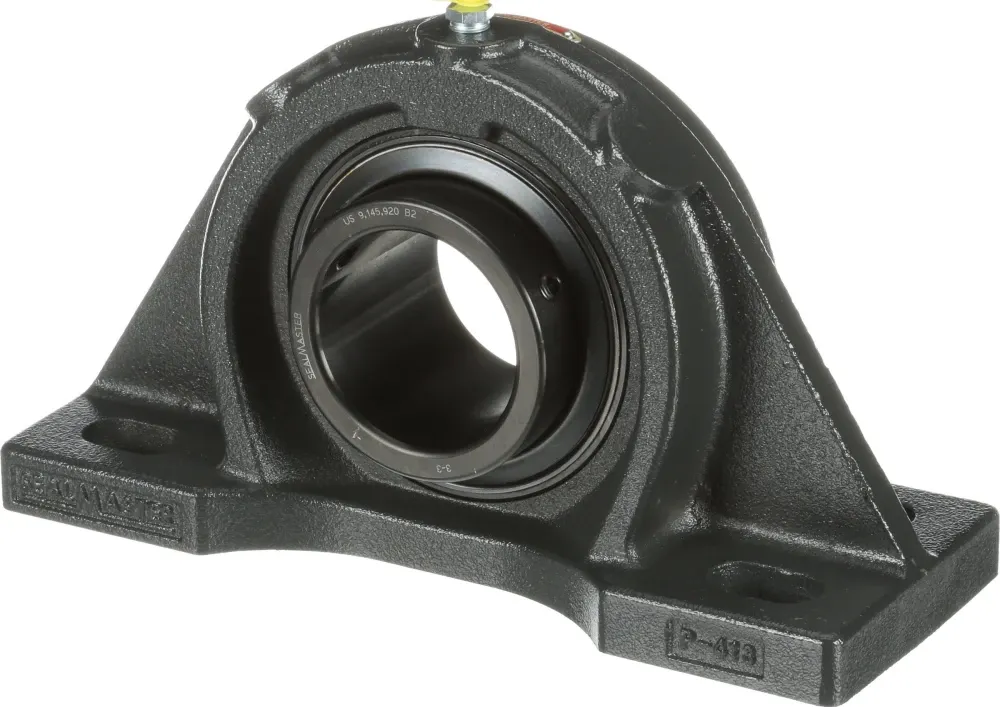

MSFPD-52 | - | - | - | - | - | - | - | Felt Seal | €2,306.64 | |
 |
MSFPD-48C | - | - | - | - | - | - | - | Single Lip Contact | €1,682.42 | |
|
MSFPD-47 | 2 15/16" | 7.63" | 17412 lbs. | 5" | 3/4" | 5" | 3 3/4" | - | €1,650.76 | |
 |
MSFPD-71 | 4 7/16" | 12.38" | 37482 lbs. | 5 3/4" | 1" | 5 1/2" | 6 1/4" | - | €8,895.95 | |
 |
MSFPD-32C | - | - | - | - | - | - | - | Single Lip Contact | €2,913.87 |
