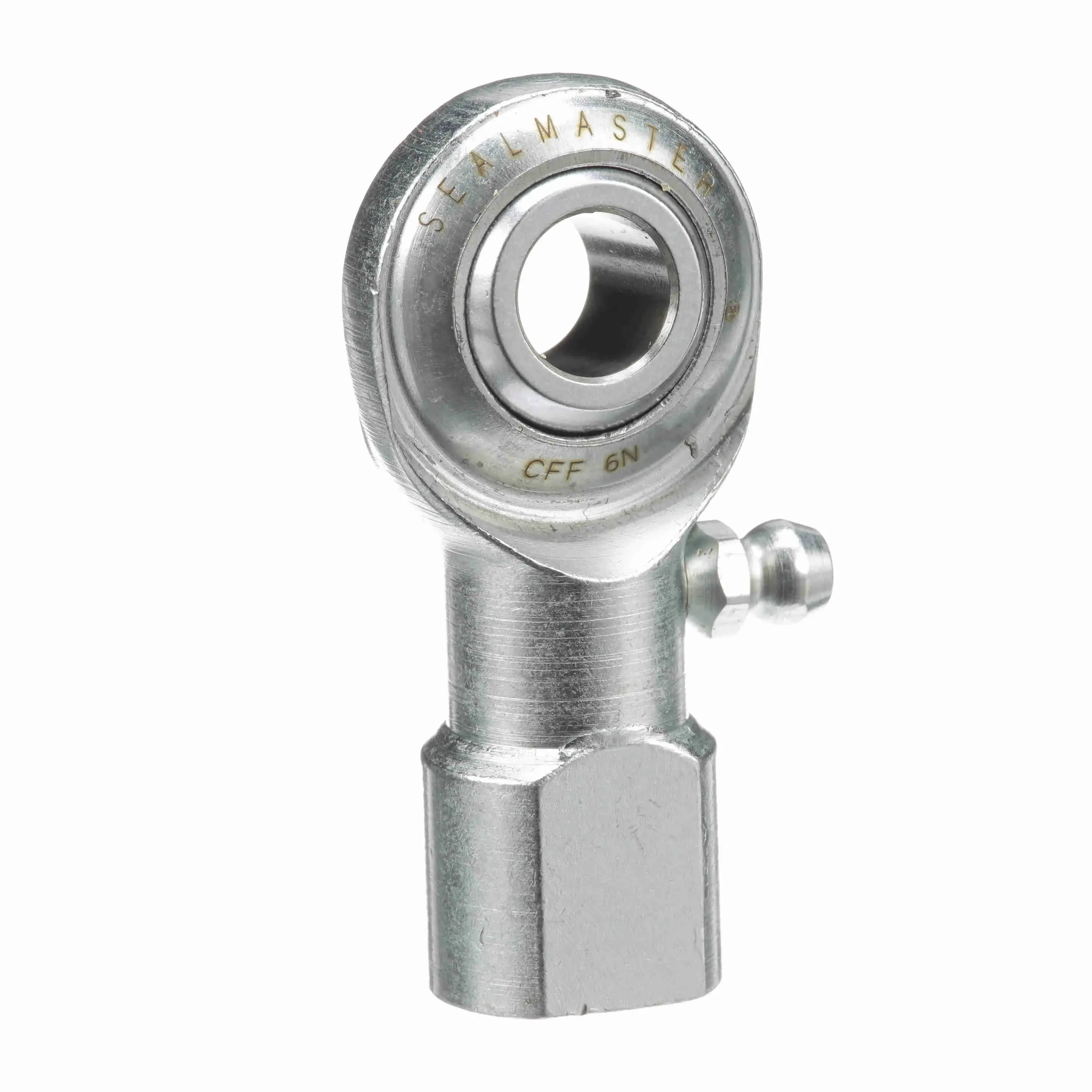

SEALMASTER CFF 6N 1490601000 Rod End Bearing, 3/8 Inch Bore, 13/32 Inch Housing Width, Female, Right Hand
Get it by Wednesday, Aug 26
€19.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Rod End Bearing |
| Ability To Relubricate | Yes |
| Across Wrench Flats | 0.562" |
| Axial Load | 500 |
| Ball Dia. | 0.718" |
| Ball Finish | Chrome Plated |
| Ball Flat Dia. | 0.517" |
| Ball Material | Alloy, Steel |
| Ball Width | 1/2" |
| Base Dia. | 0.688" |
| Bearing Insert Type | Rod End |
| Bore Dia. | 3/8" |
| Class | Commercial |
| Configuration | Female |
| Construction | Two Piece Rod End With Zerk Fitting |
| Head Dia. | 1" |
| Housing Style | Female Rod End |
| Housing Width | 0.406" |
| Htc | 8483.30.8055 |
| Length To Center Of Ball | 1.63" |
| Lubrication | Zerk Fitting |
| Lubrication Method | Fitting |
| Lubrication Type | Grease |
| Max. Ambient Temp. | 350°F |
| Max. Static Radial Load | 5000 |
| Misalignment Angle | -6° to +6° |
| Outer Material | Carbon Steel |
| Outer Material Property | Corrosion Resistant Plating |
| Product Selection Available Sw | Yes |
| Product Type | Cff |
| Series | Commercial Series |
| Thread Direction | RH |
| Thread Length | 0.781" |
| Thread Size | 3/8"-24 |
| Thread Type | UNF |
| Type | Female Rod End |
| Zerk Fitting Sw | Yes |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 5.41 |
| Ship width (cm) | 1.42 |
| Country of Origin | MX |
Product Variants
| Product | Model | Bore Dia. | Ball Dia. | Shank Thread Size | Grade | Static Radial Load Capacity | Head Width | Type | Race Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CFF 3 | 3/16" | 0.437" | - | - | - | - | Female Rod End | - | €11.68 | |
 |
CFF 8T | 1/2" | 0.937" | - | - | - | - | Female Rod End | Teflon | €59.72 | |
 |
CFFL 4 | 1/4" | 1/2" | - | - | - | - | Female Rod End | - | €14.43 | |
 |
CFFL 10 | 5/8" | - | - | - | - | - | - | - | €197.92 | |
 |
CFFL 8 | 1/2" | 0.937" | - | - | - | - | Female Rod End | - | €28.12 | |
 |
CFF 10N | 5/8" | 1 1/8" | - | - | - | - | Female Rod End | - | €42.27 | |
 |
CFF 7N | 7/16" | 0.812" | - | - | - | - | Female Rod End | - | €22.47 |
